Product Description
Heavy Duty Multi Function 40ft 3 4 Axle 80-200 Ton Lowboy Lowbed Low Bed 200 ton trailer truck
LUYI versatile series semi-trailers, consisting of a front and rear bogie, based on 2 to 9 axles.
The low loading height and high payload of the LUYI semi trailer are the economic and flexible solution for numerous different tasks in heavy duty or special transport.
low bed trailer specification
The low loading height and high payload of the LUYI semi trailer are the economic and flexible solution for numerous different tasks in heavy duty or special transport.
low bed trailer specification
We can design and manufacture low bed semi trailer according to your exact requirements, the following specifications for your reference.4 axle low bed trailer
Dimensions | 13000*3000*(700mm-1200mm) (According to customer demand) |
Axle number | Two,Three or Four and more |
Axle specs. | FUWA ,YAHUA or BPW Brand |
Suspension | Mechanical or air supension (American or German) |
Rim | 6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20 |
King Pin | JOST 2 or 3.5 traction pin |
Support legs | JOST, FUWA or YAHUA brand 28T |
Wheelbase | 7180/6680/6260+1310+1310mm,Or other |
Steel Spring | 8/8/8, 10/10/10, 12/12/12 pieces per axle |
Ladder | Manual or hydraulic automatic |
Electrical system | 24V, 7 pin socket, One set 7-core standard Cable |
Tire | 8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20 |
Number of Tire | 8 or 12 or 16 pieces |
Spare Tire Carriers | 2 pieces |
The material of Main beam | Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 Carbon Steel. |
Side beam | 16mm-25mm channel steel (Material is Q235 carbon steel) |
Platform plate | 5/6/7 mm Diamond Plate |
Brake | Kemi Brand of China |
Brake Chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); One piece of 45L air tanks |
ABS system | optional |
LUYI versatile series semi-trailers, consisting of a front and rear bogie, based on 2 to 9 axles.4 axle low bed trailer
The low loading height and high payload of the LUYI semi-trailer are the economic and flexible solution for numerous different tasks in heavy duty or special transport.3 axle low bed semi trailer
semi trailer loading container
The LUYI can be tailored individually to the transport requirements. The equipment options for the semi-trailer include:
- extendable

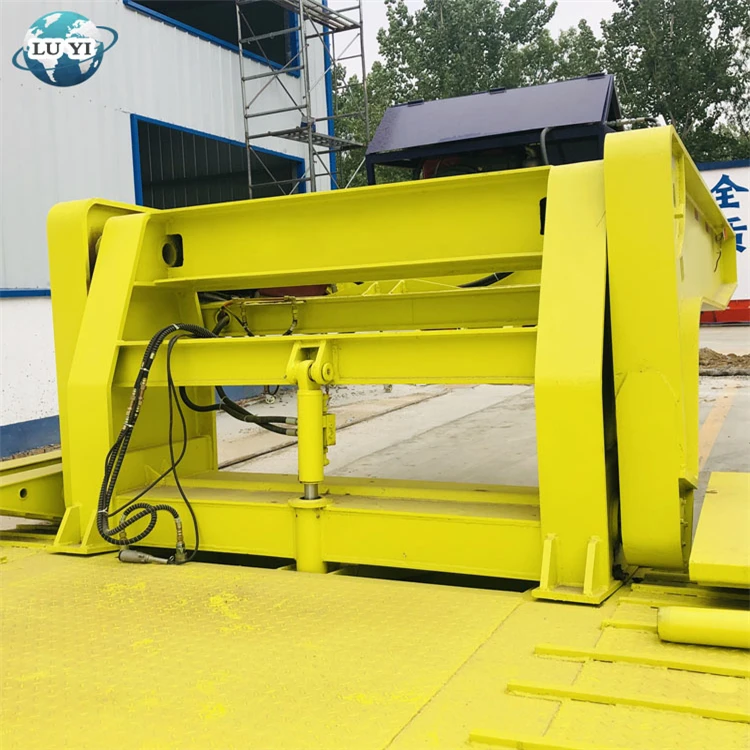

- removable gooseneck
- outer beams with fixed wooden floor
- excavator deck
- vessel deck: outer beams without fixed wooden floor
- vessel deck hydraulically extendable in width (single or double function)
- Split bogie: connectable axles, which increase application versatility
- Intermediate platform which connects the front axles to the rear axles to create a flatdeck
Product display
2 AXLE low bed semi trailer
3 AXLE lowbed semi trailer
4 AXLE lowbed semi trailer

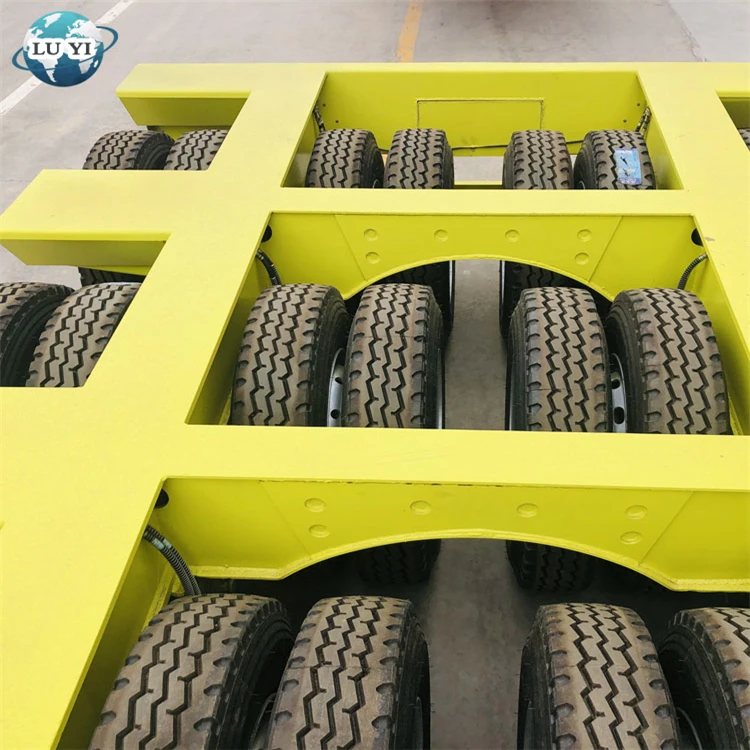

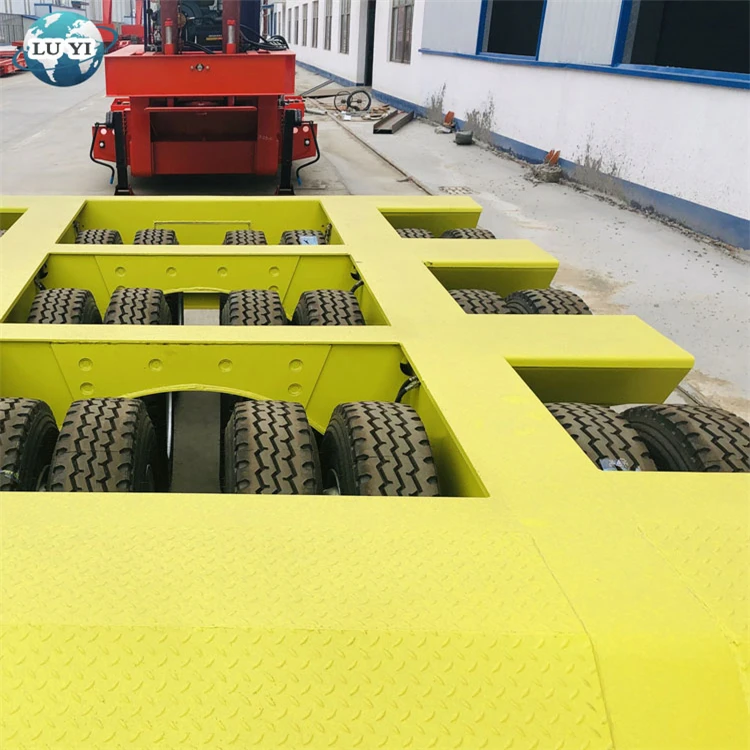

4 lines 8 axles lowbed semi trailer
Dolly lowbed semi trailer
Manufacturing Process
PROCEDURE
1)cutting
use the plasma cutting machine cut the steel to little parts use for suitable welding and splicing
2)welding
after steel cutting process the next step is welding.this process the main work is beam welding .the top plate-bottom plate and the middle plate will be welding together. this process will be use submerged arc welding process.this type of welding is very special .its exclusively used in I beam welding .after this welding process other parts of the trailer will be use different welding way for different steel-argon arc welding-electric arc welding-manual welding-gas welding and so on.
3)blasting this process is use for the first step of surface cleanness-stress relief-derusting before paiting .
4)electrophoresis coating
this process use for more detail surface cleanness
after steel cutting process the next step is welding.this process the main work is beam welding .the top plate-bottom plate and the middle plate will be welding together. this process will be use submerged arc welding process.this type of welding is very special .its exclusively used in I beam welding .after this welding process other parts of the trailer will be use different welding way for different steel-argon arc welding-electric arc welding-manual welding-gas welding and so on.
3)blasting this process is use for the first step of surface cleanness-stress relief-derusting before paiting .
4)electrophoresis coating
this process use for more detail surface cleanness
5)epoxy zinc primer spray coating
this process is the lasting one before paiting .after this process the trailer an be paiting
this process is the lasting one before paiting .after this process the trailer an be paiting
6)assembly
after all the process we have mationed .the last procedure of the trailer is assembly.this process all the parts will be assemly .it including tire-wheel rim-king pin-landing gear-suspension-spring leaf -brake chamber-air wiring-electricity wiring-brake system and so on
after all the process we have mationed .the last procedure of the trailer is assembly.this process all the parts will be assemly .it including tire-wheel rim-king pin-landing gear-suspension-spring leaf -brake chamber-air wiring-electricity wiring-brake system and so on
7)packing
The last process is packing .all the trailer use different packing way as customer requirment.after packing the trailer can be on the way to the customer
The last process is packing .all the trailer use different packing way as customer requirment.after packing the trailer can be on the way to the customer
Recommend Products
About LUYI VEHICLE
Shandong Luyi Vehicle Co., Ltd. Is a designated automobile manufacturer approved by the ministry of industry and information technology of the People's Republic of China to manufacture various semi-trailers and commercial vehicles.Main product are Lowbed ,flatbed ,Cement tanker,Tanker,Tipper,Cargo trailer,Port trailer,Gas tanker,etc.
Luyi Vehicle has a first-class CNC cutting machine, automatic welding machine; Large bending machine, jigsaw machine, can machine, tank automatic welding turning machine, whole car through shot blasting machine, Swiss four-wheel positioning and other production and various testing equipment.
Choose Luyi Vehicle,choose best partner.
Luyi Vehicle Clients
Luyi Vehicle has served more than 80 countries.
Including Germany, Australia, Africa, southeast Asia, the Middle East, South Africa, South America, etc., and has established 78 service points in 50 major market countries
Choose Luyi Vehicle,Choose best partner.
Service
1.12months for main parts (engine, axle, body and beam, etc)
2. Technical Support by phone Whatsapp or email around the clock
3. Lifelong Parts Supports
4.The good faith management is our philosophy, and welcome visits our company at any time
5.According to your order, we provide suitable trailer.
Just trust us, you will get a satisfactory answer.
Contact us
Eric
Tel/ WhatsApp/Wechat :+8617562232978
Email:luyi6(at)luyitruck.com
Email:luyi6(at)luyitruck.com
Shandong Luyi Vehcile Co., Ltd.
Add :Block A, West Area, Innovation Building.
High-Tech Zone, Jining, Shandong, CN.
High-Tech Zone, Jining, Shandong, CN.
Please feel free to contact us for any questions about sales, maintenance and repair, whether it is LUYI or your own vehicle, we will do our best to support you.
