Переходная карта Compact Flash CF для IDE/SATA 40 контактный разъем IDE адаптер Поддержка DMA

 CompactFlash(CF) CARDS are portable solid-state electronic disks with a standard IDE interface.It's a small volume, large capacity electronic disk.We have developed a series of CF to IDE adapters to facilitate your use of CF CARDS on standard ides.The CF card is a low-cost electronic disk card that is widely used in laptops, personal digital assistants (pdas), portable devices, or industrial equipment.In the electronics industry, people use the CF card as a hard drive to store the test software, because the frequent switching on and off of computer power can easily damage the traditional mechanical hard drive.
Supports one single CF card Type I/II.
No driver is required
Master / Slave mode selection
Male 40-pin IDE connector.
You can boot from Dos/Windows/Linux with CF, same as IDE hard drives, but much faster Master/Slave jumper, with DMA MODE

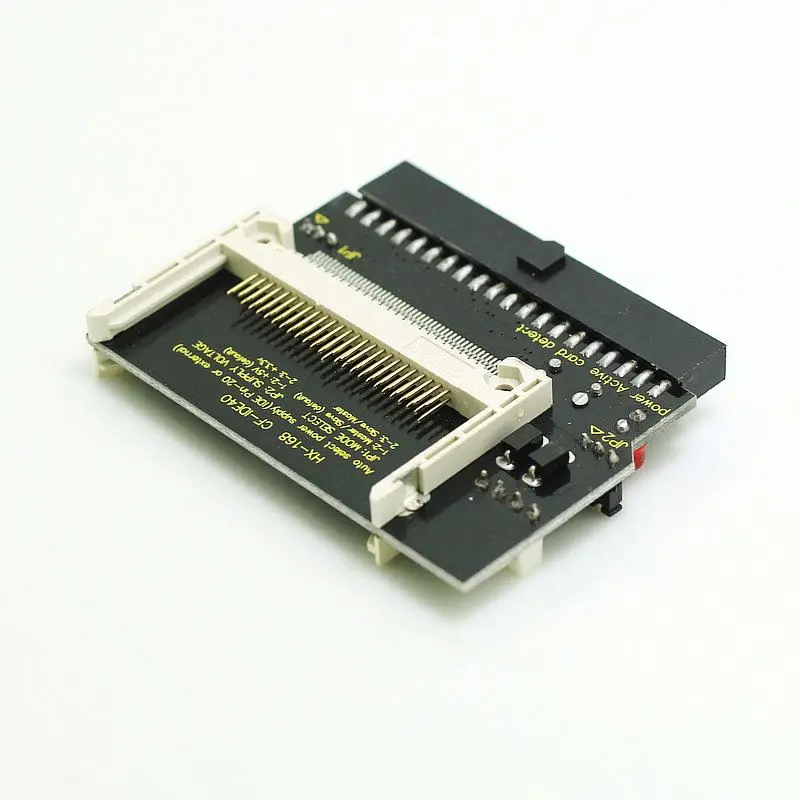

Product Name : CF to IDE Adapter Card;Type : CF to IDE 40pin Female
Size : 60 x 46mm / 2.4" x 1.8"(L*W)
Color : Black, White

Performance characteristics:

* compliance: CF specification Ver2.0, IDE/ ata-33 specification.

* standard IDE interface: true-ide mode with support for dma-33 transfer mode.

* supports two types of cf-i and cf-ii CARDS: IBM microhard drives that also support the cf-ii interface.

* IDE interface is 40 pin /2.54mm female connector: you can plug this card directly into the IDE socket.

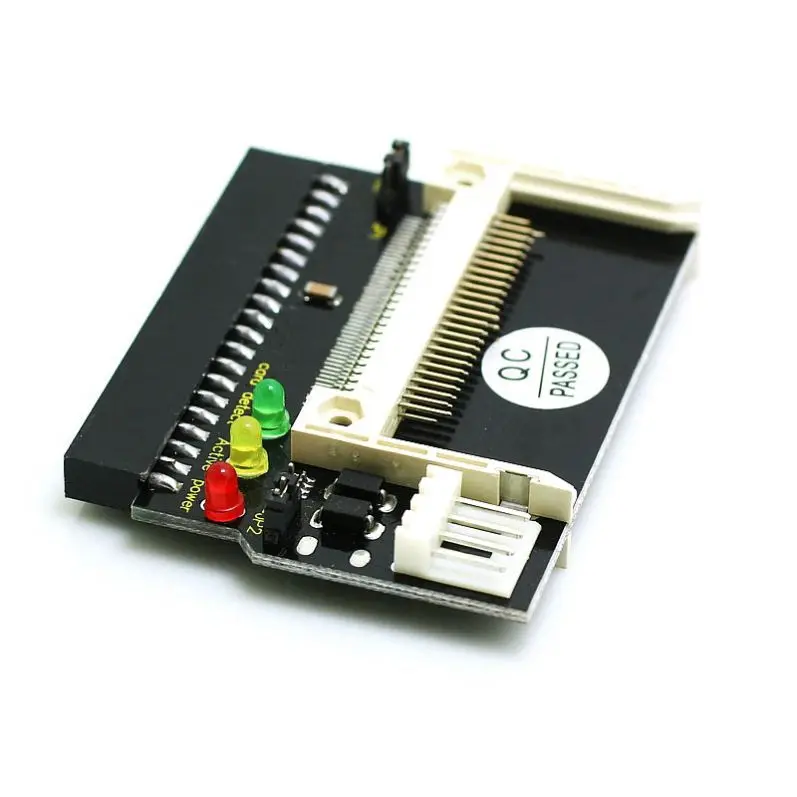

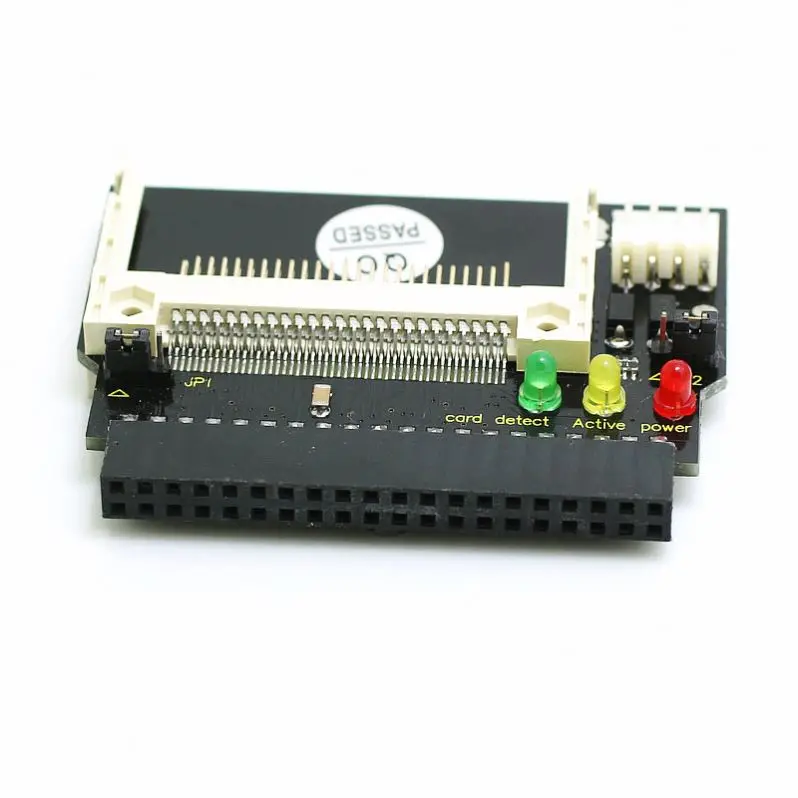

* 3 LED indicators: power LED, active CF access LED, card detect LED.

* master/slave jumper: can be configured as master or slave.

* use the CF card as a DOM: automatically power from the IDE's 20-pin or external floppy power base.

* 5.0v or 3.3v power supply: choose the appropriate power supply voltage based on your CF card.

Main USES:

Computer peripherals manufacturers use CF-IDE CARDS with CF CARDS to test motherboards, sound CARDS, graphics CARDS and other products.Frequently turn the power on/off in these situations.Traditional mechanical hard disks are easily damaged.

CF is an electronic hard disk, which in principle is very different from a mechanical hard disk and is not easily damaged in these situations.

Portable devices using embedded X86 or RISC cores usually have IDE interfaces. If the CF card is not directly connected to these devices, you can use this adapter to complete the transfer.

Personal computer (PC) : these computers are usually X86 kernel, which is the main platform of this card, some digital cameras have CF card interface, you can access your picture data on the desktop through this card.

Industrial PCS use this card in conjunction with the CF card to store embedded operating systems such as embedded LINUX or WIN CE, you can also use the CFAct as a moving hard disk so that data can be moved around at will.

Packing: transparent plastic bag

Weight : 19g
Package Content : 1 x CF to IDE Adapter Card
