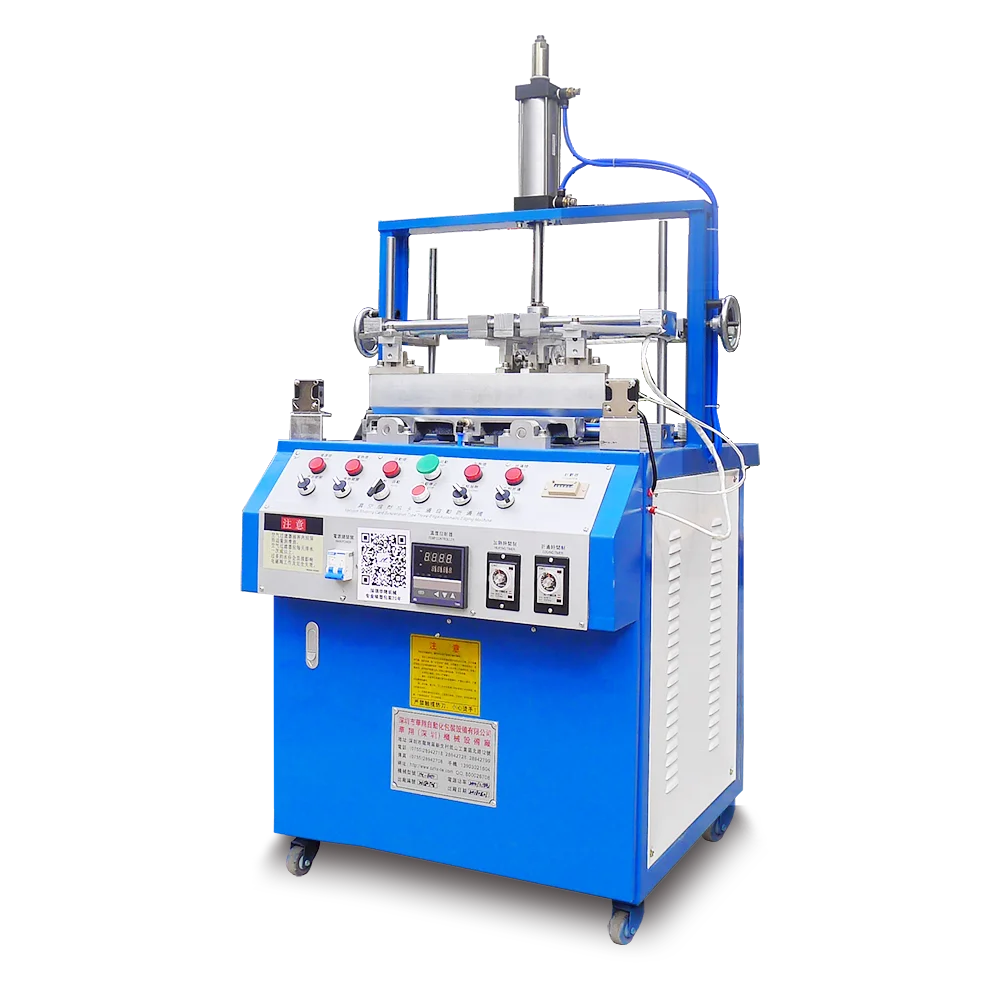

Пневматическая ручная 3 сторонняя пластиковая блистерная кромка Складная машина для косметической упаковки
- Категория: >>>
- Поставщик: Shenzhen Huaxiang Mechanical Equipment Co. Ltd.
Сохранить в закладки 62368359015:
Описание и отзывы
Характеристики
Product Description

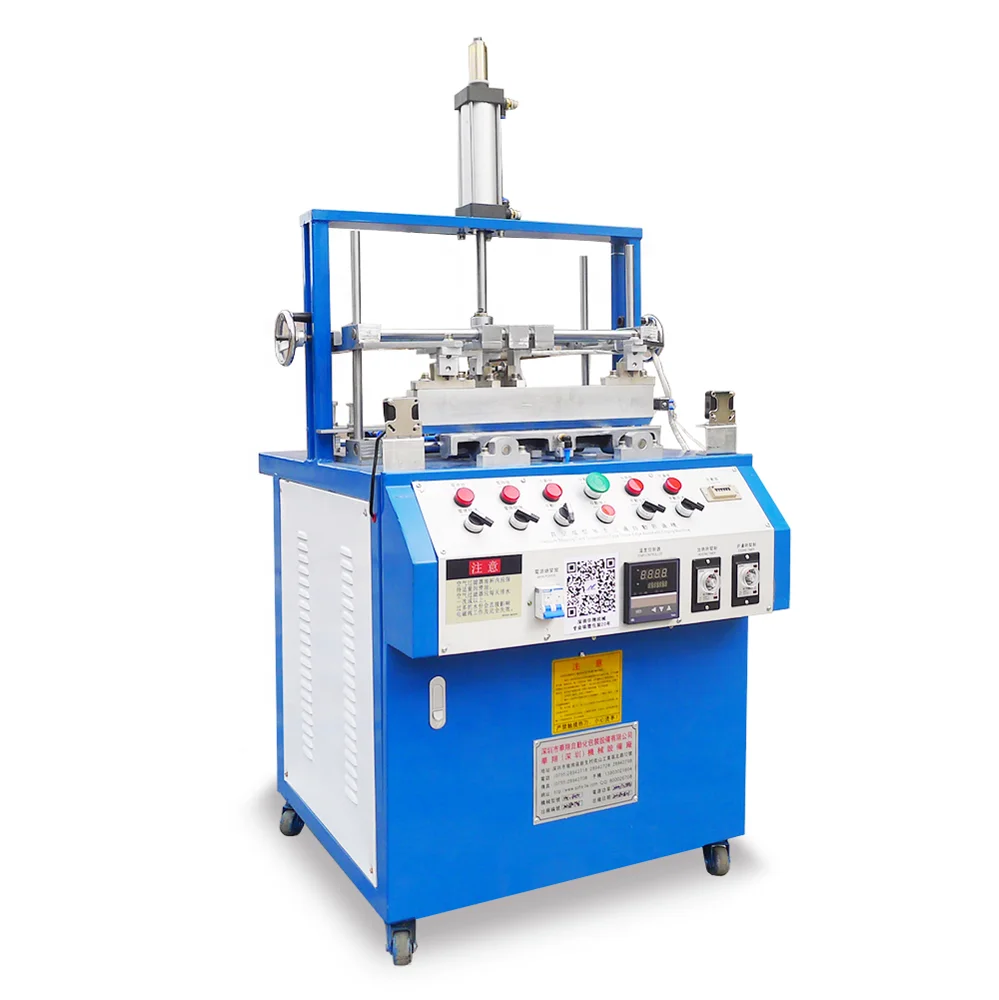

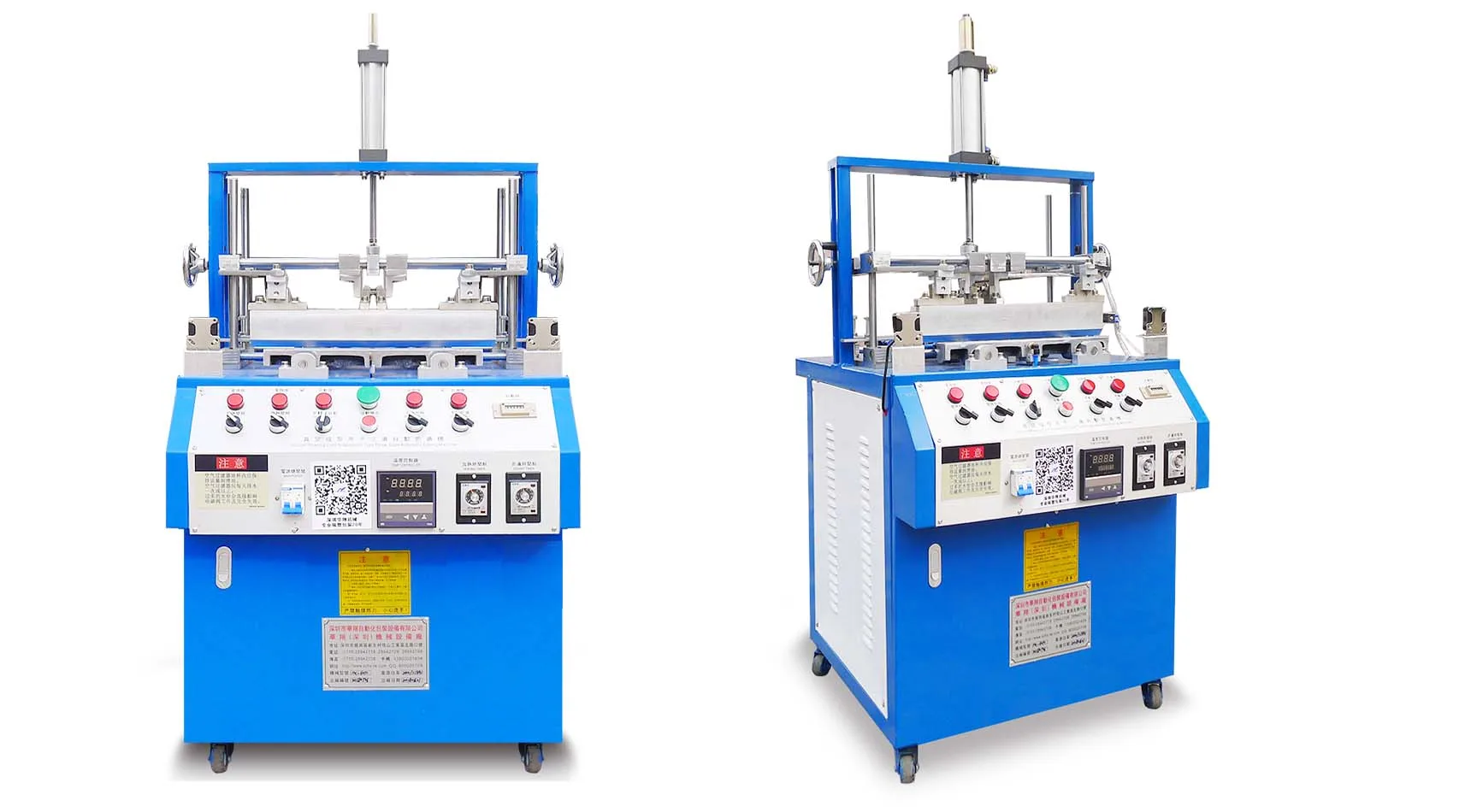

HX-4050 Plastic Edge Folding Machine
Application:
Suitable for trilateral plastic blister and plastic sheet packing products for folding ,widely used in plastic packaging area like toys, stationery, daily necessities, cosmetics, hardware, electronic gadgets etc.
Suitable for trilateral plastic blister and plastic sheet packing products for folding ,widely used in plastic packaging area like toys, stationery, daily necessities, cosmetics, hardware, electronic gadgets etc.
Features:
1.All sides have separate heating temperature adjustment, the temperature of each side can be adjusted freely.
2.The infrared photoelectric safety design, safety operation.
3.The cooling device can rapidly cooled down the folding items.
3.The cooling device can rapidly cooled down the folding items.
4.The products size can be adjust accordingly.
Parameter | ||
Model | HX-4050 | |
Power supply | 220V 50HZ | |
Power | 1.5KW | |
Size of folding | 500*300mm | |
Speed | 300--600times/hour | |
Thickness of material | 0.3-1.5mm | |
Machine size | 800*600*1550mm | |
Weight | 150kg | |
Configuration List | ||
Timer | Japanese, "CKC" | |
Relay | Japanese, "OMRON" | |
Photoelectric safety devices | Japanese "AUTONICS" | |
Temperature contral | Chinese Digital temperature control | |
Contactor ( switch ) | Chinese "CHNT" | |
Air Cylinder | Chinese | |

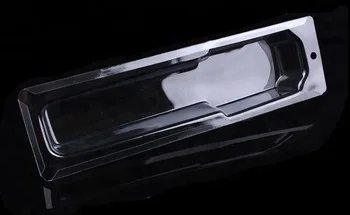

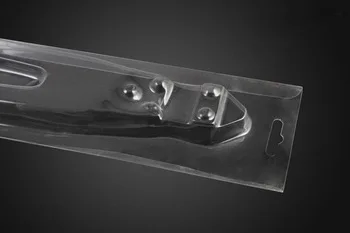

Samples Shows

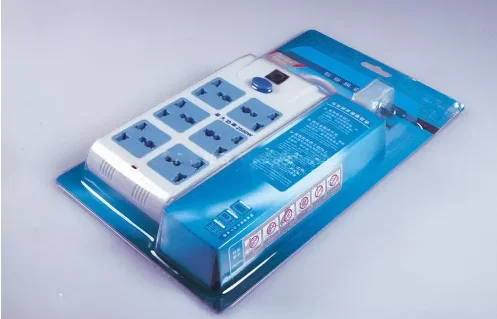

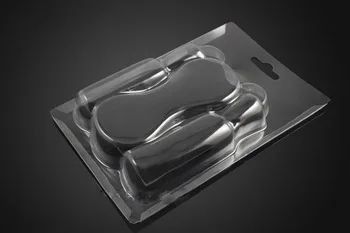

One kind of low cost packaging solution.used for Blister package ,such as plug-in card packaging, widely used in toys, stationery, Digital products folding, which can make the packed goods simple and beautiful.

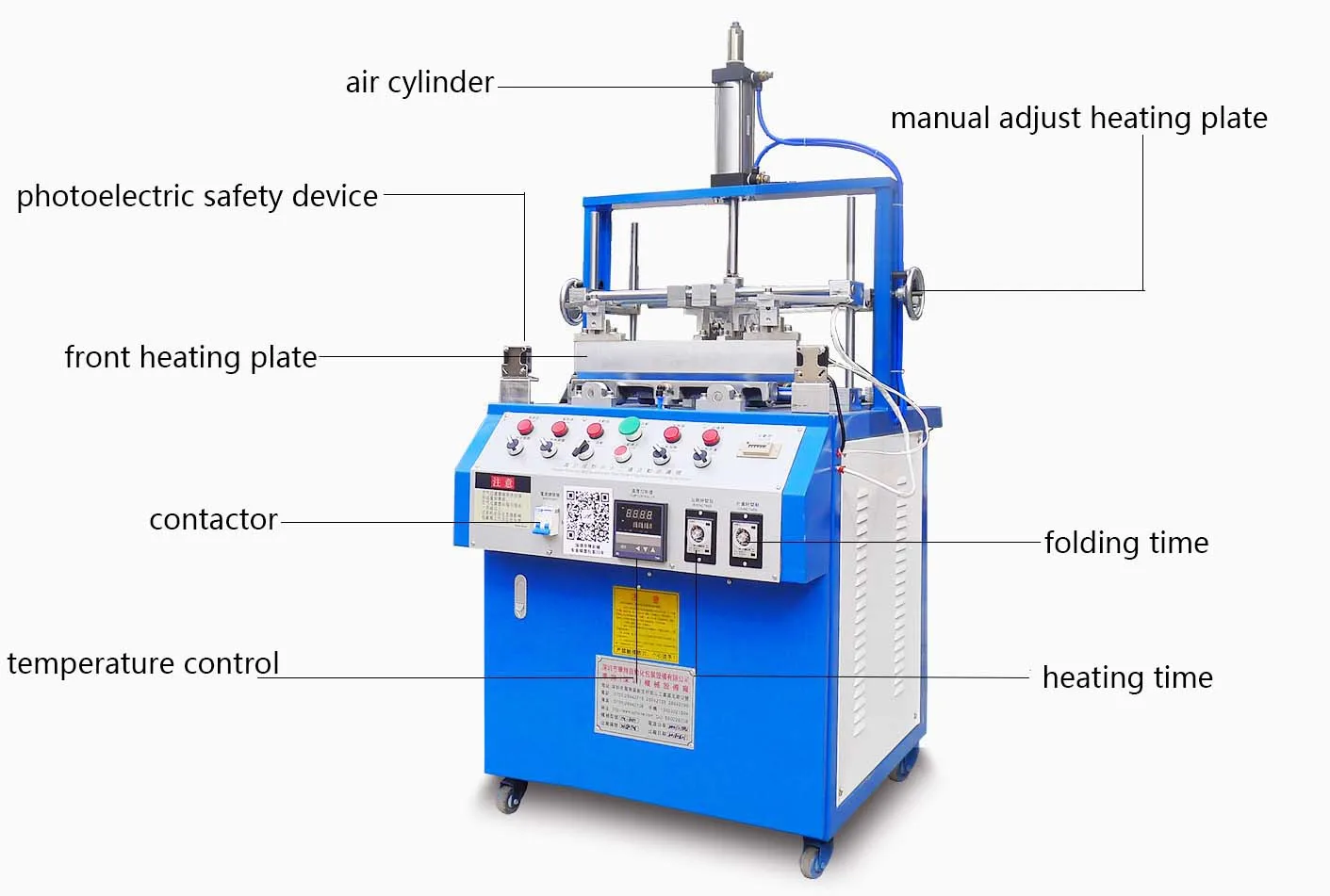

Details Images

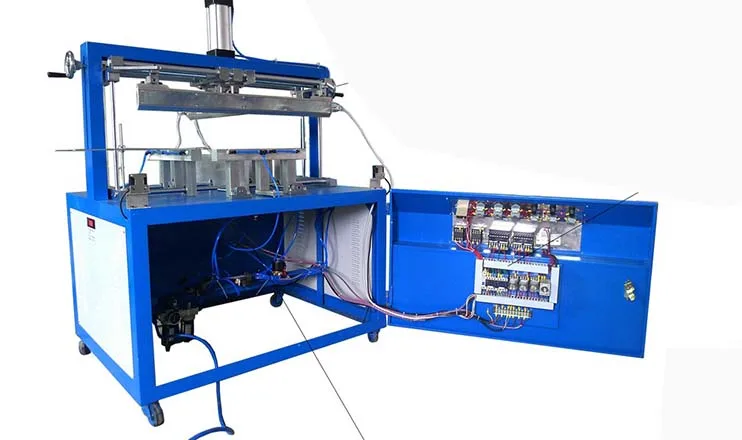

In the inner part, we use high-end electronic components.
4 guids in the top, make sure more stable when working
The main fram use special steel structure with green paint.
photoelectric safety device with automatic leakage protection switch,safe and reliable.

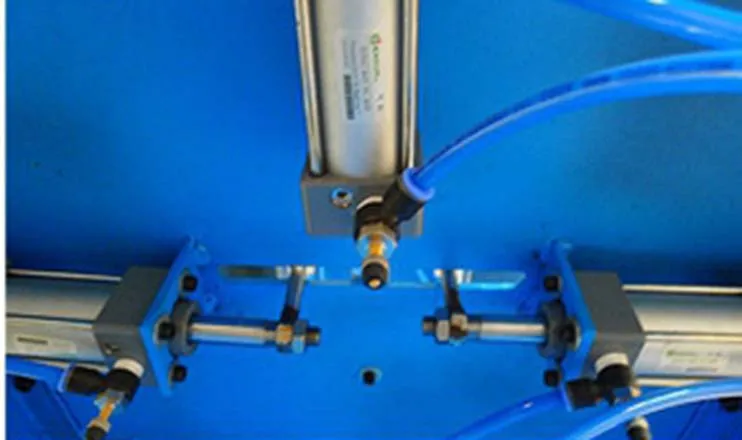

Three-way cylinder

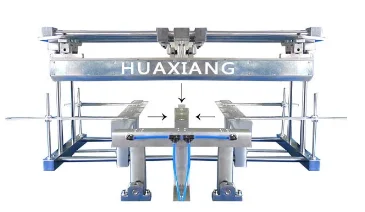

Pressure from three sides make plastic stereotypes.
How to use
1. Put blister 2.bending/folding 3.take out blister 4. done

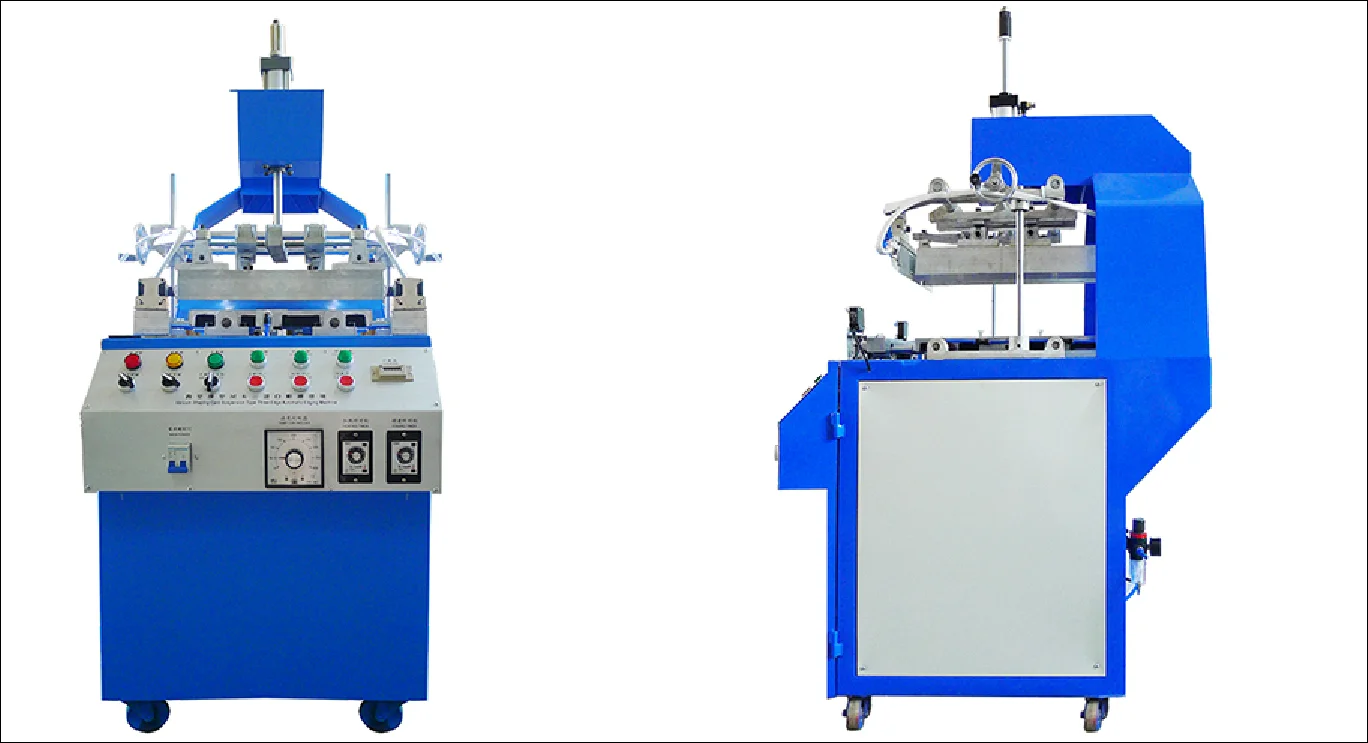

Machine comparison

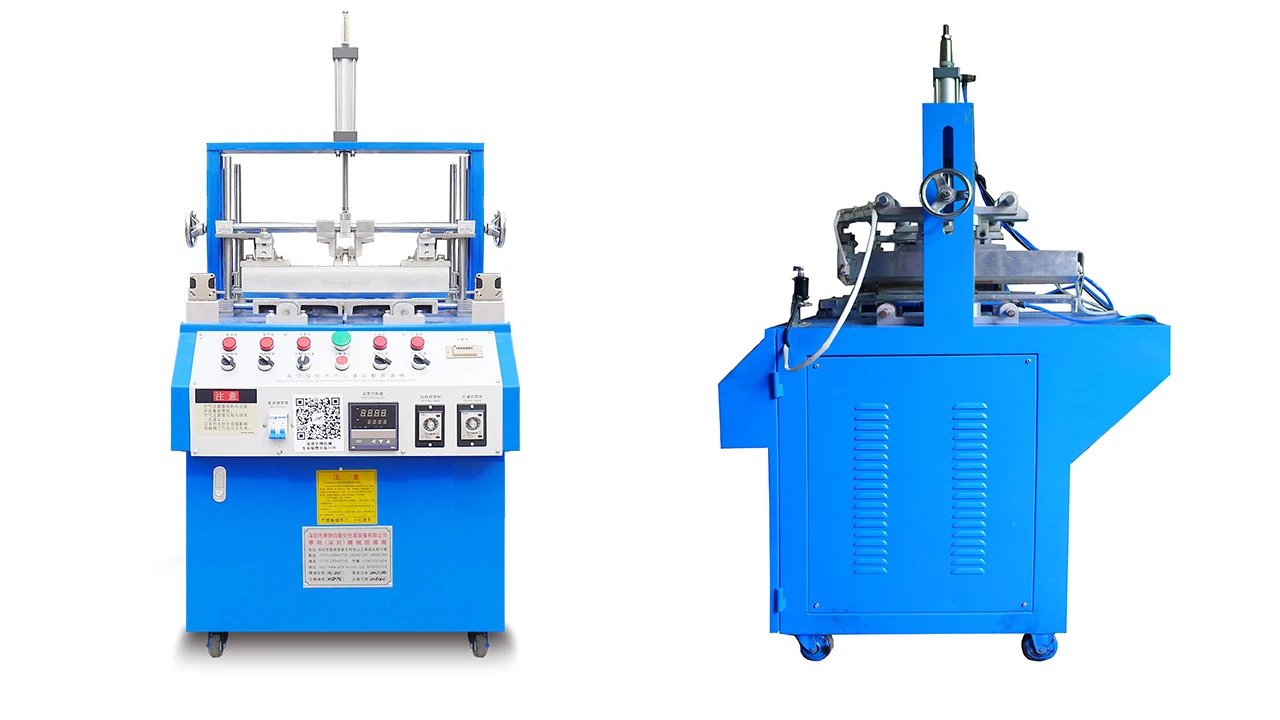

HX-4050A Upgraded Type HX-4050 Standard Type
1. HX-4050A has high quality with Reasonable structure and refined parts
2. Four guids in the top
3. Japanese photoelectric safety device
4. Digital temperature setting
1. HX-4050A has high quality with Reasonable structure and refined parts
2. Four guids in the top
3. Japanese photoelectric safety device
4. Digital temperature setting
Packing&Delivery
Packaging | ||
Size | L1.0*W0.9*H2.0=1.8CBM | |
Weight | 0.5T | |
Packaging details | 1.The normal package is wooden box. 2. If export to European countries, wooden box will be fumigated. 3. If container is too tight, we will use pe- film for packing or pack it according to customers special request. | |
Our service
Pre-sales service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-sales service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
1. How can i install the machine and operate it?
Our machine is easy to install and convenient to operate. We will send you English version manual, videos, photos to let you know how to do it. Meanwhile we also support free online service for you. Just tell us what you need and what problems happen. We will give you the best solutions within 24hrs. Also we can provide engineer overseas service.
2. How can you ensure the machine quality?
The accessories in the machine are imported from Japan, German, Korea and so on. Our goal is win the customer with best quality. All our workers in factory has more than 5 years experiences in this field. And we will test and check the machine again before shipped.
3. How can i do if the machine failure?
Welcome to contact us directly if the machine failure, we have professional technology team 24hrs online. We can give you the solutions in the first time to ensure the machine can work again.
Welcome to contact us directly if the machine failure, we have professional technology team 24hrs online. We can give you the solutions in the first time to ensure the machine can work again.
4. How about your warranty?
We can provide 12 months free replace accessories. Meanwhile we will provide 2-3 sets free accessories when you purchase the machine. If possible, our engineer can go to overseas for fix your machine.

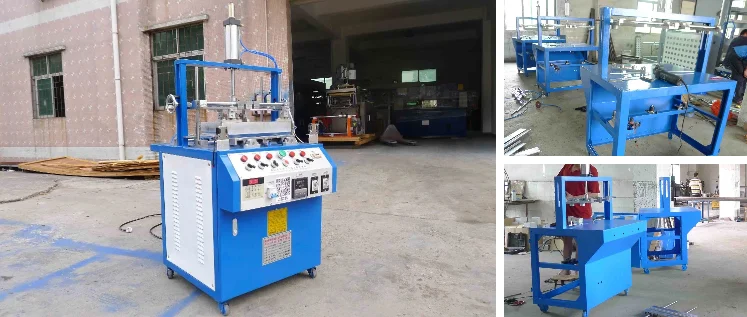

Our factory
About us
Shenzhen HuaXiang Mechanical Equipment Co. , Ltd. is a diversified export-oriented enterprise integrated with technology, industry and trade. established in 2005, is the largest enterprise specializing in the production of Vacuum Forming Machine. Our machine are used a lot in plastic forming, plastic packaging field.
Contact
In order to help you choose the best suitable machine, please try to reply my questions below, thanks for your cooperation.
Q1: What about your material?
Q2: The size of your sample; length, width and thickness?
Send a inquiry
Shenzhen HuaXiang Mechanical Equipment Co. , Ltd. is a diversified export-oriented enterprise integrated with technology, industry and trade. established in 2005, is the largest enterprise specializing in the production of Vacuum Forming Machine. Our machine are used a lot in plastic forming, plastic packaging field.
Contact
In order to help you choose the best suitable machine, please try to reply my questions below, thanks for your cooperation.
Q1: What about your material?
Q2: The size of your sample; length, width and thickness?
Send a inquiry
Похожие товары

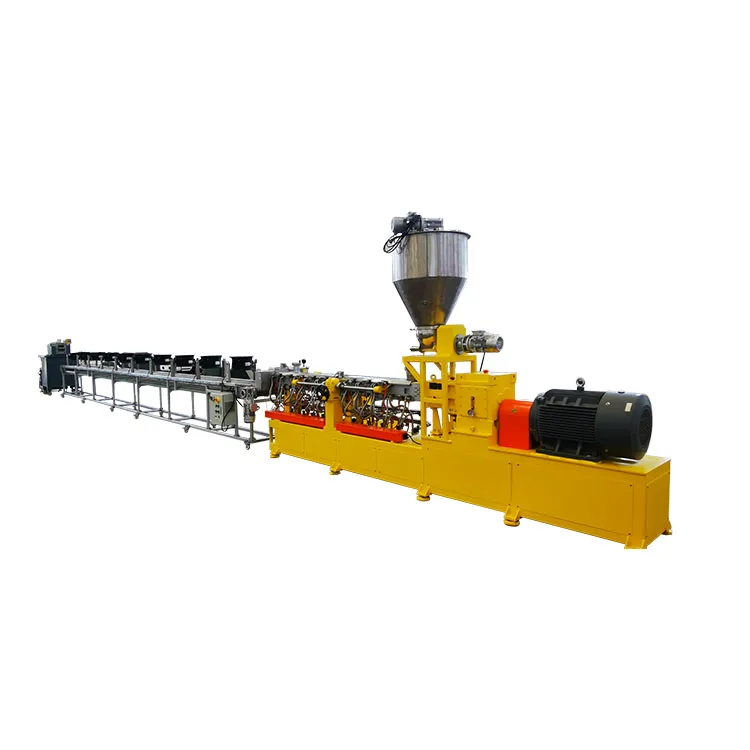

Двухшнековый экструдер с высоким крутящим моментом для биоразлагаемых соединений выдувная
55 000,00 $
Портативный изготовленный на заказ металлическая сетка Кофеварка v60 пуровер для кофе из нержавеющей стали фильтр
4,60 $ - 5,00 $

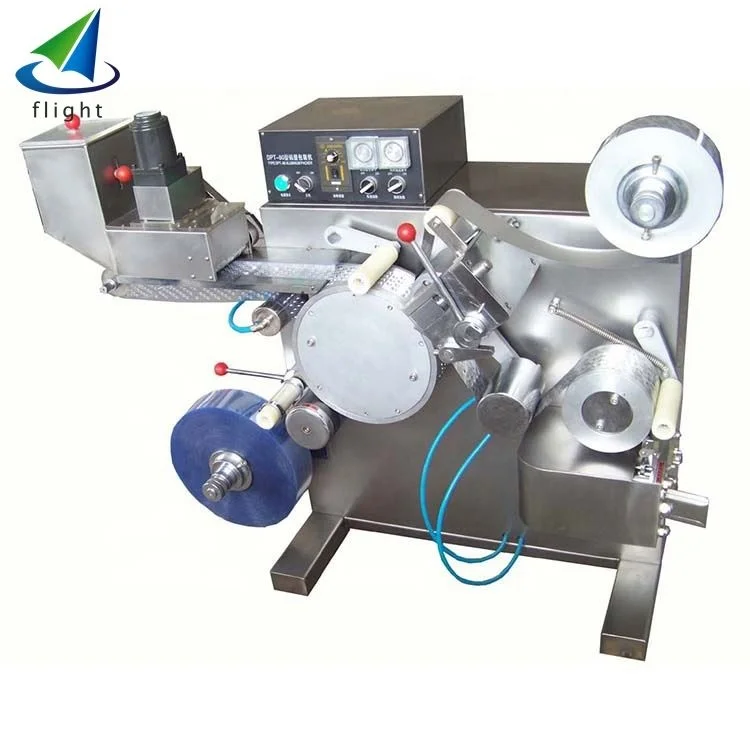

DPP-88 по эксплуатации блистерная elachi kali Мерч упаковочная машина
