Китайская автоматическая машина для производства бумажных пакетов с ручкой петлей
- Категория: >>>
- Поставщик: Dongguan Feiyang Packaging Machinery Equipment Co. Ltd.
Сохранить в закладки 62369052341:
Описание и отзывы
Характеристики

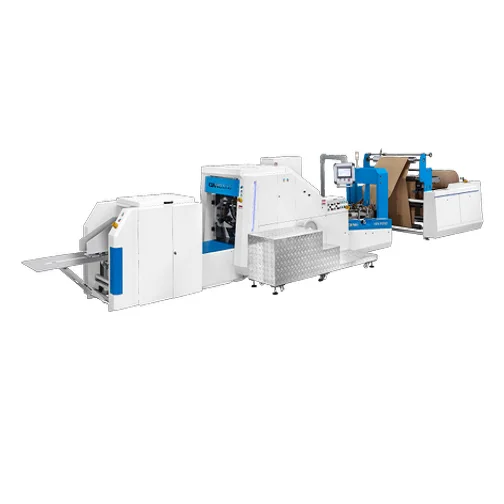

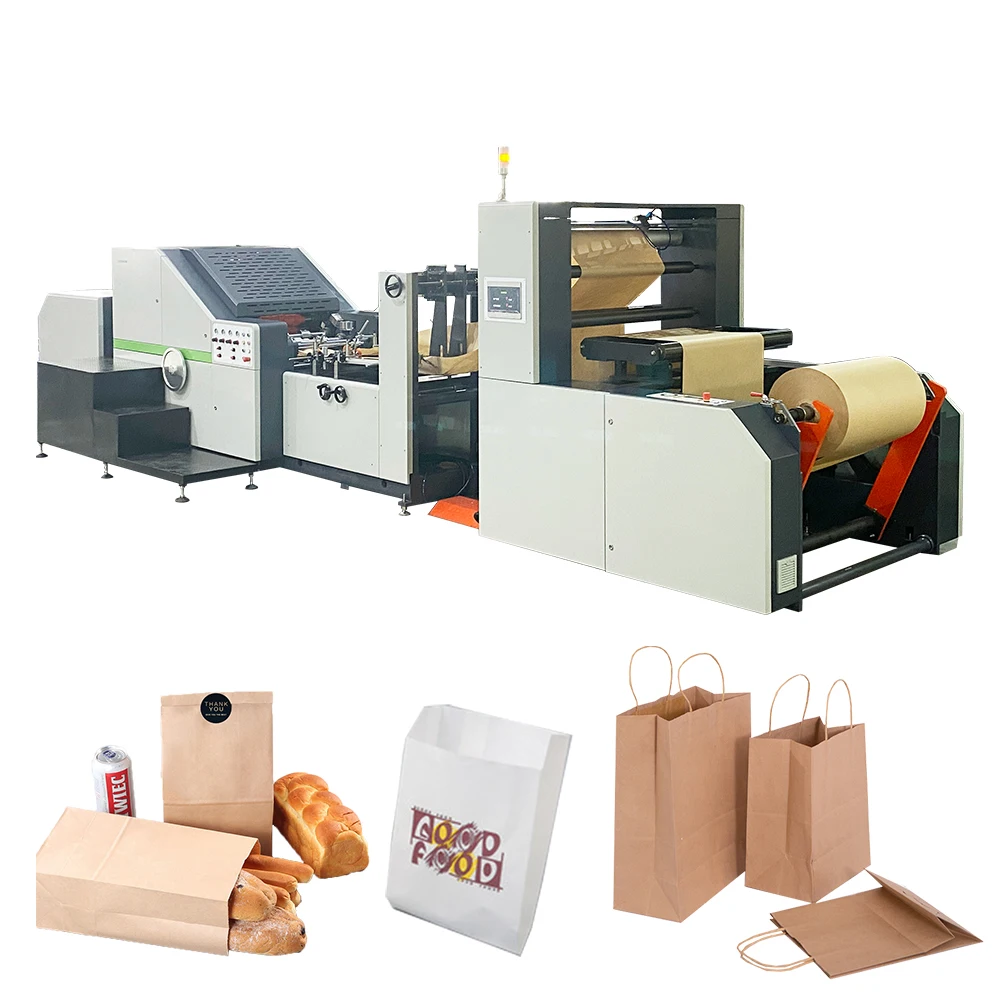

China Roll Feeding Square Bottom Automatic Paper Bag Making Machine with Loop Handle
Product Description
Properties and Uses: Rolling feed square bottom paper bag making machine, it uses paper roll in blank or printed as
raw material. Consists of automatic center forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming and bag collecting can be finished in one time.
raw material. Consists of automatic center forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming and bag collecting can be finished in one time.
The machine is more convenient, efficient, stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and so on environmentally friendly paper bag machine equipment.
Advantages：
1. Adopt France/SCHNEIDER touch screen human-computer interface, operate and control
easily.
2.Adopt Germany original REXROTH PC control, Integrated with optical fiber, ensure high
speed running steadily.
3. Germany original REXROTH servo motor and German original SICK Photoelectric eye
correction, tracking printing bag accurately.
4.Raw material load adopt pneumatic cylinder up and down structure, unwinding adopt auto
tension control.
5.Raw material unwinding EPC adopt italy SELECTRA, reduce adjustment time.
Advantages：
1. Adopt France/SCHNEIDER touch screen human-computer interface, operate and control
easily.
2.Adopt Germany original REXROTH PC control, Integrated with optical fiber, ensure high
speed running steadily.
3. Germany original REXROTH servo motor and German original SICK Photoelectric eye
correction, tracking printing bag accurately.
4.Raw material load adopt pneumatic cylinder up and down structure, unwinding adopt auto
tension control.
5.Raw material unwinding EPC adopt italy SELECTRA, reduce adjustment time.
Item No. | Item No. | FY-190G | FY-280G | FY-350G | FY-450G | |||
Paper Roll Width | Paper Roll Width | 290-630mm | 370-890mm | 450-970mm | 660-1230mm | |||
Max. Paper Roll Diameter | Max. Paper Roll Diameter | 1200mm | 1500mm | 1200mm | 1500mm | |||
Material Core Diameter | 76mm | 76mm | 76mm | 76mm | ||||
Paper Thickness | 60-120g/m2 | 60-140g/m2 | 60-170g/m2 | 60-180g/m2 | ||||
Tube Length | 190-350mm | 290-530mm | 290-530mm | 290-530mm | ||||
Bag Body Width | 90-190mm | 120-280mm | 150-320mm | 260-450mm | ||||
Bag Bottom Size | 55-105mm | 60-150mm | 60-150mm | 85-180mm | ||||
Max. Production Speed | 260bags/min | 200bags/min | 220bags/min | 180bags/min | ||||
Total Power | 13.5kw | 18.5kw | 18.5kw | 18.5kw | ||||
Total Weight | 6000kg | 8000kg | 8500kg | 10000kg | ||||
Overall Dimension(L×W×H) | 8500*1700*1600mm | 9000*3300*1900mm | 9000*3450*1900mm | 9000*3500*1900mm | ||||
Hot Selling Product
Packing&Logistics
Packaging
Film packaging in the container or wooden case
Shipping
We shipping goods by sea, by air or by express according to the customers' request
Film packaging in the container or wooden case
Shipping
We shipping goods by sea, by air or by express according to the customers' request
Company Profile
Dongguan Feiyang Packaging
Machinery Equipment CO., Ltd
We are the factory specialized in paper bag machine more than 12years experience, integrates product development, design, production and sales.
1. Paper bag making machine
2. Paper handle making machine
3. Paper rope making machine
4. Paper slitting machine
5. Rewinding machine
6. Paper bags, paper handles, paper ropes

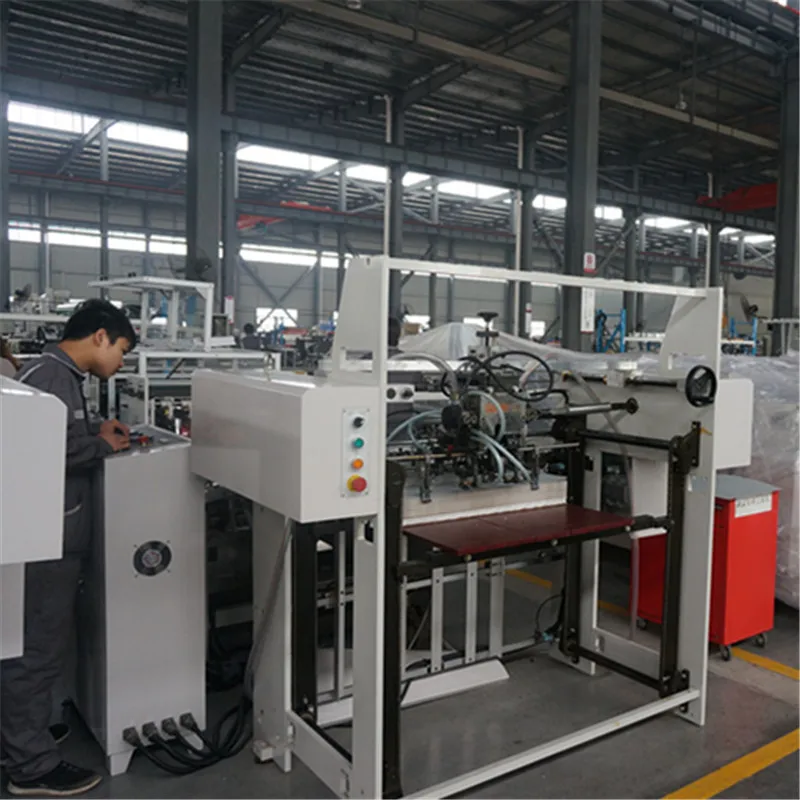

Factory View
Show Room
clients visiting
Exhibition
Certifications
Paper Handle Machine CE
Paper Rope Machine CE
Slitting/Cutting Machine CE
Rewinder CE
Why Choose Us
PRE-SALES SERVICE
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training about install and how to use the machine.
* Engineers available to service machinery overseas.
* 1 year warranty
FAQ
Q: Are you a factory or a trading company?
A: We are a the factory esstablished in 2008, which specialized in paper bag machine more than 12years experience, integrates product development, design, production and sales.
Q: How about the Payment Terms?
A: We can accept payment by TT, L/C, 30% deposit when order is confirmed,70% balance paid before shipment.
Q: How does your factory control the quality?
A: Superior quality and good service is our eternal goal. We has passed ISO9001/ CE/ SGS Certification.
Q: What about your main market?
A: We have almost 80% domestic market, sell well in 30 province. Also we pay attention to develop the oversea market. Our machines have gained great reputation both at home and abroad.
Q: What about your service after sales?
A: You can contact us to tell the problems and shoot videos, then we can find out the problems about our machines, and we will reply you within 12 hours and help you to solve the problems.
A: We are a the factory esstablished in 2008, which specialized in paper bag machine more than 12years experience, integrates product development, design, production and sales.
Q: How about the Payment Terms?
A: We can accept payment by TT, L/C, 30% deposit when order is confirmed,70% balance paid before shipment.
Q: How does your factory control the quality?
A: Superior quality and good service is our eternal goal. We has passed ISO9001/ CE/ SGS Certification.
Q: What about your main market?
A: We have almost 80% domestic market, sell well in 30 province. Also we pay attention to develop the oversea market. Our machines have gained great reputation both at home and abroad.
Q: What about your service after sales?
A: You can contact us to tell the problems and shoot videos, then we can find out the problems about our machines, and we will reply you within 12 hours and help you to solve the problems.
Sales Manager---Kiko Chen
Whatsapp / Wechat / Tel: +86 18689416711
Email/Skype: kiko@dg-feiyang.com
Похожие товары

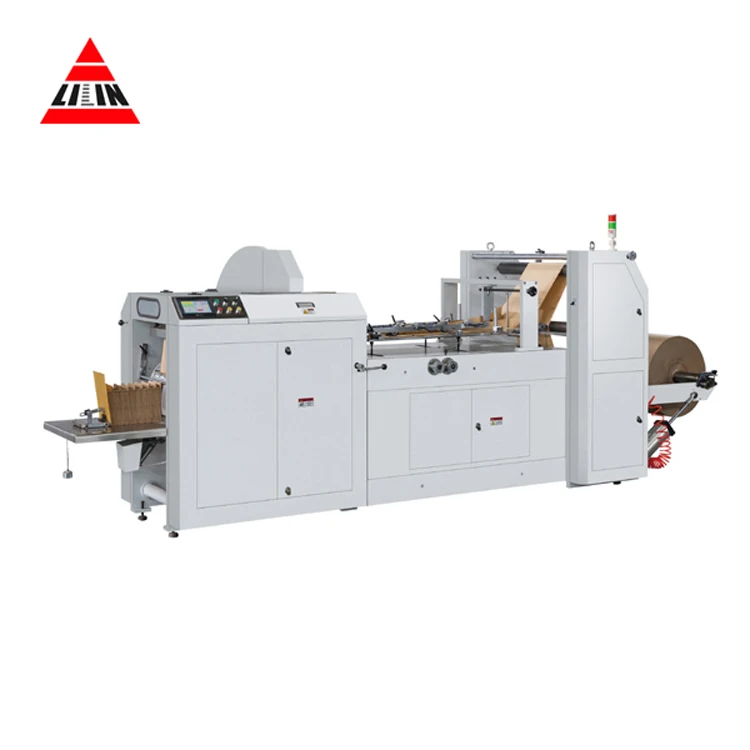

Автоматическая высокоскоростная машина для производства бумажных пакетов ROKIN с квадратным дном, оптовая продажа с завода, полностью автоматическая машина для производства бумажных пакетов для хлеба
68 000,00 $ - 81 000,00 $
LMD-600 полностью автоматическая машина крафт V-нижний бумажный мешок делая машину
29 000,00 $

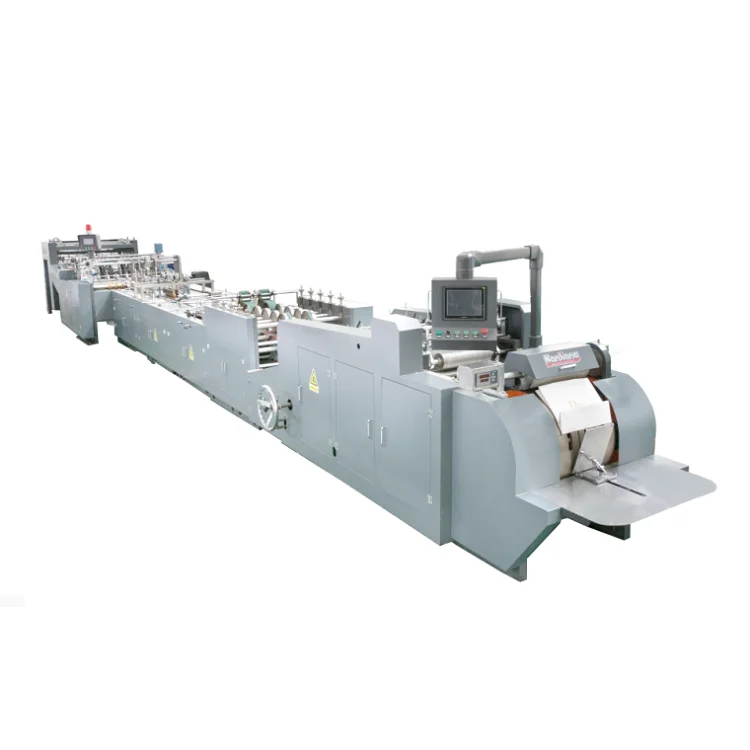

Полностью автоматическая машина для склеивания подарочных пакетов для покупок, машина для изготовления листов и бумажных пакетов, цена
Высокая прочность на растяжение (KT-B330) автоматическая машина по производству бумажных мешков
106 526,76 $

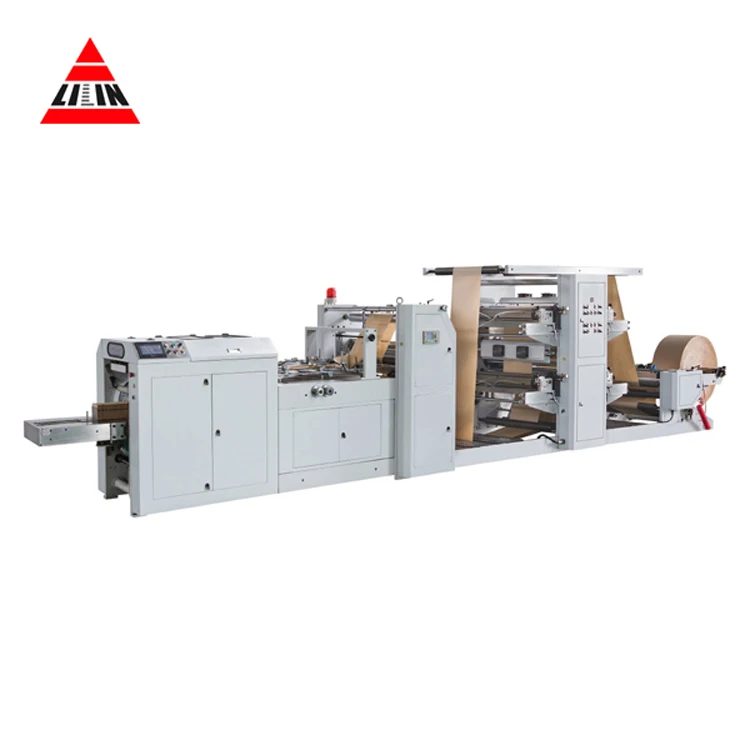

ЛСД-400 + LST-4700 автоматическая высокоскоростная флексографическая печатная машина для производства бумажных пакетов
62 000,00 $
Высококачественные армейские перчатки для скалолазания, пешего туризма, скалолазания, пешего туризма, другие спортивные перчатки для горного туризма
2,51 $ - 3,22 $

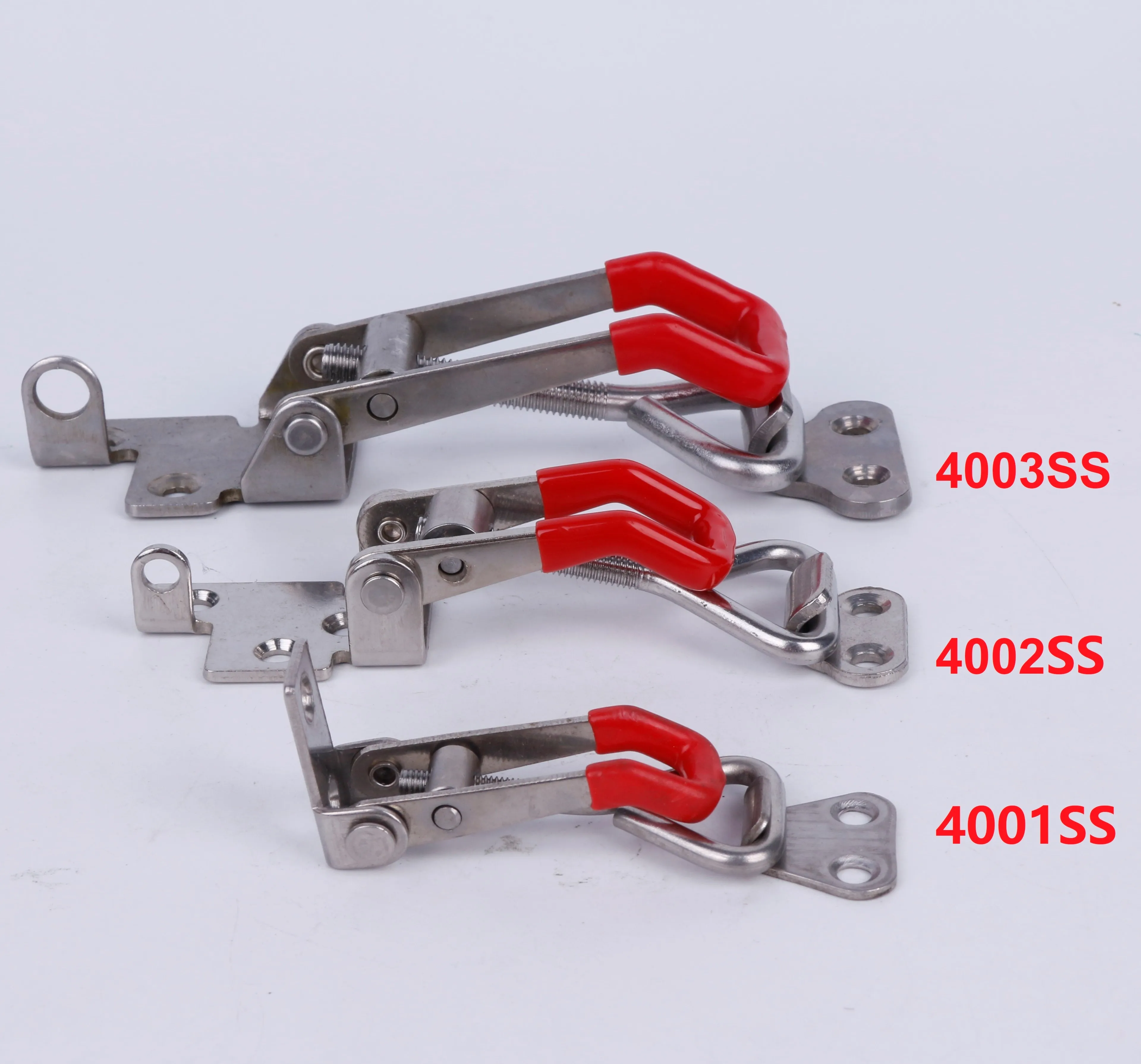

Push Pull Toggle Clamp Toggle Latch Quick Release 4001 4002 4003
