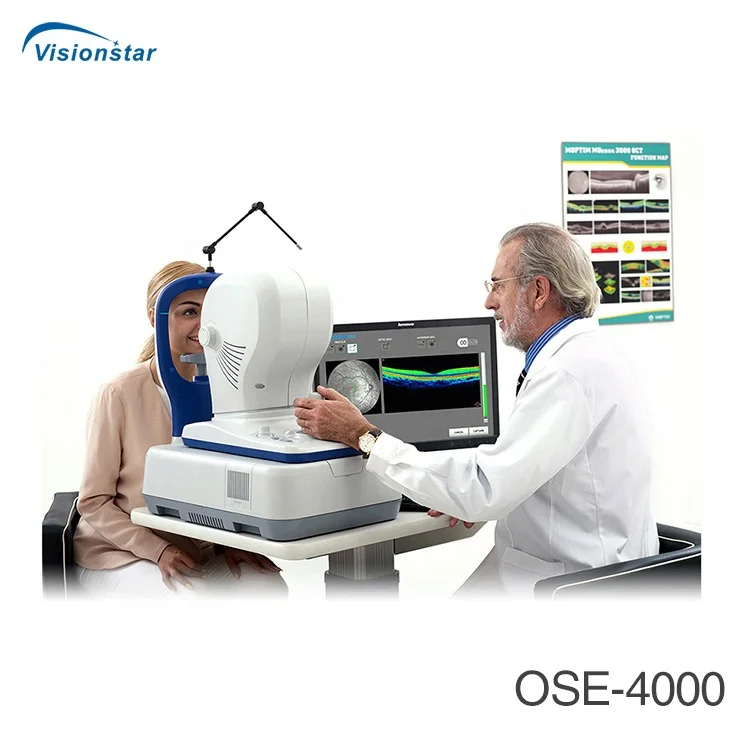

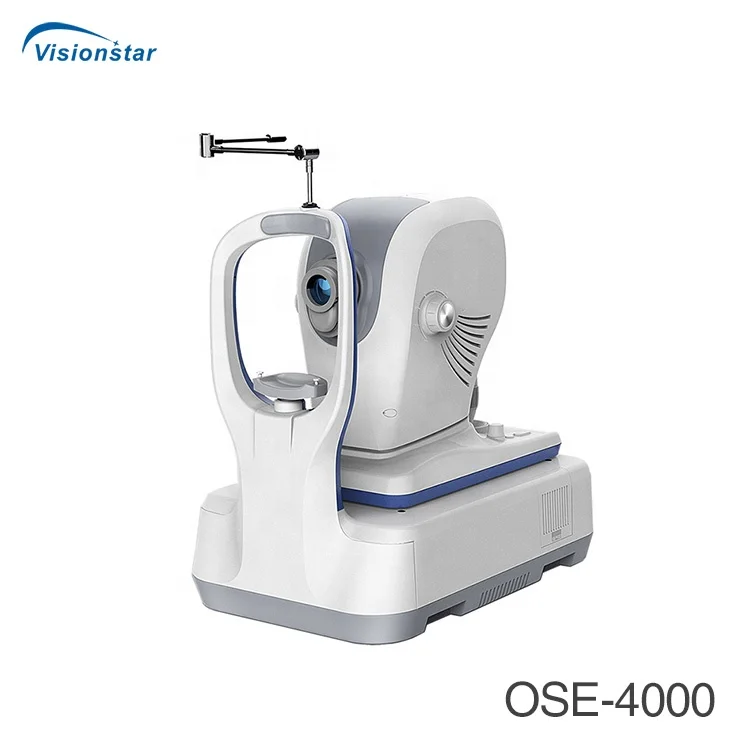

Name: OSE 4000 оптической когерентной томографии
SKU: 62369071854
Price: 44 000,00 $ USD
Availability: InStock

8,00 $ - 10,00 $

1,45 $ - 1,60 $

1,63 $ - 2,04 $

7 500,00 $ - 8 000,00 $

10,00 $

571,11-666,30 ₽

45 688,76-56 159,10 ₽

50 448-52 351,70 ₽

121,84-217,03 ₽

856,67-999,45 ₽

842,39-938,53 ₽

OCT IMAGING
Methodology	Spectral domain OCT
Optical source	Super luminescent diode (SLD), 840 nm
Scan speed	80,000 A-scans/s
Axial resolution (optical)	5 microns (optical), 3.6 microns (digital)
Transverse resolution	15 microns (optical), 3 microns (digital)
A-scan depth	3 mm
Diopter range	- 20 to + 20 diopters

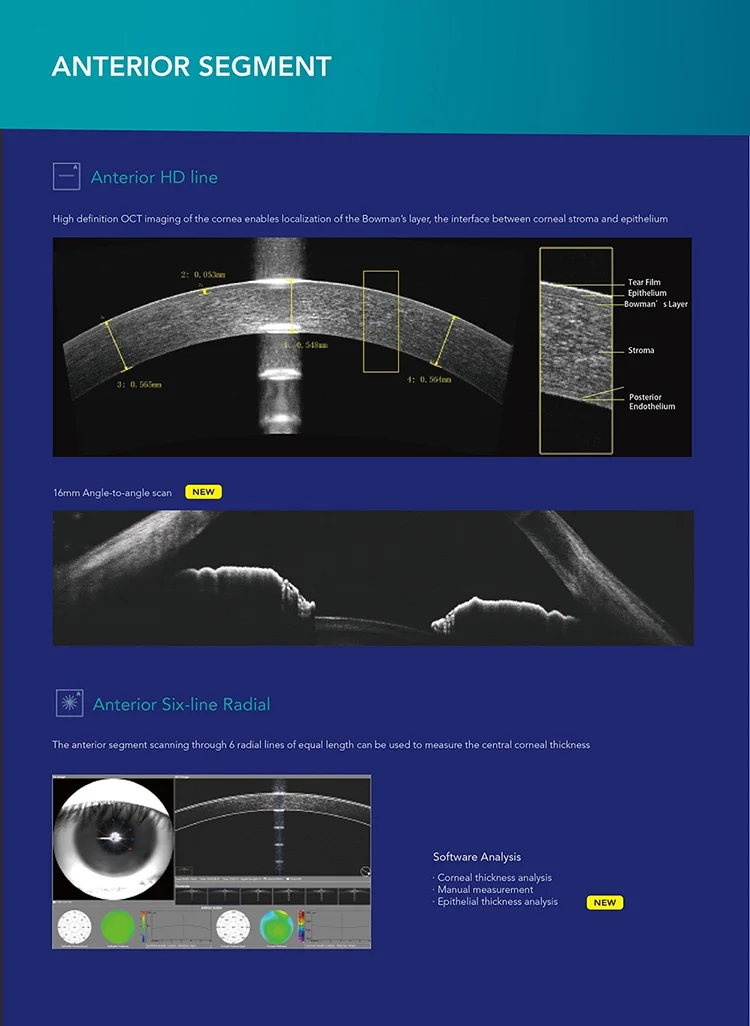

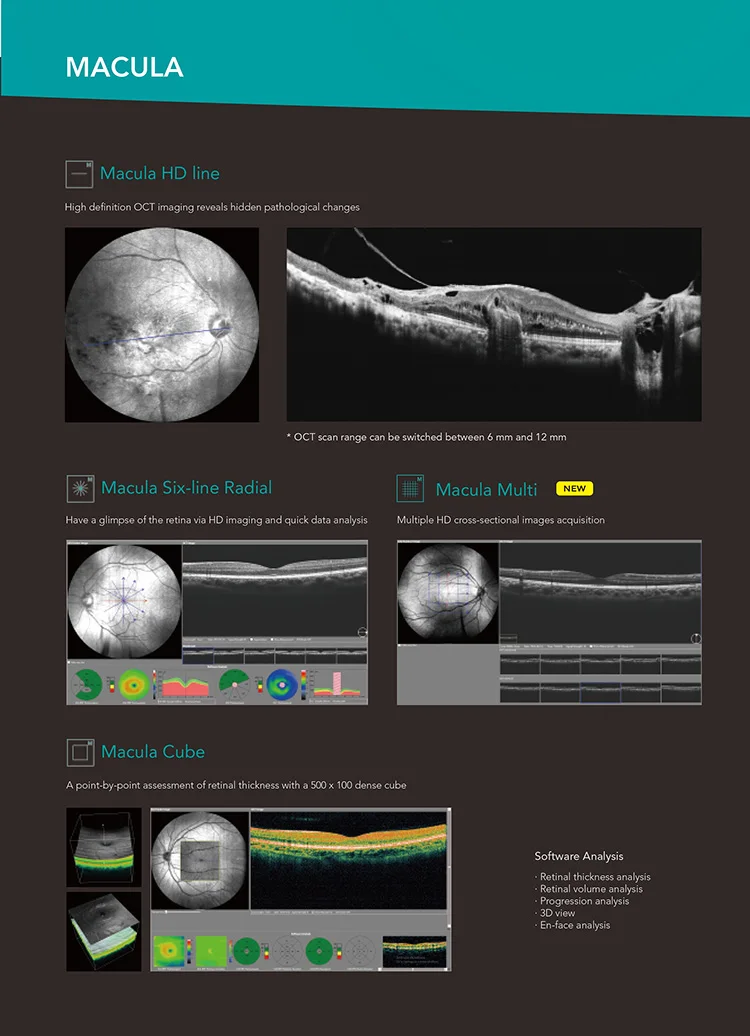

Scan patterns	Macular: HD line scan (6 / 12 mm), 3D scan (6 mm x 6 mm), 6-line radial scan, Multi (X-Y: 5 x 5) Disc: 3D scan (6 mm x 6 mm) Anterior: HD line scan (6 / 16mm), 6-line radial scan
FUNDUS IMAGING
Methodology	Line scanning laser ophthalmoscopy (LSLO)
Minimum pupil diameter	3.0 mm
Field of view	45 degrees

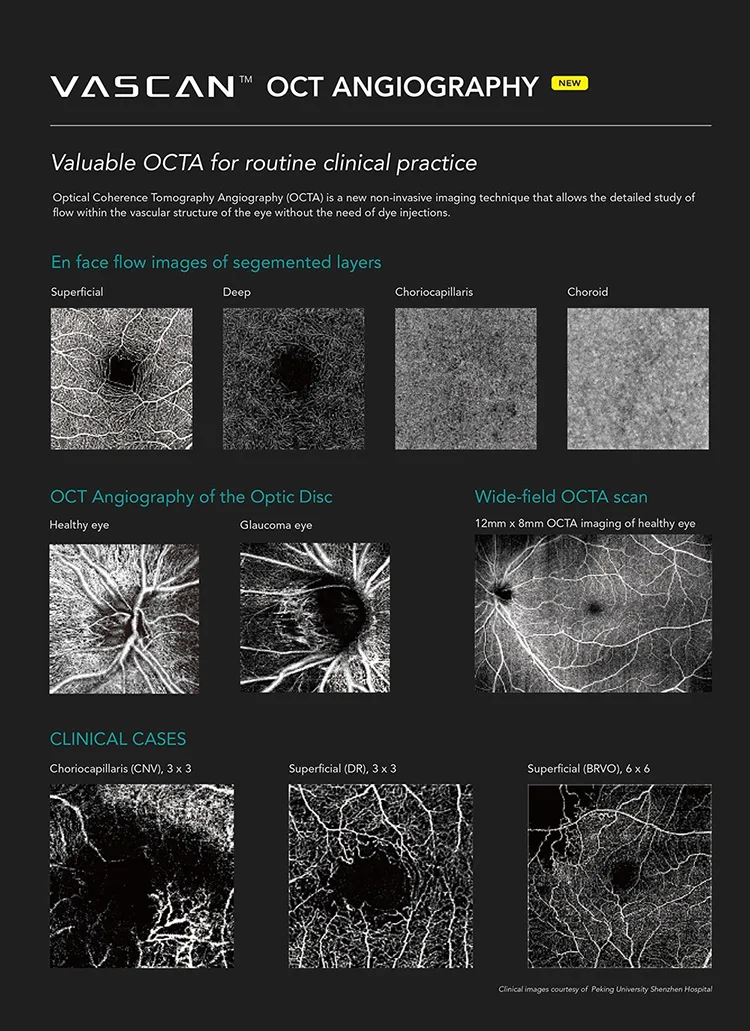

VASCAN™ OCTA MODULE
	VASCAN Advance	VASCAN Essential
Scanning volume/area	3mm x 3mm 256 x 256 A-scans 6mm x 6mm 360 x 360 A-scans 8mm x 8mm 360 x 360 A-scans 12mm x 8 mm 540 x 360 A-scans	3mm x 3mm 256 x 256 A-scans 12mm x 8 mm 540 x 360 A-scans
Algorithm	C-OMAG	C-OMAG
Segmentation options	Encoded, Vitreousretina Intrerface(VRI), Superfcial retina, Deepfcial retinal, Avascular, Choriocapillaris, Choriod, Custom
Quantitative analysis	Yes	Not available
ELECTRICAL AND PHYSICAL
Weight	30.5 kg
Dimension	532 mm (L) x 360 mm (W) x 540 mm (H)
Source voltage	AC 100 - 240 V, 50 Hz - 60 Hz
Power input	90VA

OSE 4000 оптической когерентной томографии

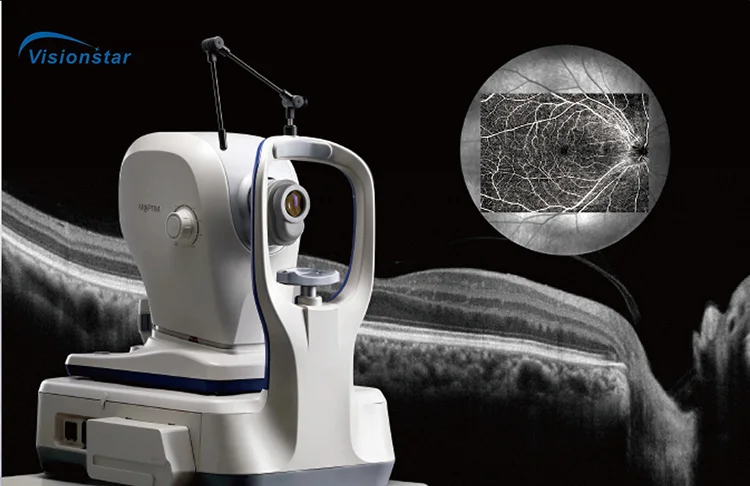

OSE-4000 Optical Coherence Tomography
