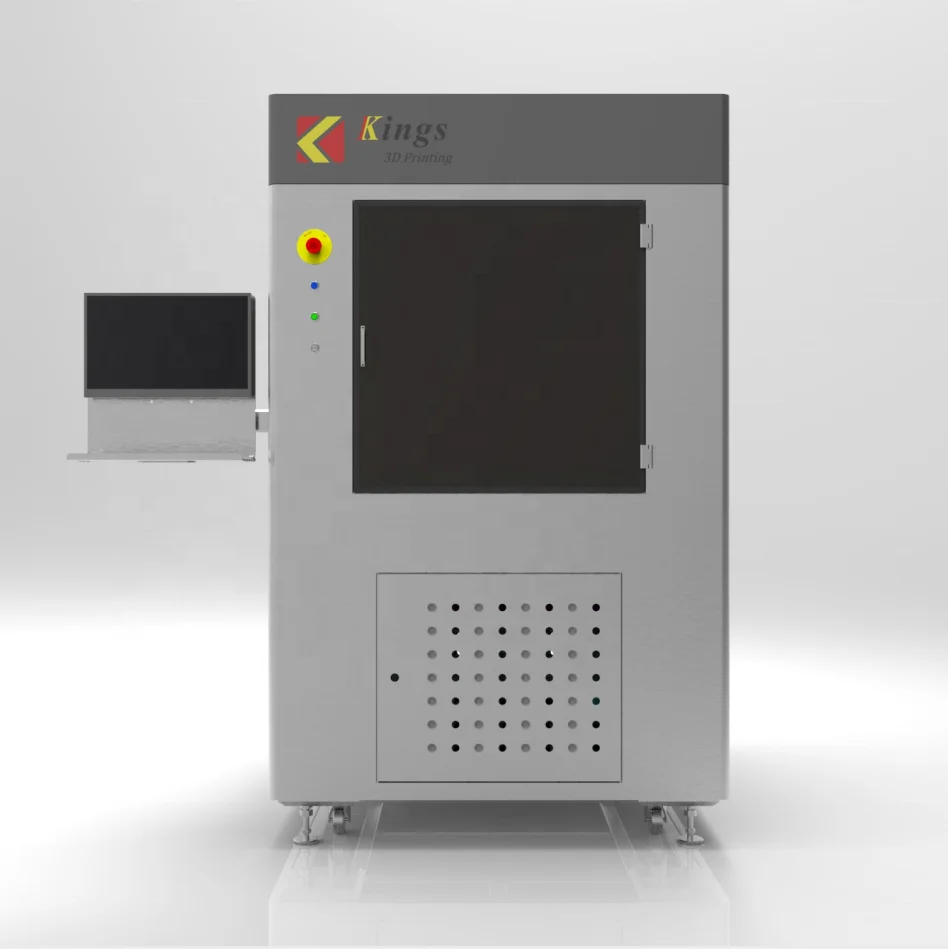

Высокое качество изготовление пресс форм для художественной скульптуры KINGS 800PRO большой промышленный SLA 3D принтер
- Категория: >>>
- Поставщик: Shenzhen Jinshi 3d Printing Technology Co. Ltd.
Сохранить в закладки 62371464138:
Описание и отзывы
Характеристики
Product Description
SLA（stereolithography）printing
SLA printing uses an UV laser to precisely cure photopolymer cross-sections, transforming them from liquid to solid. Parts are
built directly from CAD data, layer-by-layer into prototypes, investment casting patterns, tools,and end-use parts. Once the SLA
printing process is complete, SLA parts are cleaned in a solvent solution to remove any residual uncured resin from the part
surface. Cleaned parts are then cured in a UV oven.
built directly from CAD data, layer-by-layer into prototypes, investment casting patterns, tools,and end-use parts. Once the SLA
printing process is complete, SLA parts are cleaned in a solvent solution to remove any residual uncured resin from the part
surface. Cleaned parts are then cured in a UV oven.
Advantage of KINGS SLA industrial 3D printer
1. Enhanced Printing efficiency
* Intelligent high speed scanning system, 18m/s
* Variable laser spot and variable power
* Automatic Identifying upskin and downskin with differentiated parameters
* Different Parameter database with different layer thickness
2. Long-term Printing Stability
* Key components from international top brands: Optowave laser from US, Scanlab galvanometer from Germany
* Full marble structure for enhanced recoating and scanning stability
* High stiffness light recoater to ensure recoating accuracy and efficiency
* Compensation algorithm for multi-head system, ensuring uniform curing in the printing range.
* Variable laser spot and variable power
* Automatic Identifying upskin and downskin with differentiated parameters
* Different Parameter database with different layer thickness
2. Long-term Printing Stability
* Key components from international top brands: Optowave laser from US, Scanlab galvanometer from Germany
* Full marble structure for enhanced recoating and scanning stability
* High stiffness light recoater to ensure recoating accuracy and efficiency
* Compensation algorithm for multi-head system, ensuring uniform curing in the printing range.
Specification

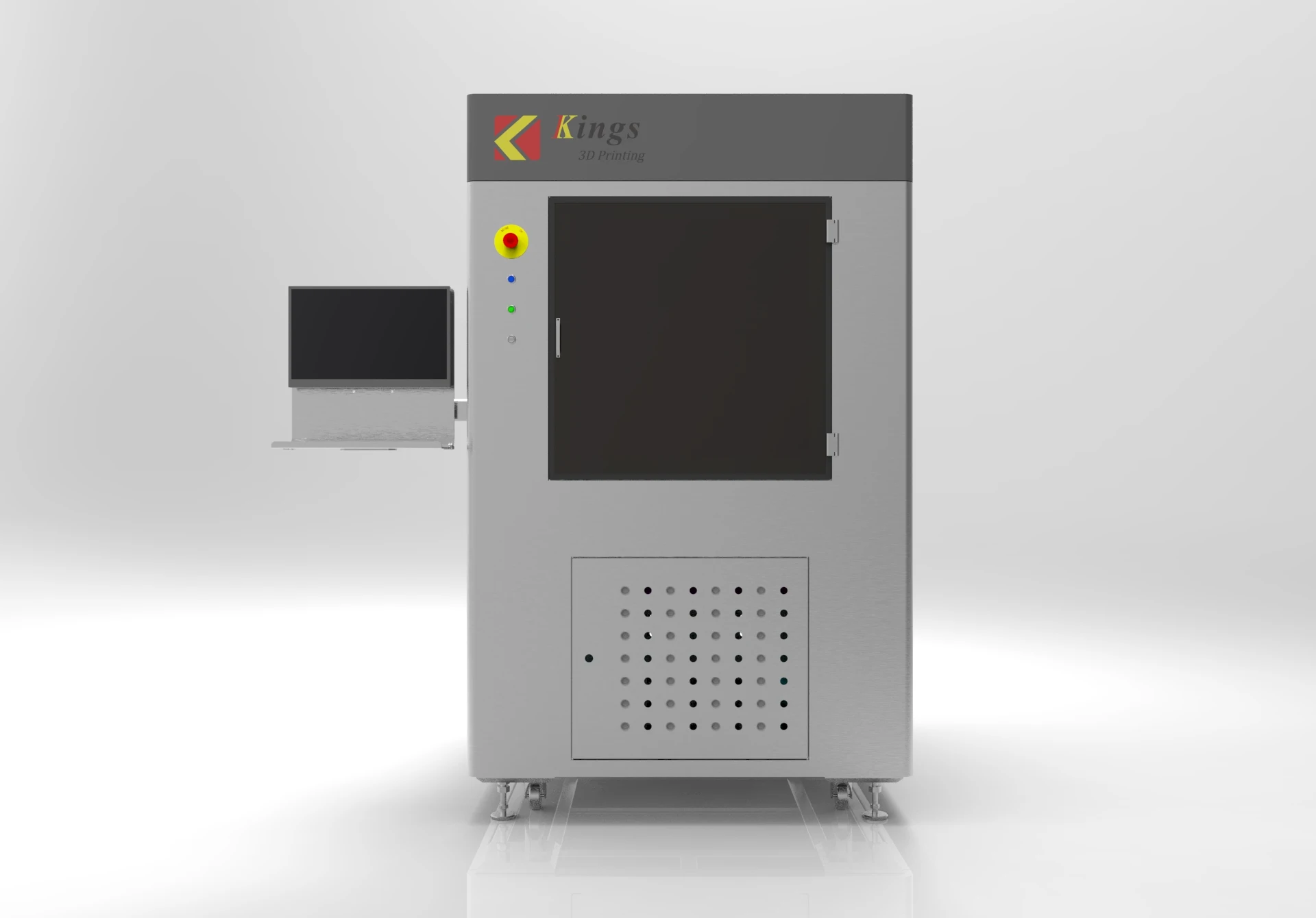

Product name: SLA Industrial Grade 3D printer | Model No.: Kings 800Pro | |
Machine Size: 140cm(W)*149cm(D)*247cm(H) | Build size: 800mm(X)*800mm(Y)*500mm(Z) | |
NW: About 1900kg | Initial Resin: about 500kg | |
Laser system | ||
1.Laser Type：US laser, Nd: YV04 Solid Laser 2. Power: Minimum Power to Liquid Level ≥300mW 3. Wave length: 355nm | ||
Coating system | ||
1.Coating Mode: Intelligent Position Vacuum Recoating 2. Normal Layered Thickness: 0.1mm 3. Rapid Build Layered Thickness: 0.15mm 4. Precise Build Layered Thickness: 0.05mm 5. Special Build Layered Thickness：0.05mm~0.25mm | ||
Optical & Scanning system | ||
1. Light Spot(diameter @1/e2)：0.085-0.8mm 2. Scanning Mode：Germanic Galvanometer Scanner 3.Parts Scanning Speed：Maximum 15.0m/s | ||
Elevator system | ||
1.Vertical Resolution Ratio：0.0005mm 2.Repeat Positioning Accuracy：±0.01mm | ||
Resin tank | ||
1. First Tank Weight：about 500kg 2. Forming Material：Photosensitive resin | ||
Control software | ||
1. Machine Control Software：KING3D Control Software 2. Device Software Interface：3D Design Software, STL STEP File Format | ||
Operating system | ||
1.Master Controller Operation System：Windows 7/10 2. Network Type and Protocol：Ethernet,TCP/IP | ||
Installing condition | ||
1.Power source: 200-240VAC 50/60Hz, Single Phase,10A 2. Rated power consumption: 2.2KVA 3. Ambient Temperature: 20-26ºC 4. Relative Humidity: ＜40%,Frost Free Knot | ||
Materials available | Features | Color |
KS408 ABS like resin | good surface details, good hardness. the most popular material for prototypes | white |
KS408B ABS like resin | perfect details, esp. for shoe sole models | brown |
KS608 ABS like resin | high toughness, resist to 70℃ | light yellow |
KS1208R high temperture resin | temperature resistance can reach 120℃；instantaneous temperature resistance up to 200℃ | white |
KS158T transparent resin | the printed parts can be semi-transparent and transparent with different post-process | transparent |
KS198S rubber like resin | flexible | white |
KINGS SLA 3D Printer Application
KINGS SLA industrial grade 3D printers can be applied to many industries like prototypes, automobiles, aerospace, ceramics, medical and dental, footwear, mechanical equipment, electronic appliances, architecture and sculpture, which greatly improve the production efficiency and save cost for the manufacturers by simplifying the producing process.

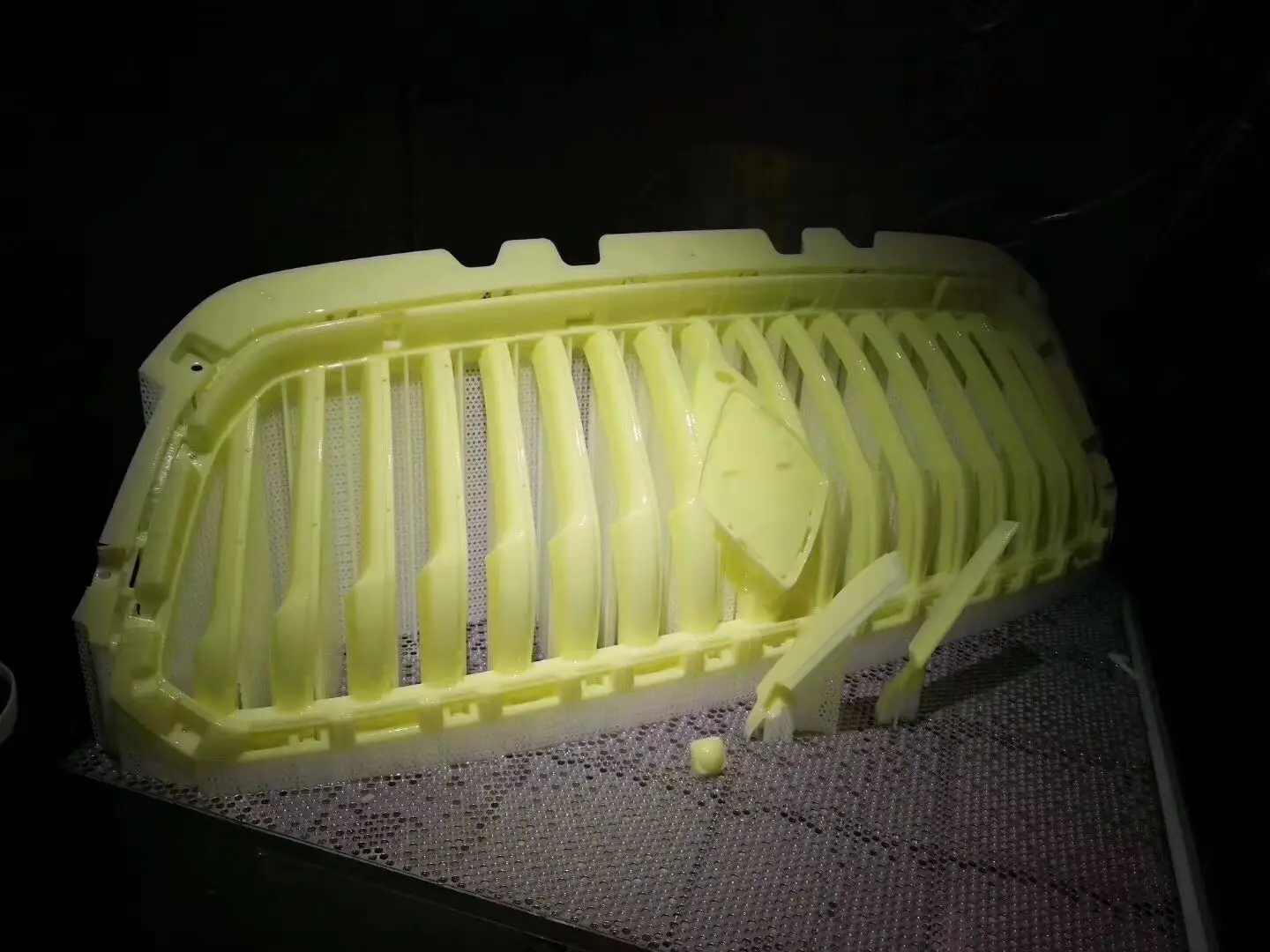

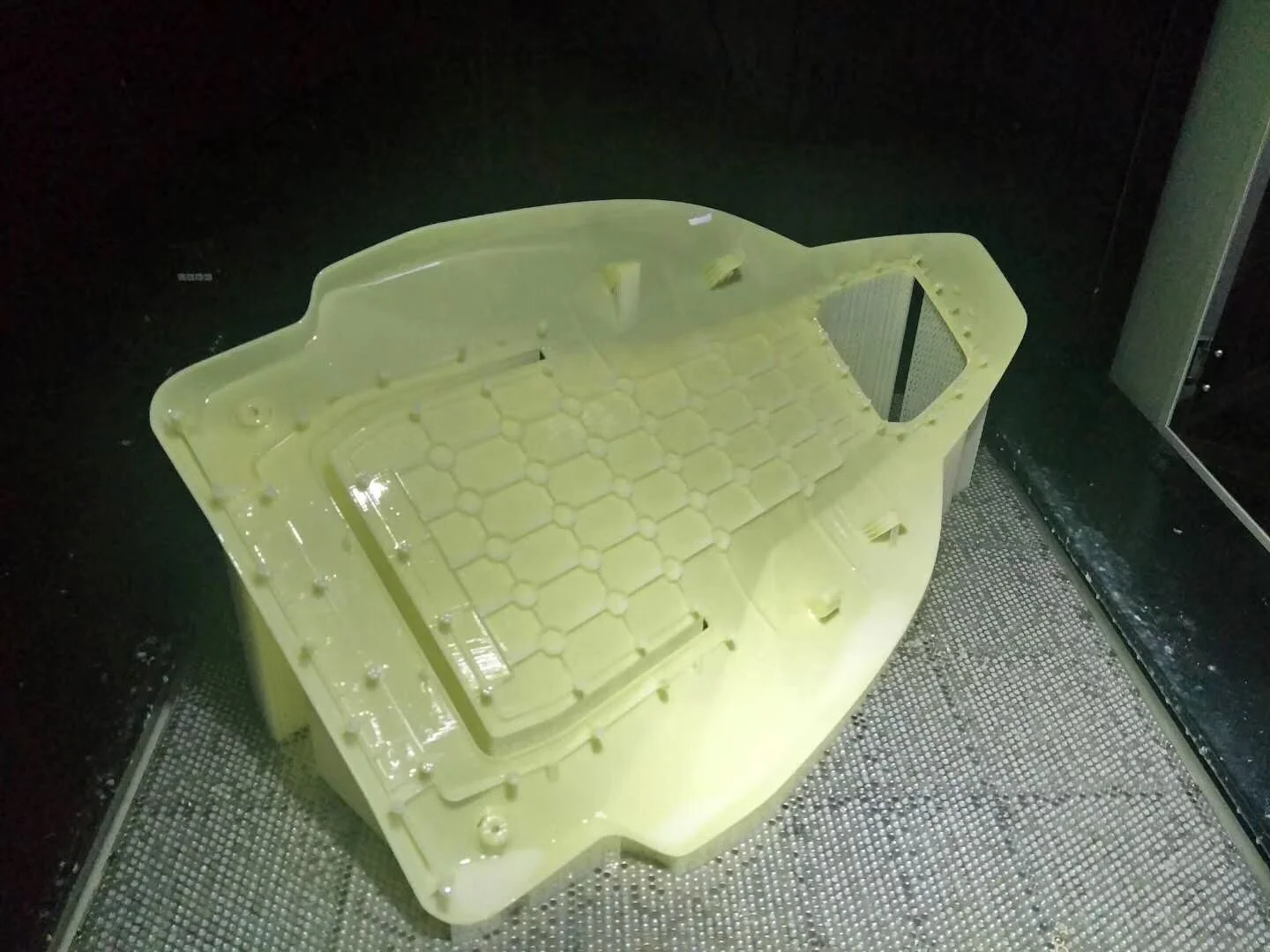

An car part printed by KINGS 800PRO SLA industrial grade 3D printer
Save your time from splitting large auto parts when printing and gluing pieces together afterwards.

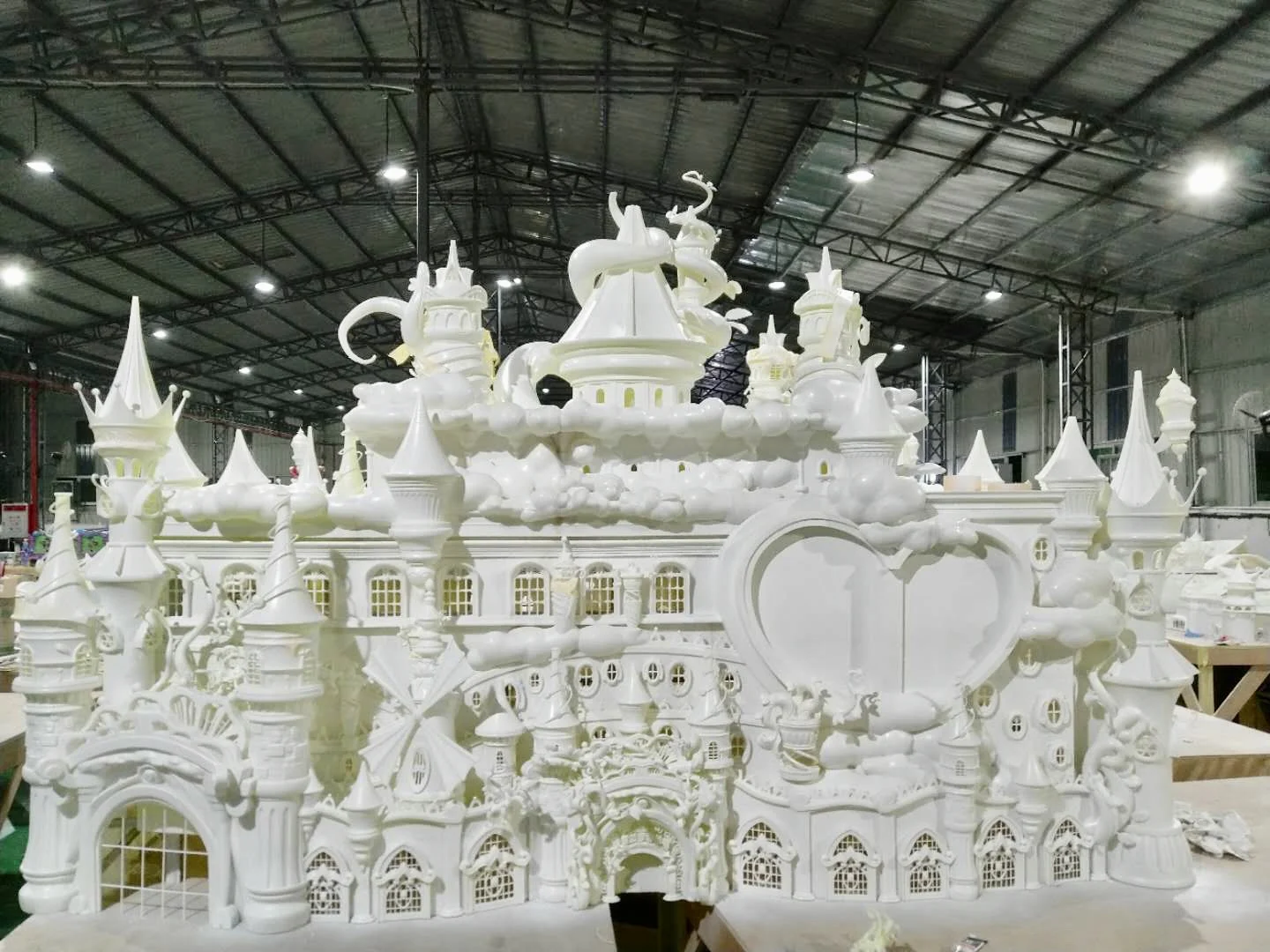

SLA 3d printed large castle model
SLA printing is featured with fine details and smooth surface. The SLA 3D printed architecture models can be painted with different colors.

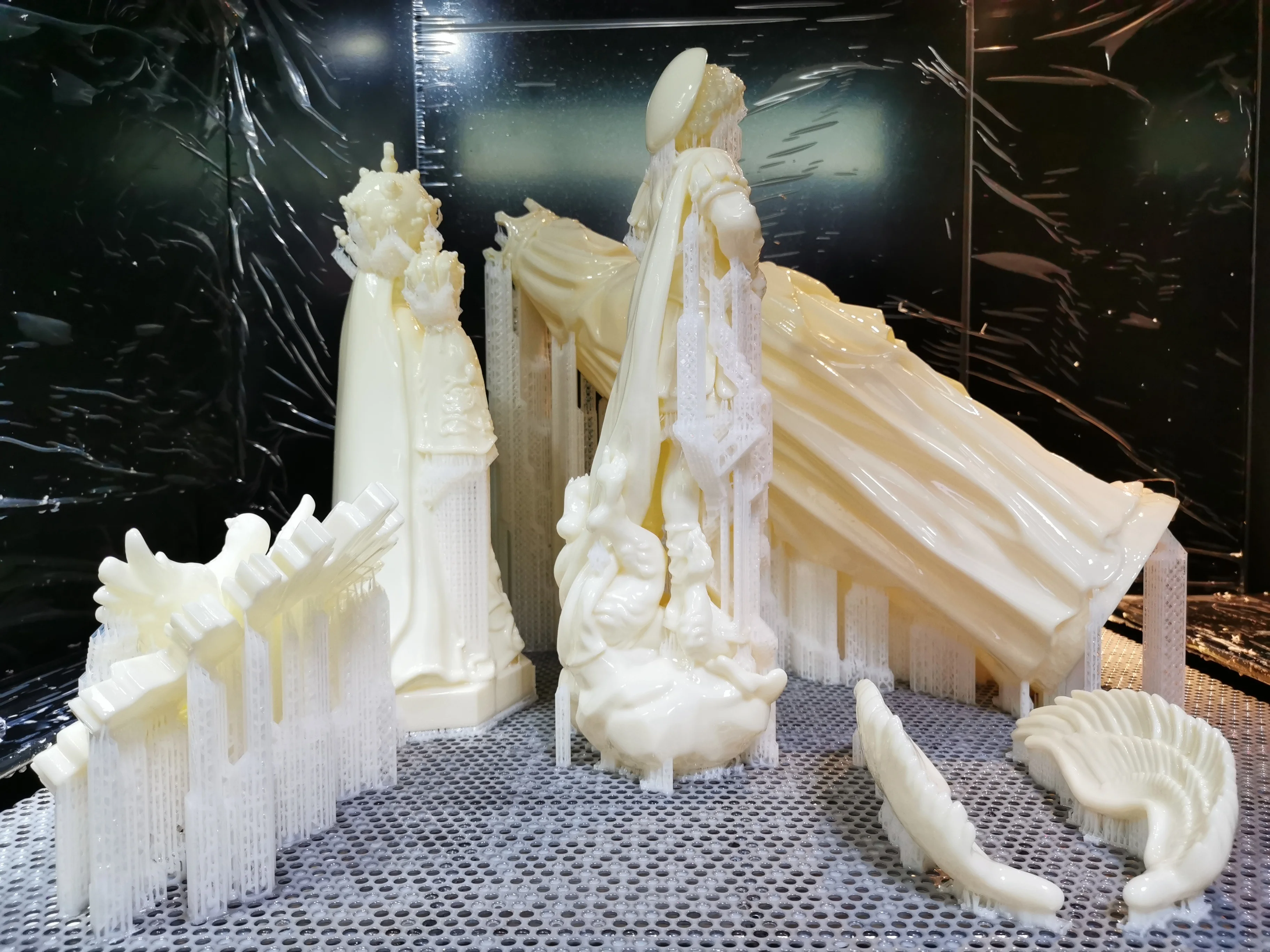

Sculptures printed by KINGS large scale sla resin printer 800PRO
Not only save your time from gluing parts together but also its completeness from sanding off its details.

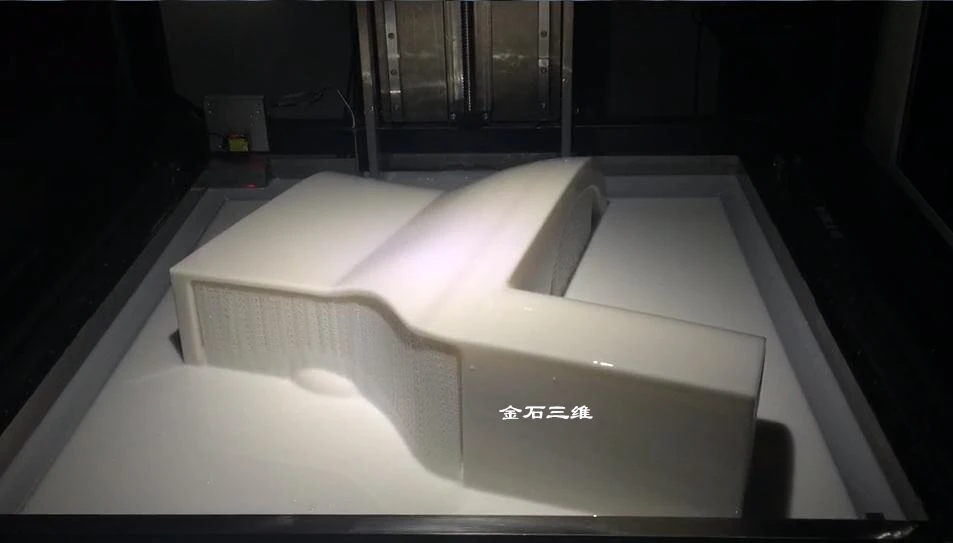

SLA 3D printed flush toilet models printed by KINGS 800Pro SLA large format 3D printer
- Simplify the process, the production cycle is changed from half a year to 3 days
A ceramic batroom product, from idea to finished product, uses traditional craftsmanship to go through dozens of cumbersome processes, which often takes three months or more. With KINGS SLA printers, all this has been completely changed, and new products can be printed in 1-3 days. Toilets, water tanks, flushing pipes, and even toilet lids and water fittings can be printed and formed at one time, and can be flushed with tap water.
A ceramic batroom product, from idea to finished product, uses traditional craftsmanship to go through dozens of cumbersome processes, which often takes three months or more. With KINGS SLA printers, all this has been completely changed, and new products can be printed in 1-3 days. Toilets, water tanks, flushing pipes, and even toilet lids and water fittings can be printed and formed at one time, and can be flushed with tap water.
ARROW is a well-known ceramic sanitary ware manufacturer in China. They have used Kings large-size SLA 3D printers for thedevelopment of sanitary ware and mold manufacturing. Based on the powerful modeling capabilities of 3D printing, the efficiency of new product development has increased by nearly 50 times, thus ensuring that it is always at the forefront of the market.
More Machine Models
KINGS 1000PRO SLA 3D Printer
Build Size: 1000mm(X)×1000mm(Y)×600mm(Z)
Initial Resin: About 880KG
Equipment Size (without display): 160cm(W)×170cm(L)×248cm(H)
Equipment Weight:about 2600kg
Equipment Size (without display): 160cm(W)×170cm(L)×248cm(H)
Equipment Weight:about 2600kg
KINGS 600PRO SLA 3D Printer
Build Size: 600mm(X)×600mm(Y)×400mm(Z)Initial Resin: About 240KG
Equipment Size (without display): 108cm(W)×120cm(L)×198cm(H)
Equipment Weight:about 1200kg
Equipment Size (without display): 108cm(W)×120cm(L)×198cm(H)
Equipment Weight:about 1200kg
KINGS 450PRO SLA 3D Printer
Build Size: 450mm(X)×450mm(Y)×350mm(Z)
Initial Resin: About 140KG
Equipment Size (without display): 104cm(W)*117cm(D)*192cm(H)
Equipment Weight:about 800kg
Equipment Size (without display): 104cm(W)*117cm(D)*192cm(H)
Equipment Weight:about 800kg
Company Profile
KINGS 3D is a high-tech enterprise dedicated to R&D and innovation of 3D printing, providing efficient and environmentally friendly 3D printing solutions since 2008. At the end of 2018, The company invested 500 million RMB (nearly $80 million USD) to establish a 3D printing industrial park in Jiangxi province of China; in 2019, KINGS 3D sales volume rank No. 1 in China. With strong technical strength, the company has rapidly developed into a comprehensive group company integrating R&D and production of industrial 3D printers, materials, software development, training and education. The existing R&D team has more than 30 staff. A significant number of them have gotten doctoral or master’s degrees in the fields of additive manufacturing, polymer materials, and electrical engineering. This team has applied for more than 130 parents.
KINGS 3D Printers are independently developed and designed to provide comprehensive solutions in the fields of prototypes, footwear, automobiles, aerospace, ceramics, medical and dental, mechanical equipment, electronic appliances and architecture. They have been used to assist thousands of domestic enterprises to increase product development and production efficiency, by a factor of more than ten times. KINGS 3D has already begun exporting its 3D printing solutions overseas to Europe, America, Asia-Pacific and the Middle East.
KINGS 3D Printers are independently developed and designed to provide comprehensive solutions in the fields of prototypes, footwear, automobiles, aerospace, ceramics, medical and dental, mechanical equipment, electronic appliances and architecture. They have been used to assist thousands of domestic enterprises to increase product development and production efficiency, by a factor of more than ten times. KINGS 3D has already begun exporting its 3D printing solutions overseas to Europe, America, Asia-Pacific and the Middle East.
Packing & Delivery
1. Shipping method: By sea
2. The machine and its accessories will be packed with PROCESSED WOOD.
After-sales Service
1. 2 year warranty including laser;
2. On-site installation and training;
3. Fast responsive after-sales team with over 30 staff to provide online or onsite technical support.
2. On-site installation and training;
3. Fast responsive after-sales team with over 30 staff to provide online or onsite technical support.
FAQ
1.What printing sizes available for your SLA 3D printers?
There are 11 machine models available from 300*350*350mm to 2700*900*800mm to meet different customer's requirements. Please contact us for the catalog.
There are 11 machine models available from 300*350*350mm to 2700*900*800mm to meet different customer's requirements. Please contact us for the catalog.
2. Can you do OEM customization?
A : Yes,we can customize the machine according to the requirements of our customers, for example logo, customized resin vat size and etc.
3. How long will be your delivery time?
A : It’s usually around 15 working days.
A : Yes,we can customize the machine according to the requirements of our customers, for example logo, customized resin vat size and etc.
3. How long will be your delivery time?
A : It’s usually around 15 working days.
4. What materials do you provide for your industrial resin 3D printers?
We research and develop our own materials including ABS like, rubber like, high temperature and transparent resins etc.Please send us message for catalog.
5. What is the shelf life of your resins?
The resin guarantee time is 1 year. It is suggested to store the resin in the workshop where the machine runs.
The resin in the machine tank always need to be full, and we need to keep the temperature and humidity of the workshop ( Humidity: < 40%; Temperature: 22℃ to 25℃). As long you keep the temperature and humidity, and use the machine regularly (new resin added gets the initial resin renewed), there’s no need to worry about the shelf time of resin in the machine.
The resin in the machine tank always need to be full, and we need to keep the temperature and humidity of the workshop ( Humidity: < 40%; Temperature: 22℃ to 25℃). As long you keep the temperature and humidity, and use the machine regularly (new resin added gets the initial resin renewed), there’s no need to worry about the shelf time of resin in the machine.
6. Does the machine print with different resin?
Kings 3D offers multiple choices in resin: ABS like, PMMA like, rubber like, PP like high-temp resistant resin, and etc. And Kings SLA 3D printers works well with all resin above, with different parameter packages,though. With rich experience in machine using and testing, Kings 3D has developed stable parameters with different kinds of resin.
7. How long should I have to change the material in the resin tank/vat?
As long as the SLA 3D printer keep running, the resin in the vat can be recycled. What you need to do is to add resin to keep its working level.
8. Can I send you 3d file to test your printing quality?
Yes, of course. You could send us a 3d file for sample testing.
9. Are you looking for representatives in international market?
Yes, we have been looking for partners around the world and wish to explore 3D printing market with them together. We are willing to provide support as much as possible for them including favorable terms, technical support and etc. If you are interested, please don't hesitate to send us message.
Yes, we have been looking for partners around the world and wish to explore 3D printing market with them together. We are willing to provide support as much as possible for them including favorable terms, technical support and etc. If you are interested, please don't hesitate to send us message.
10. May I ask what software do I need for the machine?
There's two software: one is machine control software, and the other is file preparation software.
Machine control software: We have been developing and innovating our own software since the very beginning, and the experience of the team can date back to the year 2003. The control software is one of the main core competencies, ensuring long term printing stability. Sure this is included in the price. And our team is continuously updating the software, and all future software updating will be free of charge.
There's two software: one is machine control software, and the other is file preparation software.
Machine control software: We have been developing and innovating our own software since the very beginning, and the experience of the team can date back to the year 2003. The control software is one of the main core competencies, ensuring long term printing stability. Sure this is included in the price. And our team is continuously updating the software, and all future software updating will be free of charge.
File preparation software like Magics is needed for file preparation.
11. How are the warranty, maintenance, and after-sale issue?
Warranty: 2 years, including laser
Maintenance: Machine maintenance is simple: adding oil for recoater rail once a month, and cleaning the recoater once a week
Aftersale service: The industrial SLA 3D printer has a very high level of stability. In case there's an issue, if it's software, we have a quick responsive after-sale team, who can solve problems or update software with Team Viewer through remote control. If any replacement in hardware is needed, we'll send it soon by fastest express, and a video illustrating how to replace it. In worst cases, if on-site service is really needed, we'll send our engineers from China or our partners in the local will go to you and fix it.
Warranty: 2 years, including laser
Maintenance: Machine maintenance is simple: adding oil for recoater rail once a month, and cleaning the recoater once a week
Aftersale service: The industrial SLA 3D printer has a very high level of stability. In case there's an issue, if it's software, we have a quick responsive after-sale team, who can solve problems or update software with Team Viewer through remote control. If any replacement in hardware is needed, we'll send it soon by fastest express, and a video illustrating how to replace it. In worst cases, if on-site service is really needed, we'll send our engineers from China or our partners in the local will go to you and fix it.
Похожие товары
Бестселлер, танцевальная обувь, балетная обувь, эластичная обувь для танцев балерины для женщин и девочек
1,80 $ - 4,50 $
Hot selling original cheap black PVC fast charging mobile phone Type-c data cable
Мощная модель всасывания Puppyoo T12 Mate, умный беспроводной пылесос
14 613,45 ₽ - 16 067,15 ₽

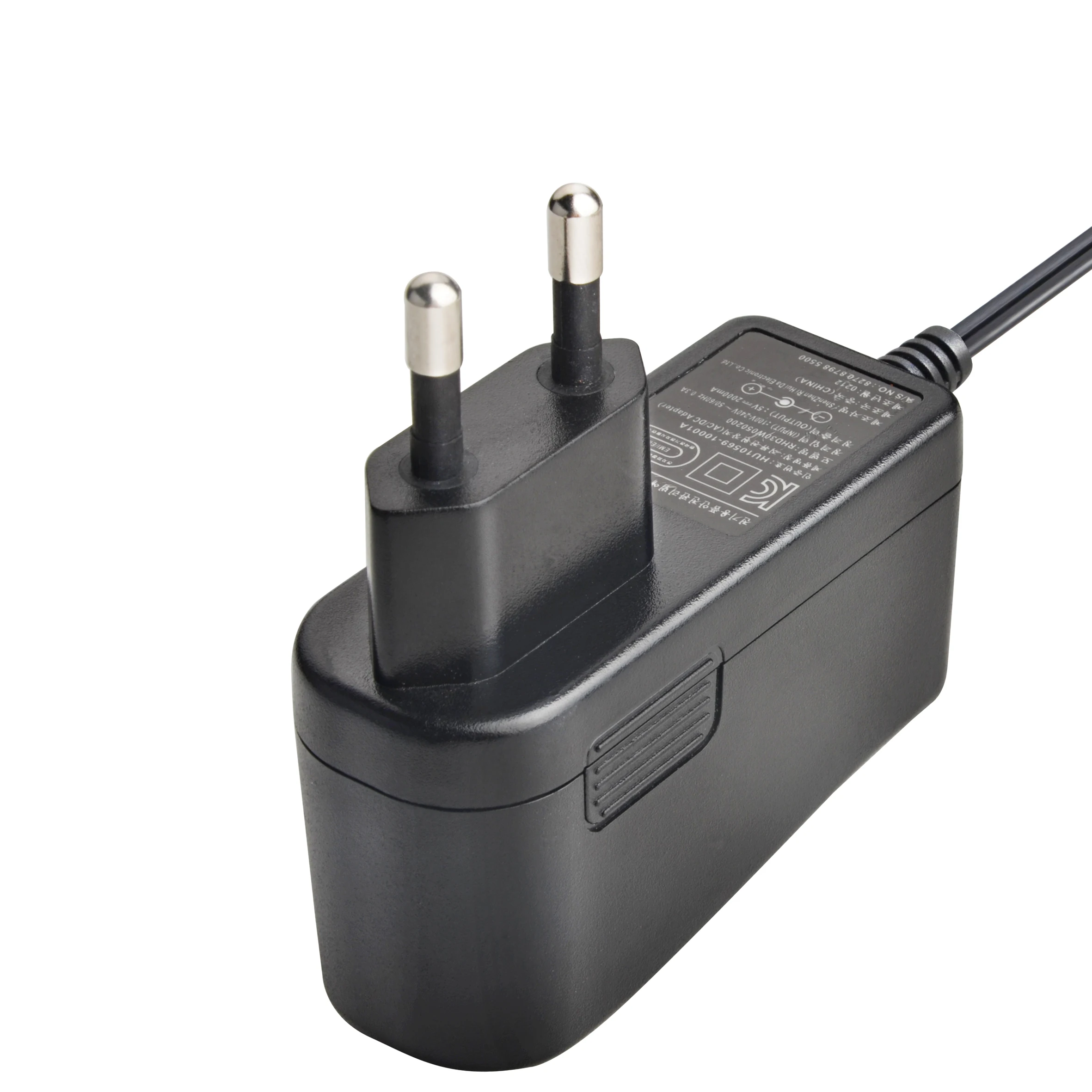

Одобренный KC адаптер питания 12 В а адаптер переменного и постоянного тока

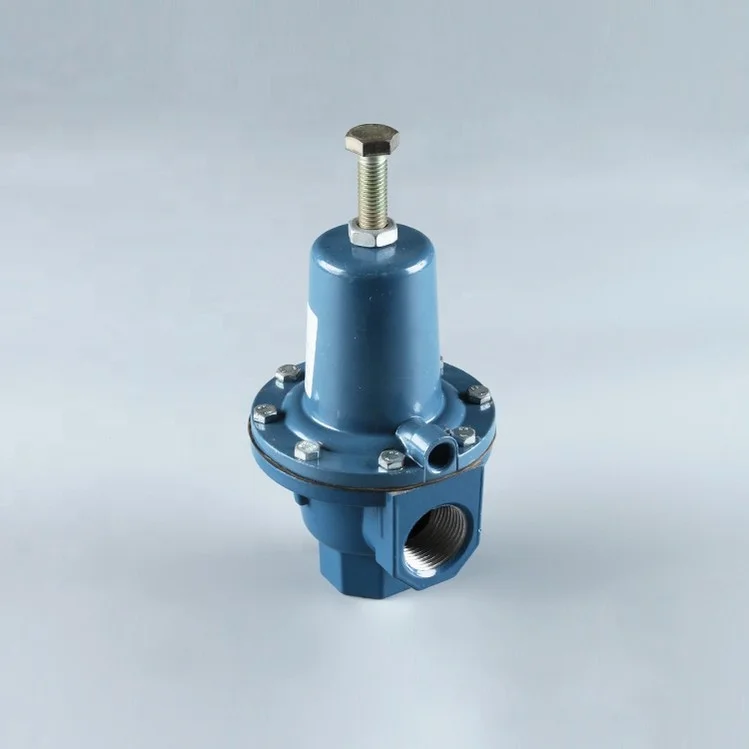

Лидер продаж с завода, изготовленный на заказ регулятор сжиженного углеводородного газа, опускной клапан
