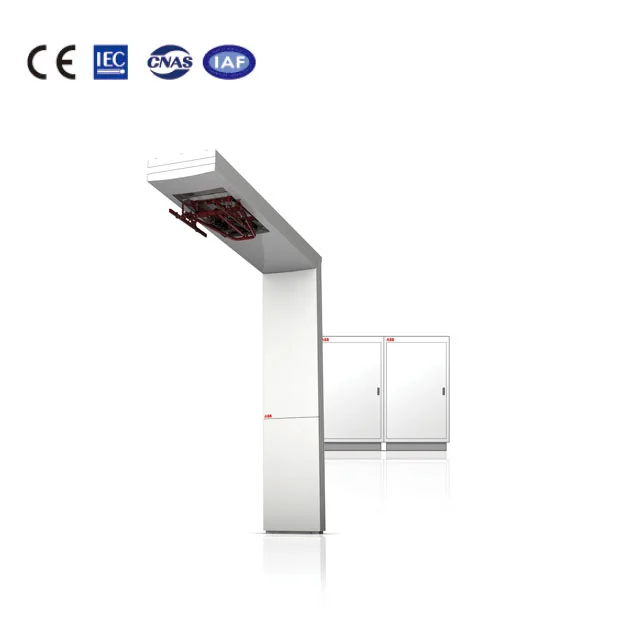

Быстрое зарядное устройство постоянного тока для автобусов кВт

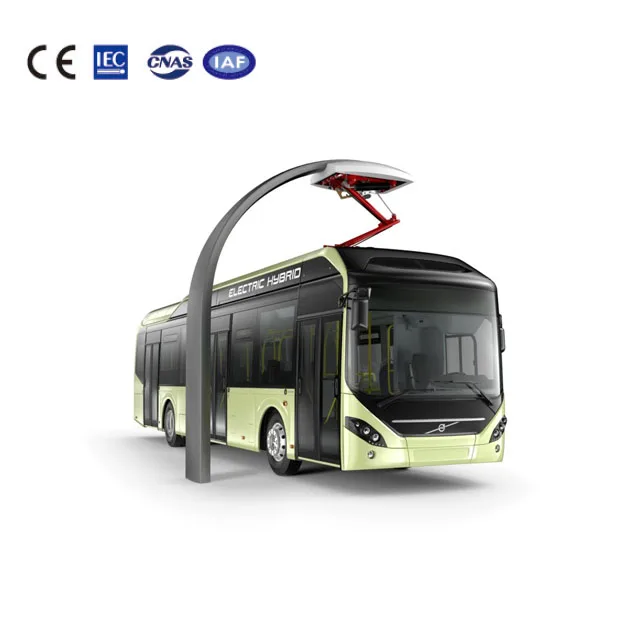

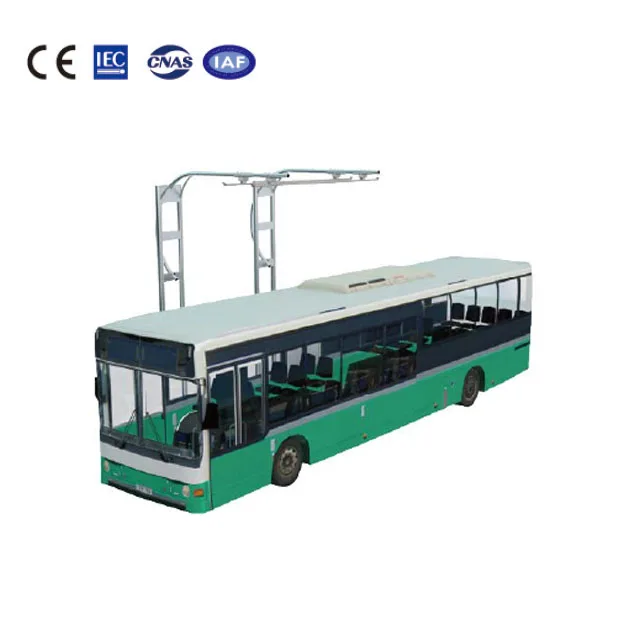

Used to charge Electric Vehicles, epecially designed for buses.

The stations are widely used for:

• Public Transportation Companies


• EV Charging Operators

• Charge an compatible vehicle with CCS standard


• Output voltage up to 1000V (Optional module)


• Different power levels available (200 to 500KW)


• Constant power output voltage range is 300V-1000V (Optional module )


• Independently develop controller


• Air conditioning


• Built-in communications (4G; LAN; Wi-Fi)


• Available Models:  S200   S240    S300     S360


• Fits all CCS vehicles


• Customizable


• Indoor/Outdoor (IP54)


• Wide power range


• Fast charging

• Charger power: 200kw, 240kw, 300kw, 360kw


• Input voltage: AC380±15%


• Output voltage: DC250-1000V


• Output current: 2-250A


• Module cooling mode: Air cooling


• Cabinet size: 550mm*450mm*1650mm (charger),  2000*1200*2280mm (cabinet)


• Weight: 550Kgs


• Protective function: Over voltage, over current, phase loss, communication abnormality, battery reverse connect

Luobinsen was established in 2008, headquartered in Dalian Economic and Technological Development Zone, established a branch in Guizhou in 2018.
The company has always been focused on power technology innovation and market development, after ten years of development, it has become a leading domestic manufacturer of new energy vehicle charging equipment. Luobinsen is the first company in China to invent and apply 450kW high power fast charging charger, Luobinsen promoted European standard charger very early in China and exported them to 26 overseas countries. We set up R&D center in Dalian high-tech park, and establish R&D laboratory of charger technology in cooperation with Electrical college of Dalian University of Technology, which makes Luobinsen laid solid foundation for achieving technology leadership in the field of charging equipment. Products include integrated charger, split-type charger, rack-type charger, AC charger, EV charging solutions can be provided according to different needs of customers.

-2018

Luobinsen signed a strategic cooperation agreement with KAMAZ Group in Russia, won the bid for Moscow bus project.

-2017

Luobinsen was awarded the title of “The most Influential Brand of Charging Equipment Industry in China”.

-2016

The company moved to a new site and the plant was expanded to 20,000 square meters.

-2015

The company’s products ranked first in sales of Zhongtong Bus Factory, and ranked second in sales of Yutong Bus Factory.

-2014

The company had applied for a total of 26 national patents and was identified as a national high-tech enterprise in Dalian.

-2013

150kW high power rack-type charger product was put into operation at Hong Kong Kowloon Bus Charging Station.

-2011

Six sets of 450kW high-power 10-minute fast charging products in Chongqing. For now, they have been running successfully for eight years.

-2010

Became the partner of Yutong Bus. China's 450kW high power 10-minute fast-charging product was put into operation at Hu-zhou Power Supply Bureau.

-2008

Luobinsen Power Equipment Co., Ltd. was formally established.
