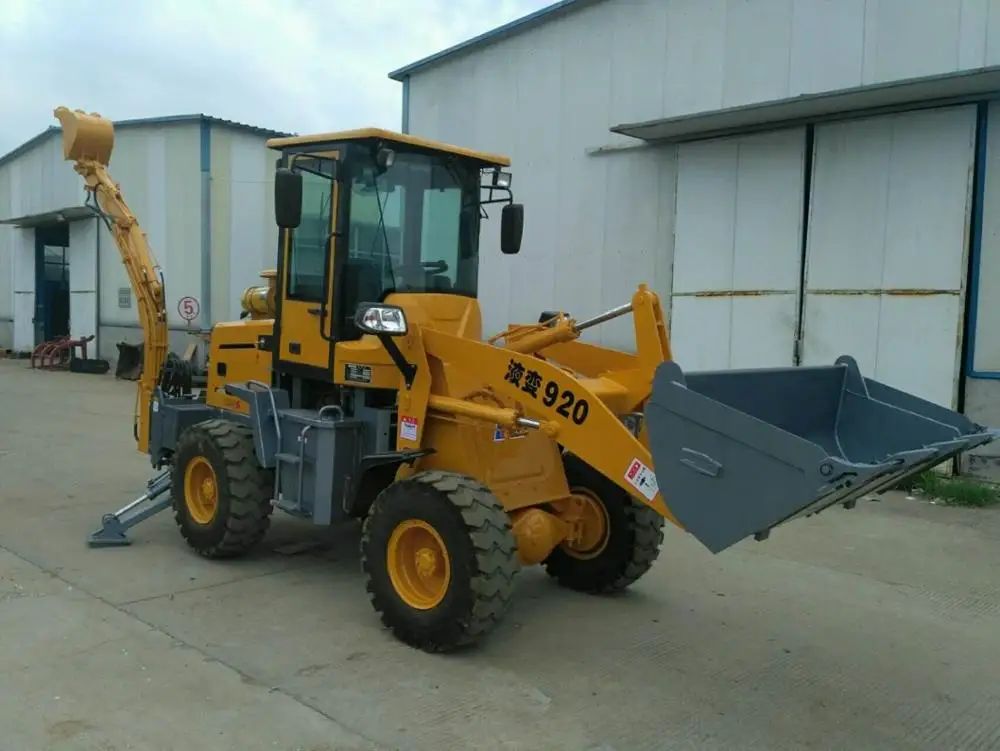

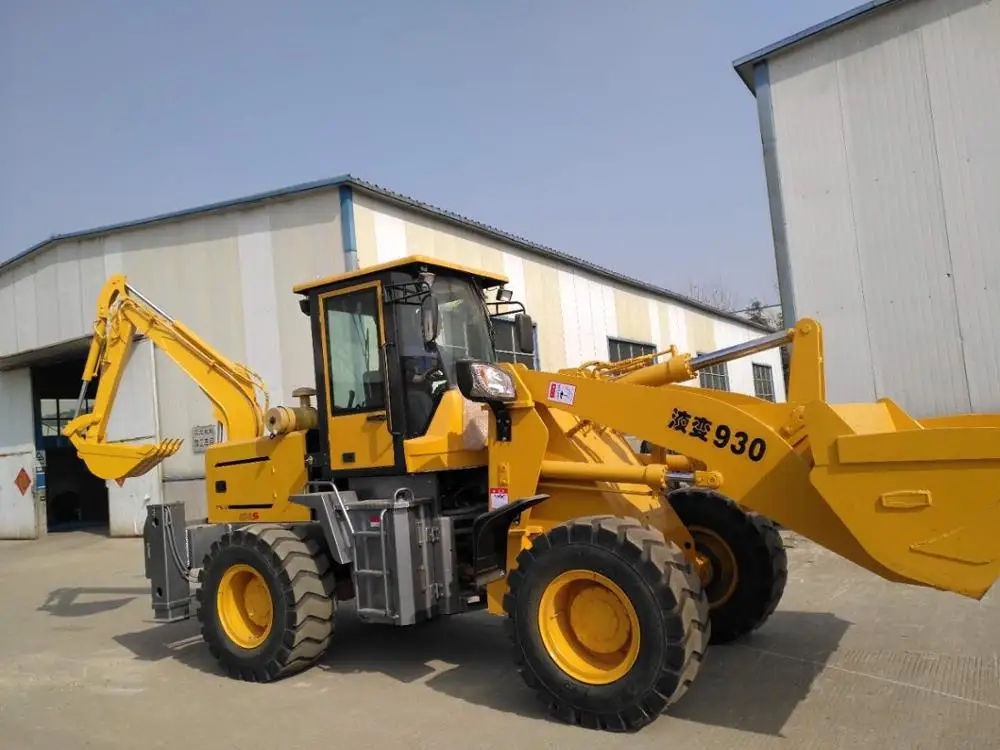

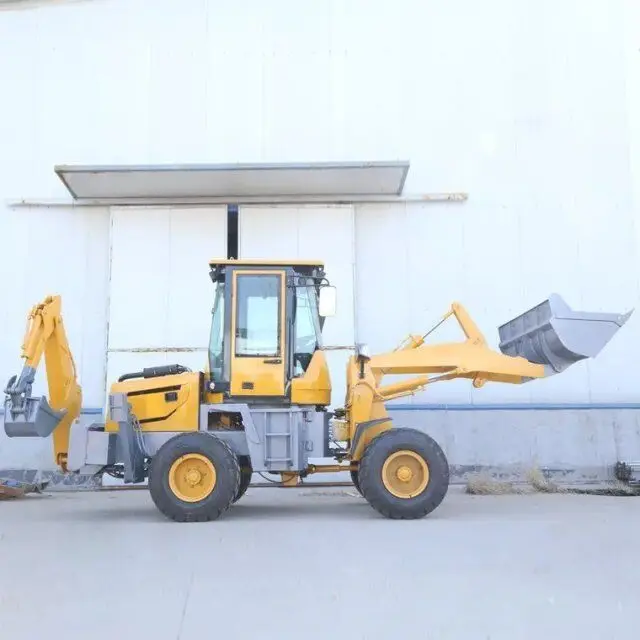

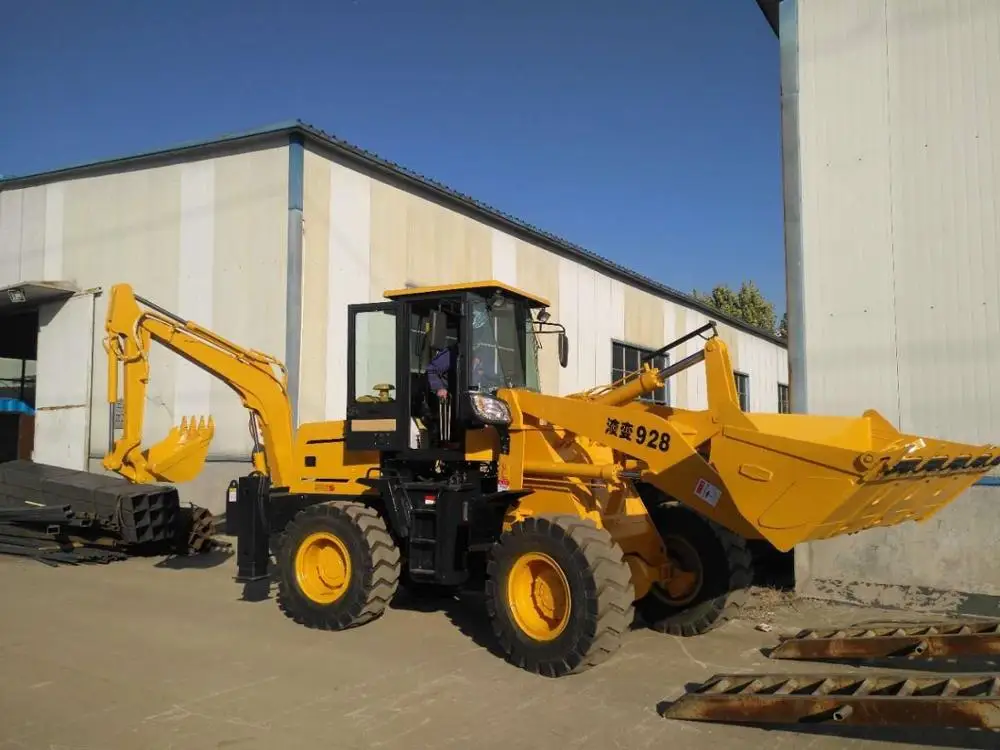

The mid-mounted excavation device and the wing-type legs have greater stability than other forms of excavation when crushing rocks and deep excavation. The compact, versatile design makes the operation flexible and convenient. The cab has a large space for easy digging and loading.
Engine | |
Model | YN27GBZ |
Type | Direct Injection, Four Strokes |
Rated Power (KW) | 55 |
Rated Speed (r/min) | 2400 |
Cylinder Number-Internal Diameter | 4-90 |
Model | WZ15-26 |
Overall Dimension(L*W*H) (mm) | 5800*1850*2750 |
Wheelbase (mm) | 2315 |
Tread (mm) | 1500 |
Minimum ground clearance (mm) | 220 |
System pressure(MPa) | 16 |
Operating Weight (kg) | 4800 |
Travel Speed (km/h) | 26 |
Max Climb Capability (°) | 25 |
Minimum turning radius (mm) | 4000 |
Mining parameters | |
Maximum Digging depth (mm) | 2700 |
Excavation unloading height (mm) | 2200 |
Maximum Digging radius (mm) | 4600 |
Bucket width (mm) | 600 |
Bucket capacity (cbm) | 0.2 |
Maximum Digging height (mm) | 4200 |
Maximum excavation force (KN) | 28 |
Rotation angle of excavator (°) | 180 |
Loading parameters | |
Maximum unloading height (mm) | 3300 |
Maximum unloading distance (mm) | 850 |
Bucket width (mm) | 1900 |
Bucket capacity (cbm) | 0.7 |
Loading Maximum Lift Height (mm) | 4200 |
Maximum Rising Power (KN) | 36 |
Forward shovel action time and (S) | 12 |
drive system | |
Gearbox | Fixed-axis Power Shift |
Gear number | top 2 and back 2 |
Hydraulic Torque Converter | ZL29A |
Steering system | |
Type | Hinged Full Hydraulic Steering |
Steering angle (°) | 33 |
Tyre | |
Specification | 23.5-16 |
Front Wheel Pressure (KPa) | 250 |
Rear Wheel Pressure (KPa) | 250 |
Driving Brake | Pneumatic oil nipper disc brake |
Parking brake | Manual |
Oil quantity | |
Fuel Tank (L) | 40 |
Hydraulic tank (L) | 40 |
Other | |
Drive Type | Four Wheel Drive |
Variable Speed Type | Hydraulic Variable Speed |
Braking distance (mm) | 4500 |
In nude package , drive into container directly.
1-2 units /20'ft container
3-4 units/ 40'ft container
1.Q: How to get an accurate quotation?
A:To get a quotation list, please send inquiry on Alibaba or send email to us directly. The email addresses are shown in the contact detail page. As we have different models and different implements, please indicate following details in your inquiry email.
1) Output (how many HP) or Model No.
2 ) Cooling system (water cooling system / radiator)
3) Starting method (hand crank / electric (motor ) start)
4) Order quantity: sample order or container order
These are very important for providing you an accurate and favorable price.
2. Q: What’s your payment item ?
A: T/T, L/C.
3. Q:About the shipment
A:Usually if you didn't indicate the shipping requirement in the inquiry email, we will quote on FOB price which doesn't include shipping cost.
If you need us ship the machine to your country, please also tell us the destination port.
4. Q:What’s your delivery time ?
A: Within 20 days after receiving the deposit.
5. Q:Do you have export experience?
A: Yes, more than 10 years.
We have exported our products to Australia,USA, Russian, India, and Asia market, Canada and other EURO countries.
