Сверхмощная Автоматическая машина для формования холодной валковой стали
- Категория: Pipe Making Machinery >>>
- Поставщик: Shijiazhuang Zhongtai Pipe Technology Development Co. Ltd.
Сохранить в закладки 62376223609:
Описание и отзывы
Характеристики
Products Description
Product Parameter | ||||

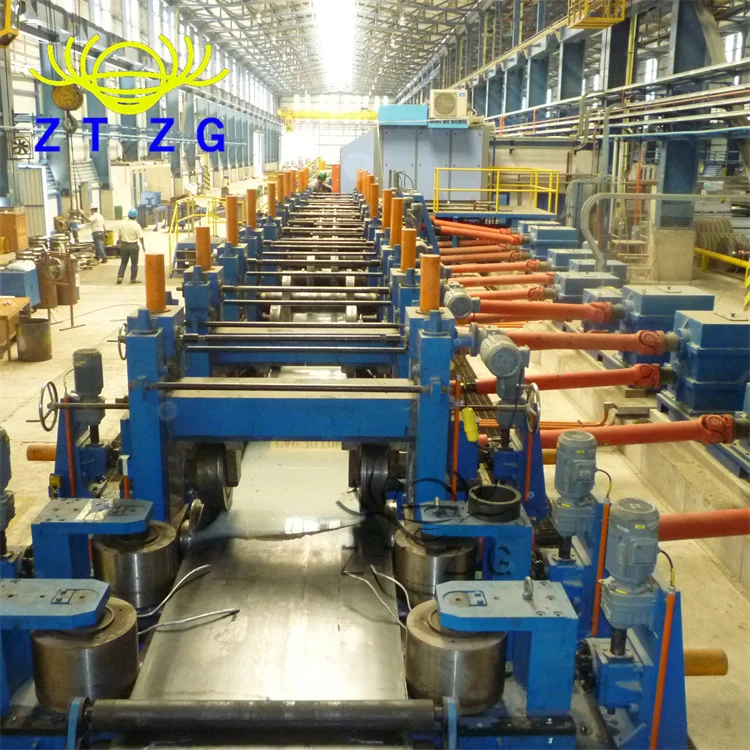

Introduction of Direct Square-to-Square(DSS) Pipe Mill DSS technique directly reels the strip steel into square tubes. It has several distinct advantages: 1. It adapts the multi-point bending method, which avoids the axial force and side abrasion, reduces the forming step, and ensures high quality. 2. Compare to Round-to-Square(RS) forming technique, DSS creates better outer edge and smaller inner arc for the cross section of the tube, and the brim is flatter with more regular outlook. 3. With our new DSS-3 technique, only one set of rollers is needed for the entire mill with no need for any roller or spacer replacement, which achieves full-automatic adjustment for roller positions, significantly increasing production efficiency and reducing labor cost and risk of hazard. | ||||
Product&yield | Square & rectangle tube | 60x60-600x600 40x80-400x800 Thickness:1.5-20mm | ||
Length | 6m-12m Length Tolerance: ±3mm | |||
Production Speed | 10-30 m/min | |||
Production capacity | 30,000ton/year | |||
Consumption | Mill installed capacity | 220 kw | ||
Line Area | 85m(length) ×7m (width) | |||
worker | 6-8 workers | |||
Raw Material | Carbon Steel coil | Carbon steel coil Q235B(ASTM GR·D,σs 230) | ||
Width | 240mm-2400mm Thickness: 1.5mm-20.0mm | |||
Coil ID | 580-700mm | |||
Coil OD | Max 1800mm | |||
Coil Weight | 25.0t | |||
Recommend Products
Production Line
Successful Cases
Company Profie
Certifications
FAQ
Q:Are you manufacturer?
A:Yes,we are manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
Q:What kind of payment term do you do?
A: We do T/T and L/C.
Q:What info do you need before giving me the price and proposal?
A: Since we design individual machine based on our customer's requirement, we need your desired products' basic dimension, including all the pipe diameter(or tube length), thickness range , usage, raw material steel grade, coil weight, and degree of automation.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant for pre-sales service .Also we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
Q:How do you do QA?
A:We have special team to do strict QA,this is one of our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
A:Yes,we are manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
Q:What kind of payment term do you do?
A: We do T/T and L/C.
Q:What info do you need before giving me the price and proposal?
A: Since we design individual machine based on our customer's requirement, we need your desired products' basic dimension, including all the pipe diameter(or tube length), thickness range , usage, raw material steel grade, coil weight, and degree of automation.
Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant for pre-sales service .Also we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
Q:How do you do QA?
A:We have special team to do strict QA,this is one of our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.
Q:Why I should choose you? what are the differences between you and other Chinese suppliers?
A:We are concentrate on pipe making machines for more than 20 years. We have constructed many steady trading partners in Asia,Africa, middle east, Europe, and South America throughout the years. Our innovative designed production line and each single unit of the production line are not only economical but also practical.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.
Q:Why I should choose you? what are the differences between you and other Chinese suppliers?
A:We are concentrate on pipe making machines for more than 20 years. We have constructed many steady trading partners in Asia,Africa, middle east, Europe, and South America throughout the years. Our innovative designed production line and each single unit of the production line are not only economical but also practical.
Model List | ||||||||
Model | Round pipe mm | Square pipe mm | Thickness mm | Working spead m/min | ||||
DSS150 | 60x60-150x150 | 70x50-200x100 | 1.5-8 | 20-70 | ||||
DSS200 | 70x70-200x200 | 90x50-250x150 | 2.0-10.0 | 20-60 | ||||
DSS250 | 90x90-250x250 | 120x60-300x200 | 3.0-12.7 | 15-50 | ||||
DSS300 | 120x120-300x300 | 140x100-400x200 | 4.0-14.0 | 10-40 | ||||
DSS400 | 170x170-400x400 | 200x150-500x300 | 4.0-16.0 | 10-30 | ||||
DSS500 | 200x200-500x500 | 250x150-600x400 | 4.0-20.0 | 8-20 | ||||
Похожие товары
Высокочастотная круглая квадратная трубчатая мельница/высокоскоростная сварочная стальная труба делая машину
Линия по производству труб из нержавеющей стали/машина для производства труб/Оборудование для формовки труб
2 028 478,64 ₽ - 2 050 058,20 ₽
HF сварочная стальная трубная мельница emt электрическая металлическая Трубная машина
9 495 006,40 ₽ - 12 731 940,40 ₽
Машина для производства стальных труб
10 789 780,00 ₽ - 21 579 560,00 ₽
Сварочный аппарат для спиральных труб
80 923 350,00 ₽ - 86 318 240,00 ₽
Машина для полировки стальных труб небольшого диаметра
1 618 467,00 ₽ - 2 373 751,60 ₽

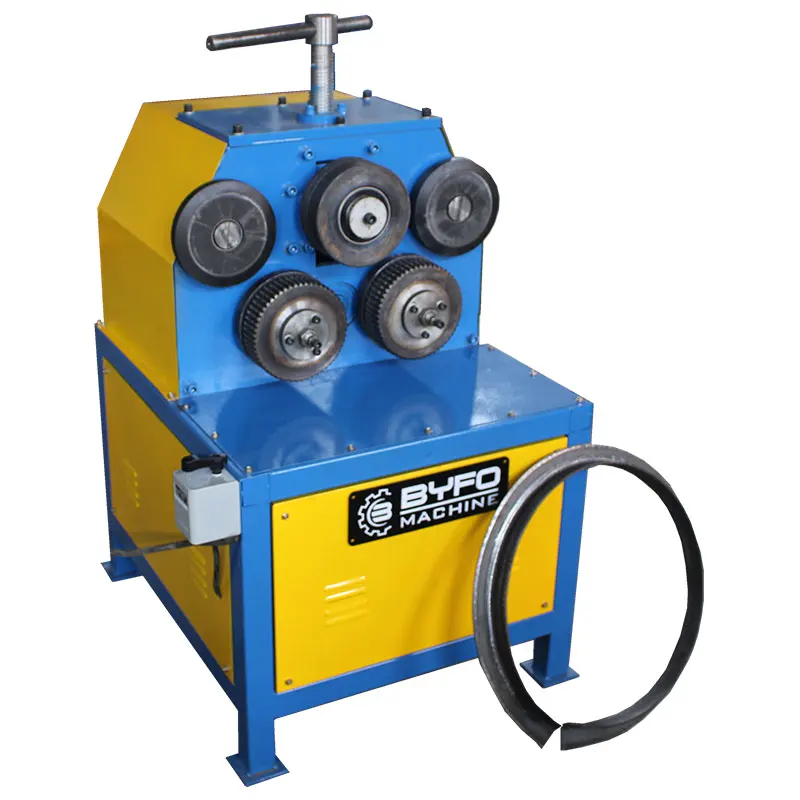

Угловая железная круглая трубчатая гибочная плоская роликовая машина для продажи
