UY900 battery charger specification
Product features

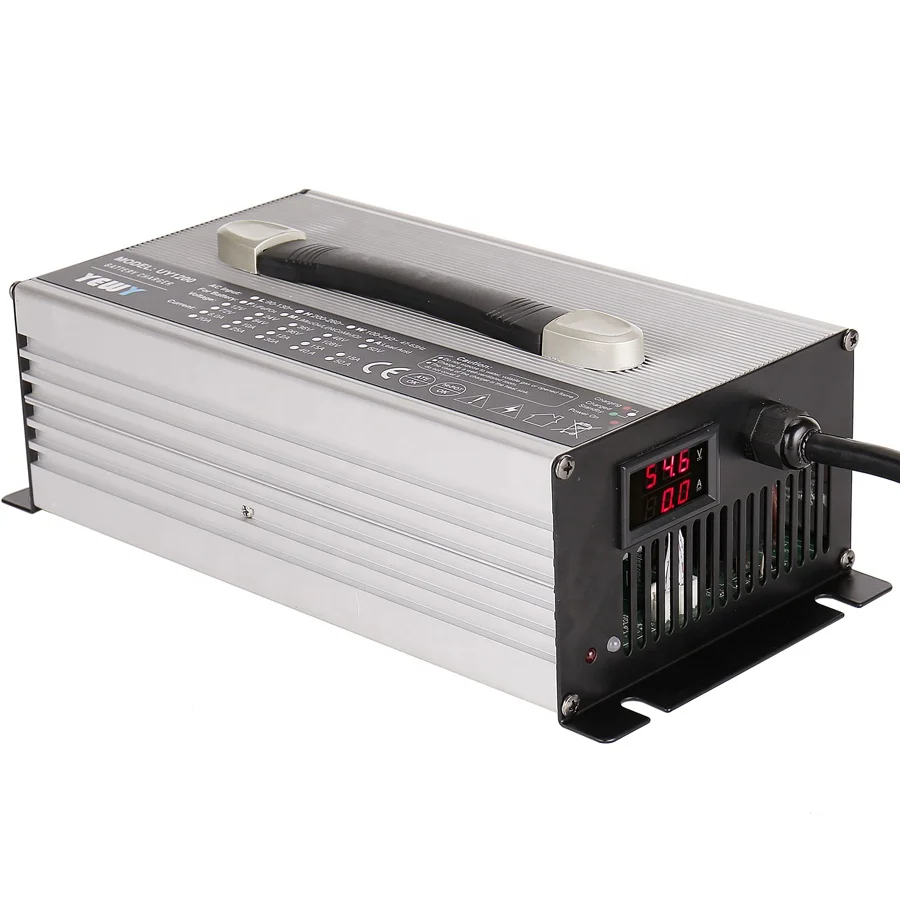

l 1200W l Aluminum case, easy handling l Circuit topology: Current Half-bridge type l Optional function: MCU, CAN Communicate etc. l CPU and intelligent PWM IC control ,full automatic transition of CC,CV and Float/Cut-off, meet the demands for different Curve. l Protections: Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge l Voltage & Current LED meter display l Intelligent cooling fun, controlled by temperature
Output
|
Rated output
|
Refer to output reference
|
|
Voltage setting accuracy
|
+/-1%
|
110/220Vinput
|
Total output voltage adjustment rate
|
1%
|
Power adjustment rate and load adjustment rate
|
Ripple
|
<=output voltage 1%
|
Main output (board edge)
(Test with adding 0.1uF ceramic capacitor and 10uF tantalum capacitor filter at the output and the bandwidth is 20MHz)
|
Output voltage overshoot
|
|
Overshoot/undershoot control in a reasonable range
|
Short Circuit Protection (SCP)
|
Protect the power from damage
|
Relay off, no output
|
Output isolation
|
|
Safety standards
|
Output Over Current Protection (OCP)
|
Disconnected the output
|
The charger enter the standby state protection, when output current exceeds the max. charging current.
|
Output Over Voltage Protection (OVP)
|
PWM off
|
The charger enter the standby state protection, when output current exceeds the max. charging voltage .
|
Over-temperature protection
|
Automatic recovery
|
When the internal temperature over 85 degrees, stop
|
Reverse Polarity Protection
|
Automatic recovery
|
Relay off, no output
|
Product Name |
UY1200 BATTERY CHARGER |
Brand Name |
YEWY |
Model Number |
UY900
|
Input Voltage |
110-220Vac |
Frequency |
50~60HZ |
N.W |
5.5KG |
Dimension |
303.5*150*90mm |
Efficiency |
89% |
Leakage Current |
<=0.75mA |
Operating humidity |
5%-95% RH Non-condensing |
Altitude |
2000m |
Operating Temperature |
-20℃—+40℃ |
Storage Temperature |
-40℃-+70℃ |
Safety certifications |
CE, CB, RoHS Directive-compliant |
Suitable battery Type |
Lead Acid/LiFePo4/Li-ion |
Charging Time |
Cut-off point for Li battery is 8% of CC and it can be set between 3-10%.(charging time:3-4 hours) |
Transition for Lead acid charger is 25% of CC.(charging time:6-8 hours) |
Protection |
Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge |
Advantage |
*MCU and intelligent PWM IC control ,full automatic transition of CC,CV and Float/Cut-off, meet the demands for different Curve. |
*Aluminum case, Robust, Elegant and Reliable |
Package Contents |
*1xbattery charger
*1xInput Wire
*1xUser Manual
This battery charger is your affordable necessity without sacrificing performance.
It features an integrated MCU and PWM for power control.
|
|
![]() |

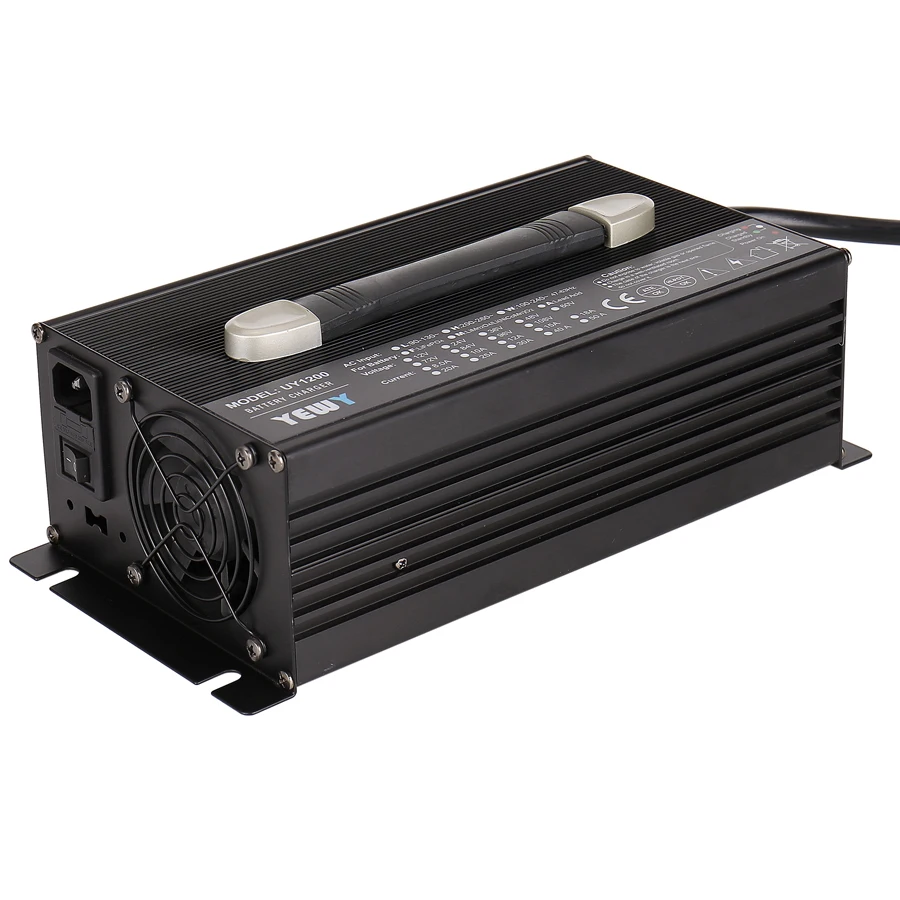

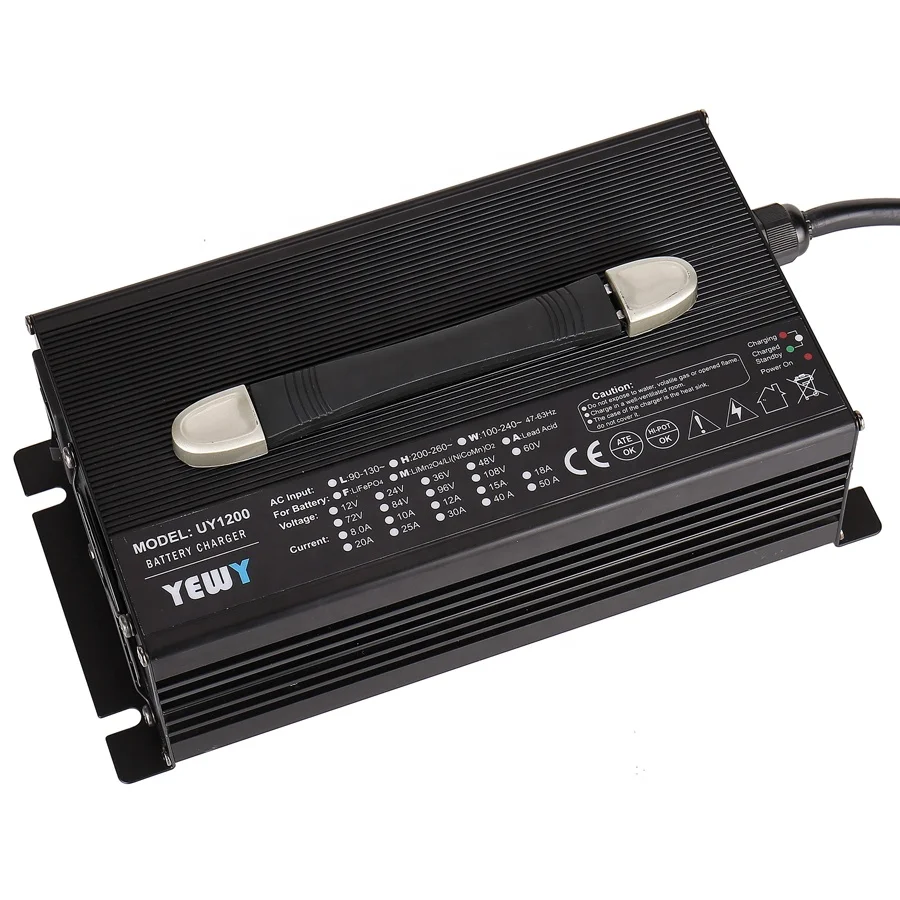

![UY1200--02]() ![UY1200--01]()
Application
UY1200 battery charger widely used for:
Electric bicycles, electric scooters, golf carts, electric motorcycles,electric washing machine ,two wheeled vehicle, three wheeled vehicles, four wheeled vehicles,electric tricycle ,unmanned aircraft, Patrol Car, Sanitation Vehicle, electric cars,Electric forklift , Electric Pallet Truck, electric tools, unmanned aircraft, sightseeing cars,diplopod sweeper and so on.
![]()
|
|
AC & DC Plug
![AC-&DC-plug]() ![]()
