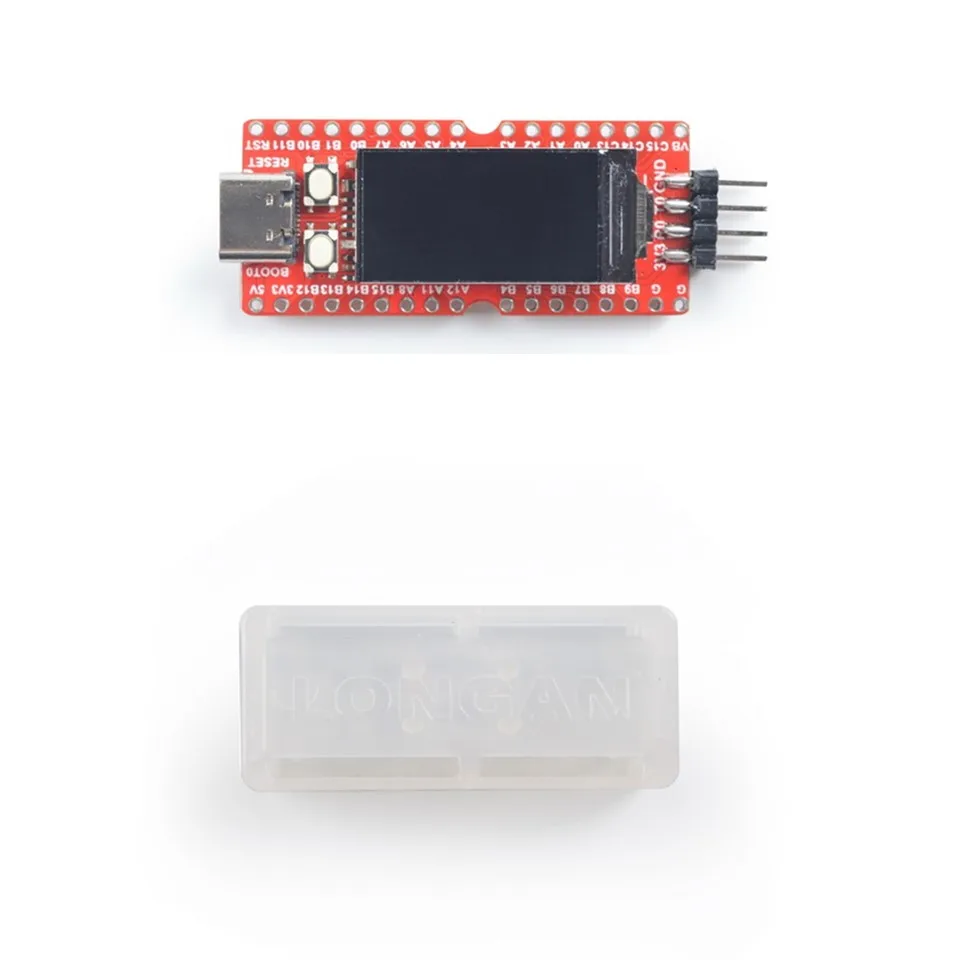

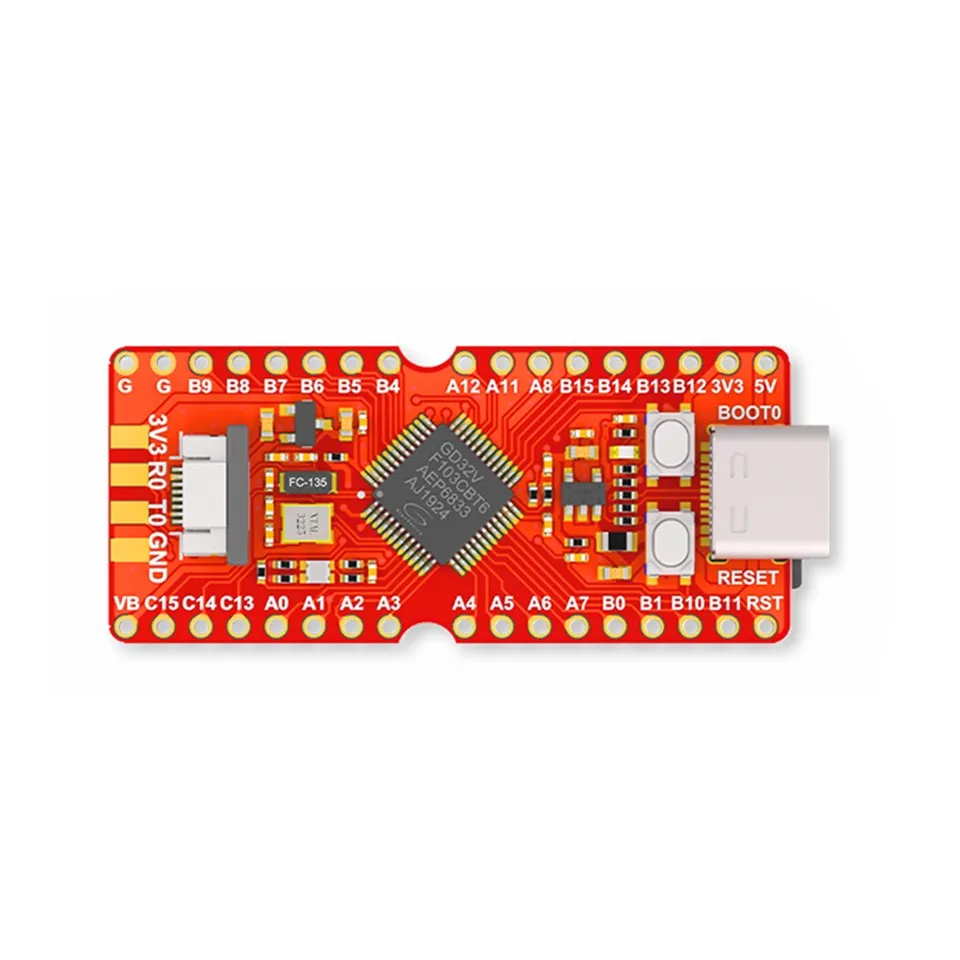

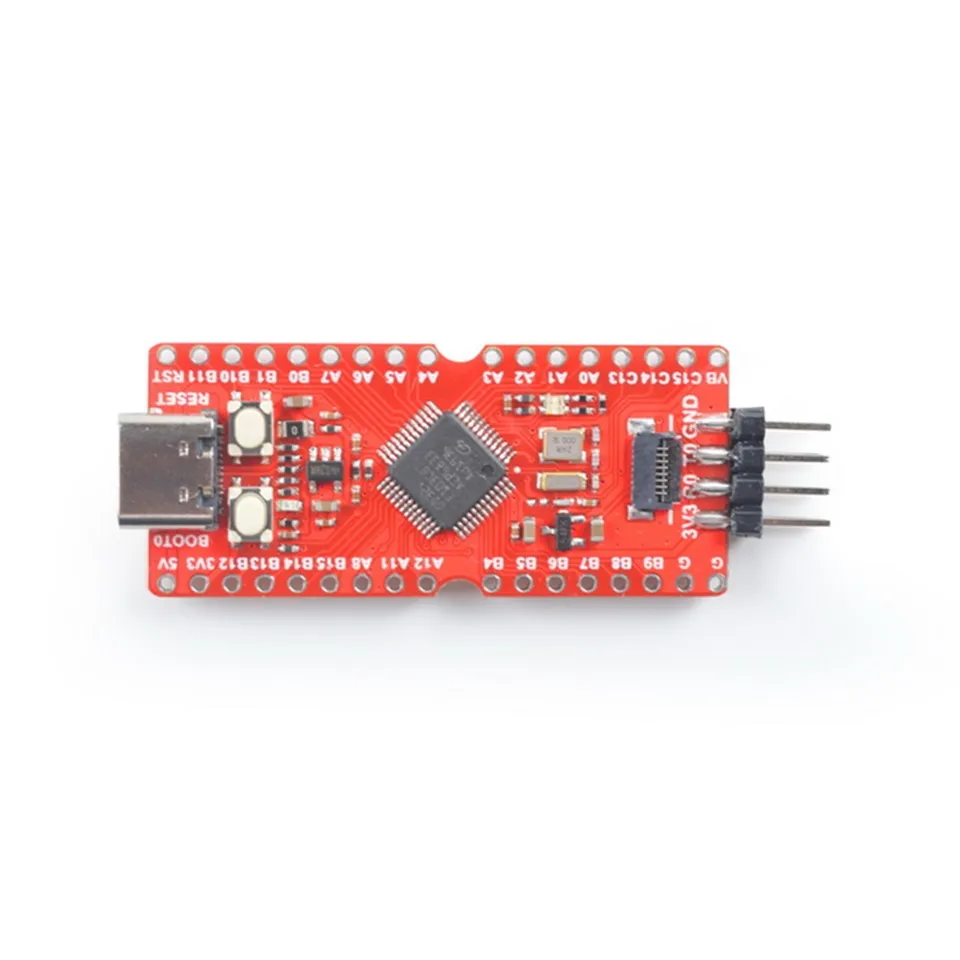

Sipeed Longan Nano RISC-V GD32VF103CBT6 MCU Development Boar

Product introduction:
The Longan Nano is a minimalist development board for the GD32VF103CBT6 microcontroller based on the GigaDevice RISC-V 32-bit core. It is convenient for students, engineers and geeks to access the new generation of RISC-V processors and understand their features.
The main chip is GD32VF103CBT6, based on the Bumblebee core of the core technology. Support RV32IMAC instruction set and ECLIC fast interrupt function. The core power consumption is only 1/3 of the traditional Cortex-M3.
Product parameters

Chip built-in 128KB Flash, 32KB SRAM
4x universal 16-bit timer,
2x basic 16-bit timer,
1x advanced 16-bit timer
Watchdog, RTC, Systick
3xUSART,
2xI2C,
3xSPI,
2x I2S
2x CAN,
1 xUSBFS (OTG),
2 x ADC (10 channel),
2 x DAC

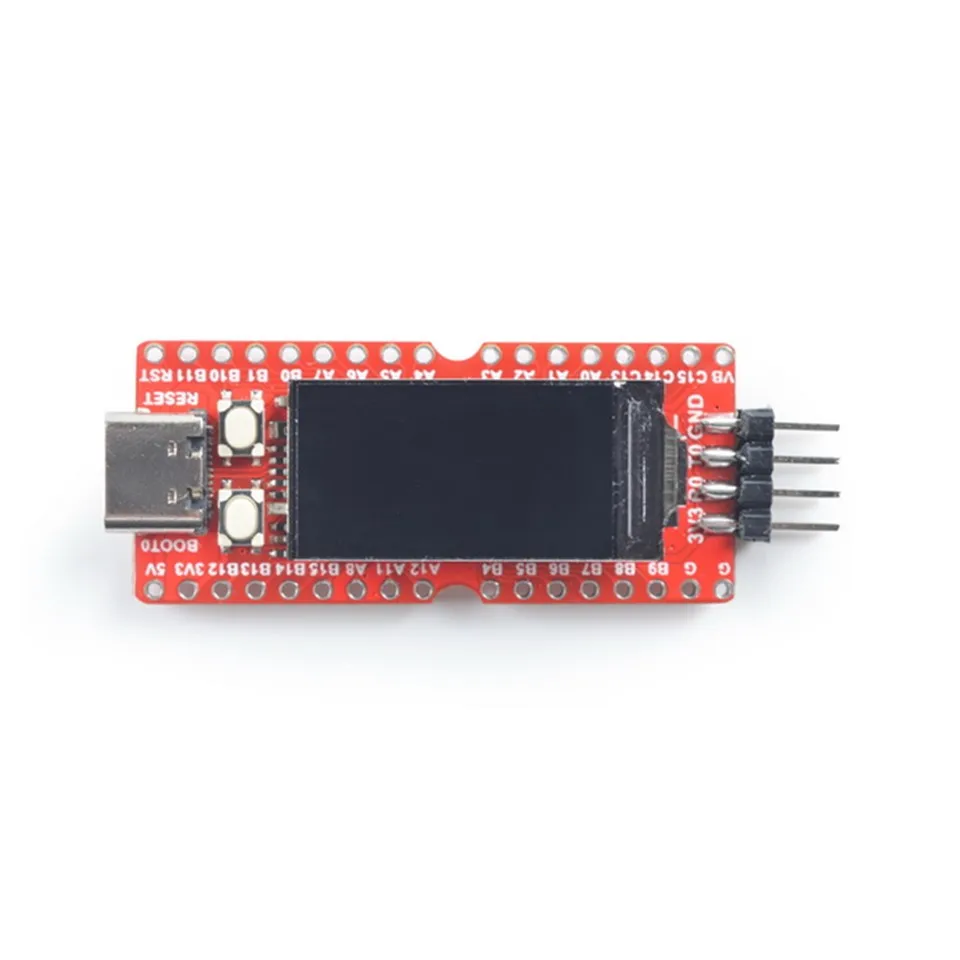

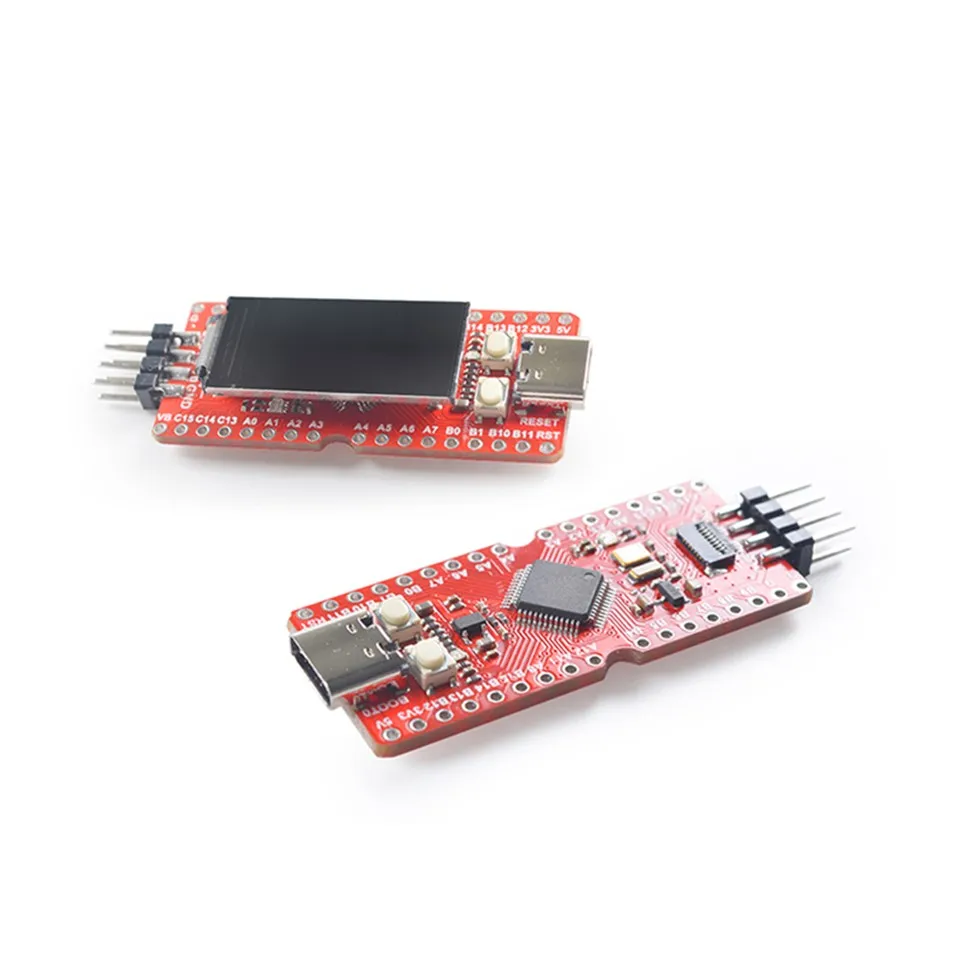

Longan Nano development board, double-row pin design, 700mil pin spacing, can be directly inserted into the breadboard; onboard 8M passive crystal oscillator, 32.768KHz RTC low-speed crystal oscillator, mini TF card slot, and use Type-C USB interface.

CB: 128KB Flash/32KB RAM
