Формировальная машина BY60100 BY60125 гидравлическая формировальная

Формировальная машина BY60100 BY60125 гидравлическая формировальная

Категория: Рубанок и долбежные станки >>>
Поставщик: Shandong Gsk Cnc Equipment Co. Ltd.

Цена:12 360,00 $ - 13 990,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

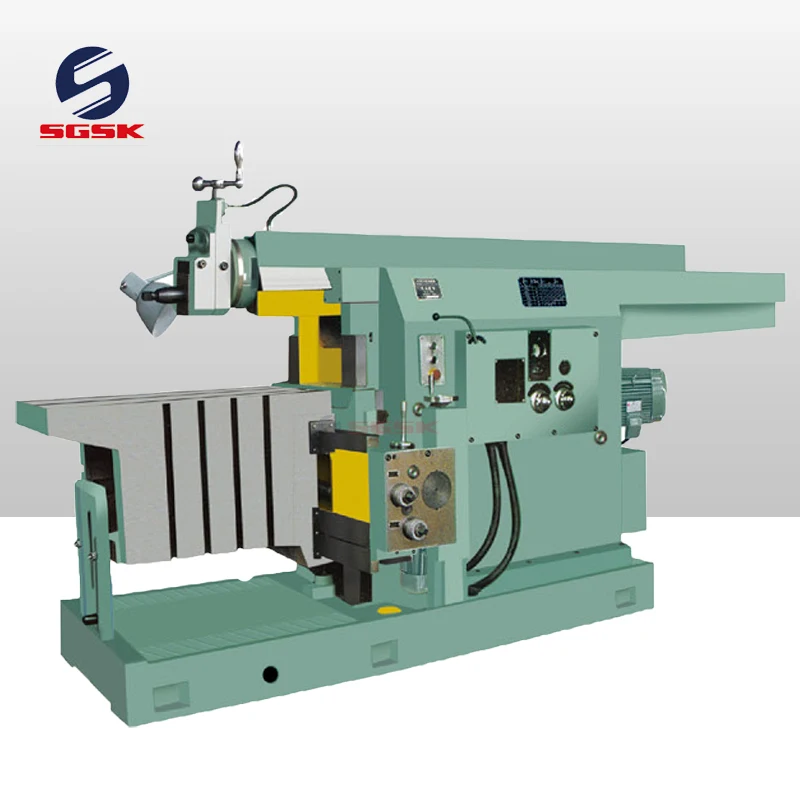

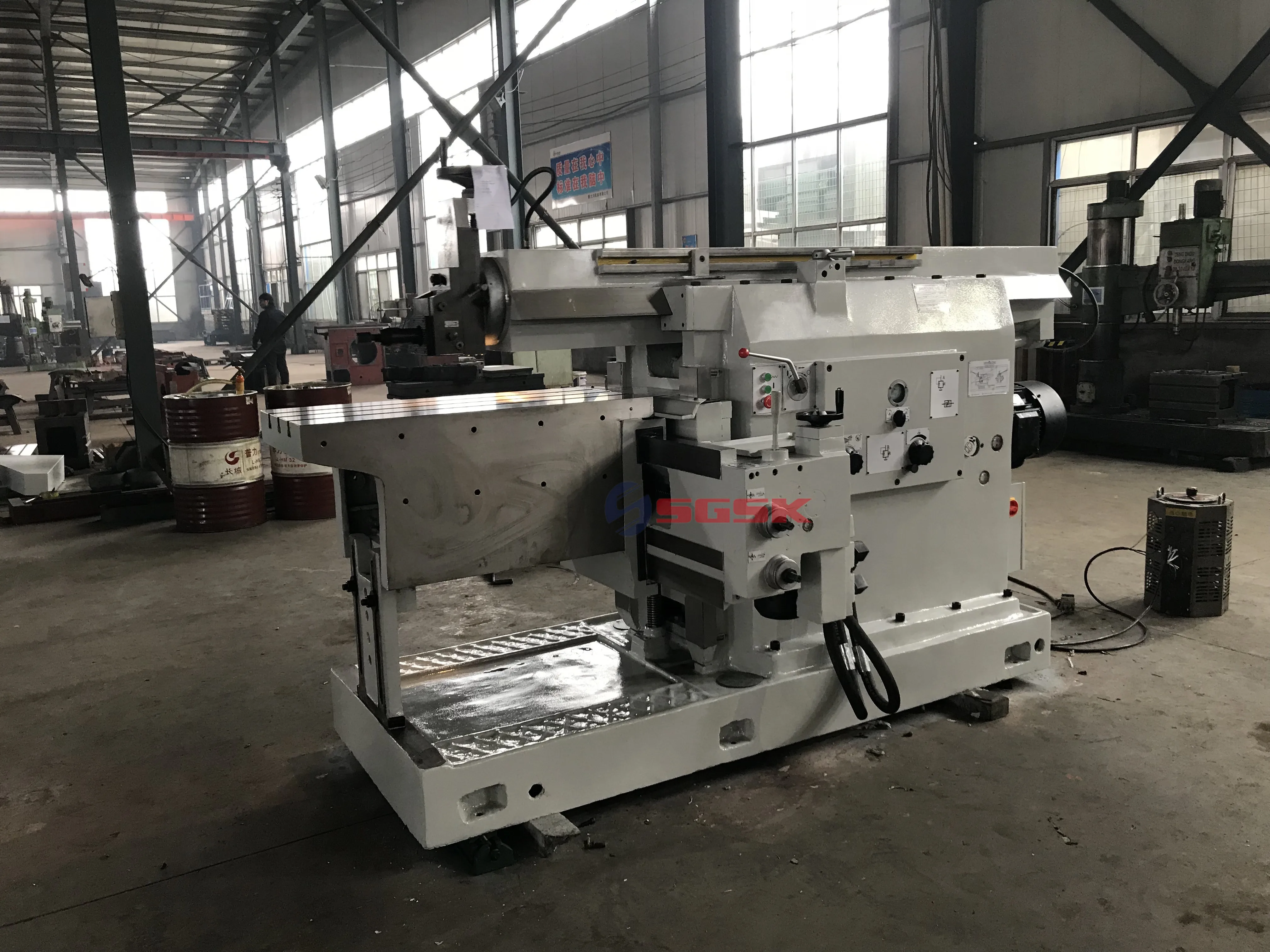

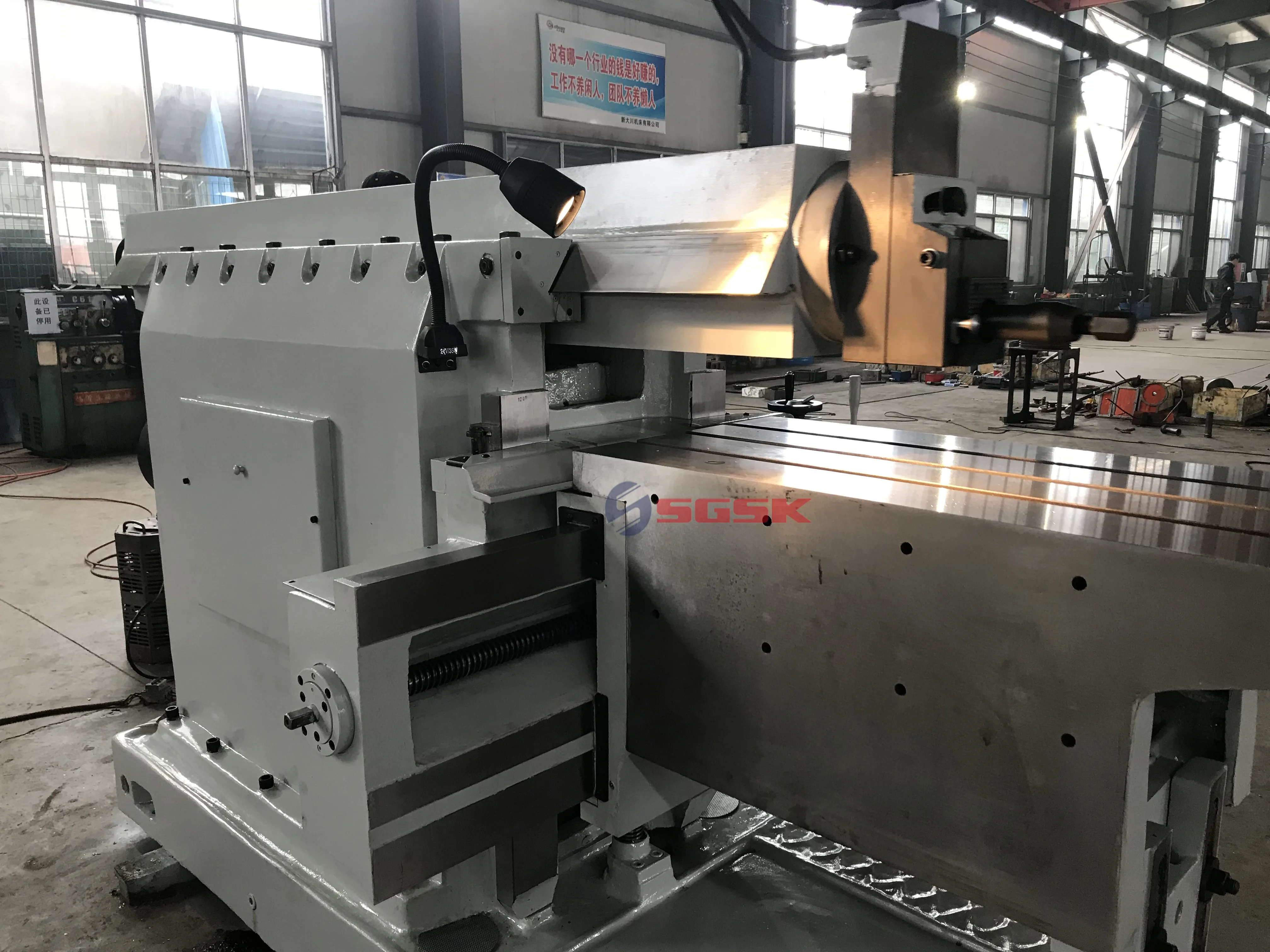

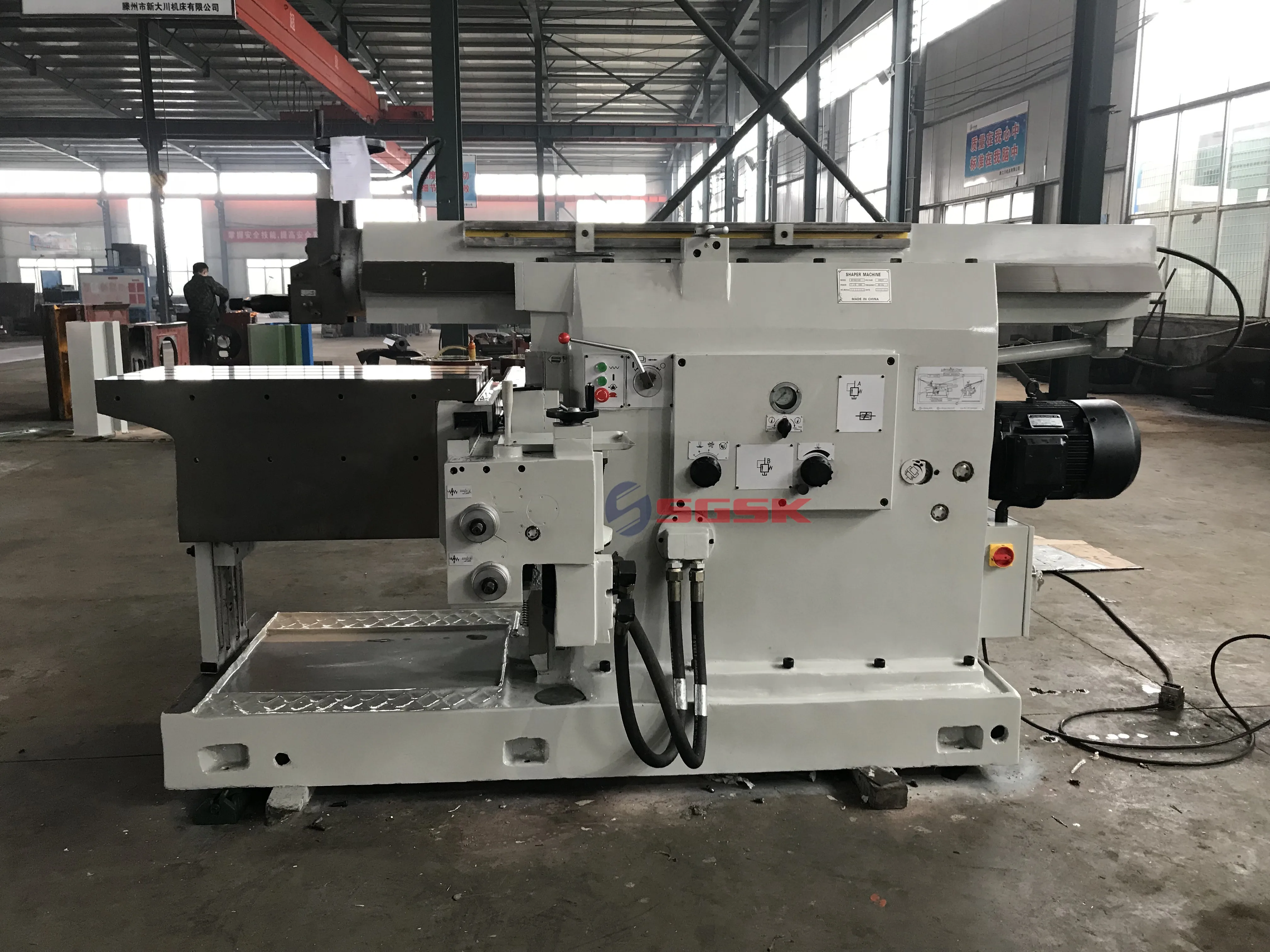

Shaping machine BY60100/60125 Hydraulic shaper machine

Products Description

Product Paramenters

Features:

1.The machine is used in a variety of cutting and forming flat surface, suitable for single and small batch production.
2.Bed and other key parts of tempering, vibration aging, super audio quenching heat treatment process, makes the machine more stable accuracy, longer service life.
3.The principal cutting movement and feed movement are the hydraulic transmission, stepless speed regulation, with hydraulic overload protection device, smooth rotation, little overrun, start and stop is flexible and reliable, rigidity, cutting force, high directional accuracy, low temperature, small thermal deformation and precision stability, and can apply to the work of a strong and continuous cutting.

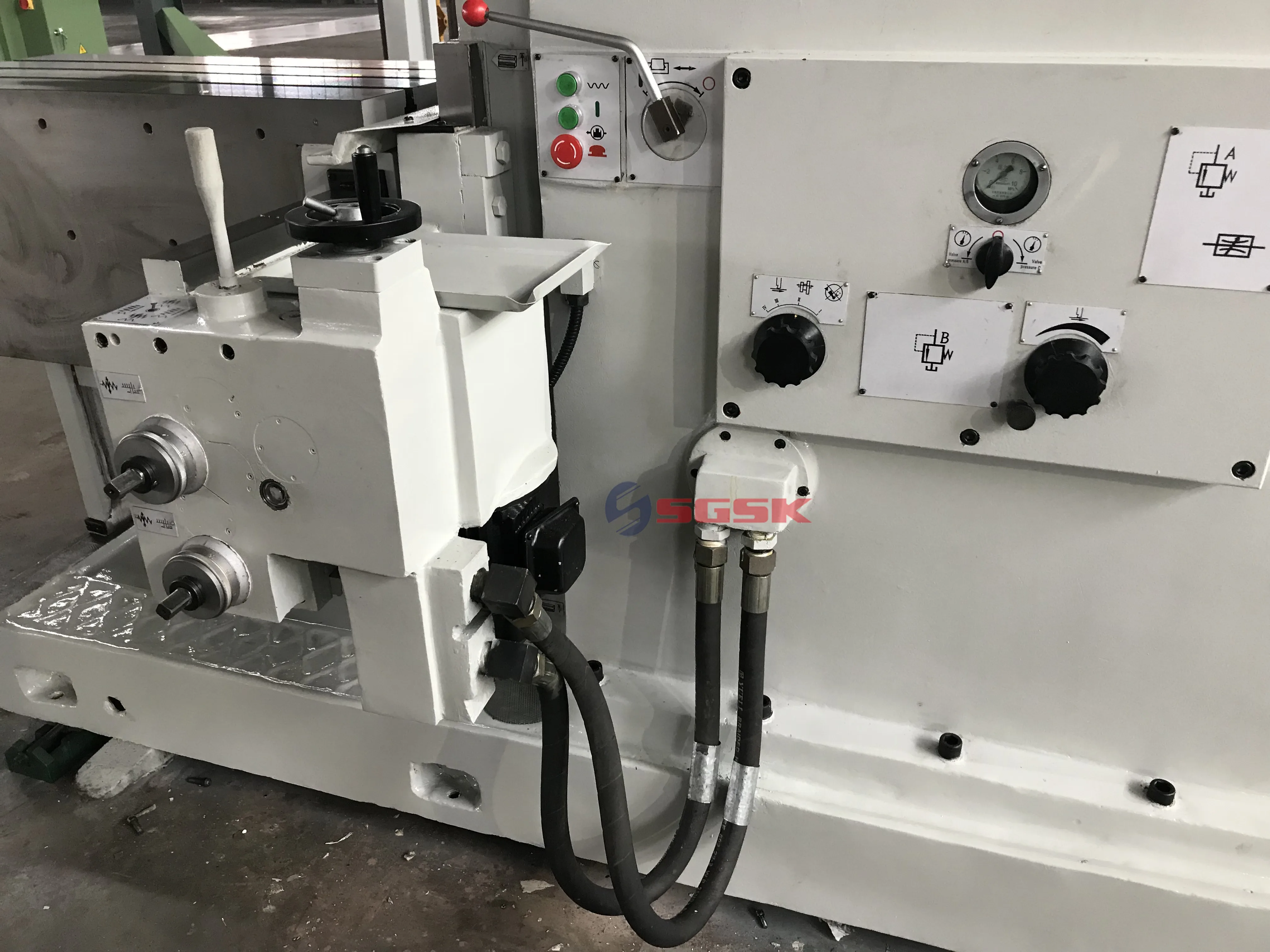

4.The machine tool can achieve rapid horizontal and vertical movement, turret with automatic tool lifting mechanism, machine tool handles, easy to operate, high degree of automation

Product main technical specifications:

Specification	Units	BY60100 /BY60125
Max. shaping length	mm	1000/1250
Cutting speed of ram(step less)	Mm/min	3-44
Distance from lower edge of ram to upper surface of table	mm	80-400
Max. cutting force	N	28000
Max. travel of tool post	mm	160
Maximum size of tool planer(W*T)	mm	30×45

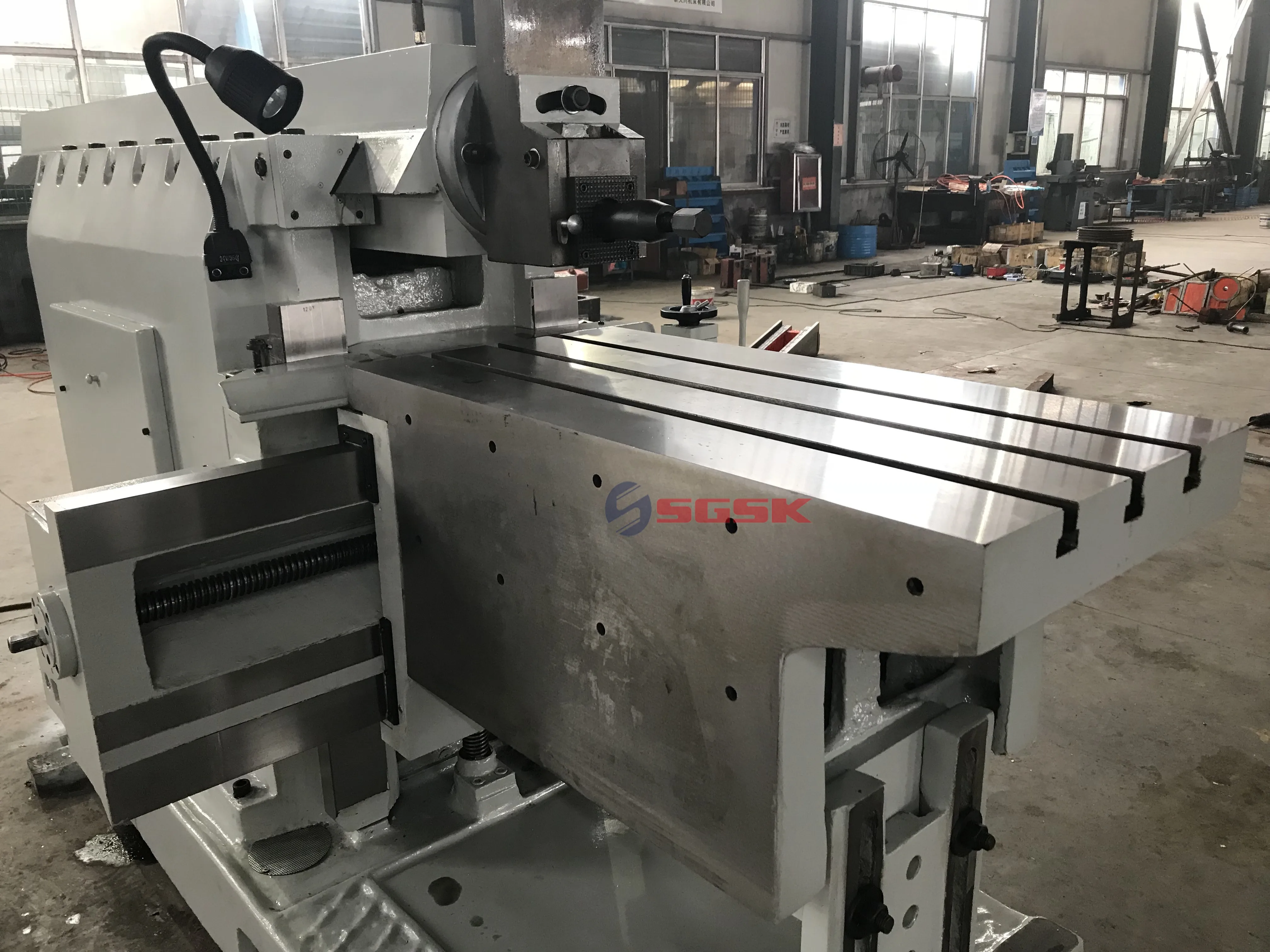

Upper working surface of table(L x W)	mm	1000×500/1250x500
T-slot width of upper table surface	mm	22
Max. horizontal travel of table	mm	800
Horizontal feed of table (per reciprocating stroke of ram, step less)	mm	0.25-5
Main motor power	KW	7.5
Motor for rapid table movement	KW	0.75/1.5
Overall dimensions(L x W x H)	mm	3615×1574×1760 4140x1550x1850
N/G.W	kg	4200/4350 4650/4850

Company Profile

FAQ

1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.

2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.

3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.

4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.

5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .

6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.

8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
