DC солнечный насос 24 вольт погружной комплект солнечных водяных насосов для
- Категория: Solar Applications >>>
- Поставщик: Shanghai Lanchuan Automation Technology Co. Ltd.Shanghai Ltd.
Сохранить в закладки 62382247272:
Описание и отзывы
Характеристики
Product Description
Product Features:
1. Wide working voltage:10v-22v.
2. Built-in MPPT controller which can make the best use of solar energy.
3. Over-voltage protection / Under-voltage protection: The pump will stop working automatically when the voltage is too high or too low; Then it will detect the voltage every 10 minutes, and it will start to work automatically when the voltage is between 10v-22v.
4. Controller is internal which means the pump can be directly connected to solar panels without battery in sunshine.
1. Wide working voltage:10v-22v.
2. Built-in MPPT controller which can make the best use of solar energy.
3. Over-voltage protection / Under-voltage protection: The pump will stop working automatically when the voltage is too high or too low; Then it will detect the voltage every 10 minutes, and it will start to work automatically when the voltage is between 10v-22v.
4. Controller is internal which means the pump can be directly connected to solar panels without battery in sunshine.

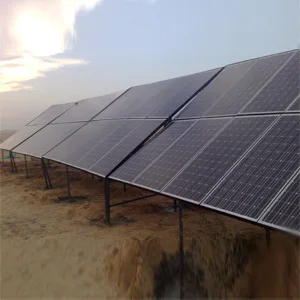

Solar Modules
The 12v solar water pump system are recommended to be powered by 18v Monocrystalline / Polycrystalline solar panels in parallel connection; The 24v solar water pump system are recommended to be powered by 36v Monocrystalline / Polycrystalline solar panels in parallel connection.
The 12v solar water pump system are recommended to be powered by 18v Monocrystalline / Polycrystalline solar panels in parallel connection; The 24v solar water pump system are recommended to be powered by 36v Monocrystalline / Polycrystalline solar panels in parallel connection.
Installation Instructions
1.If you just need the pump to work in sunshine, it can be directly connected to solar panels without controller. You need totally about 400w (18v) solar panels. If the sun is not very well, you can use more solar panels.
2. If you also need the pump to work during the night time, or even in cloudy and rainy day, you also need controller and battery.
Note:
1.Do not mix the positive (+) and negative (-) connection.
2.Do not operate for long time when there is no water in the pump
3.The pump is submersible pump, it must be full submerged in the water.
4.Copper wire required. ( PS: 6 mm² or 10 mm² copper wire is required when the cable length is too long.)
5.The diameter of the pipe connected to the pump must bigger than 1 inch. Don’t block or bend the pipe/ inake/ outlet. Damage caused by the above is not covered by the warranty.
1.Do not mix the positive (+) and negative (-) connection.
2.Do not operate for long time when there is no water in the pump
3.The pump is submersible pump, it must be full submerged in the water.
4.Copper wire required. ( PS: 6 mm² or 10 mm² copper wire is required when the cable length is too long.)
5.The diameter of the pipe connected to the pump must bigger than 1 inch. Don’t block or bend the pipe/ inake/ outlet. Damage caused by the above is not covered by the warranty.
Product Paramenters
Recommend Products
Product packaging
Company Profile
Certifications
FAQ
1. Q: Can I know more about your products?
2. A: Pls view our website: www.mslace.en.alibaba.com
2. Q: What's your MOQ of this item?
A: 1~2PCS
3. Q: What is the lead time?
A: 15~30 days after receiving your payment, it depends on pumps.
4. Q: What is the payment term?
A: Normally T/T in advance or L/C at sight. Others like D/P, Cash, Credit Card
5. Q: what is the product's warranty?
A: The whole pump is warrantee for one year, while the spare parts or wetting parts about pump will be warrantee for 3 months from
the date of delivery.
6. Q: Are you a manufacturer or trading company
A: We are a manufacturer specialize in water pump and other pumps more than 20 years.
2. A: Pls view our website: www.mslace.en.alibaba.com
2. Q: What's your MOQ of this item?
A: 1~2PCS
3. Q: What is the lead time?
A: 15~30 days after receiving your payment, it depends on pumps.
4. Q: What is the payment term?
A: Normally T/T in advance or L/C at sight. Others like D/P, Cash, Credit Card
5. Q: what is the product's warranty?
A: The whole pump is warrantee for one year, while the spare parts or wetting parts about pump will be warrantee for 3 months from
the date of delivery.
6. Q: Are you a manufacturer or trading company
A: We are a manufacturer specialize in water pump and other pumps more than 20 years.
