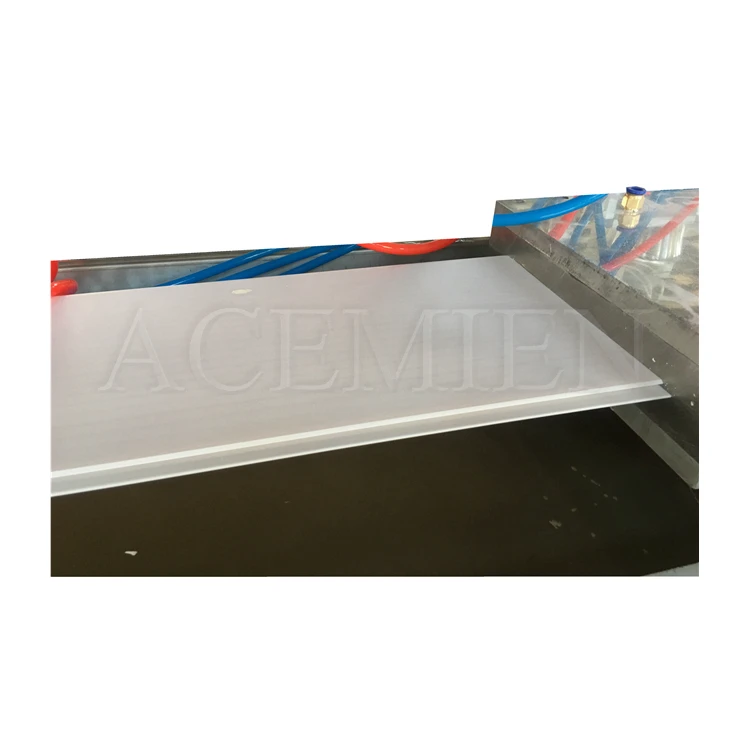

PVC plastic ceiling sheet extrusion making machine manufacturer
- Категория: >>>
- Поставщик: Jiangsu Acemien Machinery Co. Ltd.
Сохранить в закладки 62385425042:
Описание и отзывы
Характеристики
Product Description

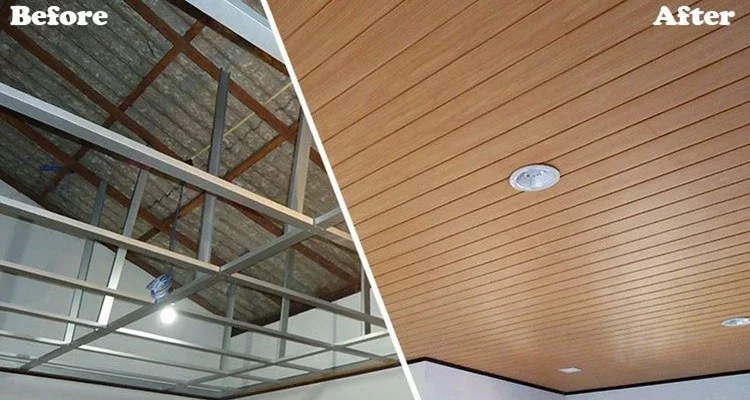

Product Application
Machine name: PVC Ceiling Panel Wall Board Making machine
Finished product : Plastic ceiling , PVC composite ceiling , Plastic wall panel , Plastic profileProduct
Machine name: PVC Ceiling Panel Wall Board Making machine
Finished product : Plastic ceiling , PVC composite ceiling , Plastic wall panel , Plastic profileProduct
Product advantages:
High Intensity: service life of more than 30 years.
Waterproof & Rot Resistance: suitable for different climates, every occasion.
Quick & Easy Installation: saving labor and financial resources.
Easy to Clean: widely used in kitchens, living rooms, bathrooms,etc.(for ceiling and wall)
Variety of Colors and Patterns: different color and pattern can be made as required.Product
High Intensity: service life of more than 30 years.
Waterproof & Rot Resistance: suitable for different climates, every occasion.
Quick & Easy Installation: saving labor and financial resources.
Easy to Clean: widely used in kitchens, living rooms, bathrooms,etc.(for ceiling and wall)
Variety of Colors and Patterns: different color and pattern can be made as required.Product
Main technical specifications of machines | ||||||||
Maximum panel width | 300mm | 400mm | 600mm | Profiles | ||||
Extruder model | SJZ 55 | SJZ 65 | SJZ 65/SJZ80 | SJZ 51 | ||||
Extruder motor | 22kw | 37kw | 37kw/55kw | 15kw | ||||
Production speed | 2m/min | 4m/min | 3m/min | 2m/min | ||||
Production speed | 120kg/h | 220kg/h | 220kg/h / 400kg/h | 100kg/h | ||||

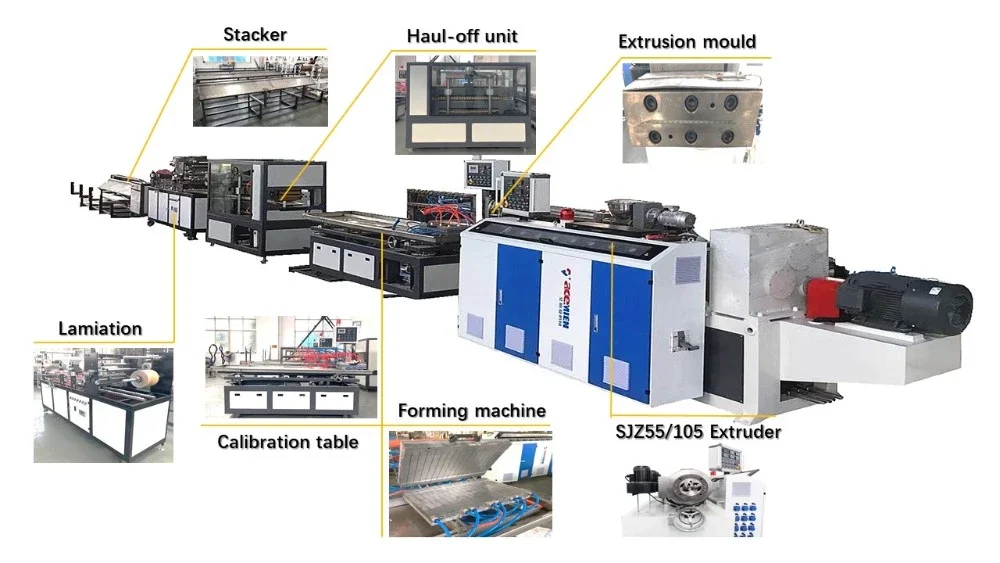

Machine List | ||||||
No. | Name | Qty. | Remark | |||
1 | Spring loader for extruder | 1 | ||||
2 | SJZ series conical twin screw extruder | 1 | ||||
3 | Extrusion mould unit | 1 | Change mould for different shape | |||
4 | Vacuum calibration Table | 1 | ||||
5 | Haul off unit | 1 | ||||
6 | Lamination & hot stamping machine(inline) | 1 | Change film for different pattern | |||
7 | Blade Cutter | 1 | ||||
8 | Stacker | 1 | ||||
Auxiliary Machine | ||||||
9 | SRL-Z Series Mixer unit | 1 | Capacity : 450-550kg/h | |||
10 | Screw loader for Mixer | 1 | ||||
11 | Crusher | 1 | Power: 11kw,22kw,30kw | |||
12 | Pulverizer | 1 | Power: 45kw,55kw,75kw | |||
Detailed Images

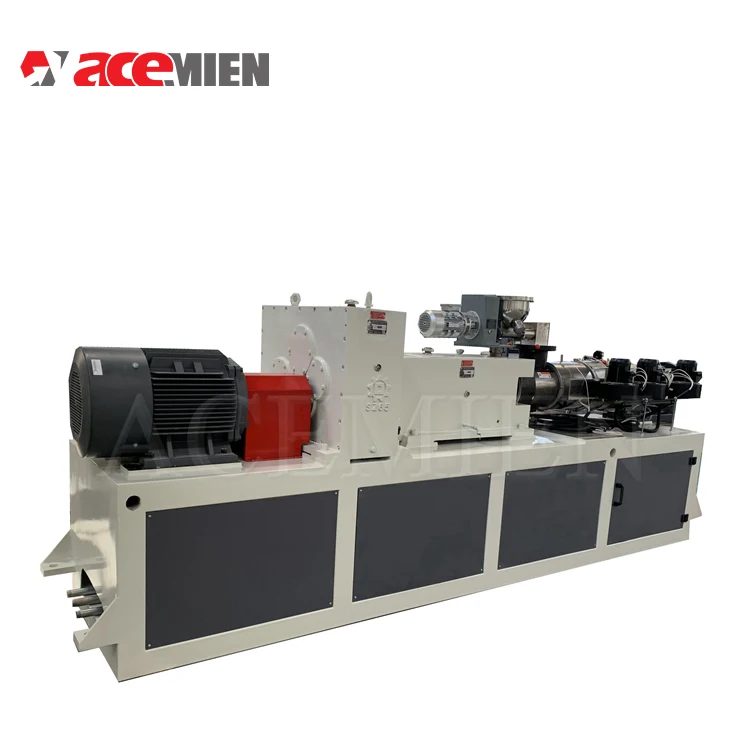

Double screw extrusion
1.Capacity:100-150 kg/h
2.Screw is adopt Double alloy ,and with tempering, nitriding, hard chrome plated surface treatment, very wear proof
3.Screw is adopt Double alloy ,and with tempering, nitriding, hard chrome plated surface treatment, very wear proof

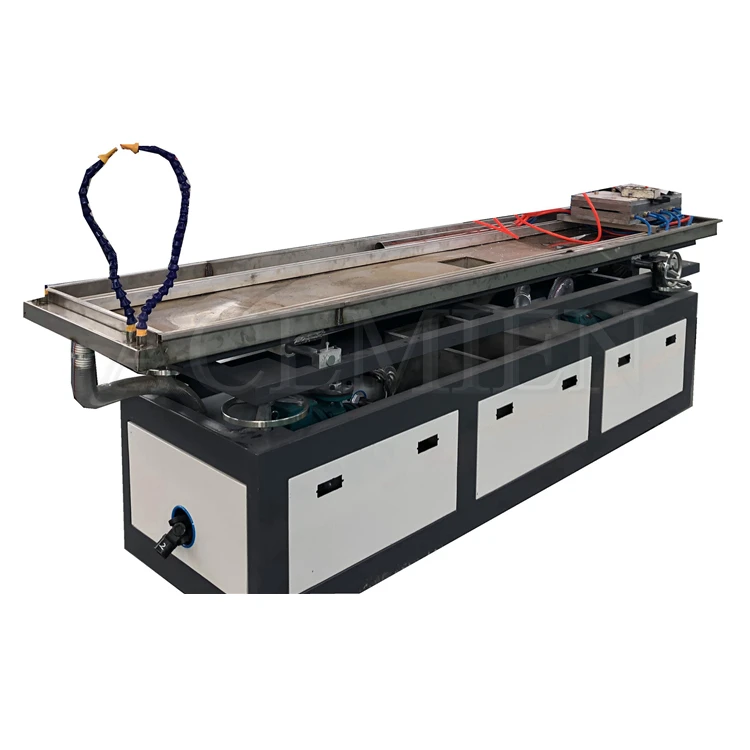

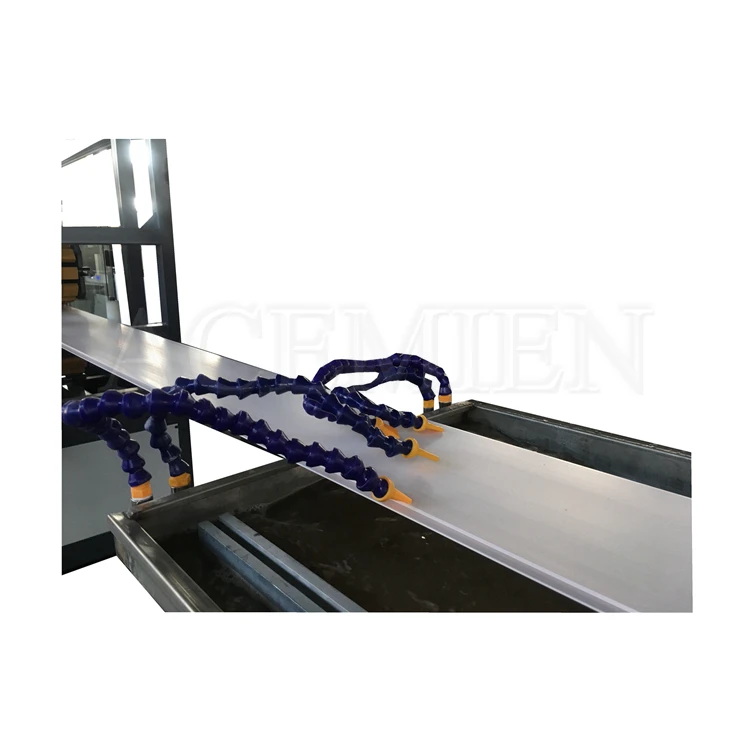

Vacuum calibration table
1. Material of water tank is stainless steel
2. Length of calibration table：3000mm
3. Width of calibration table：700mm
4. Center distance of aluminum guide rail of calibration table：460mm
5. Vacuum pump: 4KW x 1 water ring vacuum pump ; Over current protective （Water must be discharged in winter to prevent freezing）
6. Vacuum degree: 0 -0.09 Mpa
7. Water pump motor and qty: 2.2kw 1set 8.Swirl blower: 0.75kw.
2. Length of calibration table：3000mm
3. Width of calibration table：700mm
4. Center distance of aluminum guide rail of calibration table：460mm
5. Vacuum pump: 4KW x 1 water ring vacuum pump ; Over current protective （Water must be discharged in winter to prevent freezing）
6. Vacuum degree: 0 -0.09 Mpa
7. Water pump motor and qty: 2.2kw 1set 8.Swirl blower: 0.75kw.

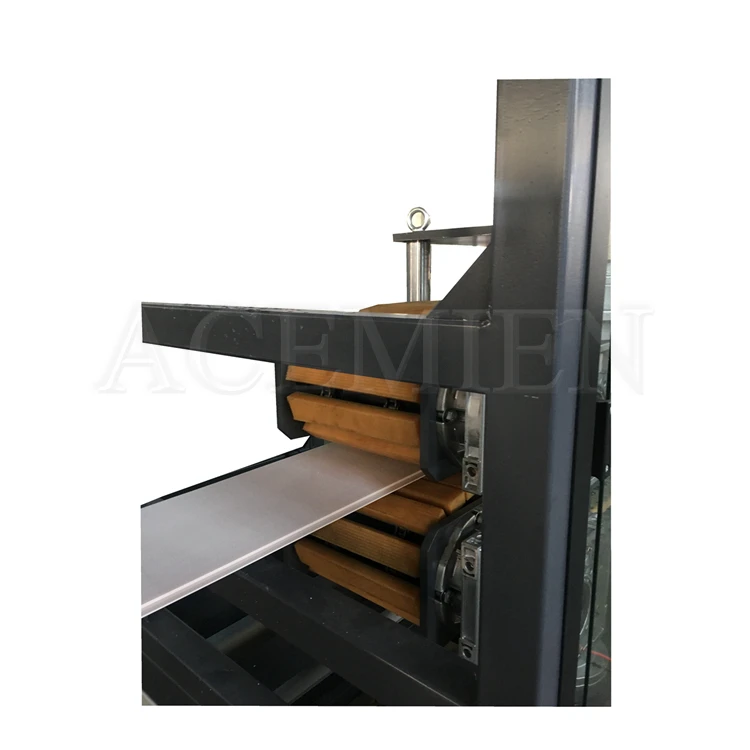

Haul off
1. Number of traction belts: 2pcs
2. Reducer motor: 1.1kw/set(2pcs) inverter control
3. Inverter: imported holp
4. Length of haul off :1800mm, effective length: 1500mm
5. Specifications of block: 300X45X35mm
6. Width of haul off: 300mm
7. Speed: 0.5~5m/min
8. Working pressure: 0.5~0.7 Mpa
9. Height of haul off can be adjustable
2. Reducer motor: 1.1kw/set(2pcs) inverter control
3. Inverter: imported holp
4. Length of haul off :1800mm, effective length: 1500mm
5. Specifications of block: 300X45X35mm
6. Width of haul off: 300mm
7. Speed: 0.5~5m/min
8. Working pressure: 0.5~0.7 Mpa
9. Height of haul off can be adjustable

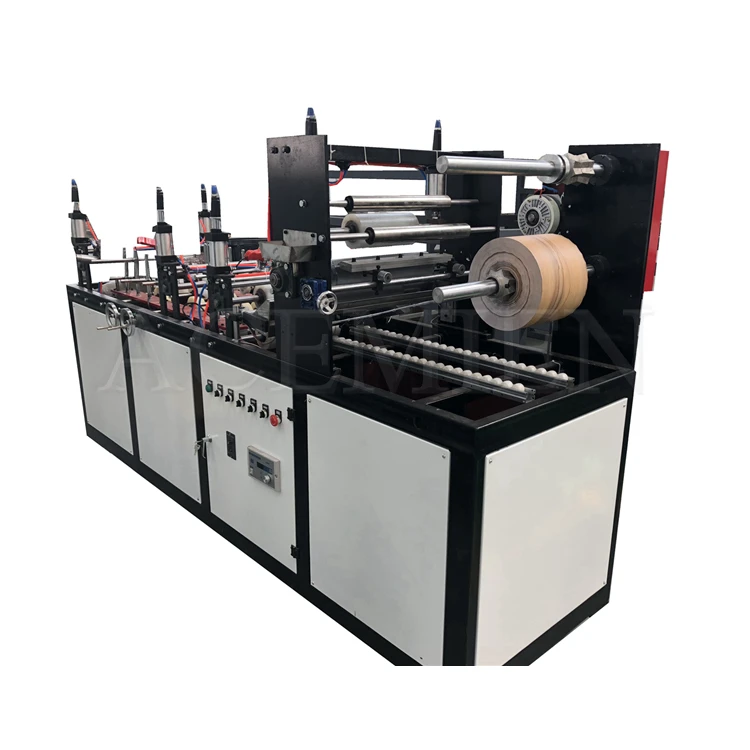

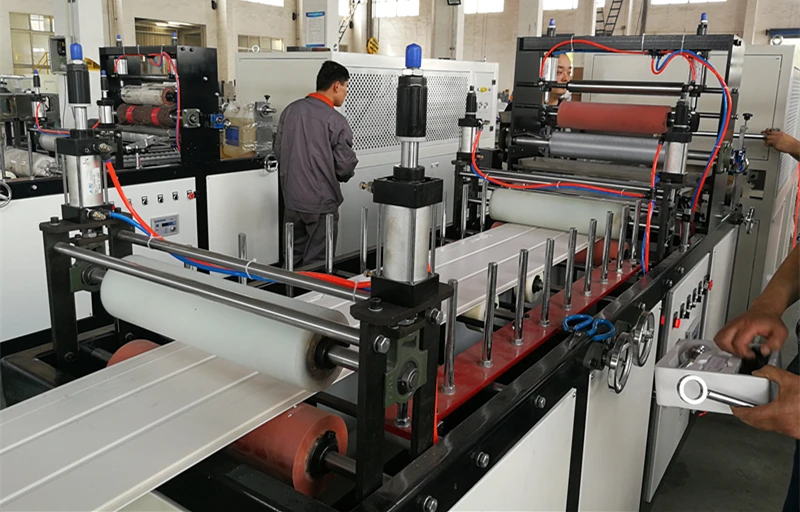

1.It has two function: hot stamping and laminating
2.Working thickness and width can be adjusted
3.Equipped with foil tension force control system.
2.Working thickness and width can be adjusted
3.Equipped with foil tension force control system.
1.Blade diameter：￠70mm
2.Cutting max width: 200mm
3.PLC control.
4.Pressure: 0.5~0.7 Mpa
5.Can choose manual cutting or automatic cutting
6.Encoder length
7.Contactor : SIEMENS
2.Cutting max width: 200mm
3.PLC control.
4.Pressure: 0.5~0.7 Mpa
5.Can choose manual cutting or automatic cutting
6.Encoder length
7.Contactor : SIEMENS
Auxiliary Machine
Crusher ,Pulverizer, Mixer
After Sales Service
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
4. After sales
After checking, we offer 12 months as quality guarantee, free offer main parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems.

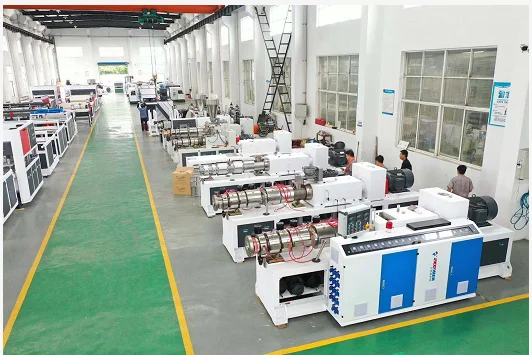

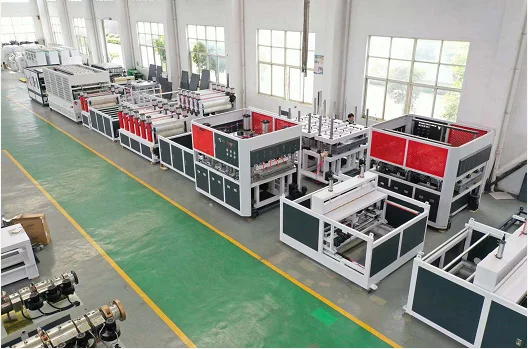

Company Introduction
JiangSu Acemien Machinery Co.,ltd is a brand production enterprise which is the first batch of pvc roofing building materials equipment in China,which focuses on plastic extrusion equipment and plastic recycling equipment.
Our company concenttrates on five series equipment , they are Synthetic resin tile and PVC corrugated tile extrusion equipment; Artifical marble sheet and profile extrusion equipment;Plastic recycling and granulation equipment; Conventional extrusion equipment such as Pipe/Profile/Sheet; Auxiliary equipment such as Mixer/Crusher/Pulverize.
Certifications
FAQ
1.HOW MANY DAYS TO MAKE MACHINE?
Normally,it is about 60 days to finish all machine when customer order.
2.What is the payment terms?
L/C at sight or T/T.
3.What is machine packing?
Standard packing
4.What is the guarantee?
12 months OR MORE
5.How to install machine when machine arrive?
We will arrange our engineer to customer factory for installation and teach customer`s worker how to operate the machine.
6.MOQ
All machines quantity is 1 set
Normally,it is about 60 days to finish all machine when customer order.
2.What is the payment terms?
L/C at sight or T/T.
3.What is machine packing?
Standard packing
4.What is the guarantee?
12 months OR MORE
5.How to install machine when machine arrive?
We will arrange our engineer to customer factory for installation and teach customer`s worker how to operate the machine.
6.MOQ
All machines quantity is 1 set
Related Products
Похожие товары
Купольная Выдвижная семейная палатка на 3-4 человек, турбо палатка с брезентовыми крышками для кемпинга, 2 двери, 4 окна
22,00 $ - 25,50 $
Портативный расходомер с открытым каналом, ультразвуковой расходомер для гидрологического мониторинга
4 070,00 $ - 4 788,00 $
Небольшая Катушка для зарядного устройства
3,99 $ - 8,99 $

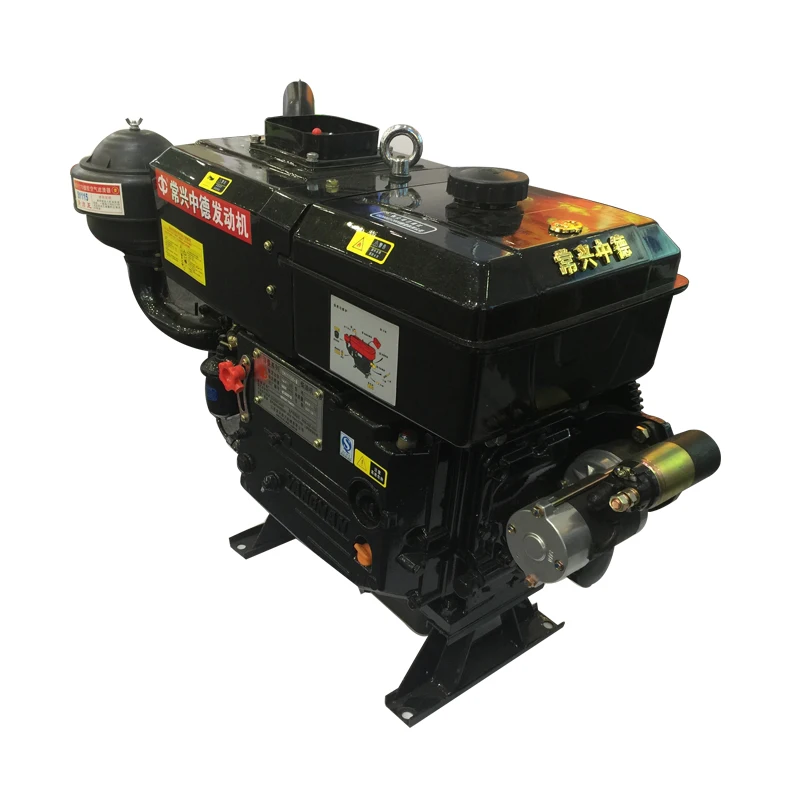

Changzhou дизель одноцилиндровый дизельный двигатель с водяным охлаждением 12/15/18 полный лошадиных сил небольших морских сельскохозяйственного трактора двигателя Электрический
