Product Description

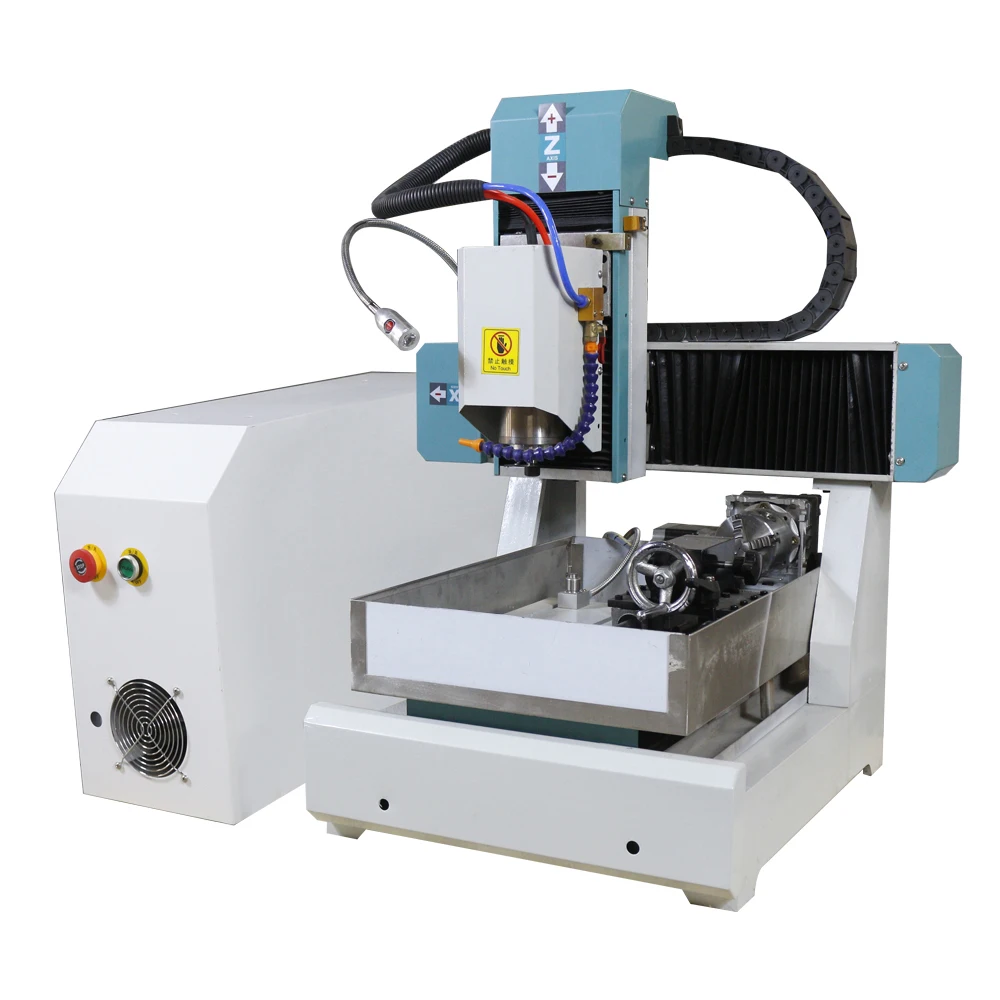

Brief Introduce of Jade Carving CNC Cutting Machine
This engraving machine is a ZCUT series 3030D four-axis three-dimensional jade engraving machine. This model is specially designed for fine carving of jade and fine engraving of wood plates. It has joined the anti-jamming technology of software and hardware synchronization. Other models in the consumer market. The machine uses an industrial PC motherboard to ensure the high performance of the operating system, adding the domestic advanced 3D intelligent prediction algorithm to ensure the perfect operation of the curved / straight line without losing accuracy. The introduction of high-power microstep drive, high-frequency water-cooled spindle motor, and fully automatic CNC system make it a super cost-effective model that combines performance, hardware and software, and design.
Details Images
Product Characteristic
The Product characterization of Z-CUT 3030 Jade Processing Engraving CNC Router Machine:
1. Whole cast iron machine structure, tight and strong, could ensure machine runs smoothly.
2. Best choice for wood, advertising materials, with dust proof on all three-axis, it could stop dust away from the rails and ball screw and to keep the machine working for longer time.
3.Imported high precision HIWIN rails linear bearings, smooth movement to ensure the machine tools high precision.
4. Low noise, water cooling system, high rotated speed 24000RPM, could realize only diameter 1mm tools engraving on the hardness materials.
5. Processing metal materials could add water cooling system, which can cool the tools, avoiding the high temperature breaking tools.
6. Good software compatibility could compatible with Artcam/Type3/ Ucancam/JDPaint such as CAD/CAM, 2D/3D processing more convenient to use.
The details of ZCUT-3030 Jade Processing Engraving CNC Router Machine:
◆ Internal use of square rails and screw rods imported from Taiwan, effectively ensuring the accuracy of work.
◆ Independent operation of different areas of different functions, the work area can be selected according to the processing needs.
◆ Independent control system and powerful internal structure improve the overall performance of the machine. ◆ The fuselage parts are all cast iron frame, stable body and solid frame, which can guarantee the high efficiency of work forever.
◆ Fool-like operation, after several hours of training by the manufacturer, you can directly work on the job.
◆ Suitable for all kinds of numerical control software: type3, Artcam, pore, Wentai, various CAD\\CAM software, easy to do relief, cutting and three-dimensional art characters.
◆ Our company will also provide DIY custom processing, OEM/ODM custom processing, and meet the various requirements of customers.
Product Paramenters
Jinan ZCUT 3030 Engraving Machine CNC Jade Processing Router
Item. | Parameter. |
X stroke | 300mm |
Y stroke | 300mm |
Z stroke | 180mm |
Feed height | 180mm |
Repeat positioning accuracy | 0.01mm |
Machine size | 780*700*1420mm |
Embossing processing size | 300*300mm |
Three-dimensional processing size | diameter 80*170mm |
Body material | Cast iron (bed, beam, column, platform) |
Body bracket | Square steel welding |
Track | Taiwan Shangyin Square Track 2.0 |
Screw | Taiwan TBI1605 |
Main shaft | Jester 1.5KW |
Inverter | Shenzhen Sifang 1.5KW |
Filter | 20A |
Motion motor | Changzhou Chuangwei Stepping 86450A |
Drive | DM540 |
Control system | DSP four-axis four linkage handle control system |
Cooling system | Pump cold cycle |
Sink | Cold late, Bending, Spray |
Machine tool work light | LED machine light |
Tool | Setting tool |
Voltage | 220V |
Control box | Built-in control box |
Transmission mode | XYZ screw drive |
Mobile | Platform movement |
Above Information are Jinan ZCUT Standard Spec. If customers want to change Spec. Please let us know.
Want to know more details, please contact us directly.
Sample & Application
Sample & Application
The use range of ZCUT-3030 Jade engraving CNC Cutting Router Machine:
1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
The ZCUT-3030 high-precision Jade engraving machine is suitable for nature marble, granite, bluestone, sandstone, tombstone, milestone, ceramic tile, jade, crystal, ceramics, glass, plastic, wood, bamboo, cambered surface, sphere, stainless steel, iron, copper, aluminum, titanium, alloy, Could doing 3D embossment, and line engraving, beveling, drilling 2D engraving.Engraving characters, letters, pattern, intaglio, handwriting, ancient calligraphy, colored drawing, flat carving colored drawing, etc.
Our Advantages
4 Major Factors that must be paid attention to when purchasing engraving machines
First, the bed of machine and the gantry.
The bed of machine is now mostly steel structure, and the gantry is divided into two structures: aluminum and square steel. The structure and size of the bed and gantry directly determine the weight of the machine. To a certain extent, the heavier the weight, the better, because the weight is heavy and represents good stability, which directly affects the processing accuracy.
The bed of machine is now mostly steel structure, and the gantry is divided into two structures: aluminum and square steel. The structure and size of the bed and gantry directly determine the weight of the machine. To a certain extent, the heavier the weight, the better, because the weight is heavy and represents good stability, which directly affects the processing accuracy.
Second, the transmission system.
Woodworking machines are mostly rack + linear guide transmission. The rack ensures the speed of the equipment (empty path and machining speed), and the linear guide (square rail) has good linearity, which ensures the machining accuracy. The position of the drive system in the entire machine tool is particularly important, which determines the performance of the machine to a certain extent.
Third, the drive system.
The stepping system and the servo system are step-by-step systems with open-loop control, low torque and poor precision. Servo system (closed loop control, high torque and high precision)
Fourth, the software.
Control software and programming software, control software such as: Weihong, Taiwan Baoyuan, the new generation is more mature. Programming software: China can choose Wentai, Jingdiao, etc.; foreign countries can choose French TYPE3, British Artcam, etc.
Woodworking machines are mostly rack + linear guide transmission. The rack ensures the speed of the equipment (empty path and machining speed), and the linear guide (square rail) has good linearity, which ensures the machining accuracy. The position of the drive system in the entire machine tool is particularly important, which determines the performance of the machine to a certain extent.
Third, the drive system.
The stepping system and the servo system are step-by-step systems with open-loop control, low torque and poor precision. Servo system (closed loop control, high torque and high precision)
Fourth, the software.
Control software and programming software, control software such as: Weihong, Taiwan Baoyuan, the new generation is more mature. Programming software: China can choose Wentai, Jingdiao, etc.; foreign countries can choose French TYPE3, British Artcam, etc.
Our Advantages:
In view of the above points, the engraving machine produced by our company has the following advantages:
After welding the fuselage, our company uses tempering heat treatment technology and has the following four advantages:
1. Relaxation welding residual stress.
2. Stabilize the shape and size of the structure to reduce distortion.
3. Improve the performance of the base metal and welded joints, including a. Improve the plasticity of the weld metal. b. Reduce the hardness of the heat affected zone. c. Improve fracture toughness. d. Improve fatigue strength. e. Restore or increase the reduced yield strength in cold forming.
4. Improve the ability to resist stress corrosion.
1. Relaxation welding residual stress.
2. Stabilize the shape and size of the structure to reduce distortion.
3. Improve the performance of the base metal and welded joints, including a. Improve the plasticity of the weld metal. b. Reduce the hardness of the heat affected zone. c. Improve fracture toughness. d. Improve fatigue strength. e. Restore or increase the reduced yield strength in cold forming.
4. Improve the ability to resist stress corrosion.
Our company adopts a new type of ball screw, which has the following 6 advantages compared to the ordinary trapezoidal sliding screw:
1. High precision
2. Strong reversibility
3. High processing efficiency and low friction loss
The transmission efficiency of the rolling screw nut is 92%-96%, which is 2 to 4 times higher than the transmission efficiency of the sliding screw nut 20%-40%, and the power consumption is only 1/4 to 1/3 of the sliding screw nut. .
4. Less heat
5. Could achieve high speed supply
6. High life
2. Strong reversibility
3. High processing efficiency and low friction loss
The transmission efficiency of the rolling screw nut is 92%-96%, which is 2 to 4 times higher than the transmission efficiency of the sliding screw nut 20%-40%, and the power consumption is only 1/4 to 1/3 of the sliding screw nut. .
4. Less heat
5. Could achieve high speed supply
6. High life
Our company adopts a new hybrid servo drive system, which has the following five advantages compared to the common AC servo drive system:
1. No need to adjust parameters, it is more convenient to use;
2. Zero speed stop is stable, and there is no jitter when stopping at high speed;
3. The position response is extremely fast, especially suitable for short-distance quick start-stop situations;
4. The torque is larger and the installation size is smaller;
5. The cost is reduced by up to 50%.
1. No need to adjust parameters, it is more convenient to use;
2. Zero speed stop is stable, and there is no jitter when stopping at high speed;
3. The position response is extremely fast, especially suitable for short-distance quick start-stop situations;
4. The torque is larger and the installation size is smaller;
5. The cost is reduced by up to 50%.
In terms of hardware and software combination, the engraving machine produced by our company has three major functions:
1. Breakpoint, power-off and continuous engraving function;
2. It has the function of correcting error code files in time;
3. It has automatic error correction function of homing.
Every detail is guaranteed to be used by the user.
Packaging & Shipping
Packaging & Shipping
Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We could package according to your requests.
Delivery Detail: Shipped in 3-20 working days after payment.
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity.
We could package according to your requests.
Delivery Detail: Shipped in 3-20 working days after payment.
About Us
Company Profile
Jinan ZCUT CNC Equipment Co., Ltd. was established in 2001, specializing in the production of woodworking engraving machine, Buddha engraving machine, jade engraving machine, three-dimensional engraving machine, plasma cutting machine, CNC machining lathe and other products. Our products are widely used in woodworking engraving industry, jade processing industry, Buddha image carving industry, three-dimensional sculpture technology, acrylic plastic molding industry, etc. The current production of CNC equipment products has seven series of more than 30 models. The annual production capacity is 2,000 units.
In addition, Jinan ZCUT CNC equipment has passed ISO9000 quality certification system, CE certification, and has obtained well-known domestic and international industry certification, product quality can stand the test of time. Sales throughout the country and abroad, products in Europe and the United States, Southeast Asia, the Middle East and North Africa, with its reliable quality has won the recognition of countless users, and has been well received by the sophisticated customers in various industries.
Finally, Jinan ZCUT numerical control equipment adheres to the business philosophy of “leading technology and thoughtful service”, adhering to the enterprise spirit of “confidence, unity, transcendence and innovation” and making continuous contributions to the revitalization of the national machinery numerical control industry. Our company is a mechanical CNC application expert and industry leader, and is your reliable business partner. I believe that one of our products is always tailored to suit your needs.
Contact Us
Contact Person: Mr. Frank Jia
Senior Customers Manager of Jinan ZCUT CNC Equipment co,.Ltd.
Mob Phone / Whatsapp:+0086-17753138230
E-mail: frank.jia.zcut@gmail.com
Jinan ZCUT CNC Equipment Co., Ltd., the expert of CNC machining equipment around you.
Mob Phone / Whatsapp:+0086-17753138230
E-mail: frank.jia.zcut@gmail.com
Jinan ZCUT CNC Equipment Co., Ltd., the expert of CNC machining equipment around you.
Похожие товары

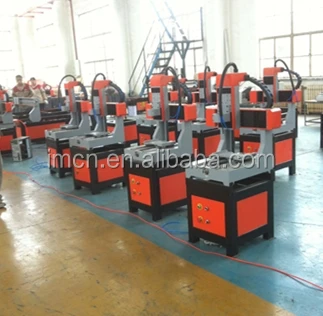

3d фрезерный станок с ЧПУ для домашней

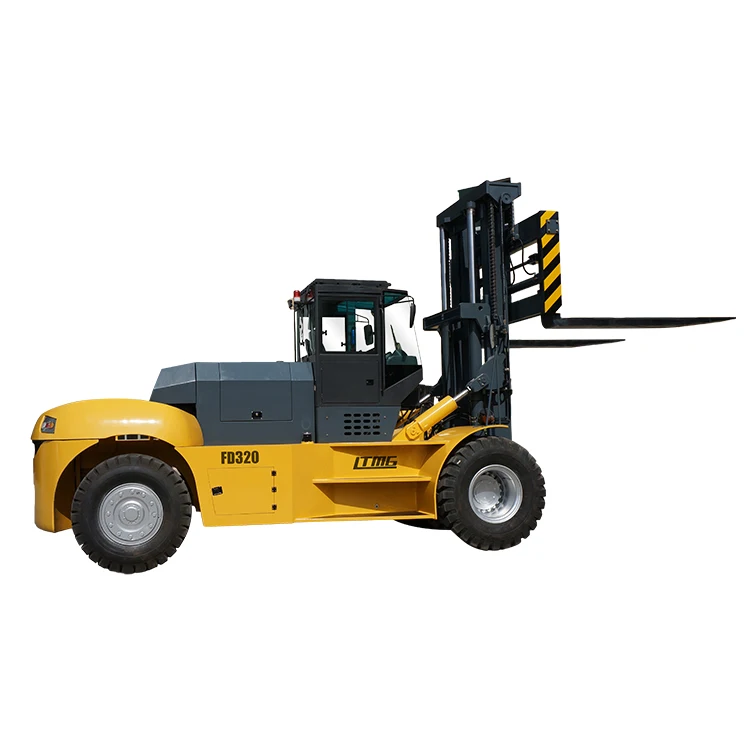

LTMG тяжелый вилочный погрузчик контейнерный дизельный вилочный погрузчик 25 тонн 28 тонн 30 тонн 32 тонн вилочный погрузчик по лучшей цене

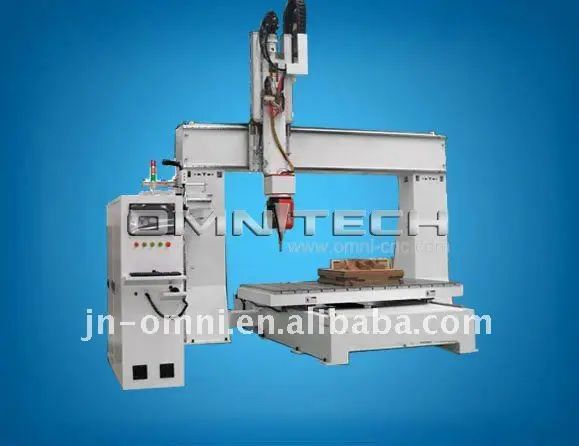

Omni 5-осевой фрезерный станок с ЧПУ для модель формирование
20 000,00 $

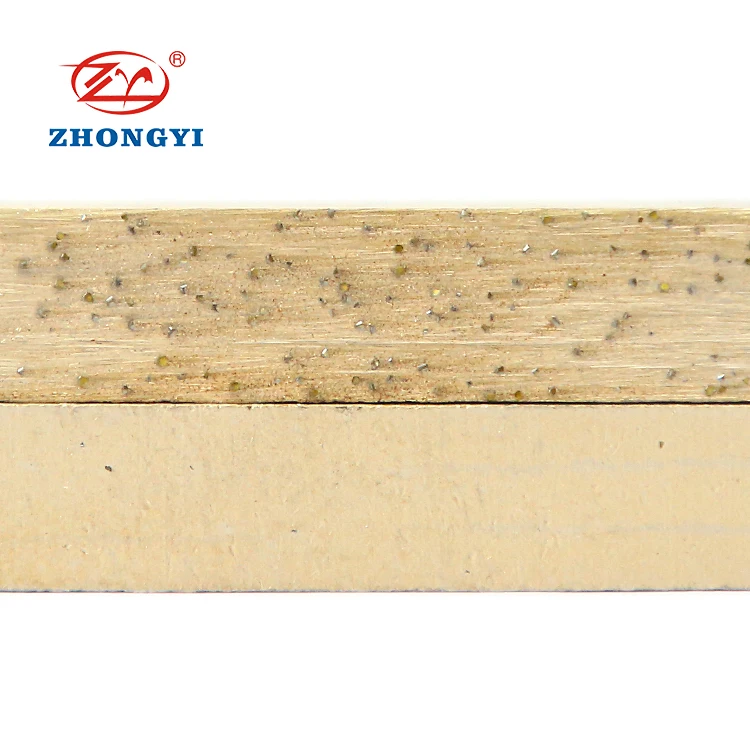

1200 мм очень острые алмазные наконечники алмазный Мраморный

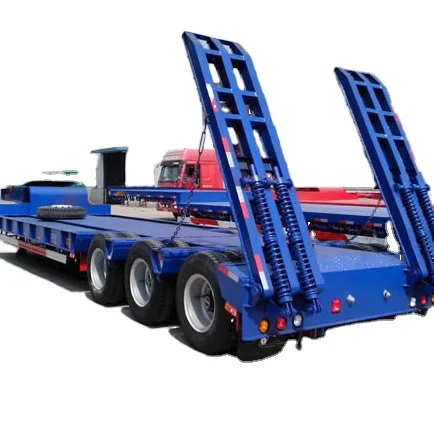

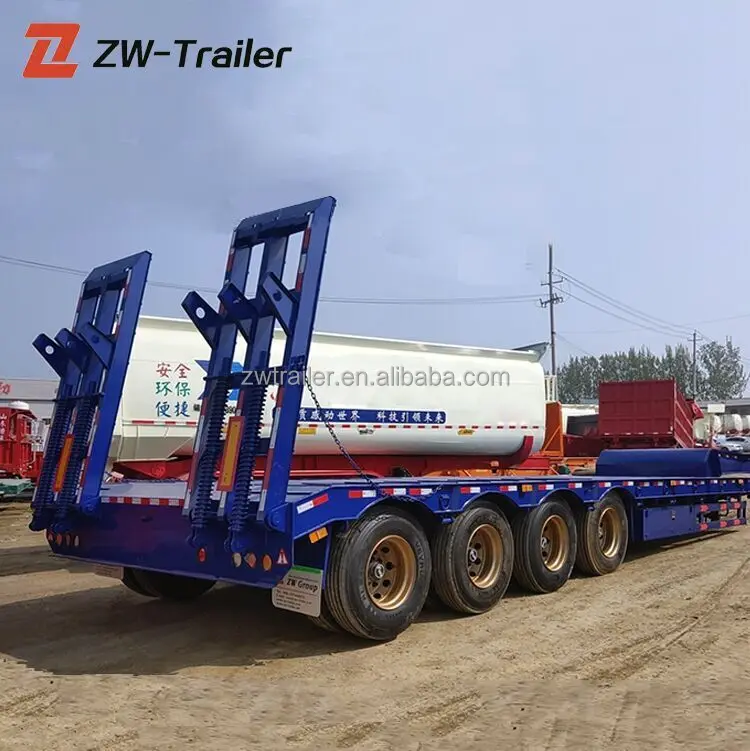

Kunda 3 оси вогнутый Тип низкая кровать грузовик прицеп для продажи

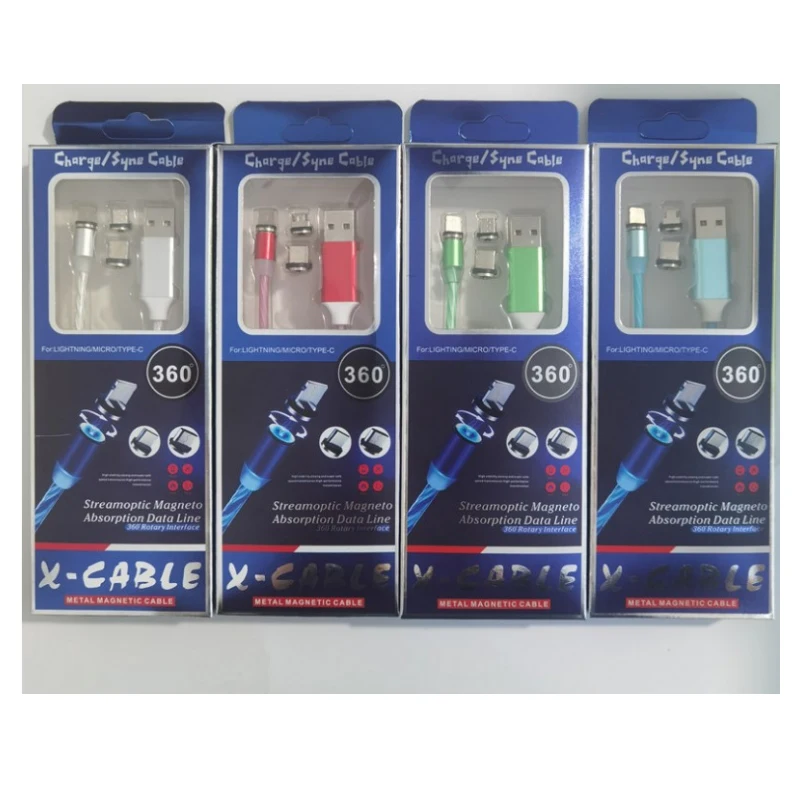

Светящийся вращающийся на 360 градусов светодиодный бегущий Магнитный телефонный кабель низкая цена светодиодный светильник USB кабель для Micro/IOS /Type C
1,15 $ - 1,34 $

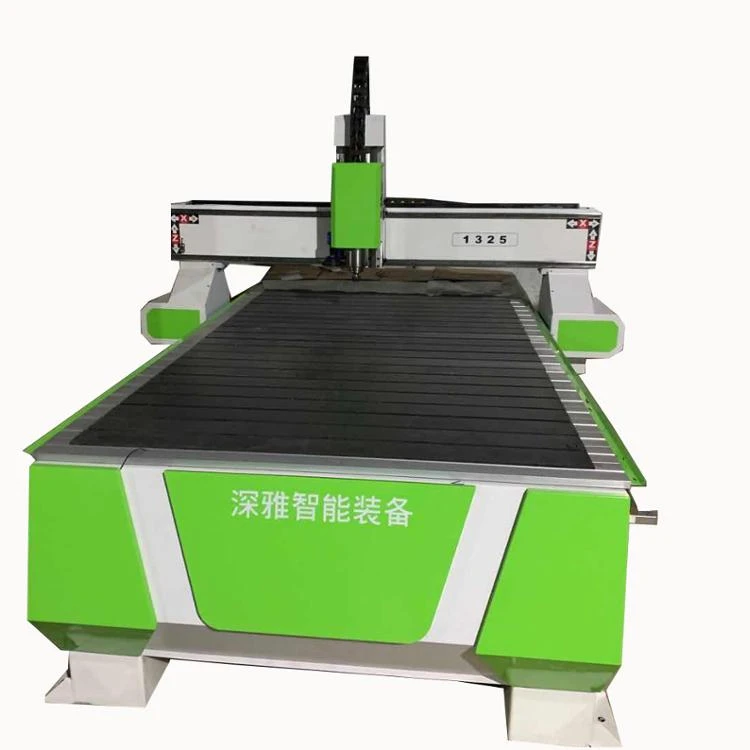

Новая модель 1325/хобби деревообрабатывающий фрезерный станок с ЧПУ/самодельный
