UC300

Product Description

Whether you’re an SMB looking for a cost-effective, scalable phone system or a SOHO requiring an advanced unified communications system, OpenVox UC300 Series will be your first choice. With two distinct offerings, UC300-A11EM1/UC300-A20EM1 and UC300-A14EM1, OpenVox offers a complete set of products designed to meet your communication demand.

Made from aluminium material, UC300 Series IP PBX exert great importance in dustproof and mothproof with fanless exquisite enclosed design. It is incredibly easy for you to set up UC300 with basic configuration and you can also freely install your own Linux-based software.

UC300 Series support analog FXO/FXS ports with up to 300 simultaneous calls in one single device. They are developed with a wide selection of codecs and signaling protocols, including G711 (alaw/ulaw), G722, OPUS, AMR-NB/WB, SILK, G723.1 G726, G729, GSM, ADPCM, iLBC, H263, H263P, H264, VP8. Taking full advantages of open source platform, the UC300 Series support industry standard SIP trunks, IAX2 trunks, analog PSTN trunks, and analog station trunks. What’s more, it is very convenient for users to increase ports to expand the system.

Features

PBX

Support Fail2ban
Secure SIP calling (TLS encryption)
Support HD voice codecs such as OPUS, AMR-NB/WB, G.722, SILK, etc
Support Multiple VPN protocols including OpenVPN, L2TP, softetherVPN, etc
WebRTC(click2call)
Log optimization
Optimized management policy of recording file
Rapid heat dissipation
Optional VPN modes: server or client
Freely install your own Linux-based software
Supported codecs: ADPCM, G.711(A-Law & u-Law), G.722, G.723.1(pass through), G.726, G.728, G.729, GSM, iLBC(optional) among others.
Support from analog interfaces such as FXS/FXO(PSTN/POTS)
SIP and IAX2 support
Incoming and outgoing routes with support for dial pattern matching
Support for paging and intercom
Web-based operator panel
DISA(Direct Inward System Access)
Call detail record(CDR) report
Billing and consumption report
Distributed DialPlan with dundi
Call recording, Call parking, call queues, Voicemail, Conference
Echo canceller
Callback support
Flexible and configuration IVR
Support for PIN sets
Support for time conditions
VOIP provider configuration
Support for follow-me
Support for ring groups
Support for video-phones
Channel usage reports

EMAIL

Mail server with multi-domain support
Based in postfix for high email volume
Remote SMTP Module
Web based email client
Support for quotas
Antispam support
Support for mail relay
Email list management

FAX

Fax to email application
Fax visor with downloaded PDFs
Can be integrated with Winprint Hylafax
Fax send through Web Interface
Fax to email customization
Access control for fax clients

CENTRAL

System resources monitor
Backup Restore Validation
Network configurator
Heartbeat module
Configurable server date, time and timezone
Backup/restore support via web
Server shutdown from the web
DHCP server for dynamic IP
Access control to the interface based on ACLs

Warranty

Two-Year Warranty (UPS Battery 1 Year)
3-Month "No-Question Asked Return Policy"

Specifications

Configuration for UC300
Model	FXS	FXO	NIC	UPS
UC300-A11EM1	1	1	1	-
UC300-A02EM1	-	2	1	-

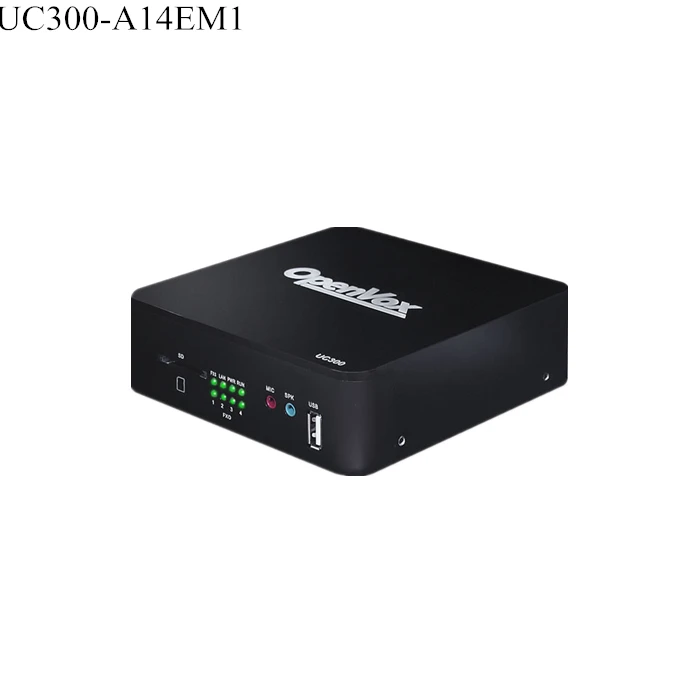

UC300-A14EM1	1	4	1	-
UC300-A11EM2	1	1	2	Y
UC300-A02EM2	-	2	2	Y

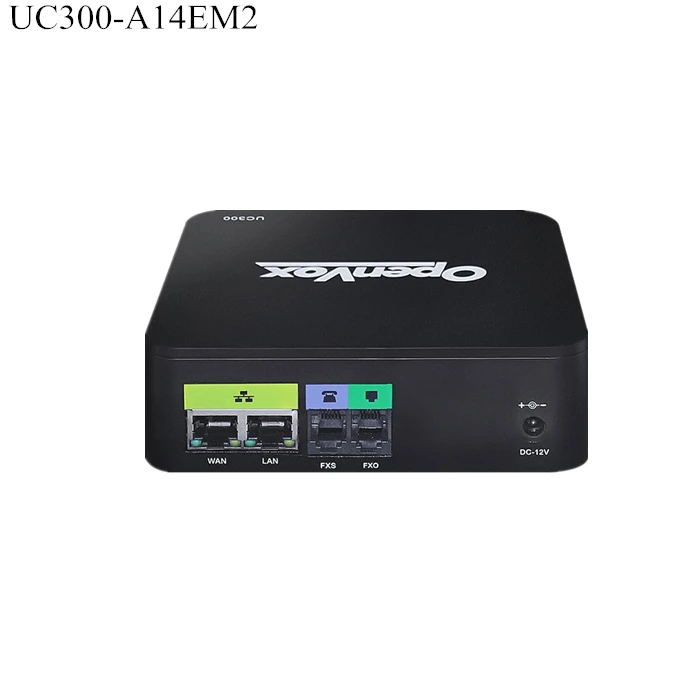

UC300-A14EM2	1	4	2	Y

Technical Specification

Up to 800 extension register
100 concurrent calls with G.729 codec
300 concurrent calls with G.711 codec
Recording: 86,000 mins (.gsm); 9,500 mins (.wav)
Voicemail: 86,000 mins (.gsm); 9,500 mins (.wav)
Network Interface: 1×10/100M LAN port
USB Port: 1×USB 2.0 for external storage or disaster recovery system
External Storage: 1×SD slot, support up to 128G
Telephony Interfaces: FXS/FXO interface, Optional
Storage: 16GB Onboard Flash
RAM: DDR3 1GB
1 MIC Interface: Audio Input
1 SPK Interface: Audio Output
Power Consumption: 12V/0.8A, 9.6W Maximum
Failover Function (not support with 2 FXO model)
Operational Temperature: 0°C to 50 °C
Storage Temperature: -20 °C to 65 °C
Size: 130*130*40mm
Weight: 530g

Internet

DHCP Server
DHCP Client List
Assign IP Address to Host

Security

Firewall
Audit
Weak keys

Product Picture

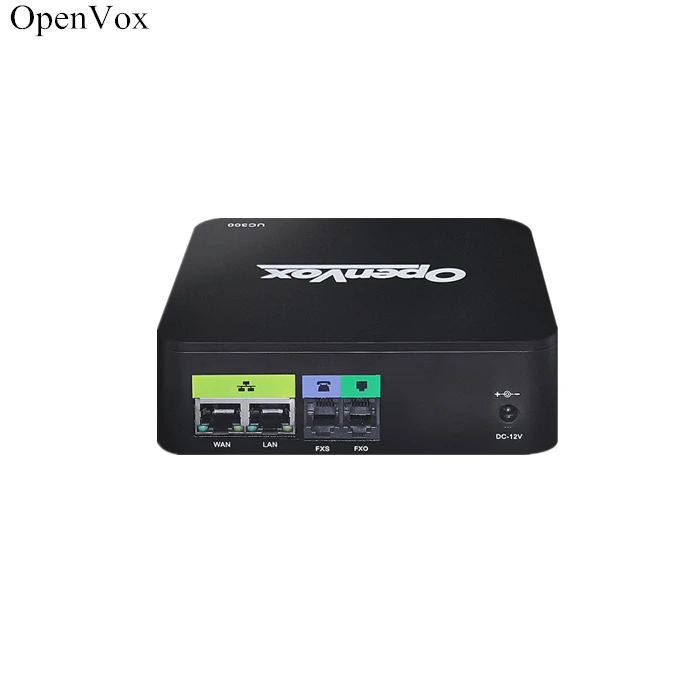

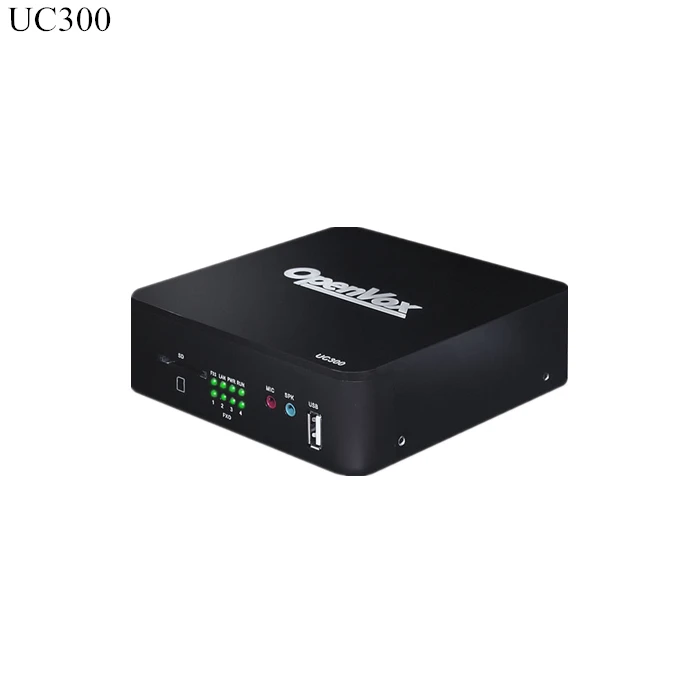

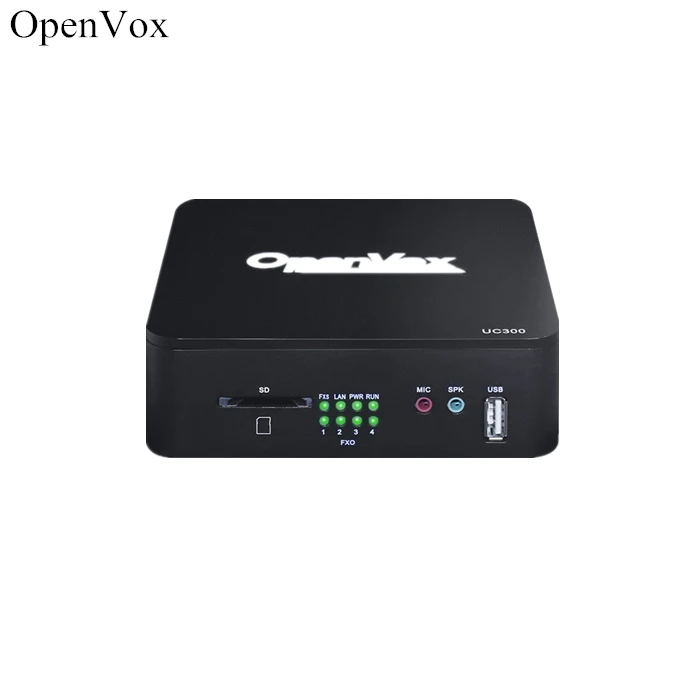

UC300

UC500
