Diamond wire saw cutting machine for fragile crystals and TEM or IC sample
Product Description

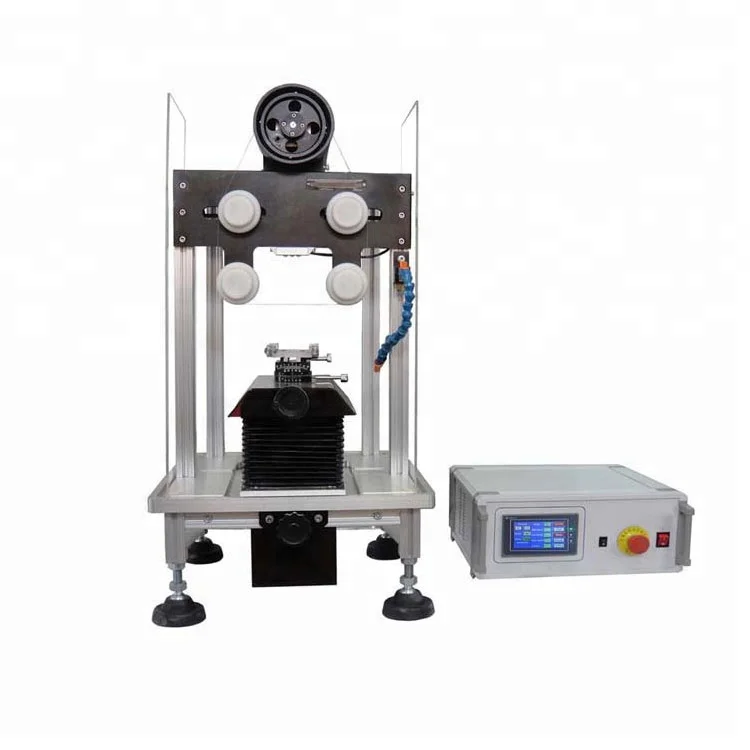

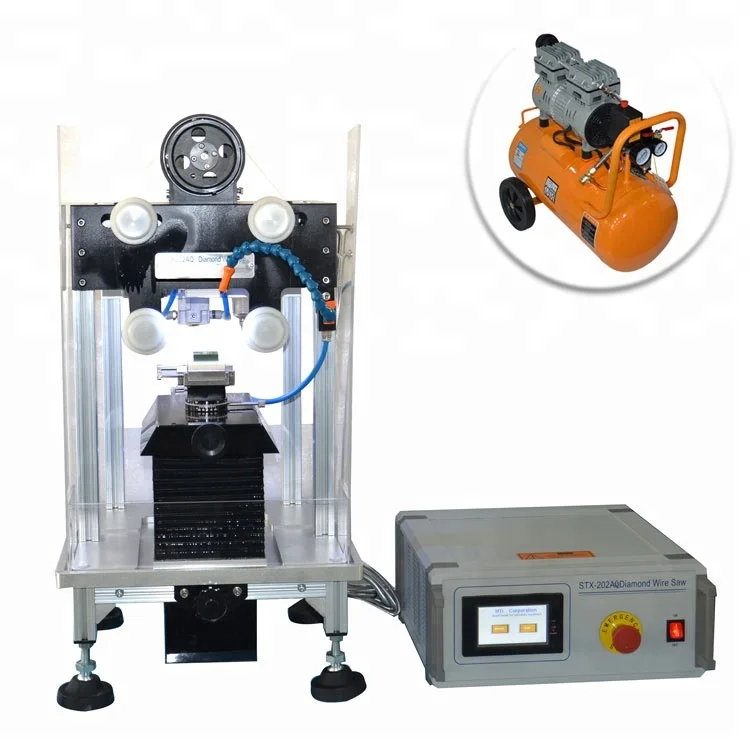

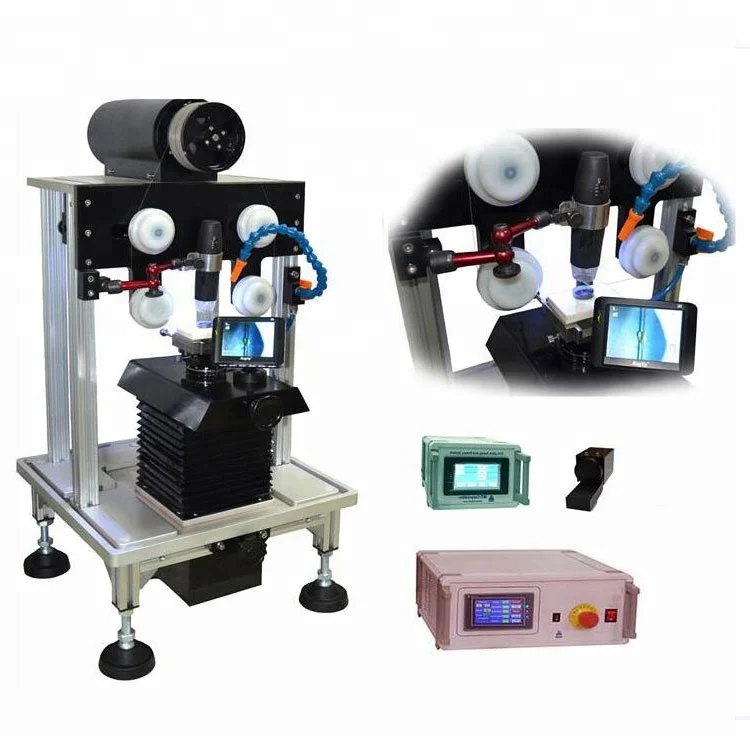

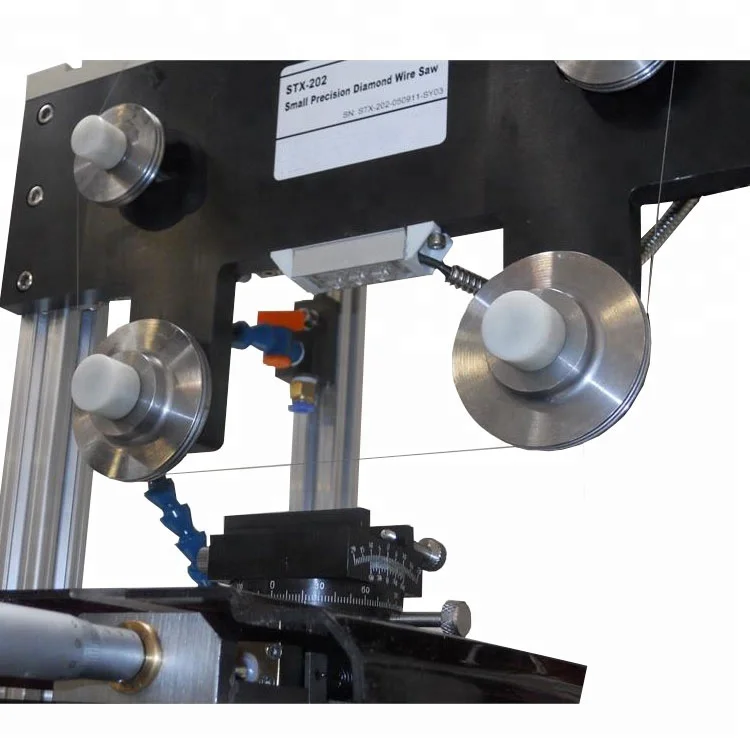

CY-STX-202A is a CE certified, small precision diamond wire saw for cutting sample ≤ 2" diameter or square up to 50mm in thickness. It is designed to provide a smooth cutting for many kinds of materials, especially for fragile crystals and TEM or IC sample by using 0.28mm diameter x 15 meter long diamond impregnated wire. It is ideal cutting tool for material research, TEM sample preparation, and IC failure analysis.
Specifications of diamond wire saw:
Power | 110 - 240V AC 50/60Hz, for universal power 200W Max. |
Structure | Heavy-duty aluminum alloy structure with compact size automatically controlled Y axis by digital panel single wire swing cutting with adjustable wire length from 5-15mm (broken wire still can be used) Transparant plastic plates is included to provent Coolant splashing Add a priming cup behind the forming tube (New design) |
Stage traveling distance | Z axis: 50mm, automatically controlled by digital panel Y axis: 50mm, automatically controlled by digital panel |

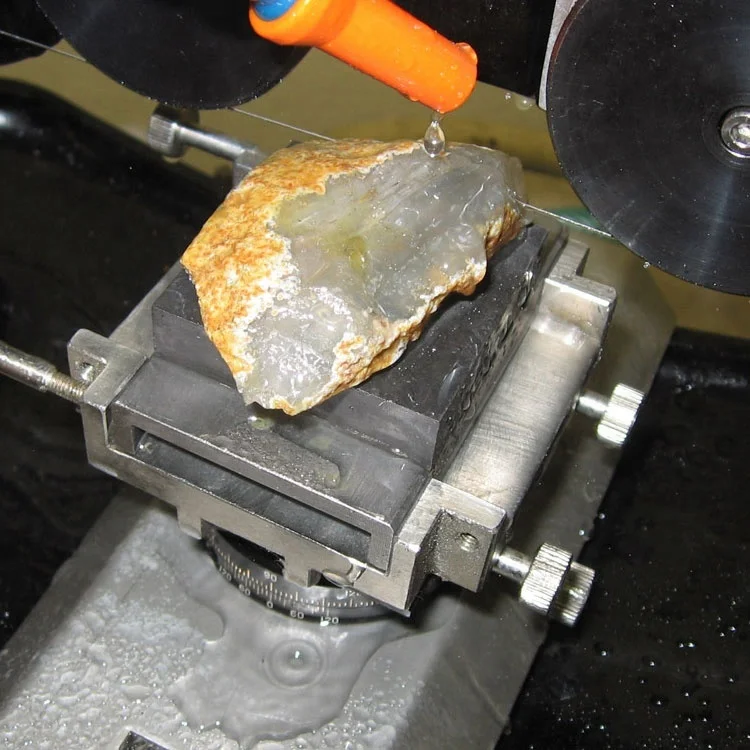

Sample stage | Two dimension sample stage built in: 360° degree horizontal rotating and +/-10° tilting |
Traveling position accuracy | +/- 0.01 mm |
Controller & Touch Screen | The saw wire moves along the Z-axis to implement cutting according to user defined program which specifying the cutting length, feed speed, back, speed, and spooler spinning speed. The feed speed is able to be set from 0.01mm/min to 20mm/min. |
Diamond wire | ≤ 15 meters used for each installation 0.30mm dia x 65 meter length Diamond Wire is included for immediate use |
Wire traveling speed | 0- 1.5 M/S adjustable |
Cutting Depth & Thickness | Max: 50 mm in diameter or square Min. 0.1 mm |
Water Pump | One small water recirculating pump is included for cooling diamond wire during cutting Youmust use anti-corrosive oil or radiator water as coolant ( buy from any auto stor ) Warning: must clean machine after each cutting , espeically using tap water as coolant. Otherwise the saw may get rusted |
Motor Specification | 3 Amps, Torque=1.8Nm |
Product dimensions | Saw: 414mm(L) × 500mm(W) × 750mm(H) Controller: 340mm(L) x 290mm(W) x 170mm(H) |
Crate dimensions | 27"(L) x 23"W) x 40" (H) |
Warranty | One year limited with lifetime support, not including cutting wire |
Certificate | CE certified |
Application Notes | The flow rate of coolent is adjustable by the valve in the blue feeding tubing. Please adjust it properly to improving cutting performance. Please use correct cutting fluid. Don't use tap water or any other fluid would cause corrosion of machine parts. Must clean the machine after each use. |
online service
Related Products
Company Introduction
Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.
We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.
Package
FAQ
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.
More questions, please contact customer service
