High precision cnc lathe CK61100E cnc lathe flat bed small metal lathes for sale
Product Overviews
Product main technical Specifications:
Specifications | UNITS | CK6185E | CK61100E |
Max.Swing over bed | mm | Φ850 | Φ1000 |
Max.swing over cross slide | mm | Φ480 | Φ660-Φ610 |
Max.processing length | mm | 1000/1500/2000 | 1500/2000/3000 |
X/Z spindle travel | mm | X:450 Z:1100/1600/2100 | X:530 Z:1600/2100/3100 |
Spindle transmission type |
| Three speed mechanical transmission, stepless transmission in gear | Three speed mechanical transmission, stepless transmission in gear |
Spindle speed steep |
| stepless | stepless |
Spindle speed | rpm | 25-850 | 18-600 |
| Spindle nose |
| C11 | A2-15 |
Spindle bore | mm | Φ105 | Φ130 |
Spindle taper |
| Metric 120/1:20 | Metric 140/1:20 |
Spindle motor | kW | 11 | 15 |
Ball screw dia.and pitch |
| 3205/5010(6310) | 4005/6310 |
X/Z axis feed motor torque | N.m | 10-15(22) | 10-15(22) |
X/Z rapid traverse | m/min | 4/5 | 4/5 |
X/Z axis repeatability | mm | ±0.005 | ±0.005 |
Processing accuracy |
| IT6-IT7 | IT6-IT7 |
| Workpiece surface roughness | Ra1.6 | Ra1.6 | |
Tailstock sleeve dia. | mm | Φ100 | Φ140 |
| Quill raverse | mm | 250 | 250 |
Quill taper |
| MT6 | MT6 |
Turret type | Four-station electric knife holder | Four-station electric knife holder | |
Cutting tool size | mm | 32x32 | 40x40 |
Machine dimension(LxWxH) | mm | 3500/4000/4500x2000x2000 | 4250/5750/8750x2100x2100 |
Net.weight(about) | kg | 4100/4700/5400 | 4900/8500/13500 |
1.Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw transmission, good dynamic performance, precision positioning.
2.The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.
Main function:
The machine tool can automatically complete the inner and outer cylindrical surface, the tapered surface, the circular surface and other processing, and can also realize the turning processing of various forms of single and multiple threads.
Detailed Images
Packaging & Shipping
Packaging Details
Internal plastic moisture-proof anti-rust packaging,
External wooden packaging,
Exclusive container transport.
Delivery Time for CK6140 metal lathe Machine Tool Price China CNC Lathe Machine for Oil Filter:
Shipped in 30 days after payment
Company Information
Founded in 2002, Nadun machinery manufacture Co.,ltd is a machine tool factory specialize in press brake, shearing machine and hydraulic press. Located in Tengzhou Economic Development Zone, our factory has convenient transportation and skilled manufacturing technology. With machine exported over 60 countries Russia, America, Canada, Ghana, Spain, Iran, Indonesia, Malaysia, our factory has been making efforts to offer our clients the best machine solution.
Our company pays attention to the progress of science and technology, adopts advanced network platform, as well as CAD and CAPP computer technology to carry on the auxiliary design, and has a technology center adapted to its own development, and a scientific research team of dozens of people with reasonable structure, complete specialty and rich experience and excellent R & D capabilities.
Customer
FAQ
Q1: How can I get the after-service?
A: We provide one year guarantee
We will send you the spare parts if the problems caused by us.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure, welcome to inspect our factory.
Our factory address: No219 Xingye Road Tengzhou City Shandong Province
We can pick you up in the Tengzhou station
Hotel booking service is available .
Q3:Are you a factory or trade company?
A: We are manufacturer with own factory , export proportion 50~60%.
Q4:How can i trust your company?
A:We have professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
2. Welcome to inspect anytime.
3. Trade Assurance is available.
Похожие товары
Маленький токарный станок Mazak Ck6150, недорогой токарный станок с ЧПУ, цена
7 800,00 $ - 8 000,00 $
Оригинальный оптический Кливер Sumitomo T39 T81C T-600c T-400s T71c type-81C Z1c T-55 t55 оптоволоконный сварной сплайс последняя ER-10 электрод
Одноразовый высококачественный биоразлагаемый пластиковый лоток для салата для домашних животных, пищевой пластиковый контейнер
0,30 $
high end luxury packaging 10g 20g 30g 50g eco friendly bamboo cap jar cosmetic matt white plastic containers with wood lid

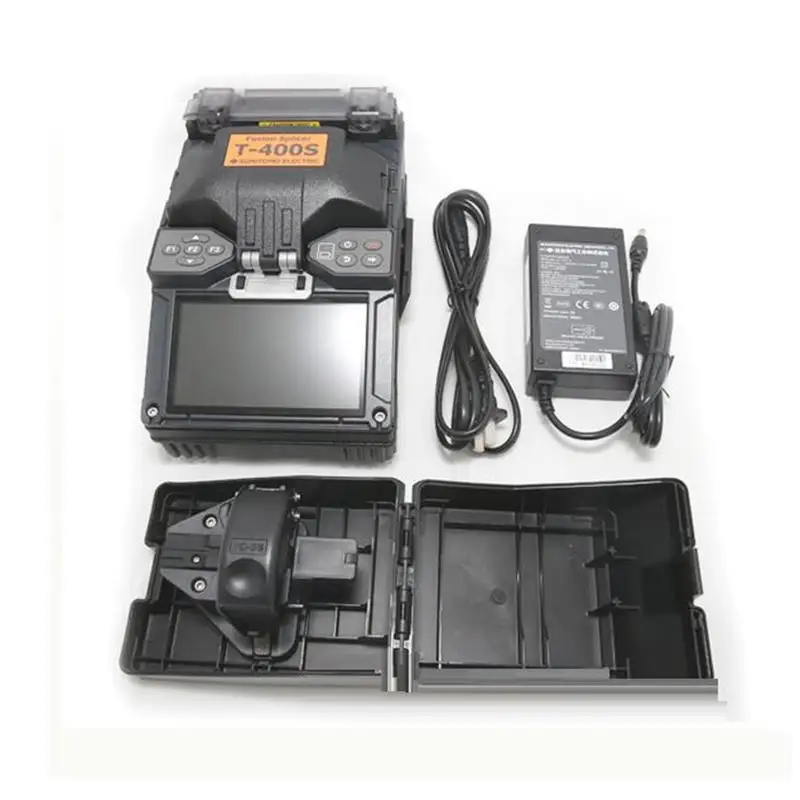

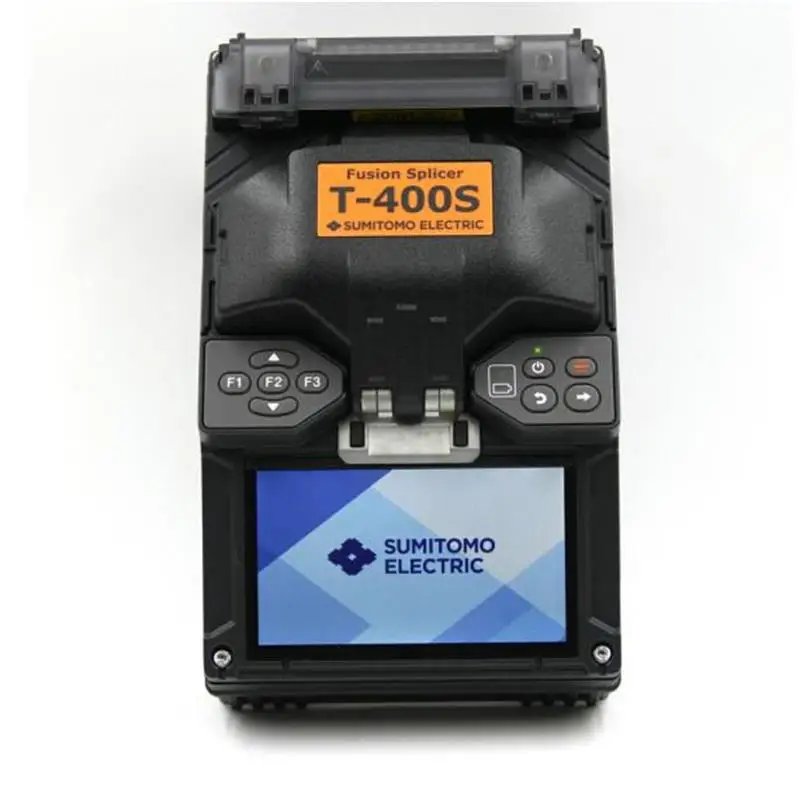

Оригинальный Sumitomo T-400S сварочный аппарат

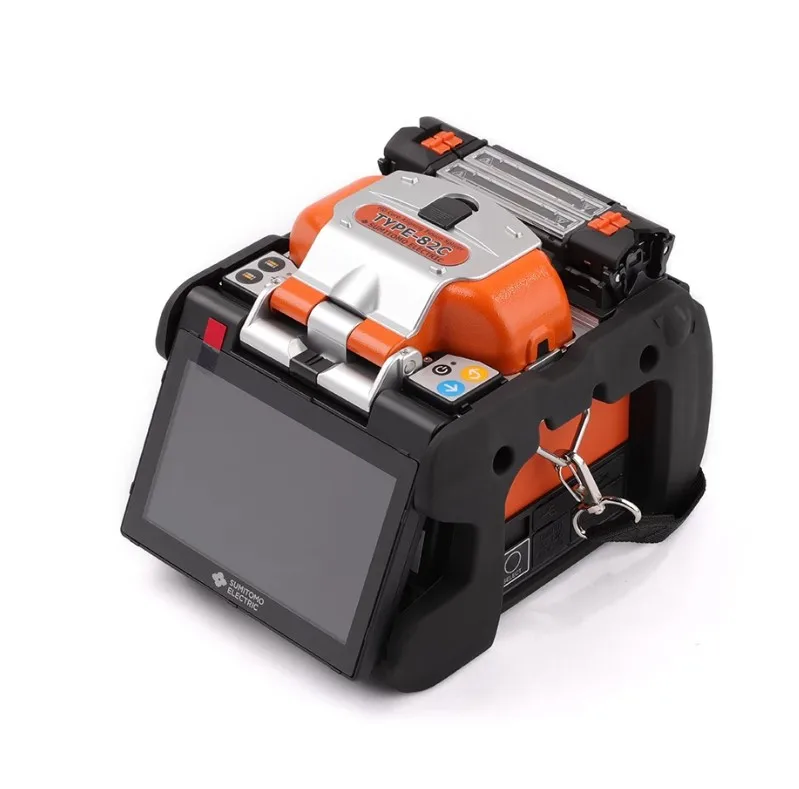

Устройство для сращивания Sumitomo type-82c, устройство для сращивания, цена

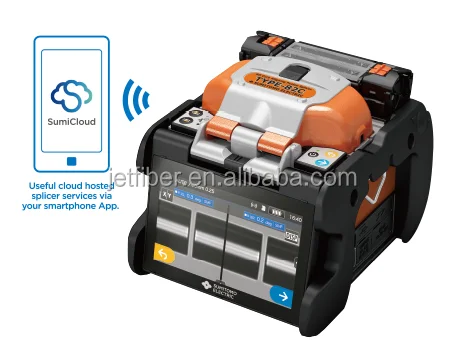

Совершенно новый аппарат не Привязанный к оператору сотовой связи оптический Кливер Sumitomo T-82C + TYPE-82C + 6 двигатель сведение по сердцевине оптоволоконной технологии выравнивания
