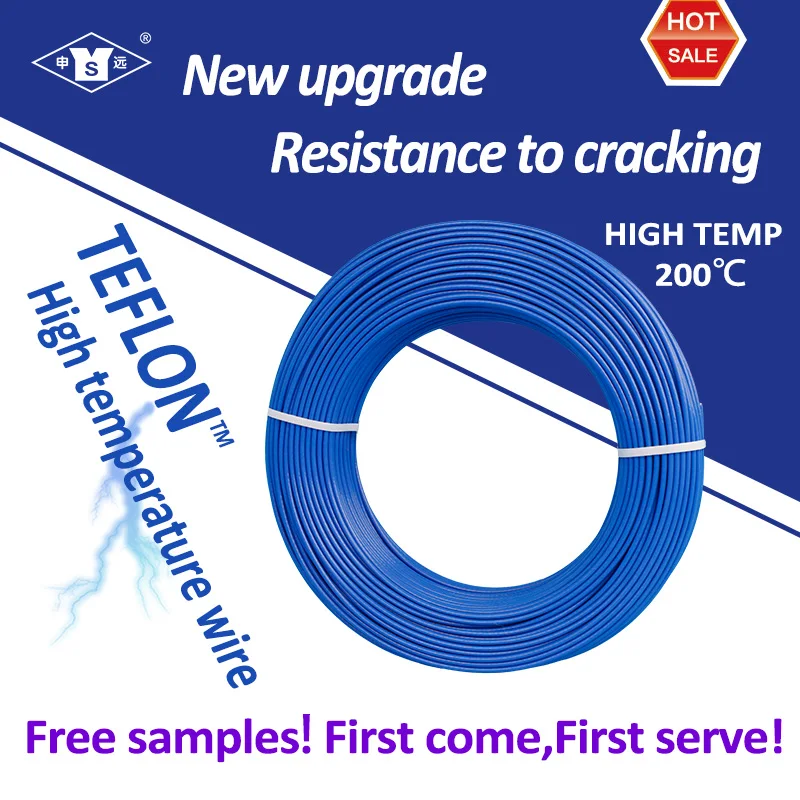

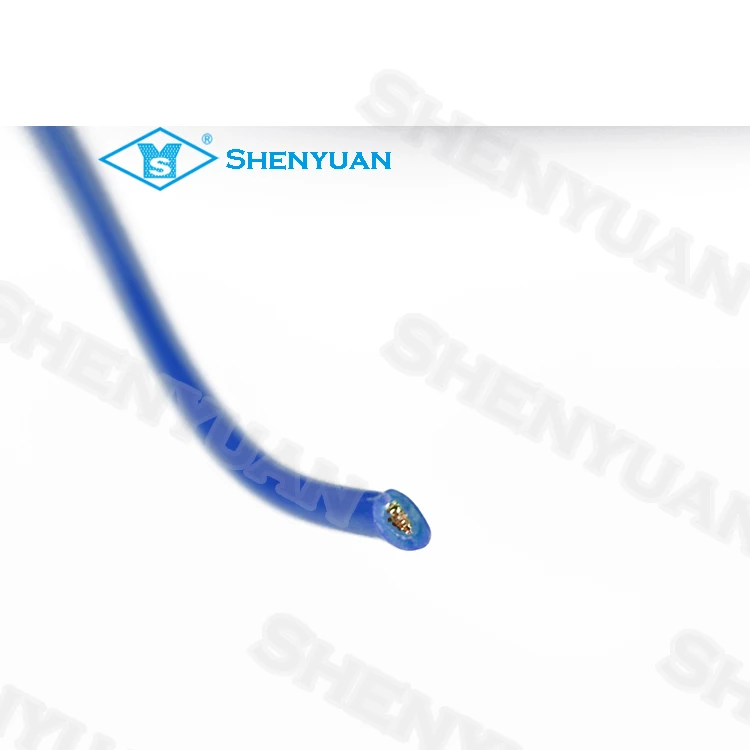

Китай поставщик AF200 H высокая температура электрические изолированные провода
- Категория: >>>
- Поставщик: Shanghai Shenyuan Hi-Temp Wire Co. Ltd.
Сохранить в закладки 62397417910:
Описание и отзывы
Характеристики
Products Description
No | Item | Data |
1 | Brand Name | Shenyuan |
2 | Bucket capacity | AF200 (FEP Series) |
3 | Insulation | FEP |
4 | Conductor | Silver plated copper |
5 | Rated Voltage | 600V |
6 | Temperature range | -65℃~+200℃ |

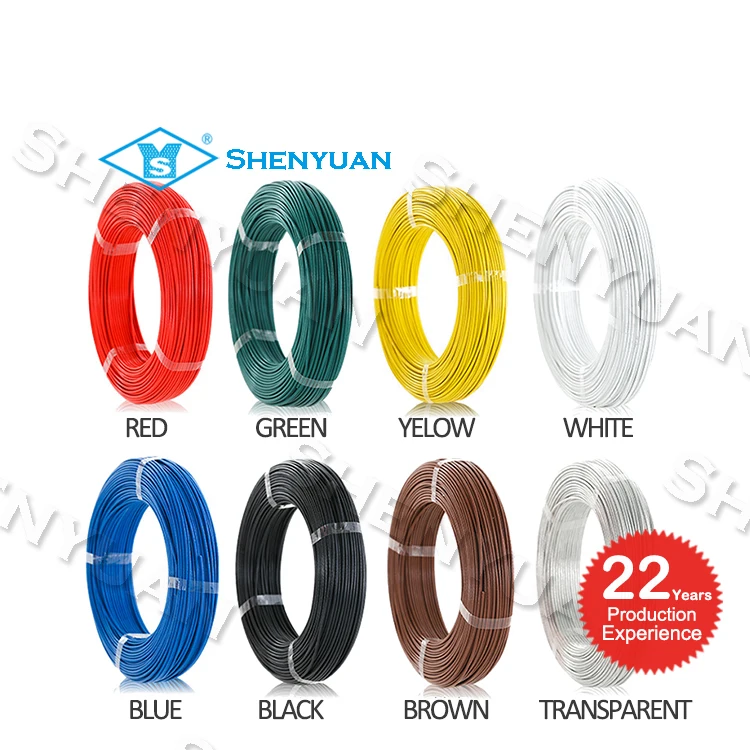

7 | Colour | red / yellow / blue / white /black /yellow green / brown / orange / purple / green / etc |
8 | Application field | Used for home appliances，lighting lamps（cold light source），small motors，temperature sensors，electromagnetic coils，automotive interior cables，electronic appliances etc. |
Product Paramenters

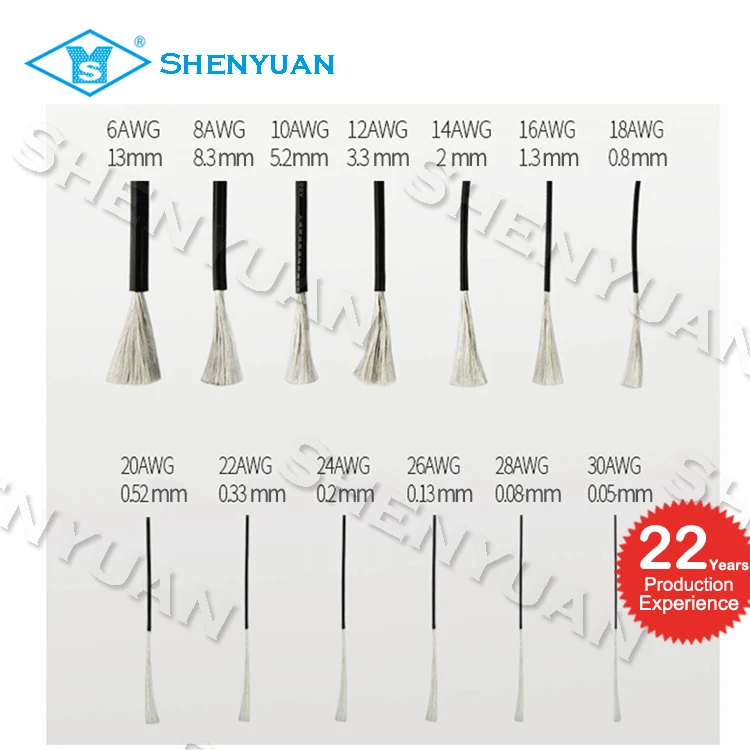

Cross section （mm2） | Conductor structure Strands / diameter （mm） | Insulation thickness （mm） | Average outside diameter （mm） | 20 ℃ conductor DC resistance （Ω/km） | Packing length （m） | |||||
0.014 | 7/0.05 | 0.15 | 0.45 | 1343 | 500 | |||||
0.035 | 7/0.08 | 0.15 | 0.60 | 525 | 500 | |||||
0.05 | 7/0.10 | 0.15 | 0.60 | 330 | 500 | |||||
0.08 | 7/0.12 | 0.20 | 0.78 | 227 | 500 | |||||
0.12 | 7/0.15 | 0.20 | 0.85 | 150 | 500 | |||||
0.20 | 7/0.20 | 0.25 | 1.10 | 83.5 | 200 | |||||
0.35 | 19/0.16 | 0.25 | 1.30 | 49.5 | 200 | |||||
0.50 | 19/0.18 | 0.25 | 1.40 | 36.0 | 200 | |||||
0.75 | 19/0.23 | 0.25 | 1.70 | 22.7 | 200 | |||||
1.0 | 19/0.26 | 0.25 | 1.80 | 19.0 | 200 | |||||
1.20 | 19/0.28 | 0.30 | 2.0 | 15.3 | 200 | |||||
1.50 | 19/0.32 | 0.30 | 2.20 | 11.7 | 200 | |||||
2.0 | 19/0.37 | 0.30 | 2.45 | 9.45 | 100 | |||||
2.5 | 19/0.41 | 0.40 | 2.95 | 6.86 | 100 | |||||
4.0 | 37/0.37 | 0.40 | 3.40 | 4.51 | 100 | |||||
6.0 | 37/0.45 | 0.50 | 4.20 | 3.05 | 100 | |||||
8.0 | 133/0.28 | 0.50 | 5.20 | 2.16 | 100 | |||||
10 | 133/0.32 | 0.50 | 5.80 | 1.68 | 100 | |||||
16 | 133/0.39 | 0.60 | 7.00 | 1.13 | 100 | |||||
20 | 133/0.45 | 0.60 | 8.0 | 0.886 | 100 | |||||
25 | 196/0.40 | 0.6 | 8.8 | 0.734 | 100 | |||||
35 | 494/0.30 | 0.7 | 10.4 | 0.511 | 100 | |||||
50 | 396/0.40 | 0.8 | 12.2 | 0.358 | 100 | |||||
70 | 551/0.40 | 1.0 | 14.6 | 0.270 | 100 | |||||
95 | 760/0.40 | 1.2 | 17.2 | 0.210 | 100 | |||||
0.03 | 1/0.20 | 0.15 | 0.50 | 560 | 500 | |||||
0.05 | 1/0.26 | 0.17 | 0.60 | 386.9 | 500 | |||||
0.07 | 1/0.30 | 0.20 | 0.70 | 245 | 500 | |||||
0.12 | 1/0.40 | 0.20 | 0.80 | 146.9 | 500 | |||||
0.2 | 1/0.50 | 0.25 | 1.0 | 94 | 500 | |||||
0.3 | 1/0.60 | 0.30 | 1.20 | 65.3 | 500 | |||||
0.5 | 1/0.80 | 0.3 | 1.40 | 36.7 | 500 | |||||
0.75 | 1/0.97 | 0.26 | 1.50 | 24.7 | 500 | |||||
1.13 | 1/1.20 | 0.30 | 1.80 | 16.5 | 500 | |||||
Note: According to the agreement between supply and demand, you can produce other specifications of the product. | ||||||||||
Our Advantages
more choice in cable
More Choice in Cable Configurations
Custom Engineered to Your Specifications and Designs Fluoroplastic wire
Silicone rubber wire
Silicone rubber insulated & braid wire
Multi conductor cables
UL certified high temperature cable
Fire resistance wire
High voltage wire
Thermocouple high temperature compensation cables
Conductor Materials
Conductors:
36AWG to 4/0 AWG
Bare copper
Tinned copper
Silver-plated copper
Nickel-plated copper
Copper alloys
Copper and nickel alloy
Pure nickel
Fibers and Yarns
Fiberglass
Silica sand
Aramid fiber
Stainless steel yarn
Silicone rubber wire
Silicone rubber insulated & braid wire
Multi conductor cables
UL certified high temperature cable
Fire resistance wire
High voltage wire
Thermocouple high temperature compensation cables
Conductor Materials
Conductors:
36AWG to 4/0 AWG
Bare copper
Tinned copper
Silver-plated copper
Nickel-plated copper
Copper alloys
Copper and nickel alloy
Pure nickel
Fibers and Yarns
Fiberglass
Silica sand
Aramid fiber
Stainless steel yarn
Insulating and Jacketing Compounds
Thermoplastics
PP
PE
PUR
Nylon
TPE
PEEK
Thermosets
XLPE
Fluoropolymers
PTFE
FEP
PFA
ETFE
Silicone rubber
Silicone
High tear resistance silicone rubber
Flame-retardant silicone
High-voltage silicone
Shielding
Application:Overall and individual conductors/pairs
Types: Foil, braid,
Thermoplastics
PP
PE
PUR
Nylon
TPE
PEEK
Thermosets
XLPE
Fluoropolymers
PTFE
FEP
PFA
ETFE
Silicone rubber
Silicone
High tear resistance silicone rubber
Flame-retardant silicone
High-voltage silicone
Shielding
Application:Overall and individual conductors/pairs
Types: Foil, braid,
Welcome to our store to browse more products.
For more information, please contact us.>Click Here<
Recommend Products
FAQ
Q1:Are you a trading company or manufacturer?
A1:Shanghai Shenyuan High Temperature Cable Co.,Ltd is a leading manufacturer in high temperature electrical wire and cable from1998.
We are a professional manufacturer,not a trading company,Thus,we can control your order from the first begining to the last.
Q2:What kinds of products does Shanghai Shenyuan High Temperature Cable Co.,Ltd produce?
A2:Our factory is located in Shanghai.Warmly welcome to visit us.
Q3:Can we have our logo or company name to be printed on your products or package?
A3:Yes,you can. Logo and company name can be printed on our products by silk screen printing.
Q4:Can I get the samples?
A4:Yes,sample is available for free,but the freight is collected.
Q5:How long can I expect to get the sample?
A5:The sample will be ready for delivery in 1 days,and will be arriving in 3-5 days by sending via express
A1:Shanghai Shenyuan High Temperature Cable Co.,Ltd is a leading manufacturer in high temperature electrical wire and cable from1998.
We are a professional manufacturer,not a trading company,Thus,we can control your order from the first begining to the last.
Q2:What kinds of products does Shanghai Shenyuan High Temperature Cable Co.,Ltd produce?
A2:Our factory is located in Shanghai.Warmly welcome to visit us.
Q3:Can we have our logo or company name to be printed on your products or package?
A3:Yes,you can. Logo and company name can be printed on our products by silk screen printing.
Q4:Can I get the samples?
A4:Yes,sample is available for free,but the freight is collected.
Q5:How long can I expect to get the sample?
A5:The sample will be ready for delivery in 1 days,and will be arriving in 3-5 days by sending via express
