Features:
Specifications:
TR700 | |||

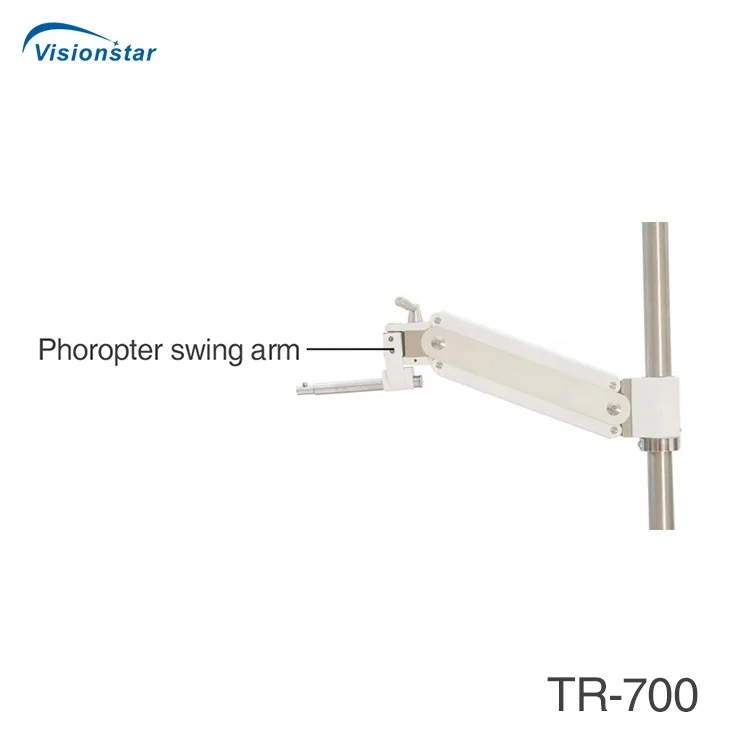

Mechanical Parameters | 1.Phoroptor swing arm | Swing angle (up and down) | ±30° |
Rotary arm: rotation angle | 0°-300° | ||
Up and down moving range | 900mm~1500mm | ||
Max load | 30Kgs | ||

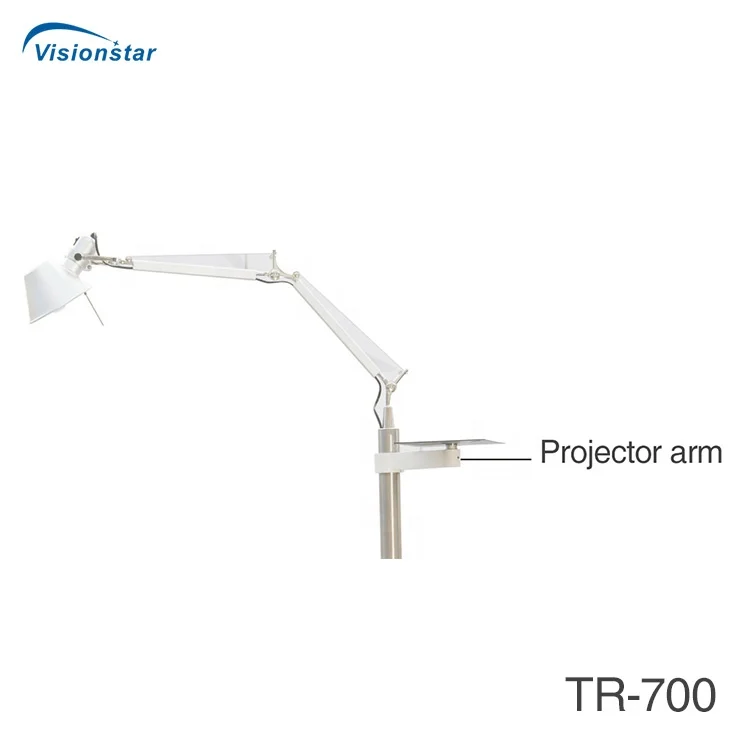

2.Projection arm | Angle of rotation for rotary arm | 360° | |
The tray can be 360° rotation | |||
Up and down moving range | 1030mm~ 1530mm | ||
Max load | 10Kgs | ||

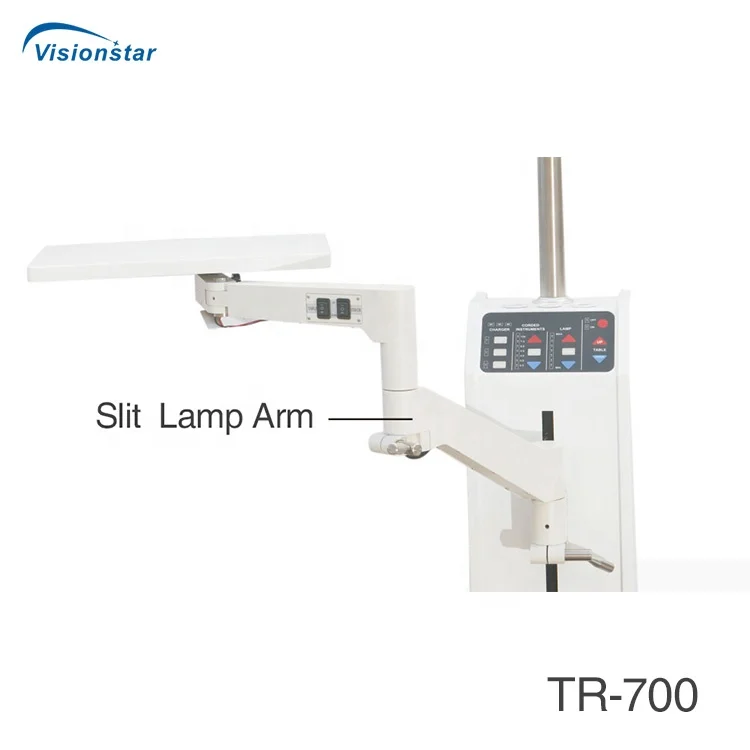

3.Slit lamp arm | Table size | 350mm x 200mm x25mm (Can be customized, maximum size is 700mmx 400mm x 40mm) | |
Max load | 50Kgs | ||
Table movement range | within a semicircle with a radius of 824mm | ||
Height adjustment range | 716mm ~1016mm | ||
Table rotational angle | The first rotary arm rotates at an Angle 0°- 180°; The second rotary arm rotates at an Angle 0°- 360°; | ||
Table-board rotational angle | 360° | ||
Electrical Parameters | 1.In voltage | 100-120V AC 50Hz/60Hz, 200-240V AC 50Hz/60Hz | |
2.Output voltage | 100-120V AC 50Hz/60Hz, 200-240V AC 50Hz/60Hz; 2.5V 3.5V 4.5V 5.5V 6.5V 7.5V 12V AC | ||
3.Charging voltage | 5V DC | ||
4.Engine power | 28V 1.5A DC | ||
5.Light | 5/16W 24V DC | ||
6.Fuse | 5A 130/250V AC | ||
7.No load power | 1W | ||
8.Pressure test | 2KV | ||
9.Working mode | S1 | ||
10.Main wire | 10A 120V/250V | ||
11.Working temperature | -10℃~+40℃ | ||
12.Relative humidity | less than 90% | ||

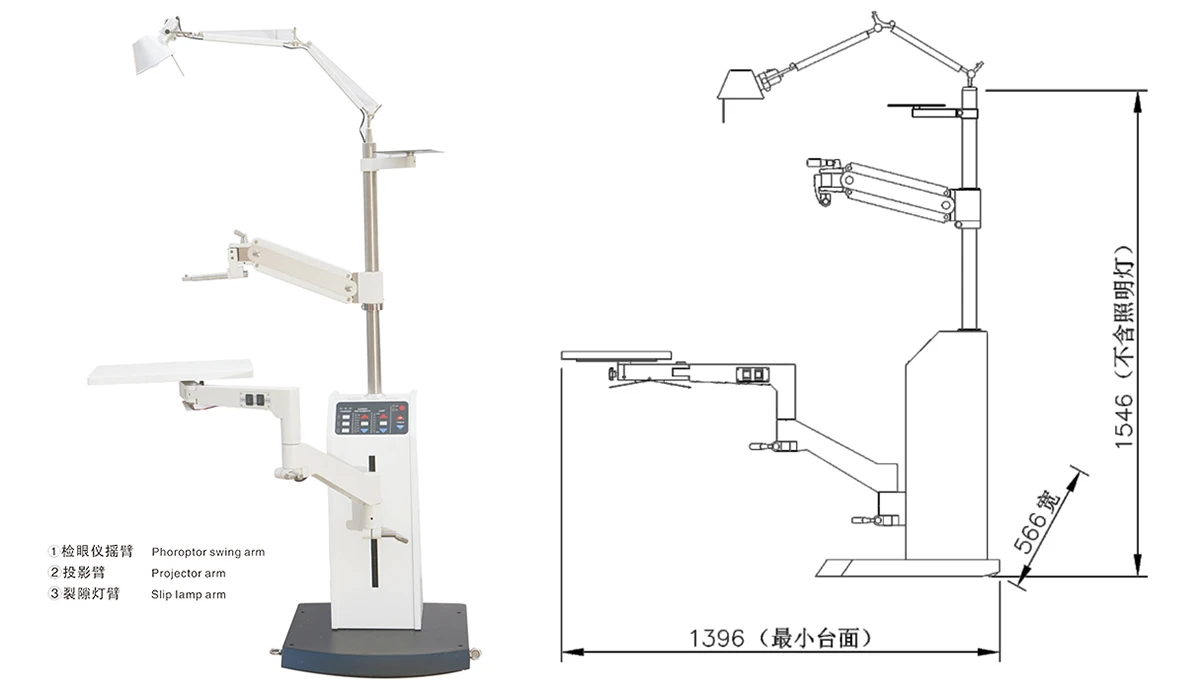

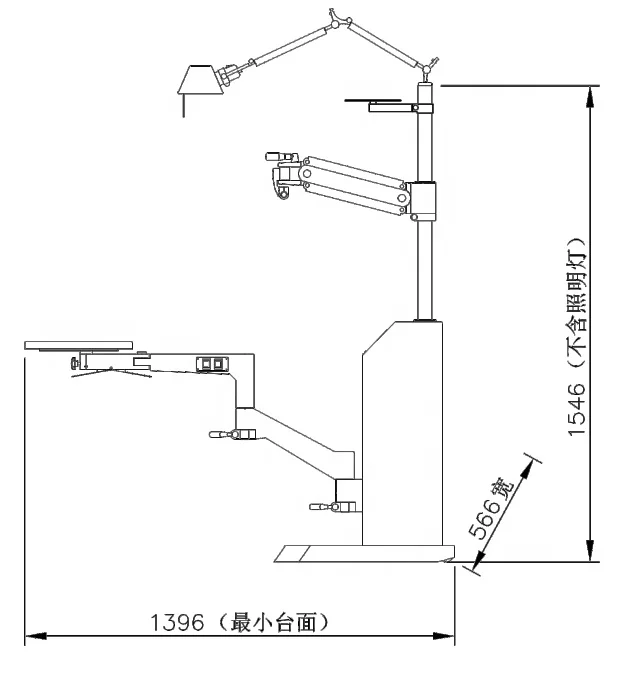

Installation Dimension | Figure size | 1348mm*1274mm*1556mm (No contain table top or light) | |
Weight | 125kgs | ||
Our Services

Packaging

About Us

Customer Reviews

Certificates



Новинки товаров от производителей по оптовым ценам

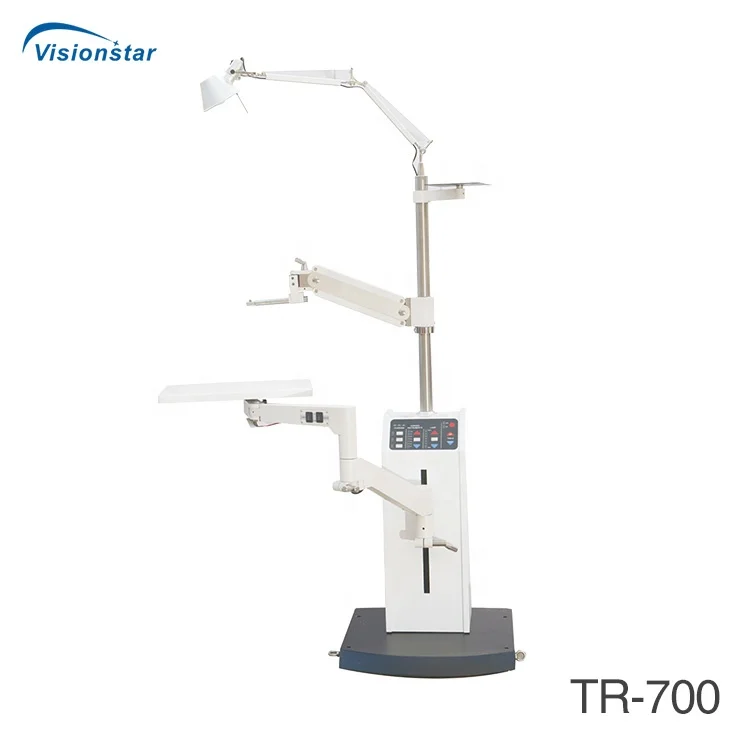

TR-700 Cheap Price Optical Instrument Combined Table Ophthalmic Refraction Chair Unit
