Multi-media filter with flow rate of 45m3/h

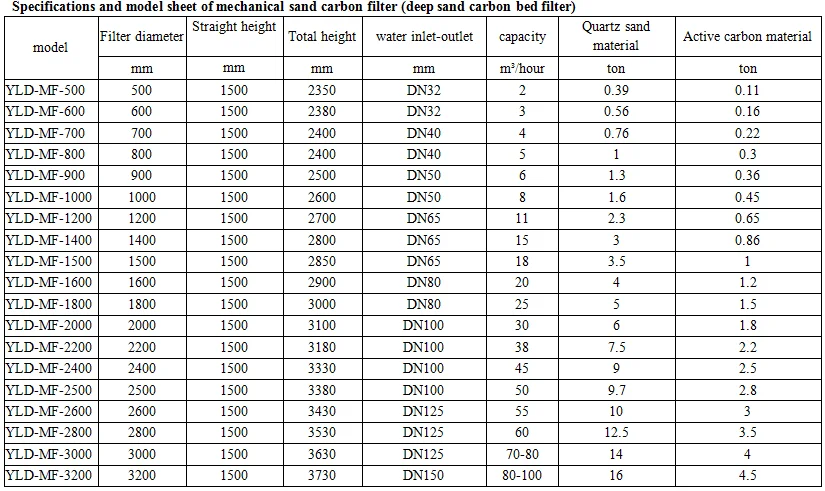

Specification

Certificate:

Working princinple
The Filtering Process
Filtering with media filters, also known as depth filtration, is done by filtering water through a thick layer of graded particles, called the filter bed. These particles can be sand, gravel or other granular materials. The filtration degree depends on the effective size of the bedding and the water velocity through the filter.
Raw water enters from the filter inlet (1) and percolates through the filter bed (2). Suspended materials come into contact and attach to the media particles. Clean water flows through the filtration nozzles (3) and out of the filter via the outlet valve (4).
The gradual dirt buildup in the filter bed causes an increase in the pressure differential across the filter and when it reaches its maximum design value, a cleaning process should be performed. In automatic media filter installations a pressure differential switch senses the pressure differential and when it reaches a preset value, the self cleaning process begins.
Activated carbon filter
Activated carbon filters are typically used to remove organic compounds and/or free chlorine from water to make water suitable for use in manufacturing or discharge. Removing organics like fulvic and humic acid from potable water prevents these acids from chemically reacting with chlorine to form a class of carcinogens known as trihalomethanes.
Our services:
Packaging & Shipping
Packaging
1. All the products are packed in seaworthy wooden cases.
2. Any special requirement for package, please feel free to tell us

Shipping
TO SHANGHAI NIBONG QINGDAO TIANJING GUANGDONG PORT
