LINSN отправляющая карта TS802 контроллер видеокарты светодиодный экран карты
- Категория: >>>
- Поставщик: Chipstar LED Co. Ltd.
Сохранить в закладки 62400024336:
Описание и отзывы
Характеристики

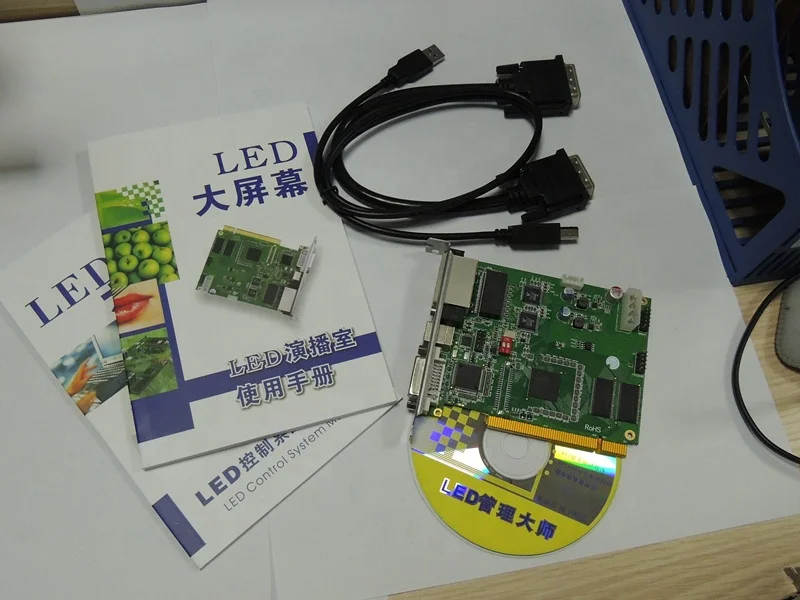

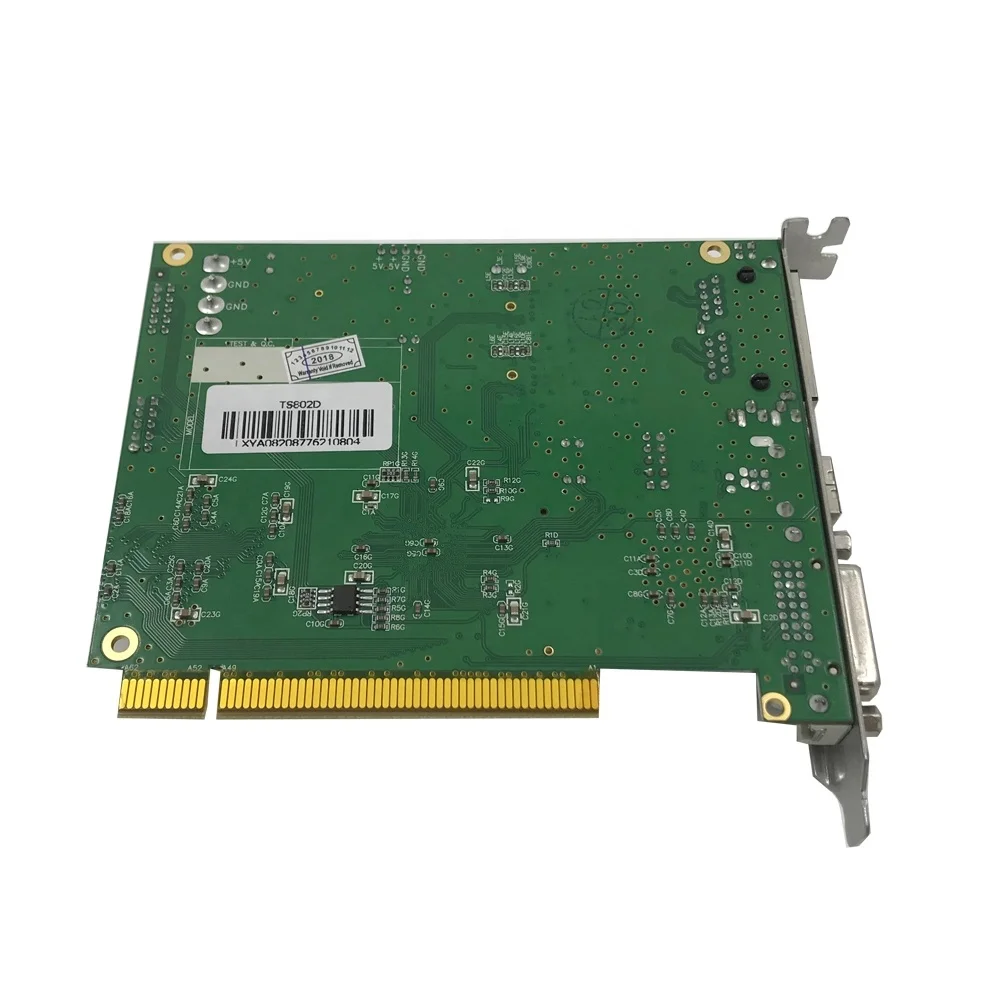

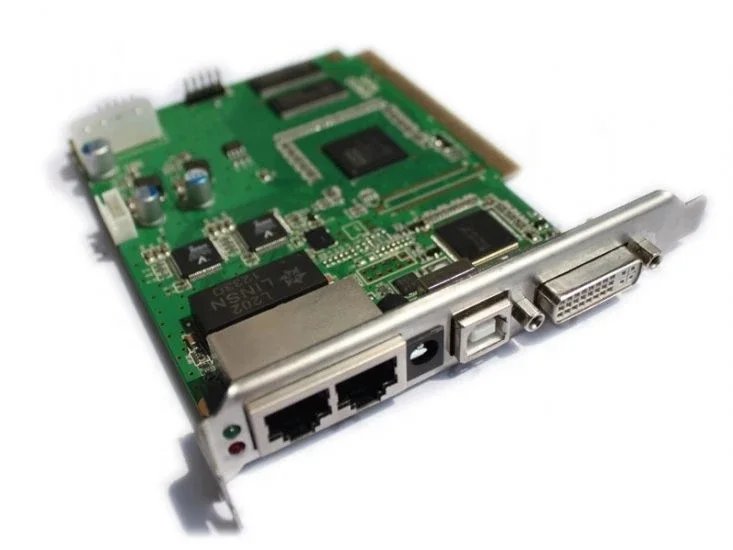

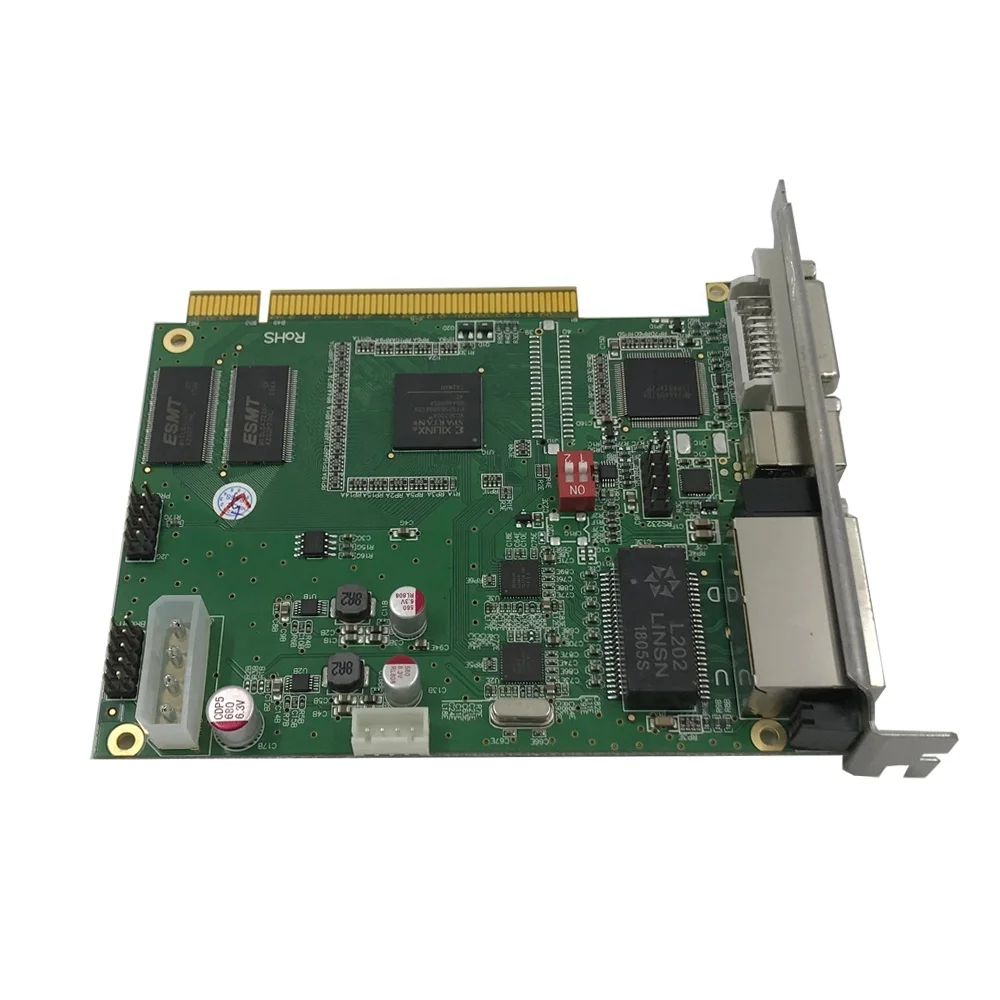

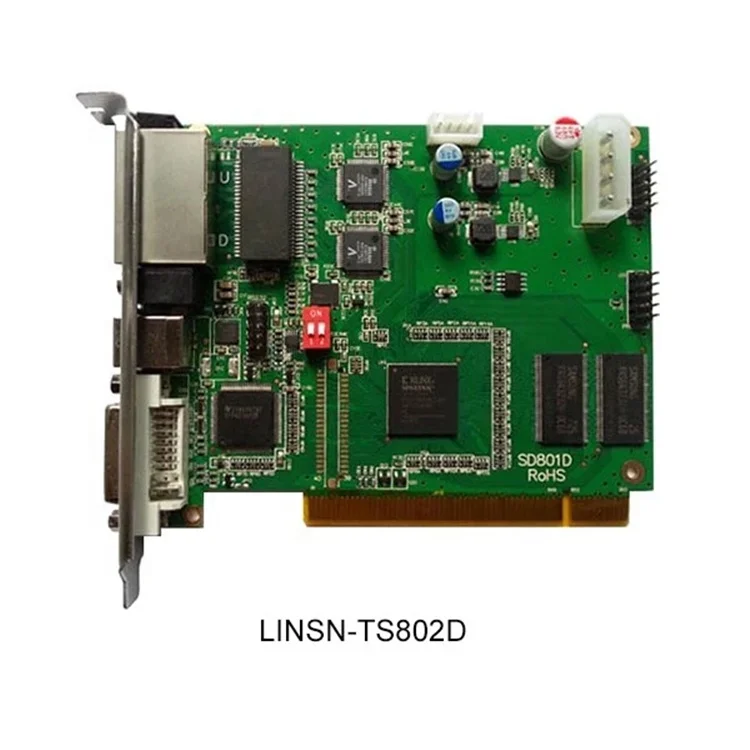

LINSN Sending Card TS802 Video Card Controller LED Screen Control Card
>>>One DVI video signal input;
>>>One Audio signal input;
>>>Sending card is set by USB; can be cascaded to drive a larger screen, up to 4 cards cascaded;
>>>Two network outputs; single port maximum support 655360 pixels;
>>>Support adjusting brightness manually (require working with outer box); three scales can be set:16-grade, 32-grade and 64-grade;
>>>Support 60Hz and 30Hz output mode;
1. 802 sending card including full-color sending card TS802 and dual-color sending card DS802.
Full-color sending card supports full-color, dual-color and single color led display
Dual-color sending card supports dual-color and single color led display.
2. 802 sending card max supports 2048*640
3. Supporting display mode: 640*480 800*600 1024*768 1280*768 1280*800 1280*1024
1440*900 1440*1080 1600*1200
1680*1050 1728*1296 1920*1080 1920*1200 2048*1152 2048*1280
4. Audio Transmission Function802 sending card sends audio data using network cable, and Function
board outputs audio signals to the display. Double 24bits 64KHZ hifi digital signal to analog signal
or analog signal to digital signal, making display have the perfect video effect.
5. Cascade functionThrough the dig switch on 802 sending card, several 802 sending cards can be
easily cascaded to support a super large led display
6. Sending card U/D port flexibility for carrying half width or half heightFor example, TS801 can max
support 1280*1024 with two portsA single network output port supports 1280*512 or 640*1024
7. Sending card rotation functionIn Sender setting, sending card has 0, 90, 180, 270 degree rotation function
8. Sending card zoom in/out functionIn Sender setting, the ratio of width and height can be set to
realize zoom in or zoom out
9. Supporting 10-bit colors The seventh supports 8-bit colors: 256*256*256=16777216 kinds of colors.
The eighth supports 10bit colors: 1024*1024*1024=1073741824 kinds of colors. It needs to work
with our video processors using the 30 bits TTL.
10.Multi-display synchronous and combination functions.One sending card can control multidisplays,
realizing displays combination, synchronous display, and independent play.
Related Product
Application
1. Advertising LED display screen
LED display can perfect combine text, pictures, video. Commerical adversting.
2. Stadium LED display screen
In stadium to live show, video play, slow motion playback, specific lens display, sports score information presentation.
Use in football field led screen fence, basketball stadium center screen, and screens in swimming stadium, Athletics stadium.
3.Transportation LED display screen
Widely use in the busy streets of city or on the highway.
Screens display weather, traffic regulations, to remind drivers to drive safely.
4. Stage rental LED display screen
Easily installed, removed and transport.
Widely used in stage show, concert, theater, party, and other entertainment event as background.
Control System
Packing & Shipping
Our Services
1. We can provide customers a comprehensive solution delivery of series-related products
2. We can provide customers high quality products which allow they to scream
3. We can provide custom-made service.
4. We can provide customers one year free warranty, and support renewals extended
5. We can provide customers the free installation guidance and technical support
6. We willing to provide any countries and regions in the world with products and technical
support. at present, our product has covered more than 100 countries and regions.
FAQ
Q1: When is the delivery time?
A1: we will accomplish manufacturing within 10 days after receiving the deposit.
Q2: What is the payment method?
A2: We support a variety of payment methods, the most common is the TT.
Q3: What's the pixel pitch for Outdoor LED Display Screen?
A3: Outdoor (P6mm / P8mm/P10mm)
Q4: Where is it used for?
A4: Outdoor & rental use. Widely used for backdrop of staging event, rental business, live show, concert, etc.
Q5: Can it play HD video?
A5: Yes, it can realize HD video function with Linsn controlling system.
Q6: What's the controlling system?
A6: Our standard controlling system for this model is Linsn, Novastar. Also support other controlling system, like Xixun,TF, Colorlight, etc.
Contact us
Похожие товары

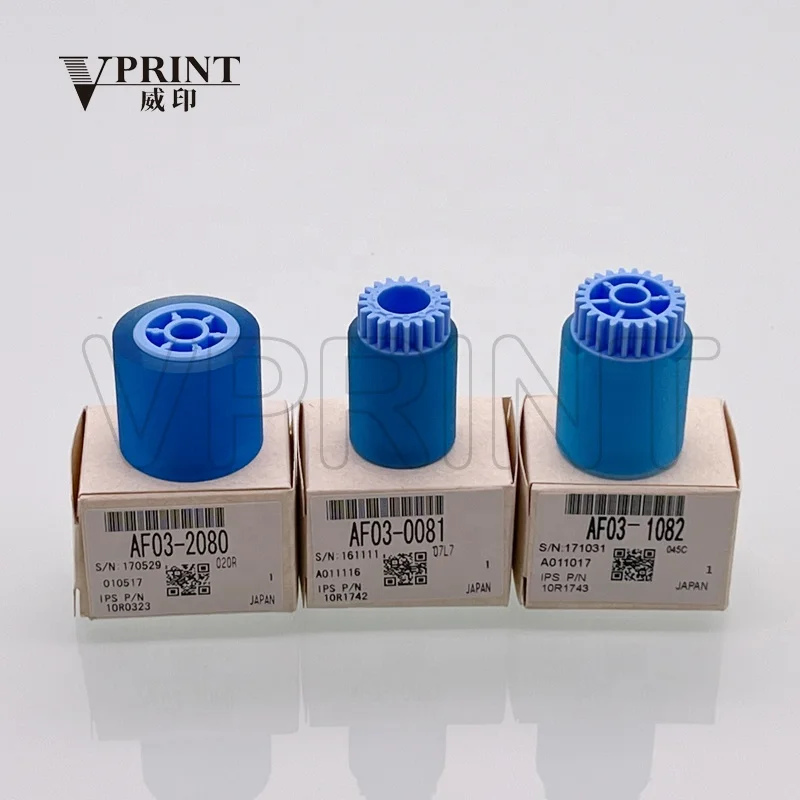

AF032080 AF030081 AF031082 разделительный ролик для захвата бумаги для Ricoh Aficio 2051 2060 2075 5500 запасные части для копировального аппарата
2,30 $ - 3,90 $

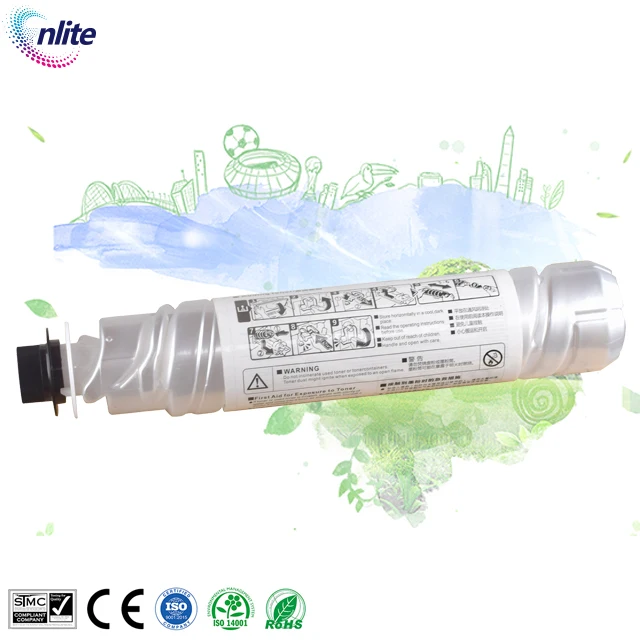

Картридж для копировального аппарата премиум-класса, совместимый с Ricoh Aficio 2015/2018/ Mp1600/1610/1810/2000
3,60 $ - 4,80 $

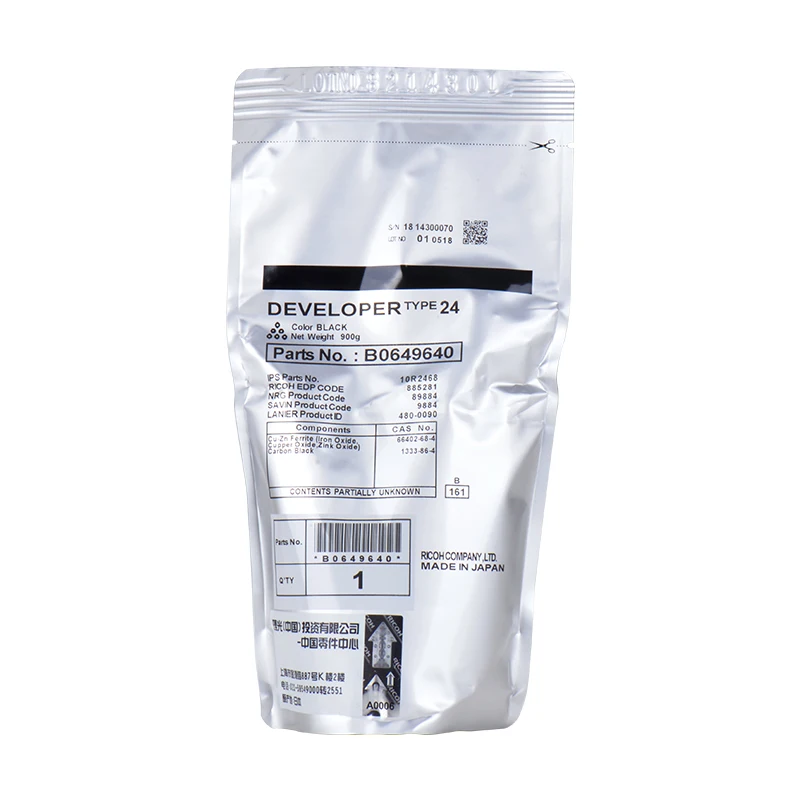

Оригинальные запасные части для копировального аппарата Ricoh MP6001, MP7001, MP8001, MP1060, MP2060, MP2051, MP2075, MP7500, копировальная машина разработчика 24 типа
Тонер блок питания для копировальной машины Ricoh Mp5000 Mp5001 Mp5000B D009-3209
16,00 $ - 18,00 $

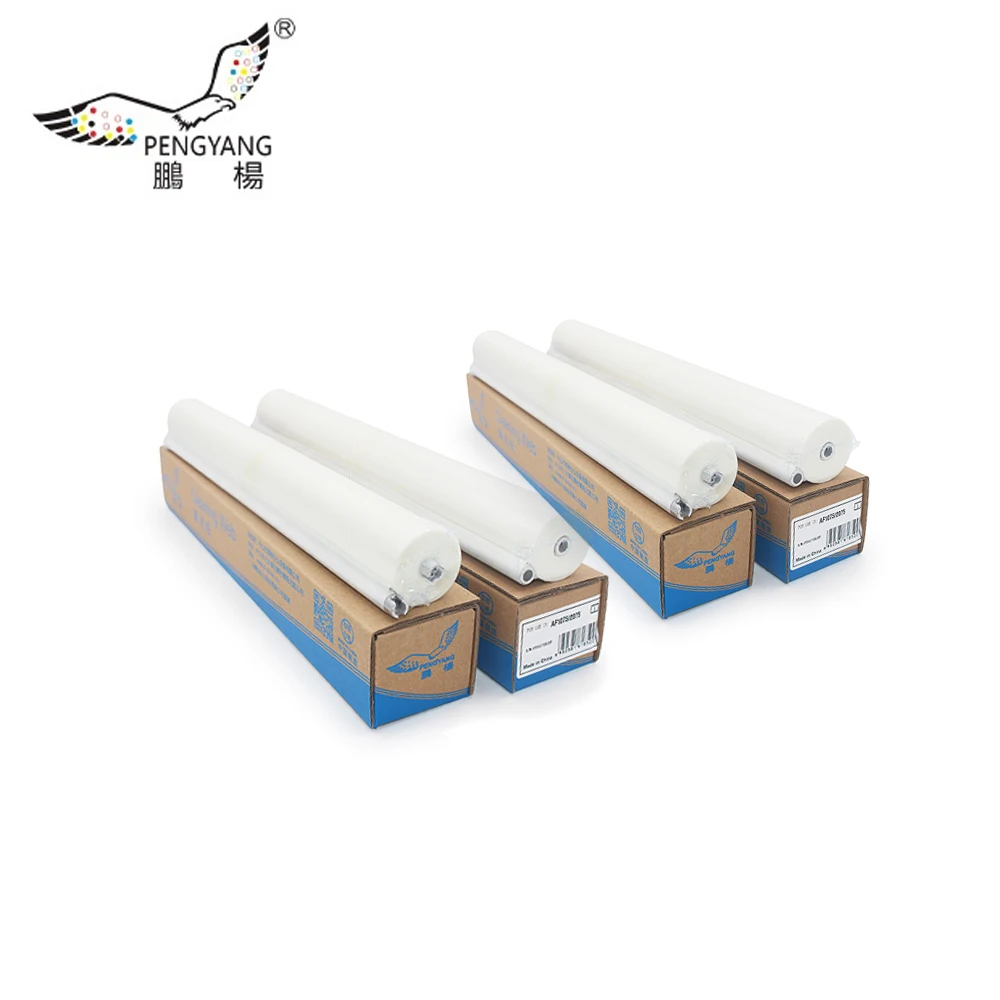

Ролик для очистки фьюзера совместимый с ricoh Aficio1060/1075/2051/2060/2075/AP900/5500/6000/6001/6002/6500/7000 B140 4181
2,35 $ - 5,48 $

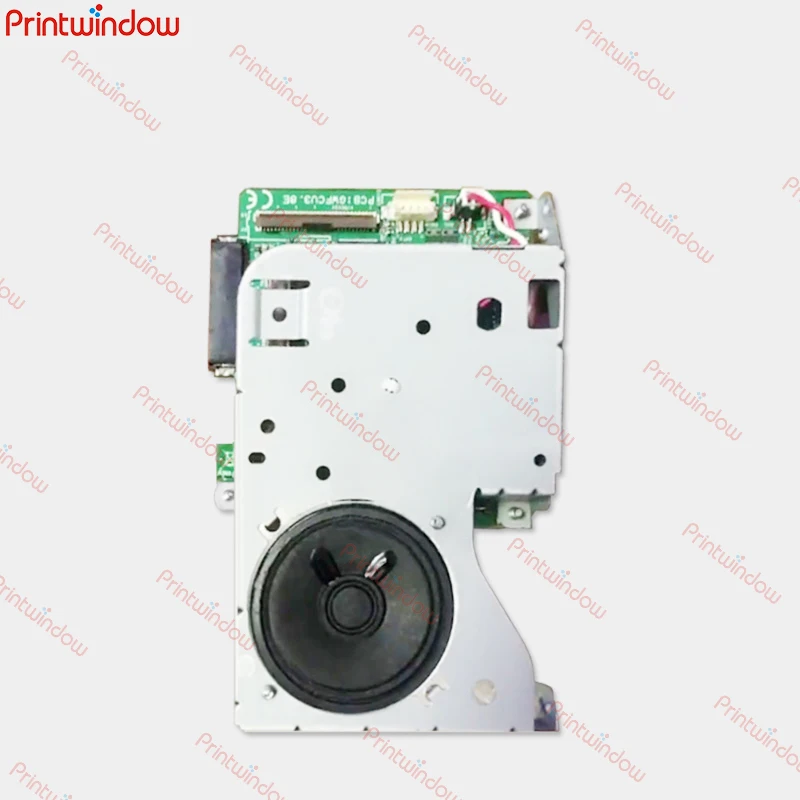

Printwindow D163-03 факс вариант типа M37 факс копировальной доска для Ricoh IMC2000 IMC2500 IMC3000 IMC3500 IMC4500 IMC6000 копиров
198,00 $ - 215,00 $

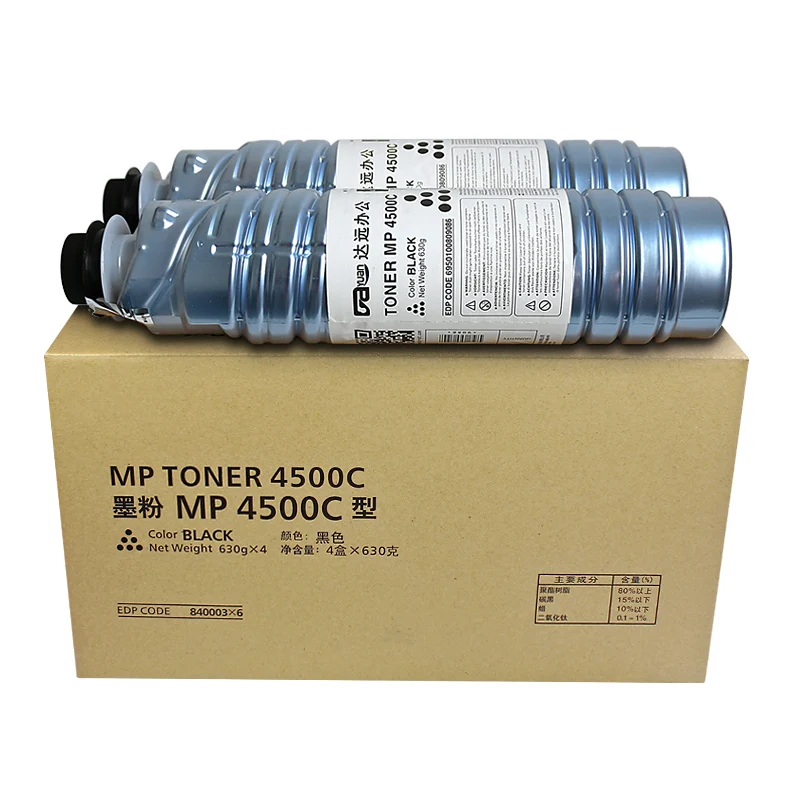

KST завод тонер-картридж МП 4500C для RICOH MP 4000B/4000BSP/5000B/5000BPS оптовая продажа тонер оригинальный чип тонер-картриджа
