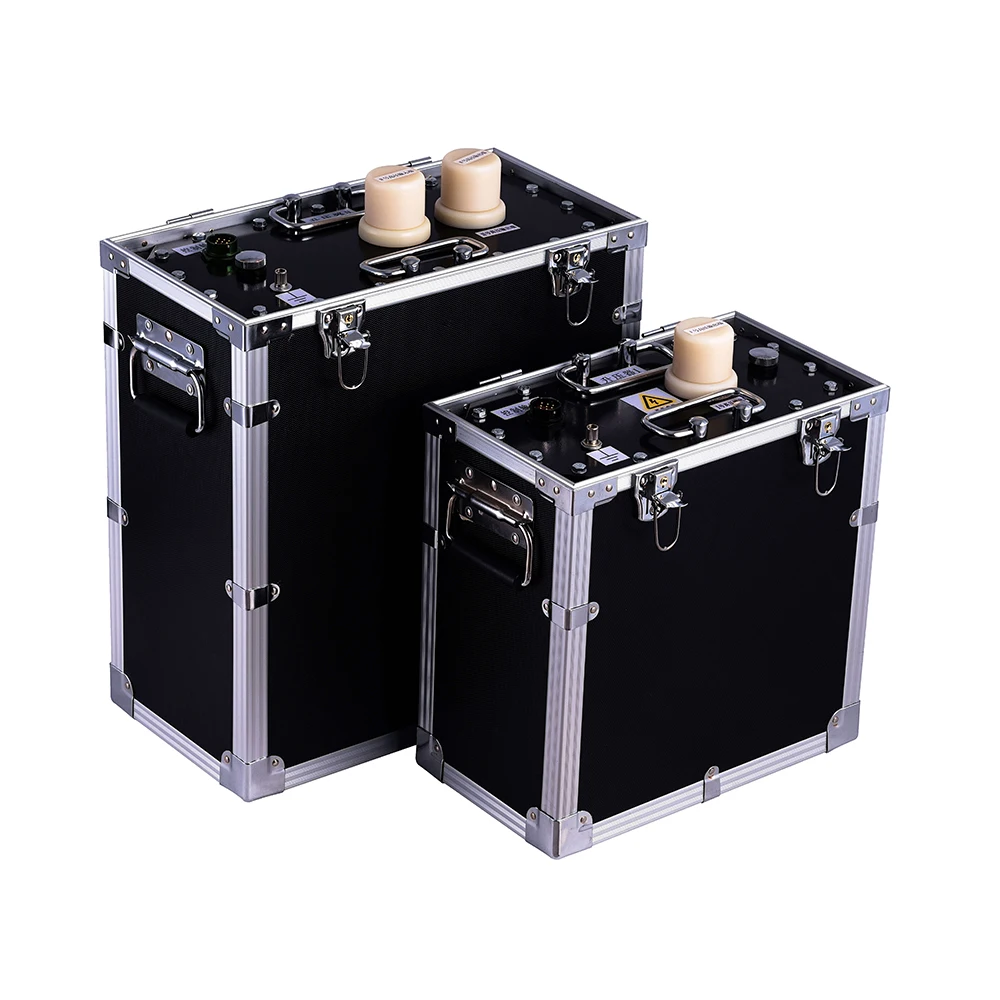

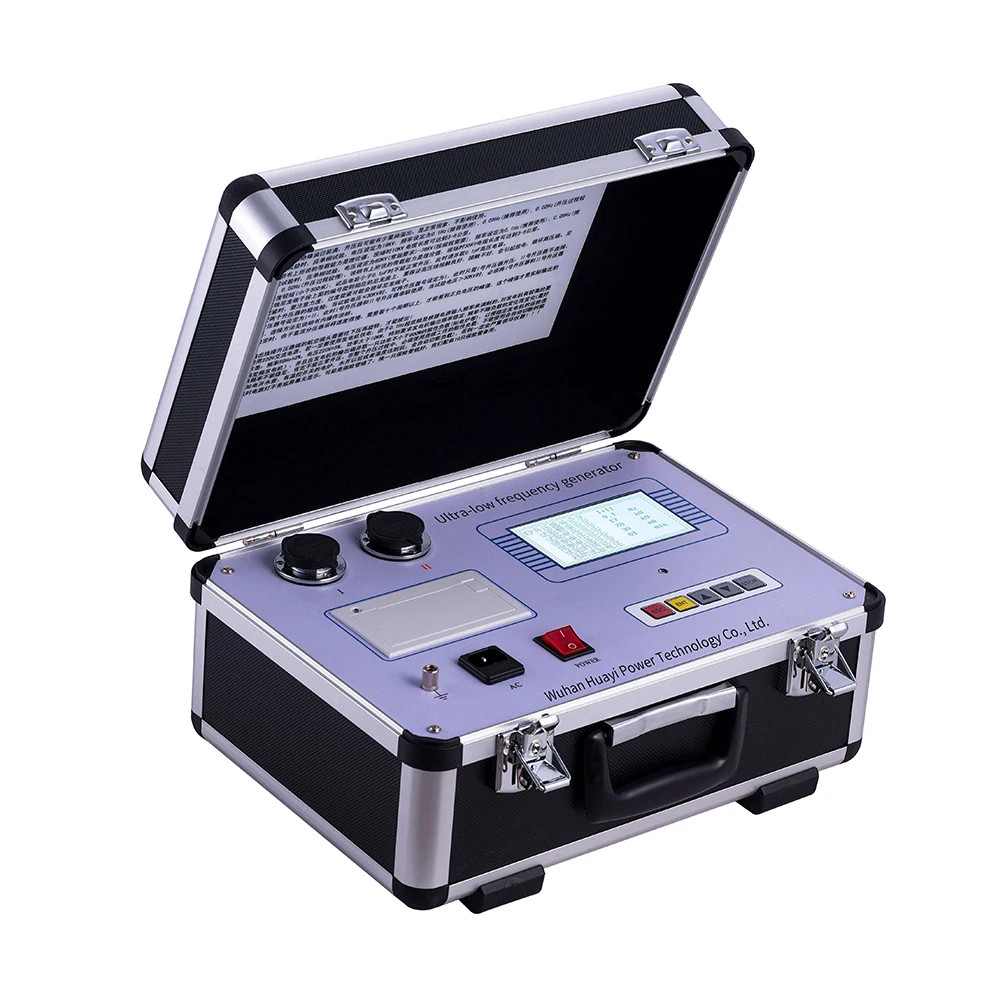

Низкая цена инструмент для тестирования высоковольтного кабеля генератора VLF AC Hipot тестер 60 кв 80 высоковольтных кабелей
- Категория: >>>
- Поставщик: Wuhan Huayi Electric Power Technology Co. Ltd.
Сохранить в закладки 62404186071:
Описание и отзывы
Характеристики
Product Description
Apply to the circuit resistant test. Test current 100A, comply with national standard, the tester can measure the loop resistance at this value and display the result in digital. It is high precision and good stability and can meet most power system's requirements in onsite high-voltage switches maintenance and high-voltage switches factory loop resistance measurement.
Introduction
Low frequency HV generator is actually an alternative to the frequency withstand voltage test, it can replace the high capacity resonance transformer when test large generator, cable and other tested equipment as well.
HUAYI low frequency generator adopts advanced technology of digital frequency. With microcomputer controlling, boosting, voltage reducing, measurement and protection are automatic completely. Small volume, light weight, big LCD display, clear and visual. It can display wave and print test report.
Ultra-low frequency HV generator is a kind of hipot equipment for ultra-low frequency AC withstand voltage test. It is applied to insulation withstand voltage on-site test of Polyethylene, crosslinked polyethylene plastic cable and other high voltage electrical equipment for power department, industrial and mining company. Compared with DC voltage withstand test, this device has less destructive and It is equivalent to AC frequency voltage withstand test.
HUAYI low frequency generator adopts advanced technology of digital frequency. With microcomputer controlling, boosting, voltage reducing, measurement and protection are automatic completely. Small volume, light weight, big LCD display, clear and visual. It can display wave and print test report.
Ultra-low frequency HV generator is a kind of hipot equipment for ultra-low frequency AC withstand voltage test. It is applied to insulation withstand voltage on-site test of Polyethylene, crosslinked polyethylene plastic cable and other high voltage electrical equipment for power department, industrial and mining company. Compared with DC voltage withstand test, this device has less destructive and It is equivalent to AC frequency voltage withstand test.
Features
1. Ultra-low frequency HV generator adopts latest frequency technology, generating ultra-frequency signal, high voltage output has big power.
2. Small volume, light weight, easy to carry
3. Has the protective function of over-power, over high voltage, etc.
4. The setting has the regulator of frequency, can adjust the output frequency to 0.1,0.05 and 0.02HZ
5. Can meet different requirement of the high voltage tester for cable and electric equipment with different model.
2. Small volume, light weight, easy to carry
3. Has the protective function of over-power, over high voltage, etc.
4. The setting has the regulator of frequency, can adjust the output frequency to 0.1,0.05 and 0.02HZ
5. Can meet different requirement of the high voltage tester for cable and electric equipment with different model.
Technology Parameters
Input voltage | 220V ±10% 50HZ ±1% |
Temperature | 0～40℃ |
Relative humidity | ≦90% |
Output voltage | 0～40KV 0～70KV |
Output frequency and on load ability | 0.1HZ: 1.1µ F |
0.05HZ; 2.2µ F | |
0.02HZ: 5.5µF | |
Voltmeter accuracy | ≦3% |
Amperemeter accuracy | ≦5% |
Model | Rated voltage | Load capacity | Power Fuse | Reference weight |
VLF-30 (30KV) | 30kV/20mA （Peak value） | 0.1Hz,≤0.5µF~1.1µF | 5A | Controller：4kg Booster：25kg |
0.05Hz,≤0.5µF~2.2µF | ||||
0.02Hz,≤0.5µF~5.5µF | ||||
VLF-50 (50KV) | 50kV/30mA （Peak value） | 0.1Hz,≤0.5µF~1.1µF | 7A | Controller：4kg Booster：50kg |
0.05Hz,≤0.5µF~2.2µF | ||||
0.02Hz,≤0.5µF~5.5µF | ||||
VLF-60 (60KV) | 60kV/30mA （Peak value） | 0.1Hz,≤0.5µF | 9A | Controller：4kg Booster 1（30kV）：25kg Booster 2（30kV）：25kg |
0.05Hz,≤0.5µF~1µF | ||||
0.02Hz,≤0.5µF~2.5µF | ||||
VLF-80 (80KV) | 80kV/30mA （Peak value） | 0.1Hz,≤0.5µF | 12A | Controller：4kg Booster 1（30kV）：25kg Booster 2（50kV）：50kg |
0.05Hz,≤0.5µF~1µF | ||||
0.02Hz,≤0.5µF~2.5µF |
Accessory
Serial Number | Name | Amount |
1 | Mainframe | one |
2 | Specification | one |
3 | Inspection Report | one |
4 | Certification | one |
Products Show
Our Company
Wuhan HUAYI Electric was founded in 2005, located in Wuhan City, China. We are a professional manufacturer of electric testing equipment with over 15 years industry experience, engaged in high voltage tester with high performance, good quality, customized specification and easy operation. ISO qualified factory, strong R&D team and after-sales engineers make us gain good feedback from wide customers. HUAYI is committed to preventative, maintenance, troubleshooting and commissioning all the time. Our products are involved in AC/DC Hipot tester, series resonant test system, transformer tester, relay tester, circuit breaker/switch tester, oil/SF6 tester, cable tester and other electric instruments, widely adapted to electric power, water conservation, oil, railway, mine, chemical.
Production
office
Warehouse
R&D team
Meeting room
show room
Production Line
We are professional manufacturer in China, have own production line and R&D team, providing best price and quality.

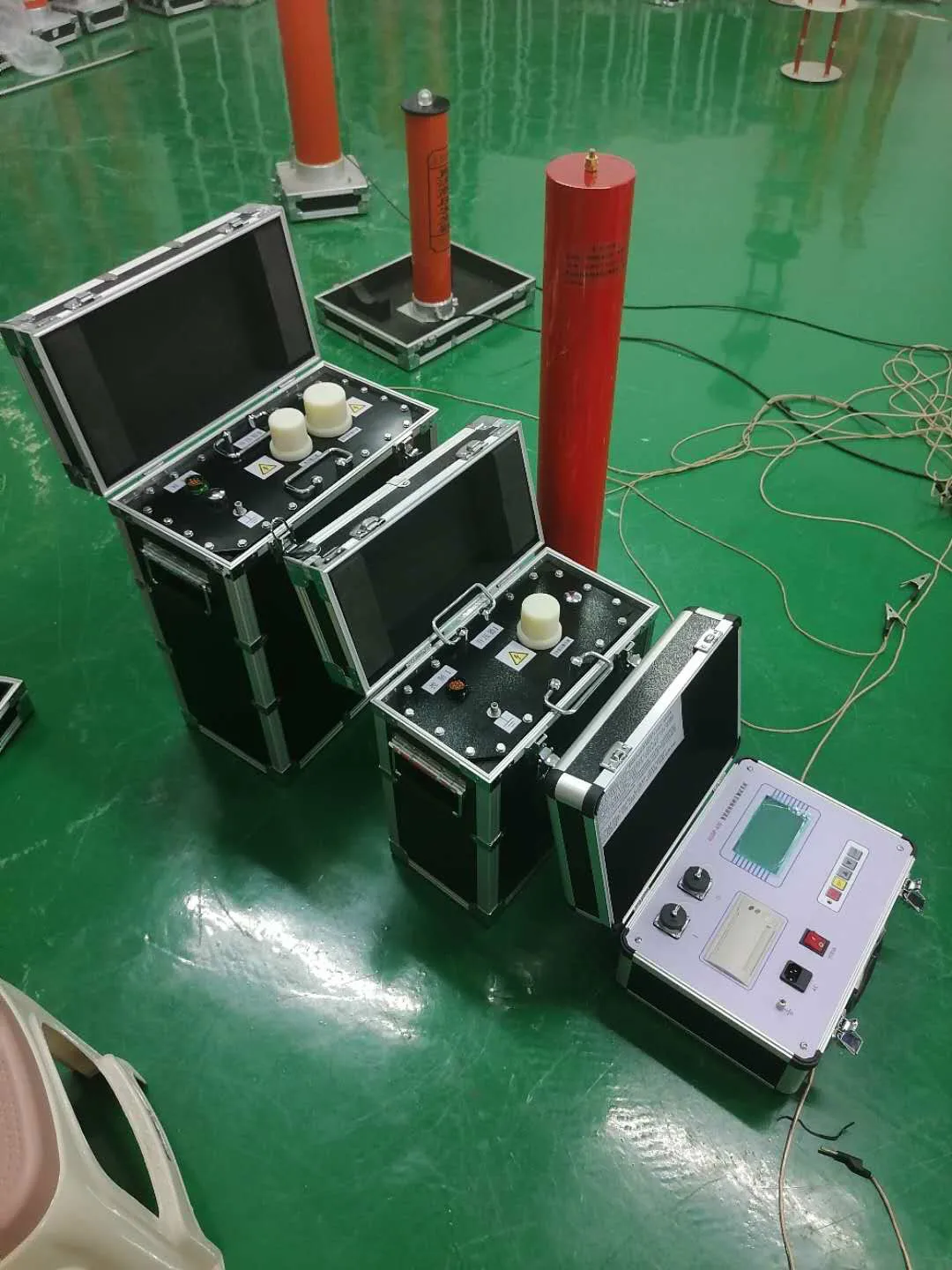

Filed Test&Service
Packing & Delivery
Our Certifications
FAQ
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2.What is the mini order quantity?
MOQ: generally 1 unit/piece/set
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union...
4.Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
5.What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
Похожие товары

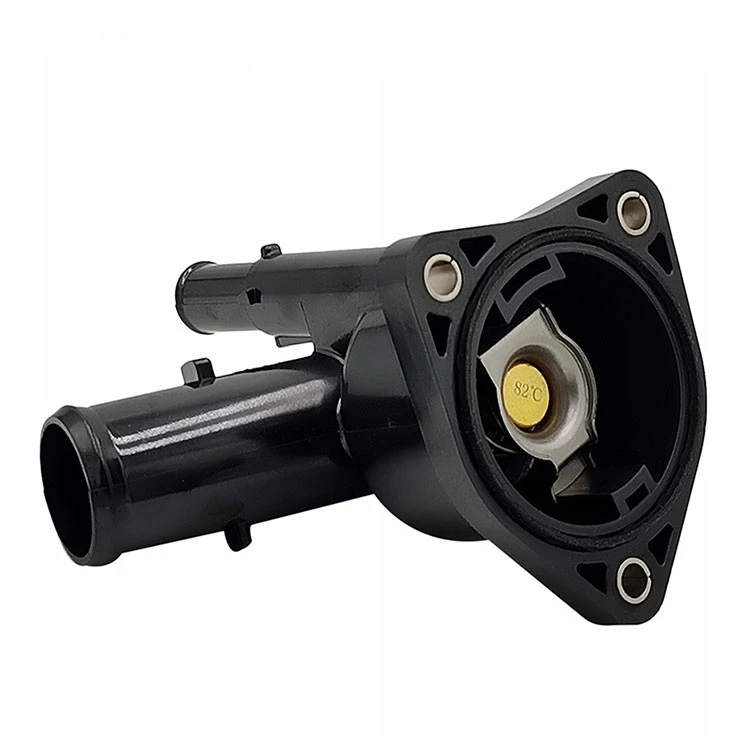

1603137010 термостат охлаждающей жидкости двигателя для Toyota AURIS PRIUS 1,8 2ZR 16031-37010
6,00 $ - 10,00 $
Неодимовый оксид Nano Nd2o3 редкоземельный порошок Неодимовый оксид

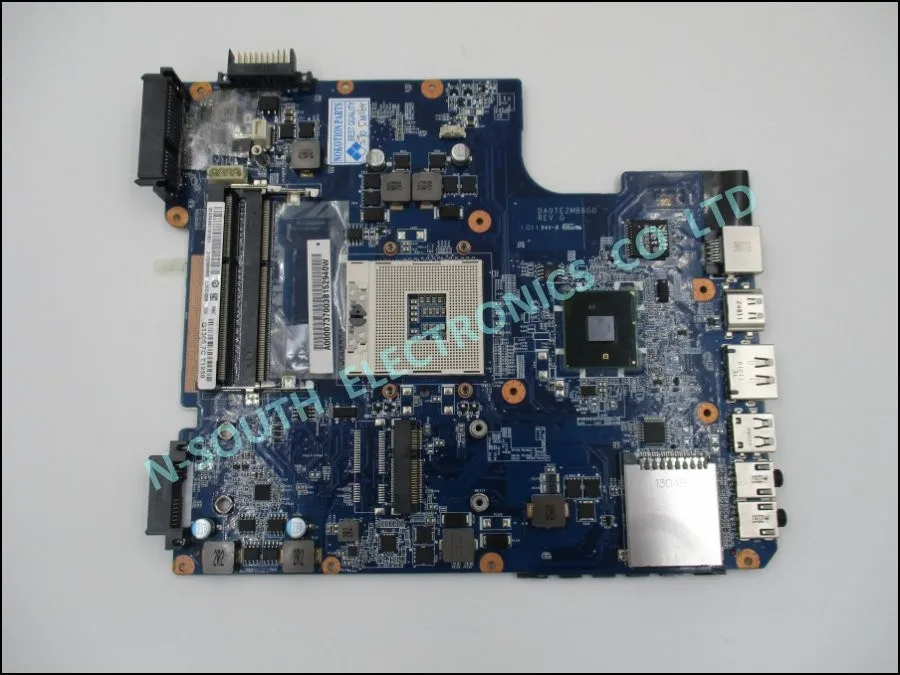

100% рабочая материнская плата для ноутбука toshiba satellite l645 intel a000073700 da0te2mb6g0
Овальная зеленая антикварная железная Цветочная горшка, контейнер для растений с металлическими ручками
0,29 $ - 1,99 $
Фильтр очистителя воздуха в активной картонной упаковке 87139-52020 87139-YZZ08, салонный фильтр для Toyota Subaru Lexus

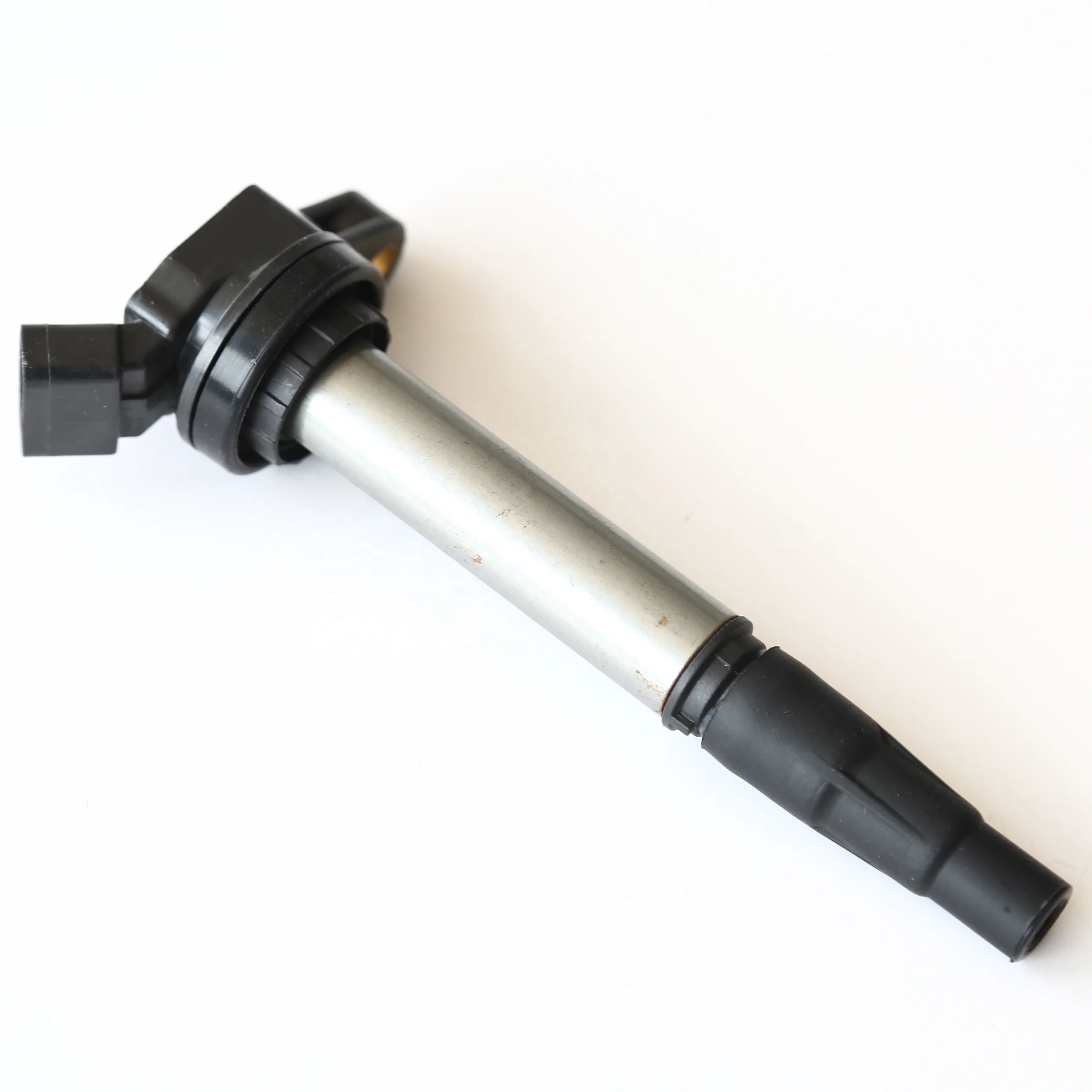

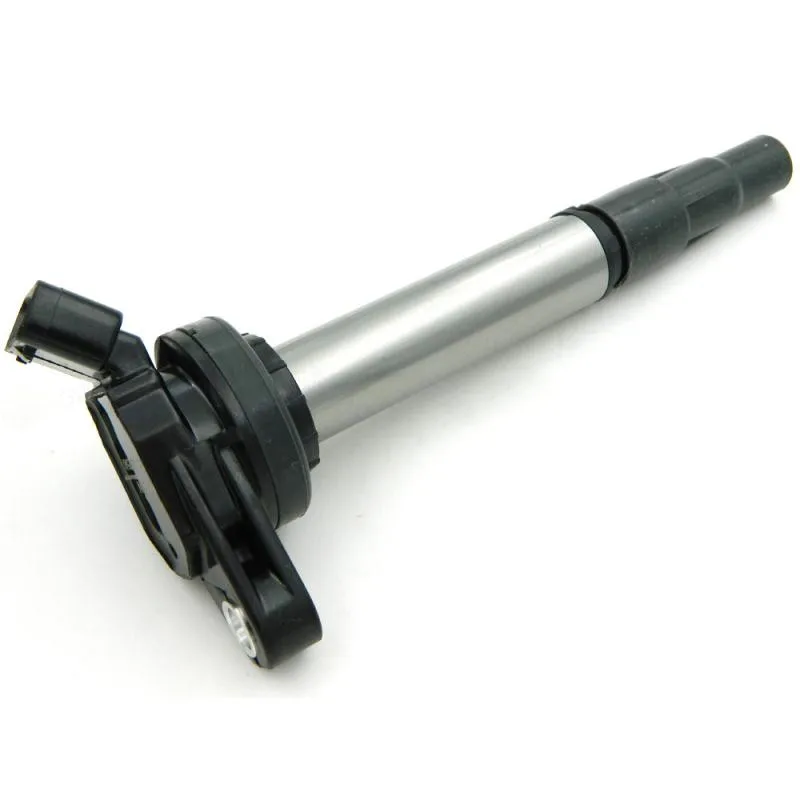

Лидер продаж, в наличии, детали для автомобильного двигателя, катушка зажигания для системы зажигания Oem 90919-02252 для Toyota MATRIX PRIUS COROLLA EX
6,65 $ - 7,00 $

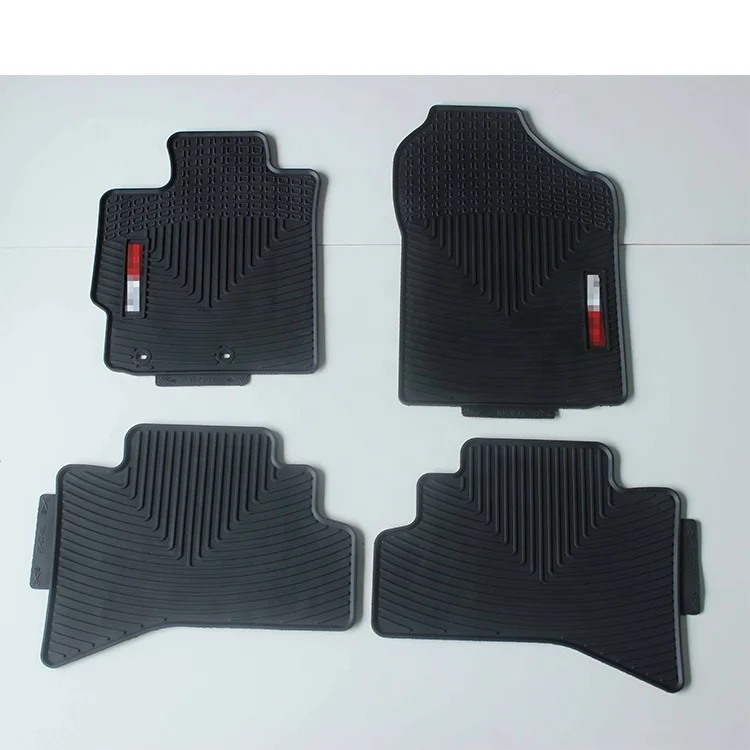

Устойчивый к царапинам оригинальный размер автомобильный коврик подходит для TOYOTA PRIUS C 2012 + (2012 2013 2014 2015 2016 2017 2018 2019 2020-ON)
