16/24/32 каналов H.264 SD энкодер iptv mpts spts

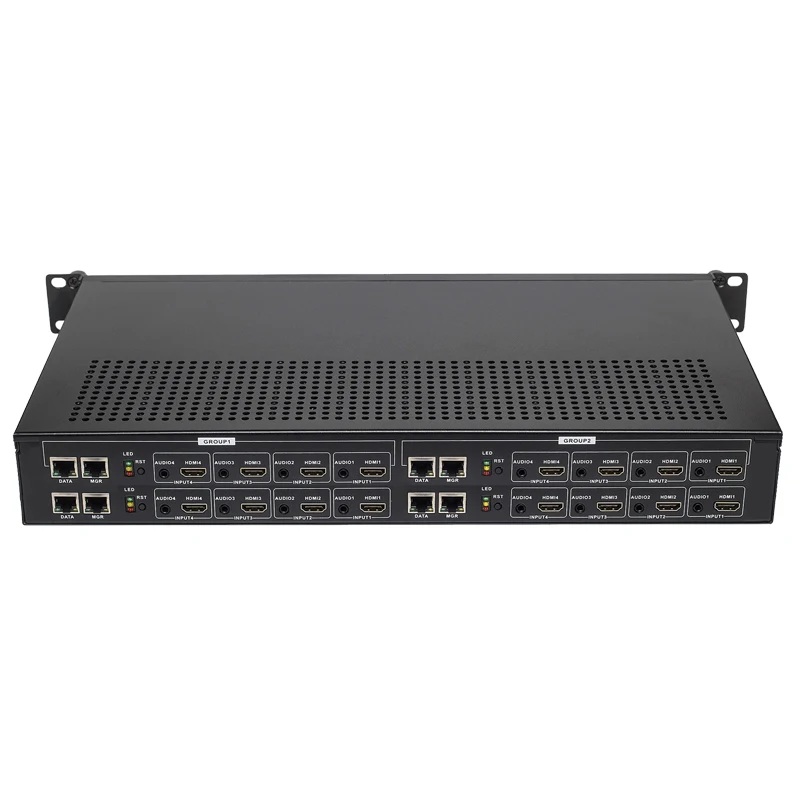

Input

8/12/16/20/24 HDMI inputs/ CVBS input

Video

Resolution

input

1920×1080_60P, 1920×1080_60i,

1920×1080_50P, 1920×1080_50i,

1280×720_60P, 1280×720_50P,

720×576_50i,720×480_60i,

output

1920×1080_30P, 1920×1080_25P,

1280×720_30P, 1280×720_25P,

720×576_25P,720×480_30P,

Encoding

MPEG-4 AVC/H.264

Bit-rate

1~13Mbps each channel

Rate Control

CBR/VBR

GOP Structure

IP…P (P Frame adjustment, without B Frame )

Audio

Encoding

MPEG-1 Layer 2

Sampling rate

48KHz

Resolution

24-bit

Audio Gain

0-255 Adjustable

Bit-rate

64/128/192/224/256/320/384Kbps

Multiplexing

Maximum PID

Remapping

180 output pids per channel

Function

PID remapping ( automatically or manually)

Accurate PCR adjusting

Stream output

ASI output(optional) as copy of MPTS

IP output thru Data1 (GE) or Data2(FE) over UDP and RTP protocol

(8/12 HDMI inputs with 8/12 SPTS and 1MPTS output

16/20/24 HDMI inputs with 16/20/24 SPTS or 1MPTS output )

System function

Network management(WEB)

Chinese and English language

Ethernet software upgrade

Miscellaneous

Dimension(W×L×H)

482mm×410mm×44mm

Environment

0~45℃(work);-20~80℃(Storage)

Power requirements

AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz

Input

4/8/12×HDMI input (1.4), HDCP 1.4---OptionⅠ

4/8/12×SDI input---OptionⅡ

Video

Encoding

Encoding Format

HEVC/ H.265 , MPEG 4 AVC/H.264

Resolution

HDMI

3840×2160_30P, 3840×2160_29.97P

(Encoding 2 CHs per module for H.265, and encoding 1 CH for H.264 )

1920×1080_60P,1920×1080_59.94P,1920×1080_50P,

(Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264)

1280×720_60P, 1280×720_59.94P, 1280×720_50P

(Encoding 4 CHs per module for H.264 and H.265)

SDI

1920×1080_60P,1920×1080_59.94P,1920×1080_50P,

(Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264)

1280×720_60P, 1280×720_59.94P, 1280×720_50P

(Encoding 4 CHs per module for H.264 and H.265)

Input: 1920×1080_60i,1920×1080_59.94i,1920×1080_50i

Output:

1920×1080_60P,1920×1080_59.94P,1920×1080_50P

(Encoding 4 CHs per module for H.265, and encoding 2 CHs for H.264)

Chroma

4:2:0

Bitrate

0.5Mbps~20Mbps (each channel)

Rate Control

CBR/VBR

GOP Structure

IBBP, IPPP

Advanced Pretreatment

De-interlacing, Noise Reduction, Sharpening

Audio Encoding

Encoding Format

MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough

Sampling rate

48KHz

Bit-rate (each channel)

48Kbps-384Kbps (MPEG-1 Layer 2 & LC-AAC)

24 Kbps-128 Kbps (HE-AAC)

18 Kbps-56 Kbps (HE-AAC V2)

Audio Gain

0~255

Stream output

IP (1 MPTS and maximum 4 SPTS) output over UDP/RTP/RTSP per module, 1000M/100M Base-T Ethernet interface (unicast/ multicast); IPv4, IPv6 output

IP null packet filter

System

Web based management

Chinese-English control interface

Ethernet software upgrade

Miscellaneous

Dimension (W× L× H)

482mm×328mm×44mm

Approx weight

5kg

Temperature

0~45℃(work), -20~80℃(Storage)

Power

AC 100V-220V±10%, 50/60Hz
