Products Description

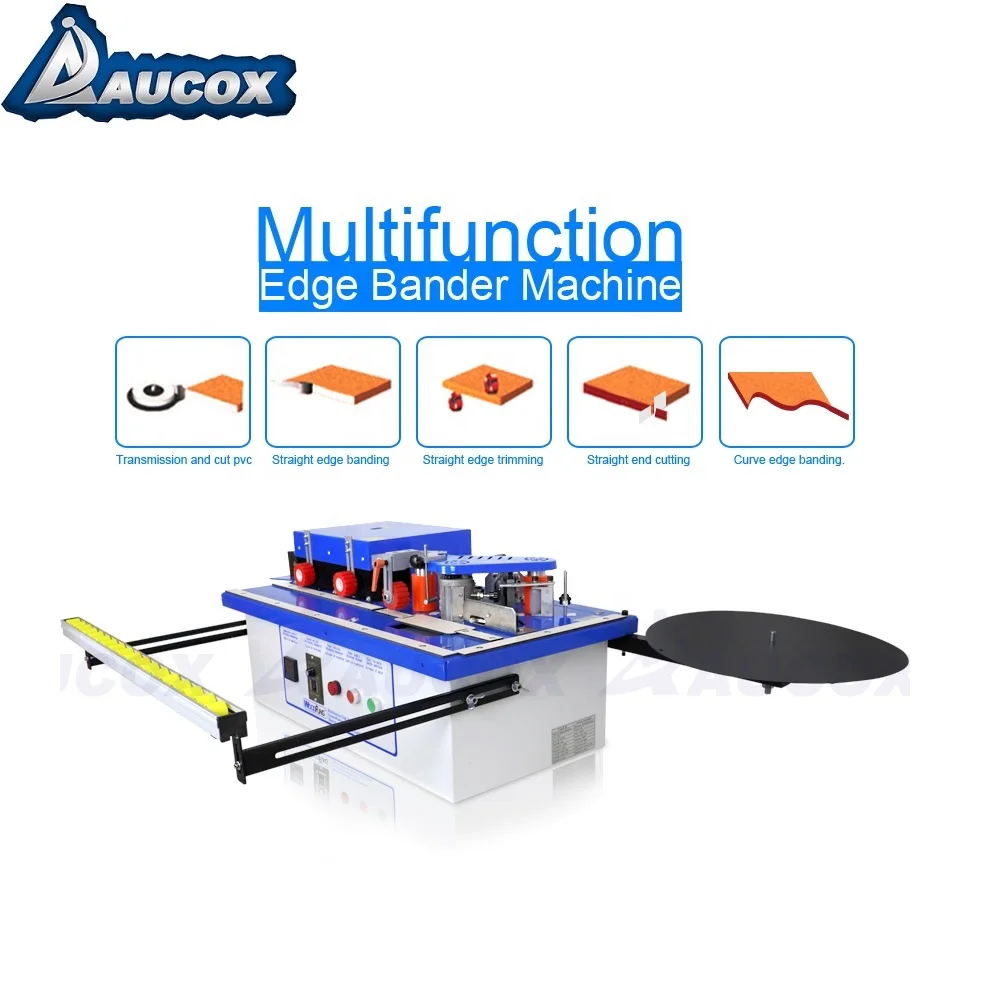

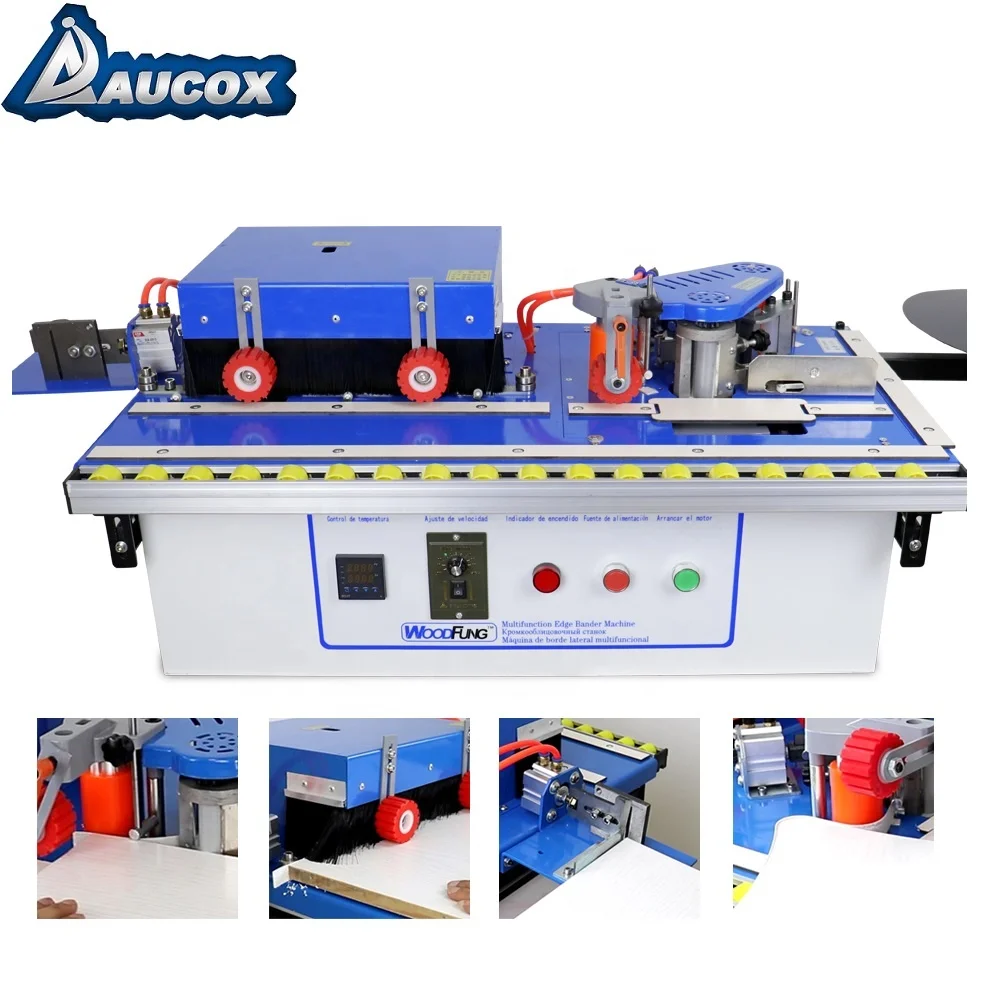

woodworking machinery MY06B mini MDF double pvc edge trimmer manual edge banding machine wood edge bander
Function:manual edge banding,edge trimming,pneumatic end cutting
This machine is suitable for medium density fiber board, blockboard, wood panels, particleboard, plywood and other polymer doors,
straight edge trimming, disposable with double-sided adhesive tape cutting edge bonding edge pressing, block, chamfer, Tinker,
finishing, polishing and other functions of scraping edge, edge smooth, smooth, feel good sealing wire, flat and smooth. The
equipment operation is stable, reliable and durable, is especially suitable for large and medium-sized furniture, cabinets and
other furniture manufacturers plate using.
straight edge trimming, disposable with double-sided adhesive tape cutting edge bonding edge pressing, block, chamfer, Tinker,
finishing, polishing and other functions of scraping edge, edge smooth, smooth, feel good sealing wire, flat and smooth. The
equipment operation is stable, reliable and durable, is especially suitable for large and medium-sized furniture, cabinets and
other furniture manufacturers plate using.
Model | MY06B | MY06C | MY06D-1 | MY06D-2 |
Max banding Thickness | 0.3~3.0mm | 0.3~3.0mm | 0.3~3.0mm | 0.3~3.0mm |
Max banding Height | 10~45mm | 10~45mm | 10~45mm | 10~45mm |
Working pressure | 3~6kg/cm square | 3~6kg/cm square | 3~6kg/cm square | 3~6kg/cm square |
Working Temperature | 130~180 degree | 130~180 degree | 130~180 degree | 130~180 degree |
Speeding | 0~5m/min | 0~5m/min | 0~5m/min | 0~5m/min |
Glue Pot | 1000ml | 1000ml | 1000ml | 1000ml |
Type way | double glue cover | double glue cover | double glue cover | double glue cover |
Trimming/Buffing power | 1300W/NO | 1300W/1300W | 1300W1300W | 1300W1300W |
Total power | 1900W | 3000W | 3600W | 3600W |
Voltage | 110V/220V | 220V | 220V | 220V |
Overall dimensions | 85x48x50cm | 92×48×50cm | 100×48×50cm | 100×48×50cm |
Weight | 45kg | 55kg | 75kg | 75kg |
Edge banding | straight and curve | straight and curve | straight | straight and curve |
Trimming&Buffing | straight | straight | straight | straight |
Operation way | manual | manual | automatic | automatic |
Funtions | gluing,trimming,pneumatic end cutting | gluing,trimming,buffing pneumatic end cutting | gluing,trimming,buffing pneumatic end cutting | gluing,trimming,buffing pneumatic end cutting |

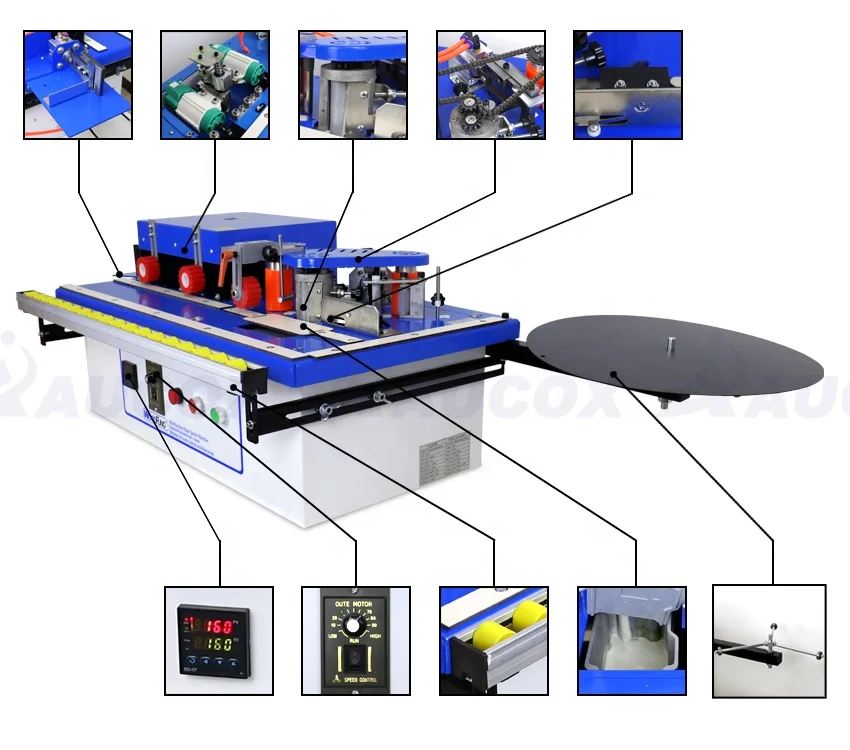

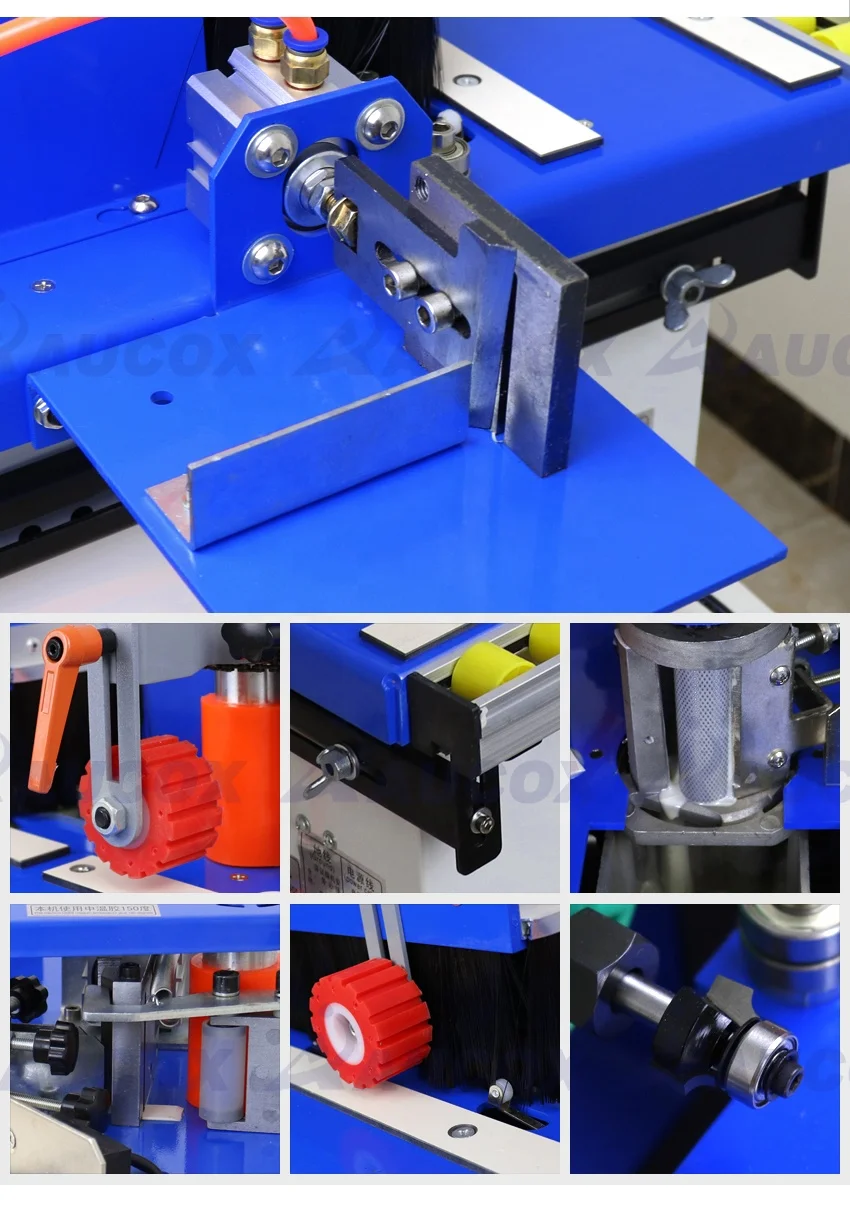

Details Images
Product packaging
Recommend Products
FAQ
Q1: What is the warranty for the machine?
For our woodworking machine, we have 18months warranty.
Q2:Can I choose the Plug?
Yes,we have 220V/440V/380V for your choice,and 1phase,3phase,50hz and 60hz
Q3.What is your lead time after i pay?
Normally,we have stock for the machine,only customized for voltage ,about 7days or 15days.
Q4:How long will i get the machine after i pay?
The machine will deliver by sea to your port.about 20~55days arrival.
Q5:Is it OK to print my logo on the product?
Yes.Please inform us formally before our production and confirm the design firstly for the mass production.
Q6:It is my first time to purchase goods from china,how do i do?
Do not worry,Aucox/Woodfung has 10years export experience to all over the world,
also has professional sales team,we also have agent in Russia,Algeria,Pakistan,Peru,Vietnam,etc.
Q7:How to pack the machine?
we use wooden box to packge the machine to protect them to be safe
Q8.I do not know chinese,will the operation panel in english or spanish or other?
Yes,all our machine are with Chinese and English,If you want only English or Spanish or other,
we also can customize to you,but lead time will be a little longer.
For our woodworking machine, we have 18months warranty.
Q2:Can I choose the Plug?
Yes,we have 220V/440V/380V for your choice,and 1phase,3phase,50hz and 60hz
Q3.What is your lead time after i pay?
Normally,we have stock for the machine,only customized for voltage ,about 7days or 15days.
Q4:How long will i get the machine after i pay?
The machine will deliver by sea to your port.about 20~55days arrival.
Q5:Is it OK to print my logo on the product?
Yes.Please inform us formally before our production and confirm the design firstly for the mass production.
Q6:It is my first time to purchase goods from china,how do i do?
Do not worry,Aucox/Woodfung has 10years export experience to all over the world,
also has professional sales team,we also have agent in Russia,Algeria,Pakistan,Peru,Vietnam,etc.
Q7:How to pack the machine?
we use wooden box to packge the machine to protect them to be safe
Q8.I do not know chinese,will the operation panel in english or spanish or other?
Yes,all our machine are with Chinese and English,If you want only English or Spanish or other,
we also can customize to you,but lead time will be a little longer.
Warranty
1. AUCOX Provide 15 months warranty for all customers.
2. During warranty, we provide free normal spare parts once machine has probem.
3. AUCOX will solve customer's machine problem within 24 hours from the time problem raised.
4. AUCOX has enough spare parts for machines.
5. When machine out of warranty, AUCOX still provide free technical support and spare parts charged to customers.
ATTENTION:all machines in the website is always improving,if there is a little changed,no care.it is not influence the
usage,better quality for always improvement.
2. During warranty, we provide free normal spare parts once machine has probem.
3. AUCOX will solve customer's machine problem within 24 hours from the time problem raised.
4. AUCOX has enough spare parts for machines.
5. When machine out of warranty, AUCOX still provide free technical support and spare parts charged to customers.
ATTENTION:all machines in the website is always improving,if there is a little changed,no care.it is not influence the
usage,better quality for always improvement.
