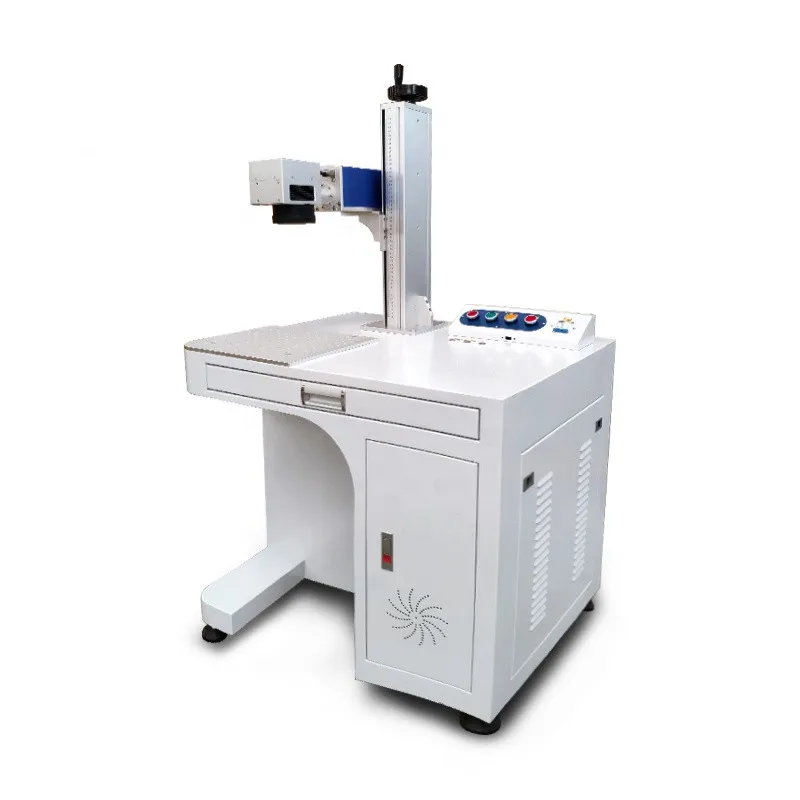

Оптоволоконный лазерный 3d маркировочный аппарат voiern 20 Вт 30 50 100 с максимальной ценой лазерного маркера Raycus JPT
- Категория: >>>
- Поставщик: Liaocheng Voiern Laser Technology Co. Ltd.Liaocheng Ltd.
Сохранить в закладки 62406648061:
Описание и отзывы
Характеристики
Product Description

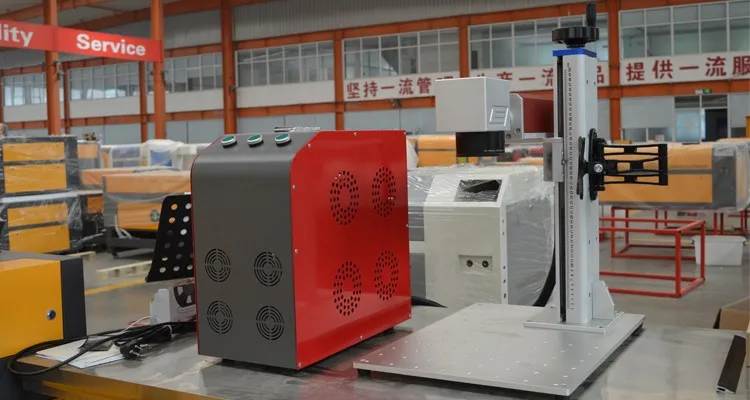

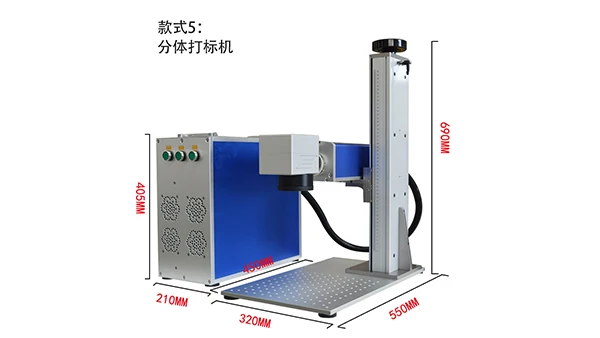

Our products can be selected according to the customer's work needs.You can choose portable, split or cabinet.
Main Features
1) Non- contact marking: Laser marking is processed to non- mechanical "knife", can mark on the printing surface of any regular or irregular, and mark the workpiece without exerting stress,which ensure the accuracy of the workpiece. No corrosion on the work surface, no "tool" wear, no poison, no pollution.
2). Permanent: The markings don't subside with the environmental factors such as touch, acid and reducing gases, high temperature, low temperature, etc.
3). High engraving precision: laser marking machine engrave items with fine lines, minimum line width is up to 0.04mm. The markings are clear, durable and beautiful. Laser marking can meet the needs of printing large quantities of data on minimal plastic parts. For example, we can print two-dimensional barcode with higher precision and higher definition, and have stronger market competitiveness compared with the way of stamping .
4). The running cost is low: the marking speed is fast and the mark is formed fast, and the energy consumption is small, so the running cost is low. Although the laser marking machine has more equipment investment than the traditional marking equipment at the begining, it is much lower running cost and longer lifetime from a long term.
5). High Efficiency: The laser beam is controlled by the computer and can move at high speed (5~7 meters per second), the marking process can be completed in a few seconds.
6). Anti-fake:Applying laser marking technology, the mark carved is not easy to be imitated and changed, to a certain extent, has a good anti-fake effect.
1) Non- contact marking: Laser marking is processed to non- mechanical "knife", can mark on the printing surface of any regular or irregular, and mark the workpiece without exerting stress,which ensure the accuracy of the workpiece. No corrosion on the work surface, no "tool" wear, no poison, no pollution.
2). Permanent: The markings don't subside with the environmental factors such as touch, acid and reducing gases, high temperature, low temperature, etc.
3). High engraving precision: laser marking machine engrave items with fine lines, minimum line width is up to 0.04mm. The markings are clear, durable and beautiful. Laser marking can meet the needs of printing large quantities of data on minimal plastic parts. For example, we can print two-dimensional barcode with higher precision and higher definition, and have stronger market competitiveness compared with the way of stamping .
4). The running cost is low: the marking speed is fast and the mark is formed fast, and the energy consumption is small, so the running cost is low. Although the laser marking machine has more equipment investment than the traditional marking equipment at the begining, it is much lower running cost and longer lifetime from a long term.
5). High Efficiency: The laser beam is controlled by the computer and can move at high speed (5~7 meters per second), the marking process can be completed in a few seconds.
6). Anti-fake:Applying laser marking technology, the mark carved is not easy to be imitated and changed, to a certain extent, has a good anti-fake effect.
- Engraving effect
Our products are widely applicable and well carved.
Detailed Images
The main parts of our products are high-quality industrial-grade accessories.
1-laser source
Laser source we use RAYCUS famous brand laser source, high stability, long life, no consumables.This is the key part of fiber laser marking machine.
2-Galvo head
High speed galvanometer scanning head adopts scanning laboratory technology, digital signal, high precision.
3-Ftheta lens
Smart f theta lens with working area 110*110,200 * 200,300 x 300(mm)
The fiber laser beam through its focus to the work piece surface, so the energy is enough.This optical accessories control marking area.Using high performance photoelectric digital mirror, excellent performance
The fiber laser beam through its focus to the work piece surface, so the energy is enough.This optical accessories control marking area.Using high performance photoelectric digital mirror, excellent performance
4-EZCAD control card.
Famous brand directional EZCAD control system, easy to operate.Humanized operation system is simple and convenient for laser power, frequency, marking speed modulation. Compatible vector graphics commonly used (AI, DXF, DWG, PLT etc.) compatible with commonly used graphics format (BMP, JPG, JIF... Etc..) bar code, two-dimensional code, serial number, line marking, rotary marking and other complex processing. Additional red light indicates, easy contraposition and simulated marking.
Optional Accessories
Lifting platform
The height can be adjusted according to the size of the carving items to achieve the best carving effect.
Standard rotation
Standard rotation
Used to carve round and irregular objects.
Used to carve round and irregular objects.
Related Products
Parameter table
Laser power | 10w(20W,30W,50W optional) |
Laser wavelength | 1064nm |
Laser type | Fiber Laser |
Laser beam quality | M2:1.5 |
Repeat Frequency | 20KHz-80KHz |
Repeat Positioning Accuracy | 0.005mm |
Min linear width | 0.01mm |
Marking Depth | 0.01-0.5mm |
Standard Marking Area | 110×110mm |
Optional Marking Area | 70×70mm/175×175mm |
Rated Power Consumption | less 500W |
Operating Voltage | 220V/50Hz/15A |
Graphic formate supported | PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO. DXF,etc |
Working temperature | 5-35 centigrade |
Cooling | Air Cooling |
Packing&Shipping
We serve the whole process from production to transportation.

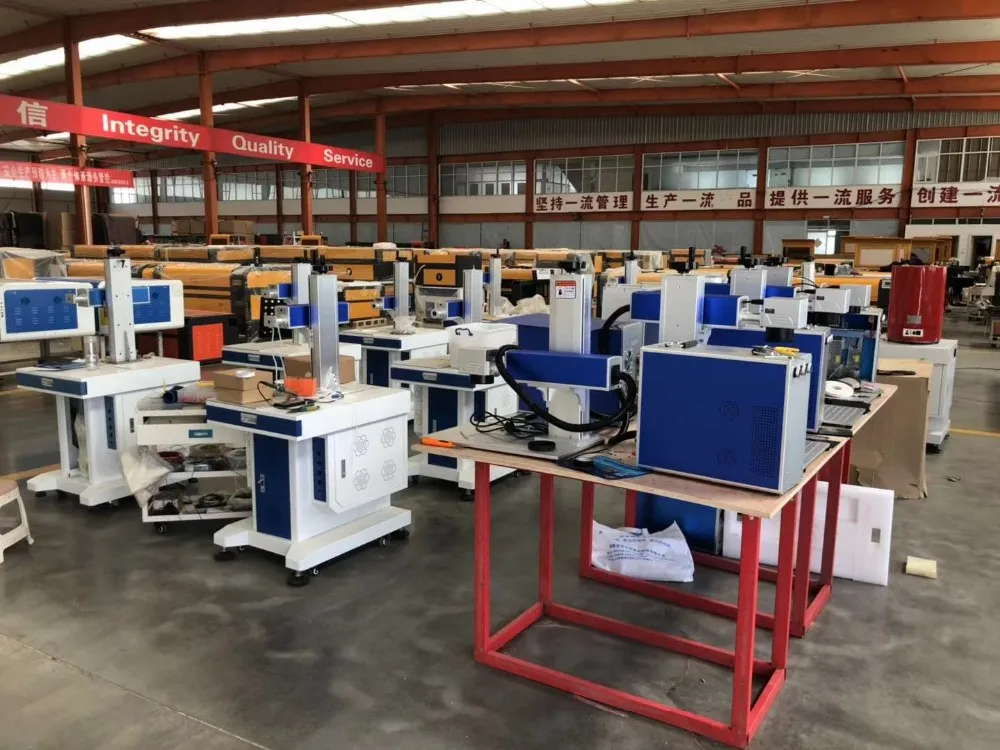

Company Introduction

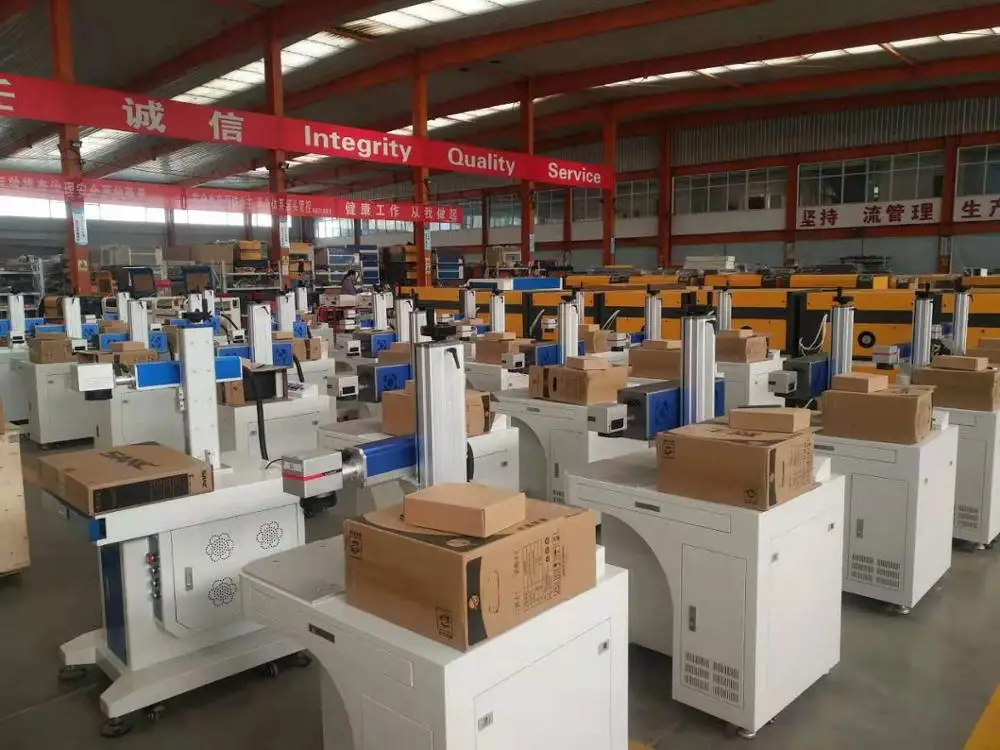

Voiern Laser Technology is located in Liaocheng High-tech Industrial Development Zone. Our company is mainly committed to research, development and production of laser engraving, cutting and marking machines in many fields. Covering R&D, production,sales, and customization of various high-end laser equipment.The products are mainly used in scientific research teaching andelectronic materials, LEDs, advertising materials, medical supplies, handicrafts, textiles,clothing, footwear, auto parts,furniture, and other industrial fields.
Our Services & Strength
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept .
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept .
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Похожие товары
Лазерный облачный лазер для металлического лазерного облачного 3d принтера на продажу
100 Вт лазерная резка и гравировка машина/керамическая плитка для лазерной резки
МДФ ткани акриловые 100 Вт 400*600 мм co2 Лазерная Непрерывная резка и гравировка машины
2 800,00-3 200,00 $
лазерная гравировка на клавиатуре букв/пена лазерного резака машины/лазерные фрезы для дерева

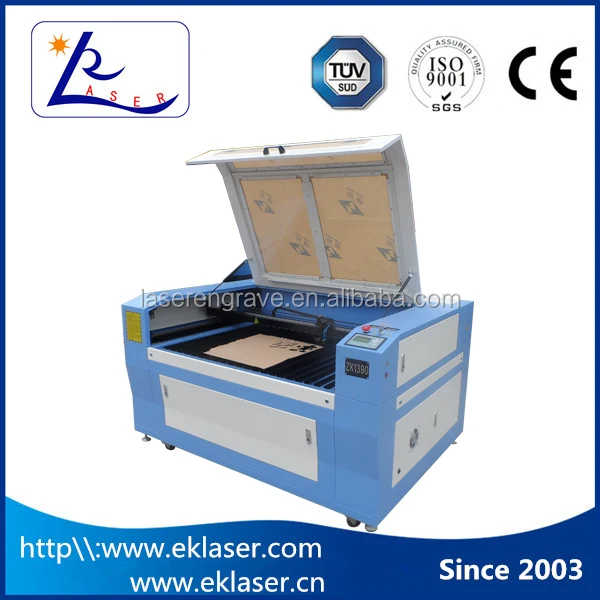

1390 Лазерной Резки/гравировальный станок С 1300*900 мм китай Машины Цена Металла Лазерная
1200x1200 мм для ванной комнаты гравировальный станок из стекловолокна зеркальный сверление идеальное отверстие
37 000,00-38 000,00 $

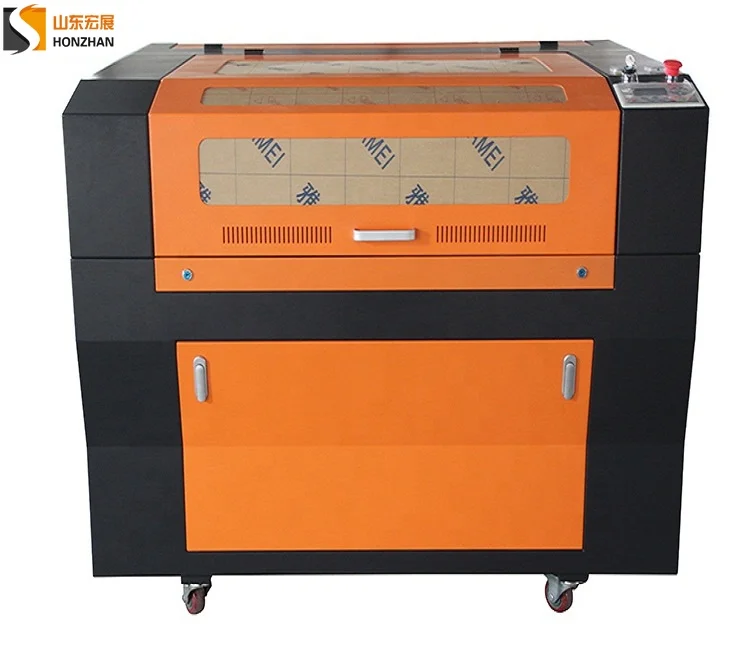

Новая лучшая инвестиционная установка HONZHAN BMP DXF AI PLT DST графический формат с поддержкой СО2 лазерный станок для гравировки и резки
