Product Description

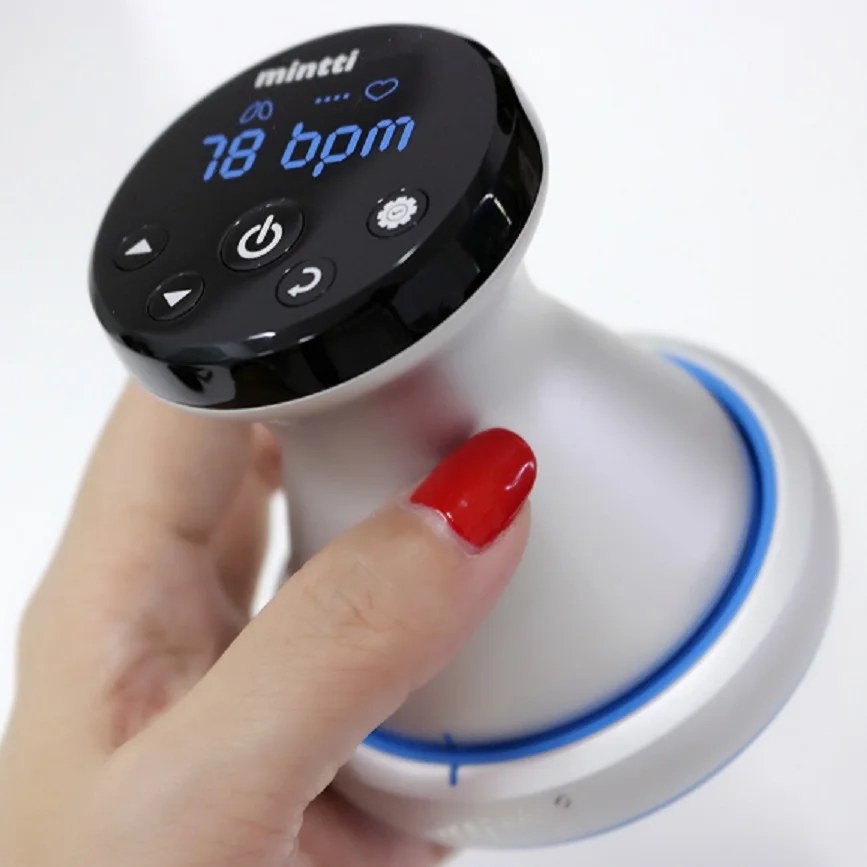

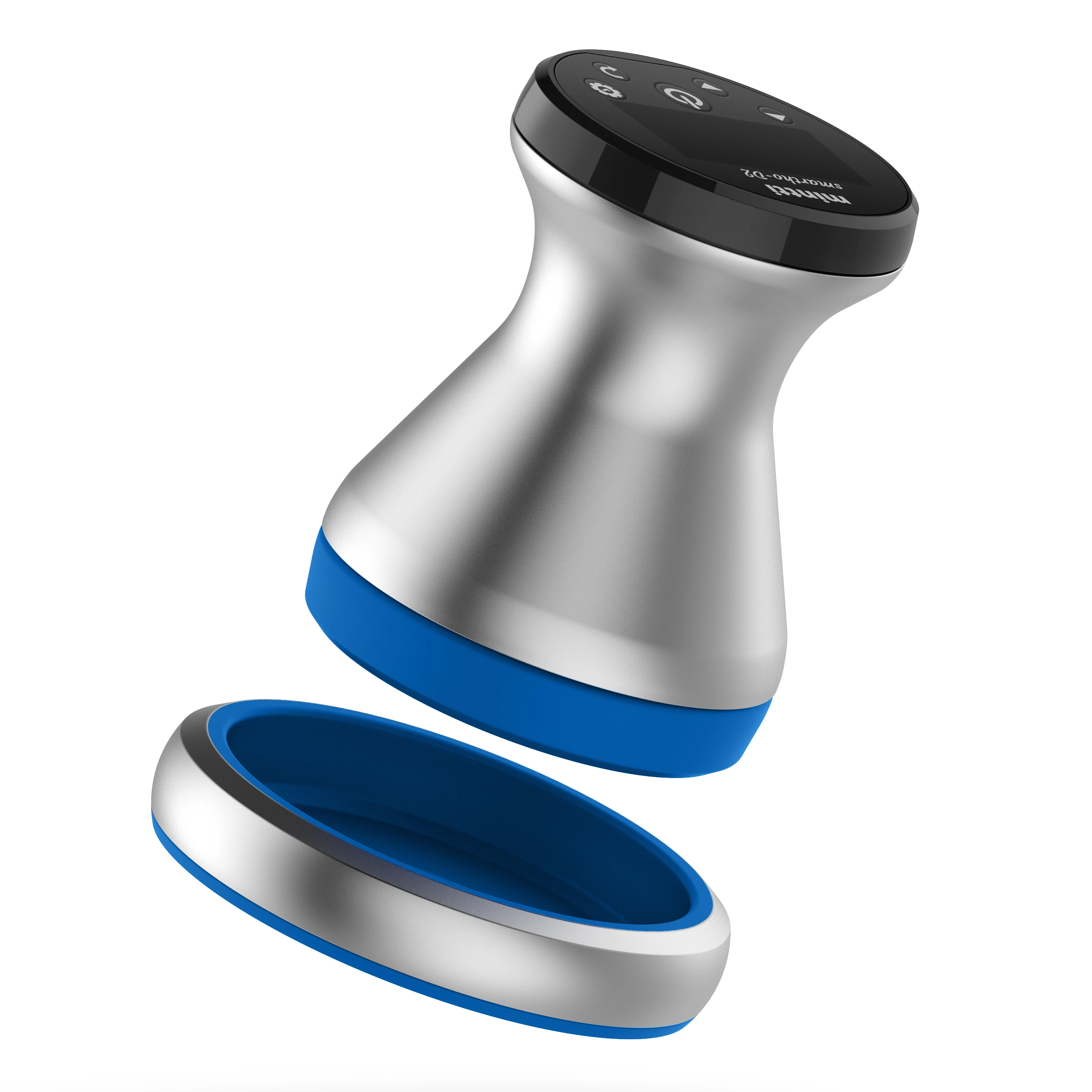

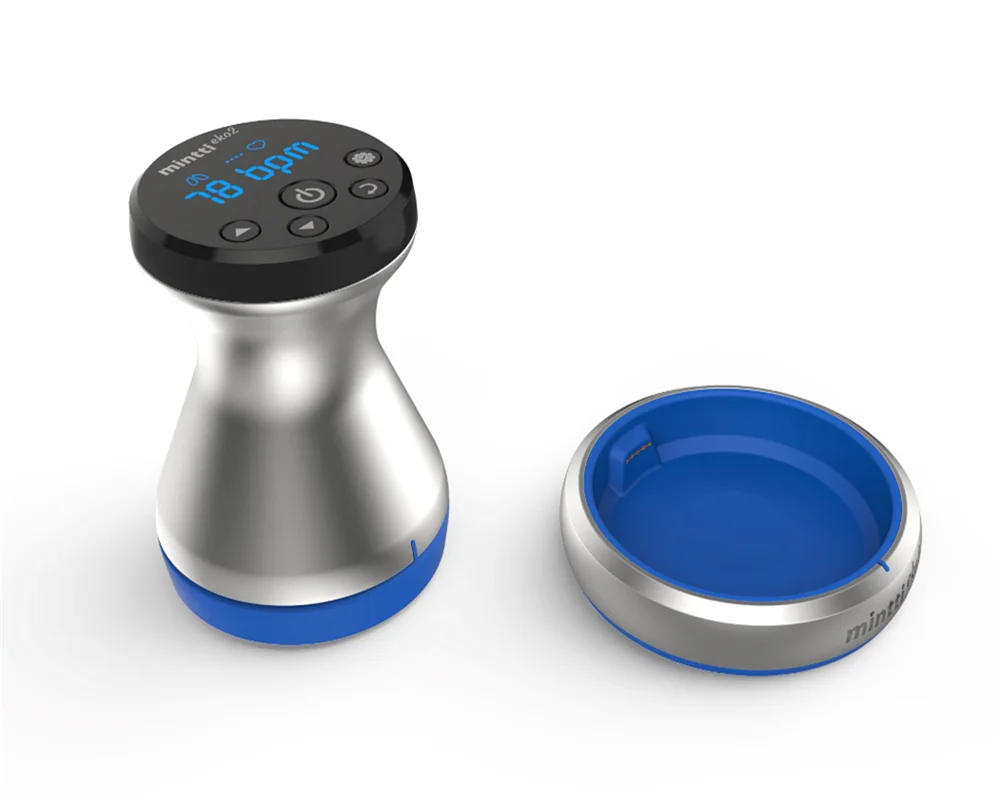

Why Mintti Smartho2 Digital Stethoscope?
The Smart Digital Stethoscope Mintti Smartho2 is a specialized auxiliary device intended for medical diagnostic use in respiratory diseases such as pediatric pneumonia, child asthma, elderly bronchitis etc.
---The Smallest, Versatile, Most Intelligent and Powerful Electronic Stethoscope .
Listen to heart, lung and other body sounds with over 300X amplification, stunning clarity and depth of sound. It allows record the auscultation for the diagnosis follow-up,unlike any other electronic stethoscope.
Mintti Smartho2 Intelligent Stethoscope Specifications | ||
Stethoscope Size | Diameter: 58mm, Height: 78mm | |
Storage Environment | 55℃;RH≤80% | |
Battery | 3.7V Lithium Battery | |
Charger | DC 5V 1A | |
Battery Life | More than 600 times charges | |
Battery Stand-by | 180 hours | |
Working model | Continuous | |
Signal Sensitivity | 4mV/Pa | |
Noise Reducing | -35dB | |
Liquid Protection Classification | Standard | |
Working Frequency | 20Hz -- 3Kz | |
Volume | Normal: 60dB; Max: 110dB; 4 levels adjustable | |
Playback | Normal Speed and Half-speed playback | |
Version | BLE 4.0 | |
Detailed Images
Adopt Advanced Artificial Intelligence
Unsupervised Learning: Clustering,
Independent Component Analysis Etc.

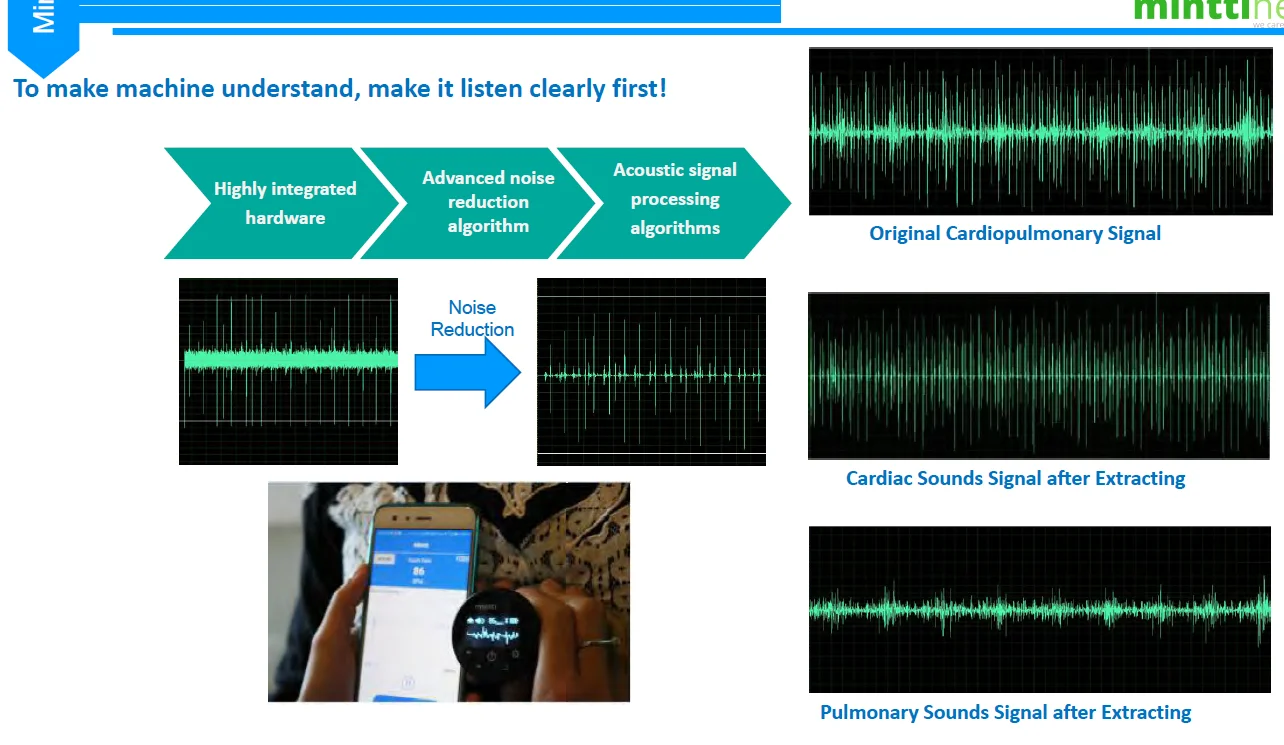

Weak Signal Detection
Traditional and emerging solutions,
Linear and non-linear methods.
Acoustic Signal Analysis
Modulation, Resonators ,Reverse Smartho2, Active Noise Control etc.
The Smart Stethoscope integrates weak signal detection technology, acoustic signal analysis technology and artificial intelligent technology into one device, all of these improve Smartho2's diagnostic capabilities significantly , hence reduce the rely on doctors for early stage diagnosis of any respiratory diseases.
Cloud Storage
1. Cloud support for users.
2. Complete patients records improve diagnose accuracy.
3. Precision medical treatment
4. Future medical research support
Visual Diagnosis
1. Real-time audio curve display
2. Audio record multiple functions (forward, backward slow down etc.)
3. Smart print supported
Community Service
1. Online diagnosis
2. Medical advice and treatment follow up
3. Local medical community allow convenient treatment and faster emergency response
About Mintti
Design patent certificate for Stethoscope
Our stethoscope adopts piezoelectric sensor. The signal collected by the sensor will be transferred to ADC (analog digital converter) by adjusting the circuit. The processor will control the ADC to complete the collection of signals, then complete the algorithm of reducing noises. Finally optimized signal will be transferred to the cell phone via Bluetooth. At the same time, our processor controls the buttons, display screen and charging parts.
Data Collection: Smartho2 is adopted by the top institute in China which specializes in cardiopulmonary diagnosis of children for clinical trials. On this process 500-1000 patients' data will be collected, which will result in around 10,000 data collection. We will use the data to train our AI model and achieve a good accuracy.
We are establishing a database for various types of illnesses, for identifying the typical cardiopulmonary disorder through disease recognition algorithm, and with the diagnosis software to help doctors make the diagnosis. The latter products can be broadened to end-users, so that ordinary people can also take some pre-diagnosis with a stethoscope.
Mintti Smartho2 Intelligent Stethoscope is working with App.
Mnitti Smarthos Intelligent Stethscope Application display.
Mintti Smartho2 Intelligent Stethoscope Measurement Records.
Packing & Delivery
FAQ
Mintti Electronic Stethoscope
We all know that the traditional stethoscope all depends on the experience of the doctors. If the doctors are not that
professional, there might be with wrong diagnosis. So this is why we recommend our electronic stethoscope here. Because with the
electronic stethoscope, all the data will be recorded, and the doctors can listen it repeatedly and send it to other doctor for
consultation. What’s more, the doctors can annotate on the data. In this way, the diagnosis accuracy will be highly improved.
There are two main features for the digital stethoscope. One is the amplifying function. The other one is the noise reduction. We
could amplify the sound 100 times, do noise reduction by -35dB. There are two modes, one is the bell mode, which is suitable for
listening to the heart sounds, the other one is the diaphgram mode, which is suitable for listening to lung sounds.
1.What is Mintti Electronic Stethoscope ?
Mintti Electronic Stethoscope is a specialized healthcare device monitoring the heart sound and lung sound of human body. As as
mart stethoscope, it can record auscultation signal data which can be later viewed and played back at any time.
2. Who is recommend to use it?
Firstly, for sure the doctors can use it for the outpatient service, or you can use it for
telemedicine.
If you don’t really want to go to the doctors, you can collect all the heart sounds and lung sounds, then upload the data to the
cloud, then your doctors can make diagnose for you remotely.
And finally it can also be used in the medical school. Teachers can use our stethoscope to teach students to make annotation
according to different symptoms.
3.How does it connect with devices?
The stethoscope connect APP via bluetooth.
4.What about sound quality of recordings?
May I know your contact details? I can send you the sounds records for reference.
5.What about Telemedicine and using it with Apps and software?
We have Android/iOS APP, and we can also provide SDK for the stethoscope.
My Whatsapp: 8613387009622
Email: avia@minttihealth.com
We all know that the traditional stethoscope all depends on the experience of the doctors. If the doctors are not that
professional, there might be with wrong diagnosis. So this is why we recommend our electronic stethoscope here. Because with the
electronic stethoscope, all the data will be recorded, and the doctors can listen it repeatedly and send it to other doctor for
consultation. What’s more, the doctors can annotate on the data. In this way, the diagnosis accuracy will be highly improved.
There are two main features for the digital stethoscope. One is the amplifying function. The other one is the noise reduction. We
could amplify the sound 100 times, do noise reduction by -35dB. There are two modes, one is the bell mode, which is suitable for
listening to the heart sounds, the other one is the diaphgram mode, which is suitable for listening to lung sounds.
1.What is Mintti Electronic Stethoscope ?
Mintti Electronic Stethoscope is a specialized healthcare device monitoring the heart sound and lung sound of human body. As as
mart stethoscope, it can record auscultation signal data which can be later viewed and played back at any time.
2. Who is recommend to use it?
Firstly, for sure the doctors can use it for the outpatient service, or you can use it for
telemedicine.
If you don’t really want to go to the doctors, you can collect all the heart sounds and lung sounds, then upload the data to the
cloud, then your doctors can make diagnose for you remotely.
And finally it can also be used in the medical school. Teachers can use our stethoscope to teach students to make annotation
according to different symptoms.
3.How does it connect with devices?
The stethoscope connect APP via bluetooth.
4.What about sound quality of recordings?
May I know your contact details? I can send you the sounds records for reference.
5.What about Telemedicine and using it with Apps and software?
We have Android/iOS APP, and we can also provide SDK for the stethoscope.
My Whatsapp: 8613387009622
Email: avia@minttihealth.com
Похожие товары
Clacive высокое качество осень с длинным рукавом пиджаки для женщин одинаковая широкими брюками Костюм модные черные комплект из 2 предметов, комплект со штанами, для женщин
12,38 $ - 13,99 $

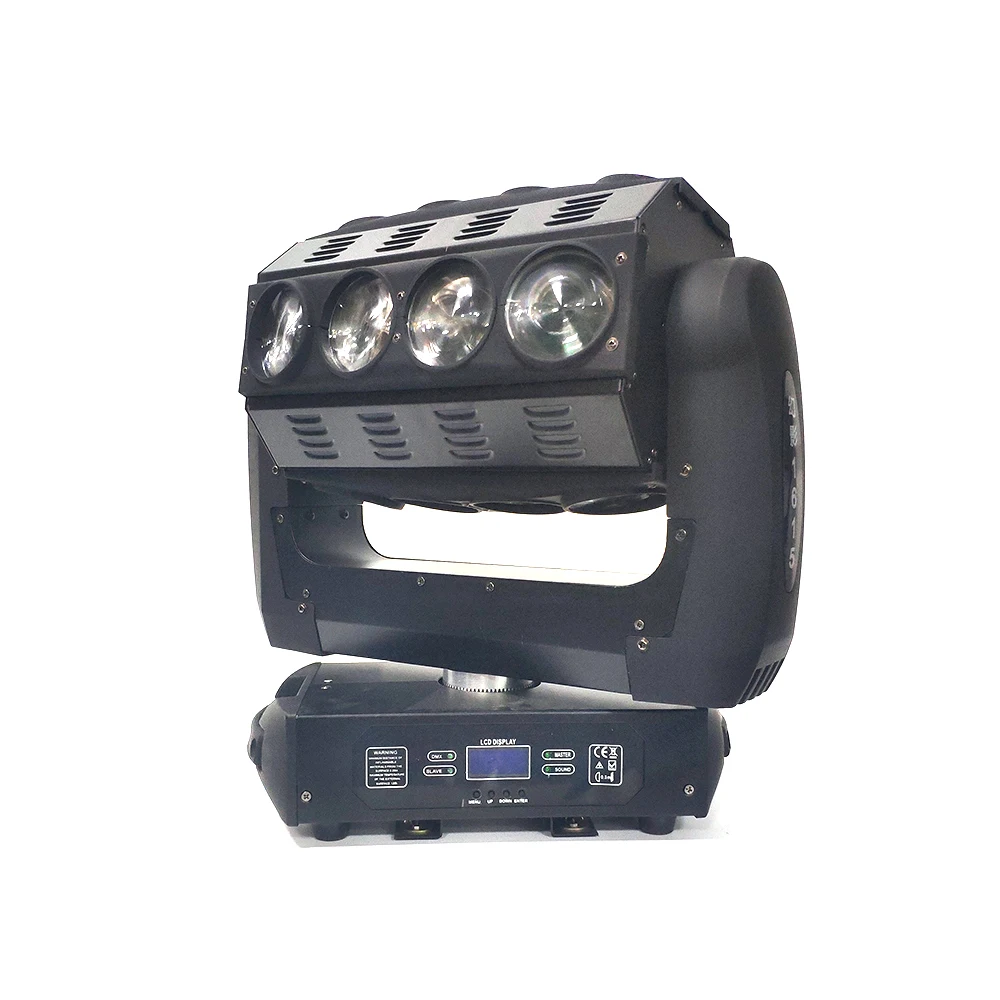

9 головок RGBW 4 в 1 Высокая мощность 360 градусов роликовый светодиодный паук 10 Вт луч светодиодный движущийся головной свет
6-катушки статор с ротор Магнето подходит для LIFAN 140CC двигателя
Фабричное производство, 16 шт., 15 Вт, светодиодная лампа, бесконечный роликовый светильник
188,00 $ - 190,00 $

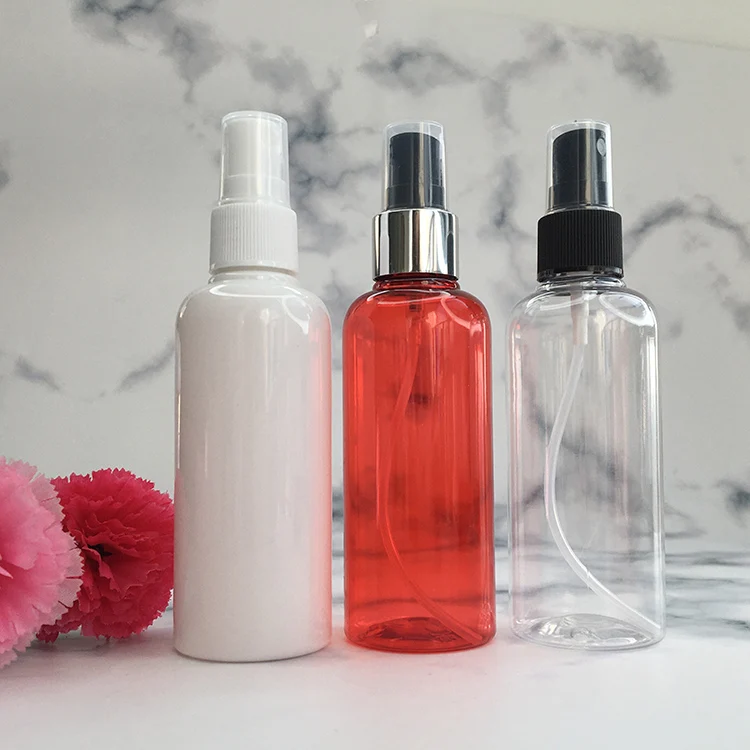

100 мл пластиковая бутылка с спиртовым распылителем, одноразовая бутылка для дезинфицирующего средства для рук с распылителем
0,07 $ - 0,10 $

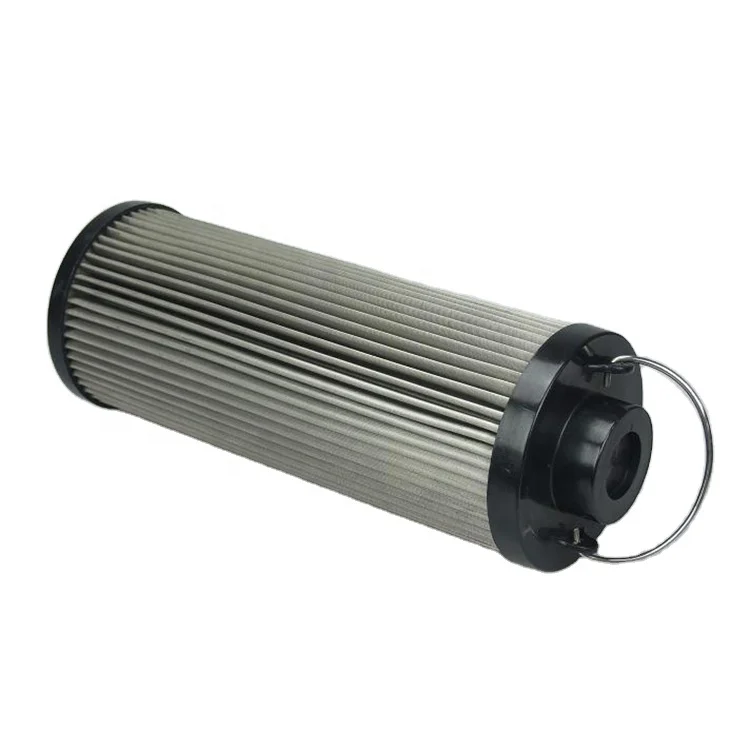

Лучший продавец, возвратный картридж масляного фильтра 312718 0330R025W/HC 315766 0330R050W/HC 303321 0330R100W/HC

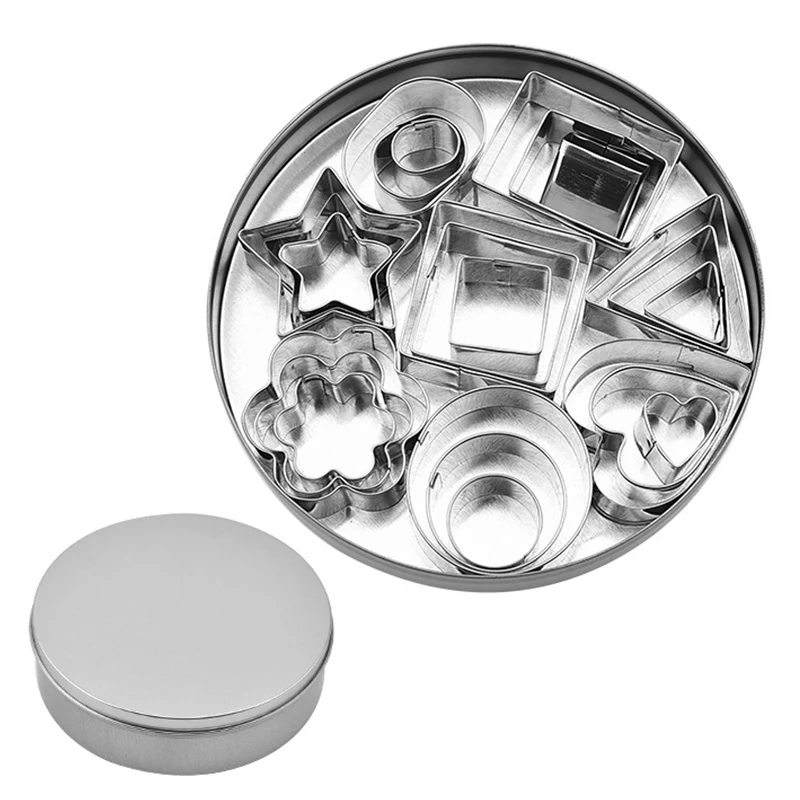

Формы для печенья в форме Хэллоуина из нержавеющей стали
