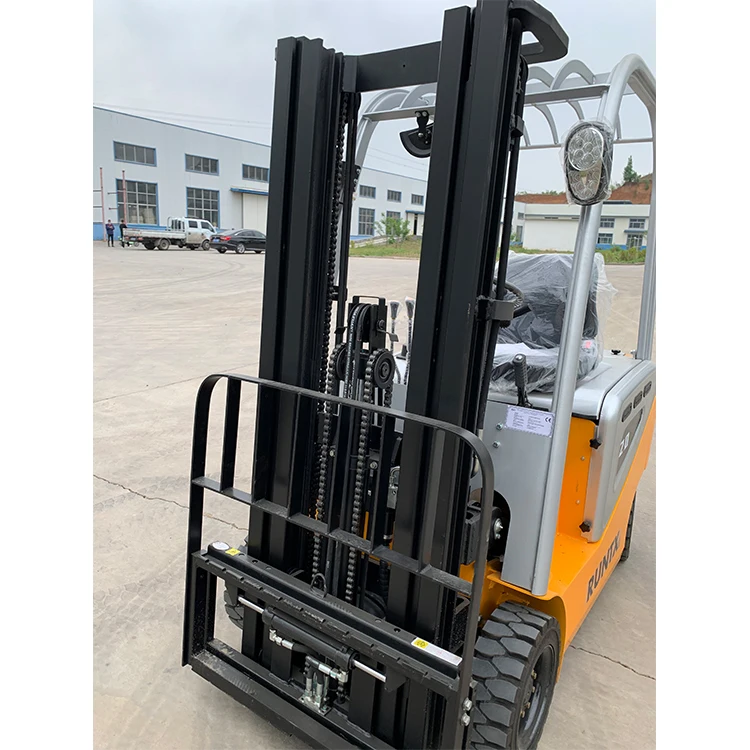

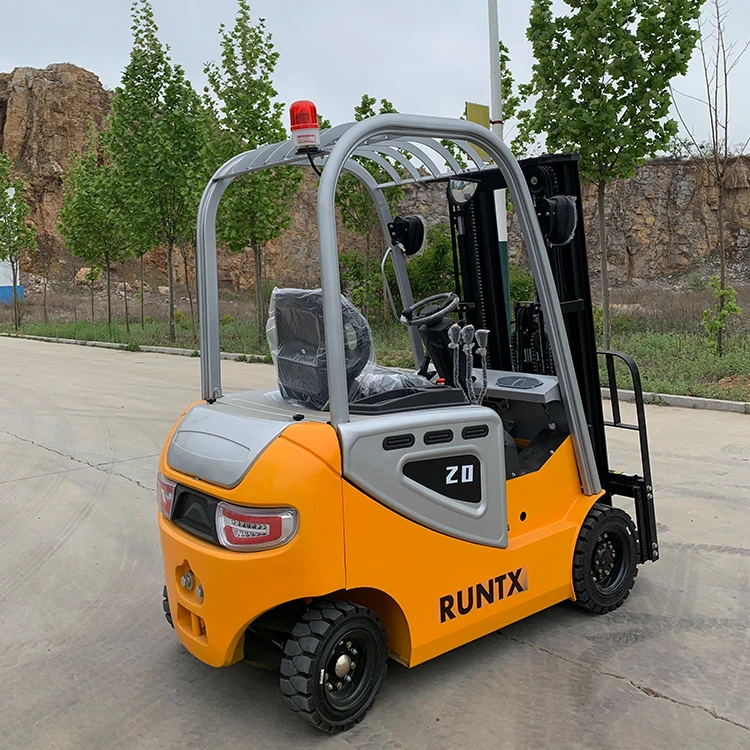

Runtx brand2.5 ton четырехколесный сбалансированный Электрический вилочный погрузчик
- Категория: >>>
- Поставщик: Xiamen Runtx Machinery Co. Ltd.
Сохранить в закладки 62409715452:
Описание и отзывы
Характеристики
Products Description
Runtx brand2.5 ton Four-wheel counter balanced weight electric forklift
Characteristics | unit | ||||||||||
Model | CPD10 | CPD15 | CPD20 | CPD25 | CPD30 | ||||||
driving mode | seated | 座驾式 seated | 座驾式 seated | 座驾式 seated | 座驾式 seated | ||||||
rated capacity | Q | kg | 1000 | 1500 | 2000 | 3000 | 3000 | ||||
load center distance | C | mm | 500 | 500 | 500 | 500 | 500 | ||||
power mode | lead-acid battery | lead-acid battery | ead-acid battery | lead-acid battery | lead-acid battery | ||||||
wheelbase | L1 | mm | 1220 | 1430 | 1430 | 1750 | 1750 | ||||
tyre type | solid tyre | solid tyre | solid tyre | pneumatic tyre | pneumatic tyre | ||||||
wheels number(front/rear) | 2/2 | 2/2 | 2/2 | 2/2 | 2/2 | ||||||
front track | W3 | mm | 910 | 920 | 920 | 1002 | 1002 | ||||
rear track | W2 | mm | 865 | 898 | 898 | 994 | 994 | ||||
tyre(front) | 15X4 1/2-8 | 18x7-10 | 18x7-10 | 28x9-15 | 28x9-15 | ||||||
tyre(rear) | 15X4 1/2-8 | 16x6-8 | 16x6-8 | 18x7-8 | 18x7-8 | ||||||
front overhang | L2 | mm | 289 | 325 | 325 | 467 | 467 | ||||
tilt of the mast,front/rear | α/β | ° | 5/10 | 5/10 | 5/10 | 5/10 | 5/10 | ||||
height,mast retraction | H1 | mm | 2017 | 2030 | 2030 | 2057 | 2057 | ||||
free lift height | H3 | mm | / | / | / | 120 | 120 | ||||
overall maximum lift height | H | mm | 3000 | 3000 | 3000 | 3000 | 3000 | ||||
height,mast extended | H2 | mm | 3957 | 4055 | 4055 | 4200 | 4200 | ||||
overhead guard height | H4 | mm | 1920 | 2110 | 2110 | 2200 | 2200 | ||||
lateral Fork Adjustment(Outside of Forks)Max/Min | W5 | mm | 970/200 | 970/200 | 970/200 | 1100/244 | 1100/244 | ||||
fork size(LxWxT) | T*W*L | mm | 30*100*1070 | 35*100*1070 | 35*100*1070 | 45*122*1070 | 45*122*1070 | ||||
truck body length(fork excluded) | L＇ | mm | 1795 | 2063 | 2063 | 2547 | 2547 | ||||
truck body width | W1 | mm | 1020 | 1096 | 1096 | 1225 | 1225 | ||||
turning radius | R | mm | 1850 | 2070 | 2070 | 2310 | 2310 | ||||
groubd clearance under mast | H5 | mm | 77 | 88 | 88 | 82 | 82 | ||||
Ground clearance at center of wheelbase(laden) | H6 | mm | 100 | 110 | 110 | 145 | 145 | ||||
width of aisle right-angle stacking (pallet1000x1000mm clearance 200mm) | Ast | mm | 3400 | 3655 | 3655 | 4100 | 4100 | ||||
width of aisle right-angle stacking (pallet1200x1200mm clearance 200mm) | Ast | mm | 3600 | 3855 | 3855 | 4300 | 4300 | ||||
Performance | |||||||||||
travel speed,laden/unladen | km/h | 11/12 | 11/12 | 11/12 | 11/12 | 11/12 | |||||
lifting speed,laden/unladen | mm/s | 260/280 | 250/260 | 220/250 | 280/350 | 280/350 | |||||
lowering speed,laden/unladen | mm/s | 550 | 450 | 450 | 450 | 450 | |||||
maximum negoniable gradient,laden/unladen | % | 15/20 | 15/20 | 12/15 | 12/15 | 12/15 | |||||
Weight | |||||||||||
service mass(with battery) | kg | 1570 | 2430 | 2710 | 4000 | 4350 | |||||
battery voltage /nominal capacity | V/Ah | 48V/140Ah | 48V/240/300/420Ah | 48V/300/420Ah | 72V/260Ah | 80V/300/400/500Ah | |||||
battery weight | kg | 138 | 400 | 430 | 760 | 830 | |||||
Electrical configuration | |||||||||||
drive motor power-60 minutes | kW | 5 permanent magnet | 5.5 permanent magnet | 7.5 permanent magnet | 11 | 11 | |||||
lift motor power-15 minutes | kW | 4.5 permanent magnet | 5 permanent magnet | 6.5 permanent magnet | 12 | 12 | |||||
drive motor controlling mode | MOSFET/PMSM | MOSFET/PMSM | MOSFET/AC | MOSFET/AC | MOSFET/AC | ||||||
lifting motor controlling mode | MOSFET/PMSM | MOSFET/PMSM | MOSFET/AC | MOSFET/AC | MOSFET/AC | ||||||
service brake/parking brake | Hydraulic/Mechanial | Hydraulic/Mechanial | Hydraulic/Mechanial | Hydraulic/Mechanial | Hydraulic/Mechanial | ||||||
hydraulic system working pressure | Mpa | 14.5 | 14.5 | 17.5 | 17.5 | 17.5 | |||||
Details

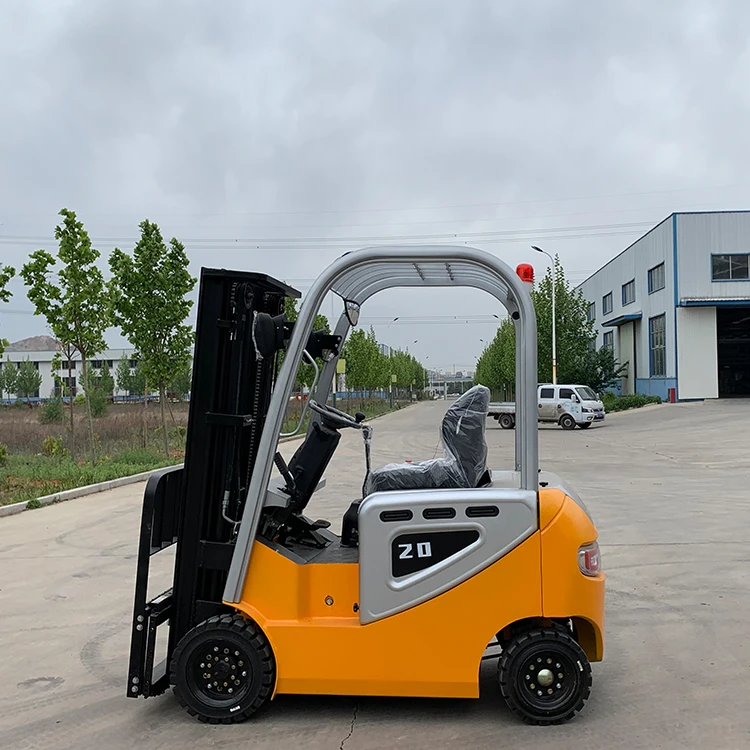

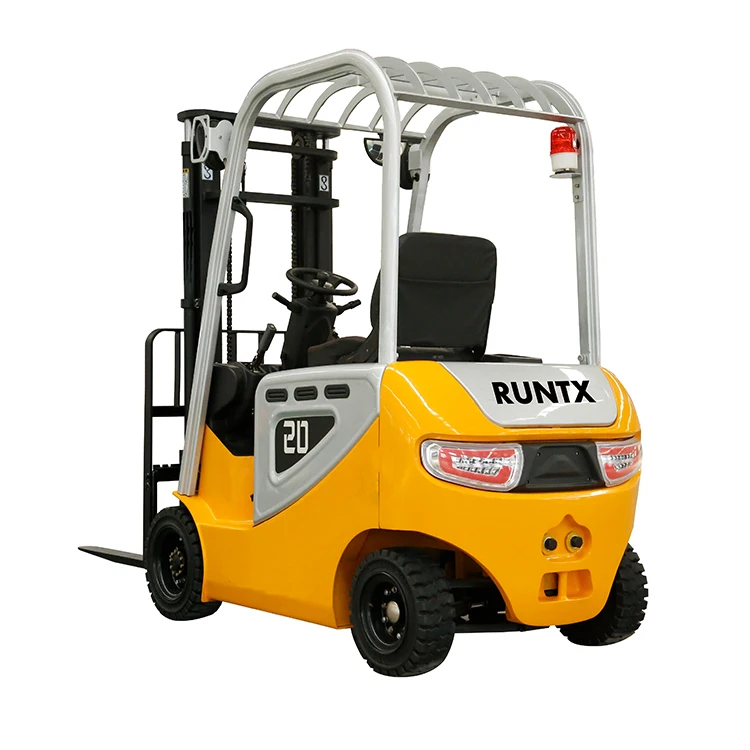

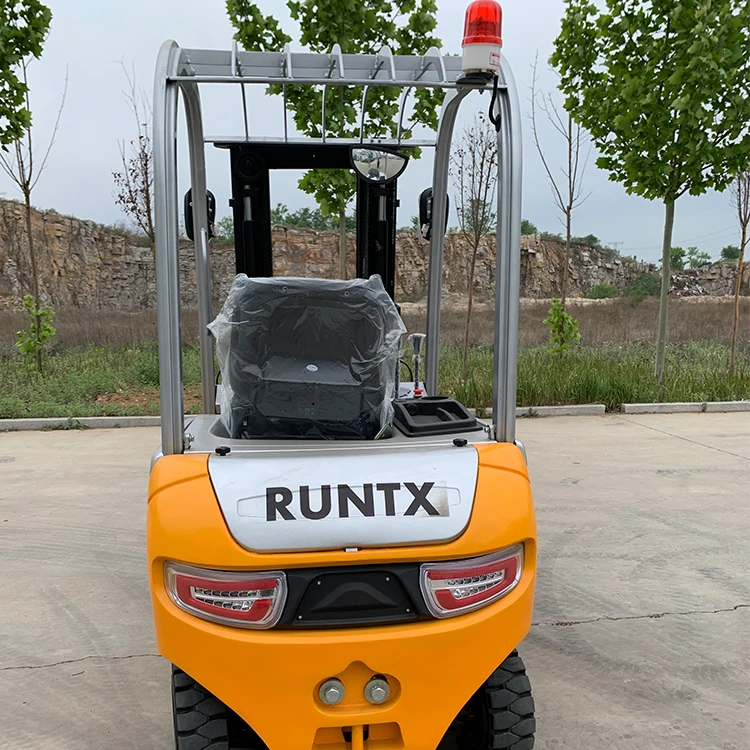

RUNTX 0.5-3ton Electric Forklift
500mm loading center,
2 stage 3m mast,
fork length 1070mm,
full truck solid tyres,
60-80V/180-300AH battery
battery charger.
1. High-quality manganese steel, strong toughness and high safety factor
2. Electrophoresis-automotive grade painting process
3. Integral forming overhead guard, strong and durable, large arched structure, high pressure resistance, strong safety
4. Integrated injection molding instrument panel, humanized design, with USB charging port
5. With LED headlights, beautiful and practical, energy-saving more than 80%
6. High-frequency MOSFET integrated controller ensures smooth and precise walking and lifting control,excellent speed regulation performance, good matching performance of motor electronic control, regenerative braking,reverse braking, slope anti-slide and other functions, safe and reliable.
2. Electrophoresis-automotive grade painting process
3. Integral forming overhead guard, strong and durable, large arched structure, high pressure resistance, strong safety
4. Integrated injection molding instrument panel, humanized design, with USB charging port
5. With LED headlights, beautiful and practical, energy-saving more than 80%
6. High-frequency MOSFET integrated controller ensures smooth and precise walking and lifting control,excellent speed regulation performance, good matching performance of motor electronic control, regenerative braking,reverse braking, slope anti-slide and other functions, safe and reliable.
Packaging and Shipping
Production Workshop
Company Profile
Xiamen RUNTX Machinery Co., Ltd. was established in early 2006. It is a professional manufacturer focusing on providing customers with reliable and efficient material handling equipment and solutions, integrating R&D, manufacturing, sales and service.Developing so far, our company covers an area of more than 37,000 square meters, with an annual sales quantities more than 4,000 forklifts of various types, and has strong production and R&D capabilities.
Since establishment, RUNTX company has always been committed to producing the most cost-effective high-quality forklift in China, and has constant research and innovate. Our company has large-scale CNC cutting machines, vertical machining centers, horizontal gantry milling machines, welding robots and other equipment, which has realized all the self-made key components and provided a strong guarantee for the quality of the products. The company's main products include a full range of internal combustion counterbalanced forklifts, electric counterbalanced forklifts, electric warehouse equipment, and port equipment to meet the different needs of customers.
RUNTX has always been adhering to the concept of providing customers with the best products and services, insisting on the principle of customer first, and Implement this purpose that the sale of goods is not the end, but the beginning of the service, and has won high praise from customers at domestic and abroad. In the future, we will continue to break through ourselves and strive to become one of the best forklift manufacturer in China.
Since establishment, RUNTX company has always been committed to producing the most cost-effective high-quality forklift in China, and has constant research and innovate. Our company has large-scale CNC cutting machines, vertical machining centers, horizontal gantry milling machines, welding robots and other equipment, which has realized all the self-made key components and provided a strong guarantee for the quality of the products. The company's main products include a full range of internal combustion counterbalanced forklifts, electric counterbalanced forklifts, electric warehouse equipment, and port equipment to meet the different needs of customers.
RUNTX has always been adhering to the concept of providing customers with the best products and services, insisting on the principle of customer first, and Implement this purpose that the sale of goods is not the end, but the beginning of the service, and has won high praise from customers at domestic and abroad. In the future, we will continue to break through ourselves and strive to become one of the best forklift manufacturer in China.
Customers Show
After-sale Service
Recommend Products
Похожие товары

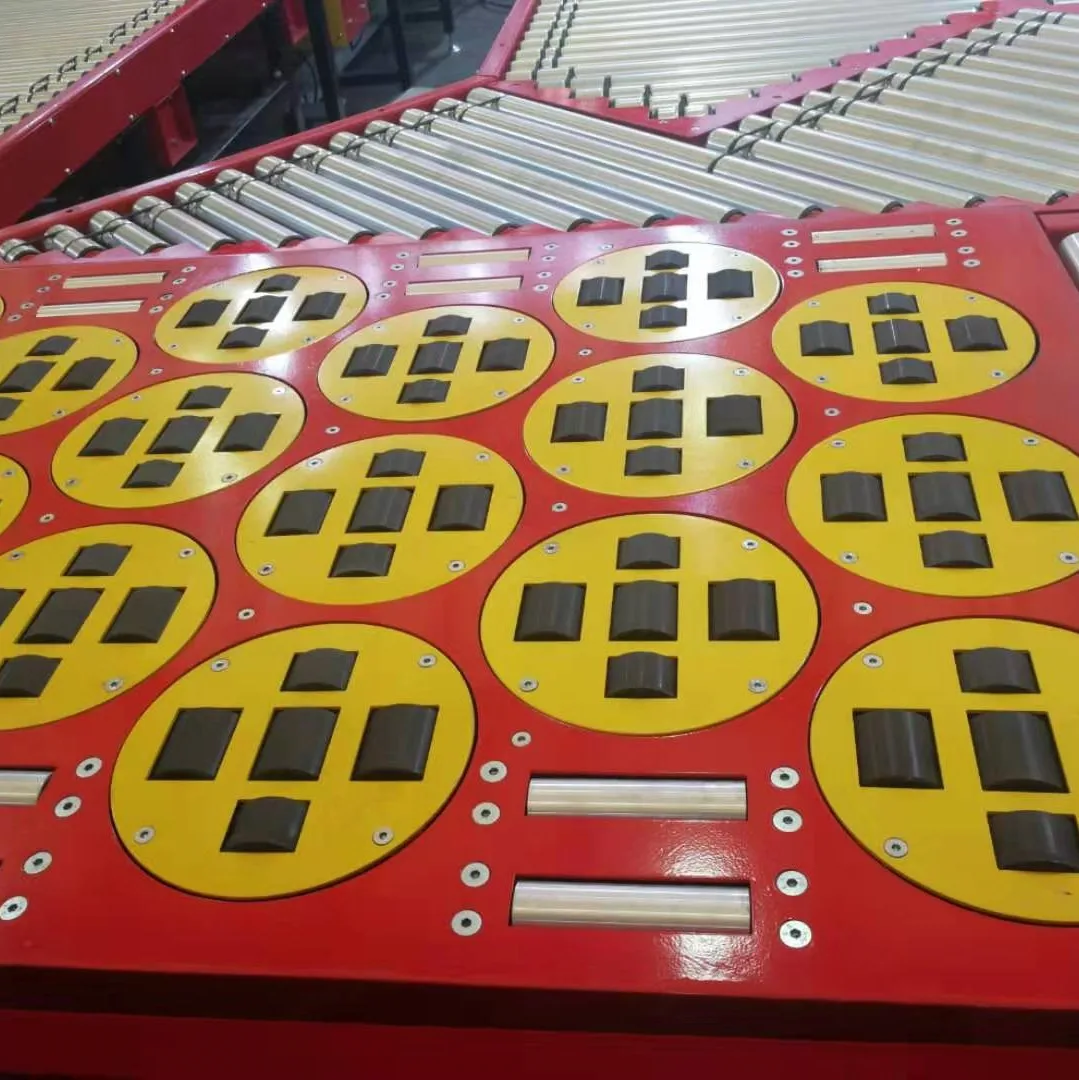

Высокоскоростной волновой сортировщик/высокоскоростные поворотные колеса Сортировочный конвейер с DWS
Современный водонепроницаемый уличный недорогой стул, кофейные гигантские зерна, диван, мешок из зерен
7,96 $ - 11,42 $

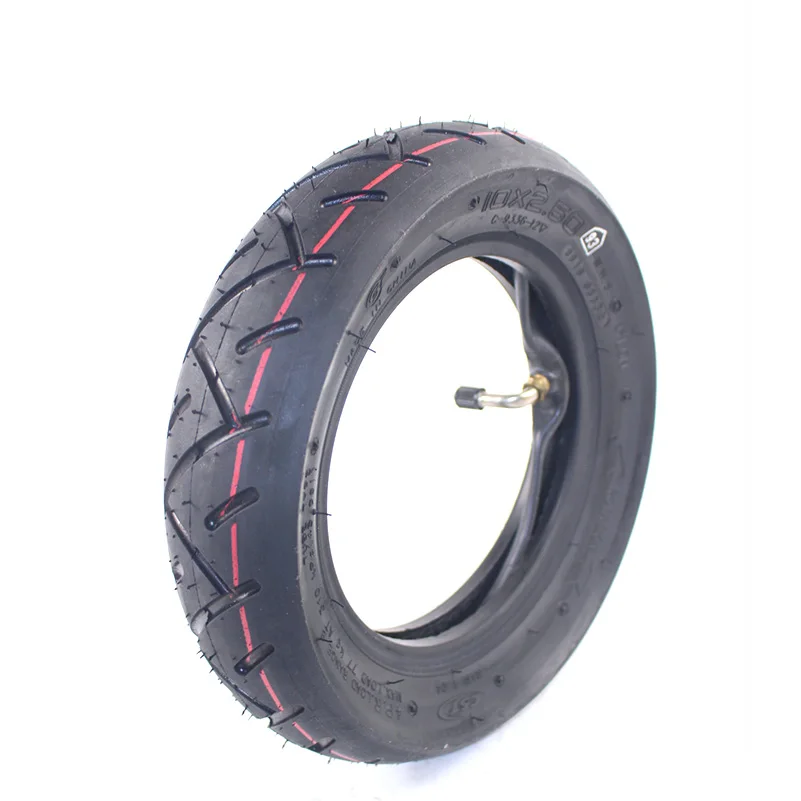

Электрический самокат 10x2,50 CST, балансировка, умный баланс, пневматическая шина, 10-дюймовая шина, внутренняя труба, толще для Inokim 4
5,30 $ - 5,80 $

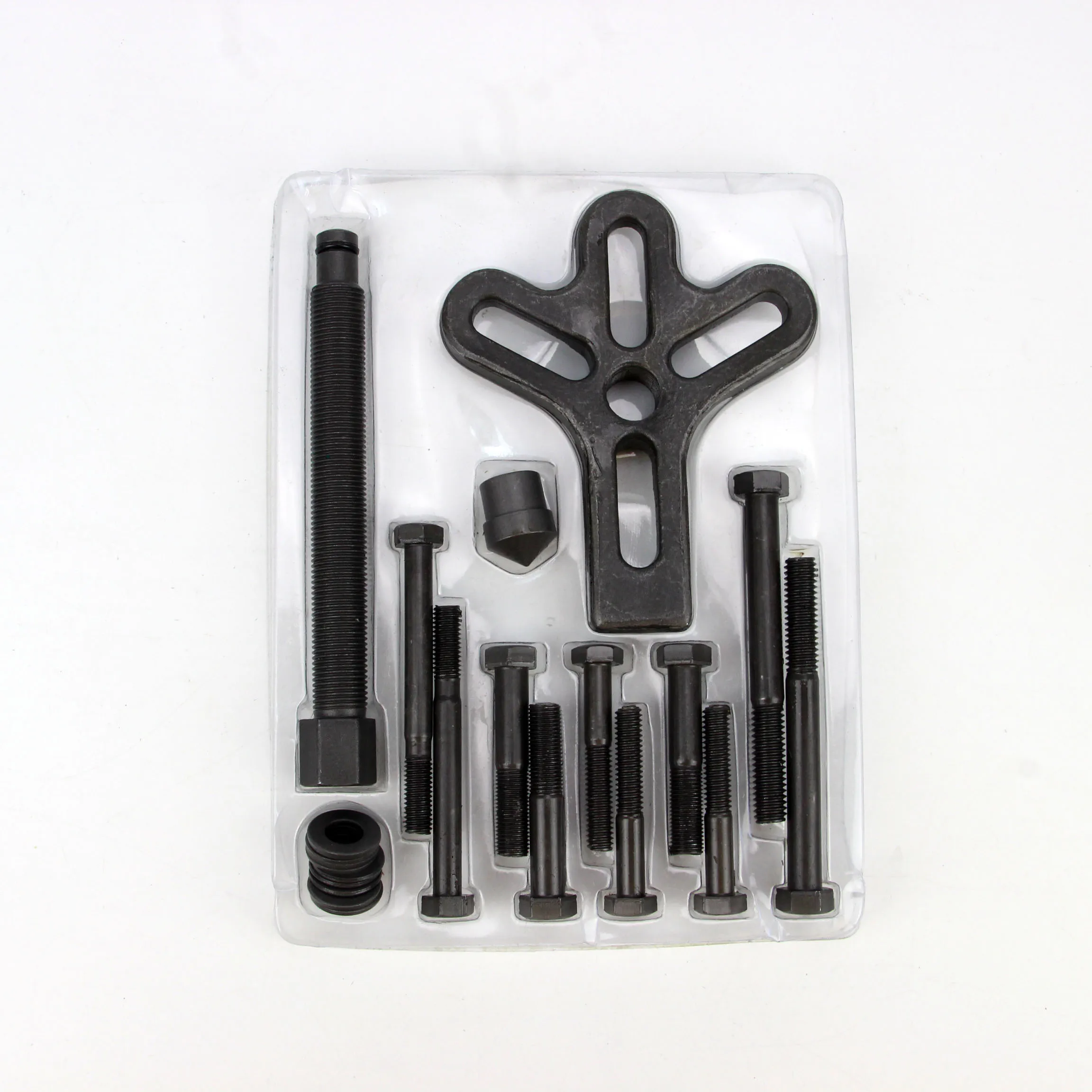

Хорошее качество, комплект из 13 предметов для съемки рулевого колеса автомобиля
