Импульсный источник питания MiWi LP 300 24 Din rail 24vdc 300w smps
- Категория: >>>
- Поставщик: Yueqing Mingwei Electric Co. ltd.
Сохранить в закладки 62410392088:
Описание и отзывы
Характеристики
You are here:Home>>Din Rail Series>>LP Series
Product Description

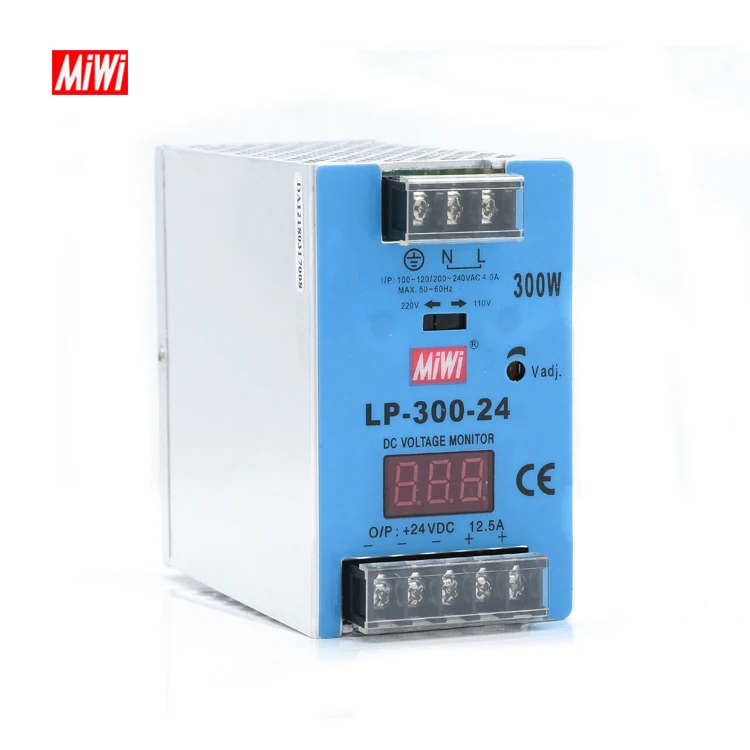

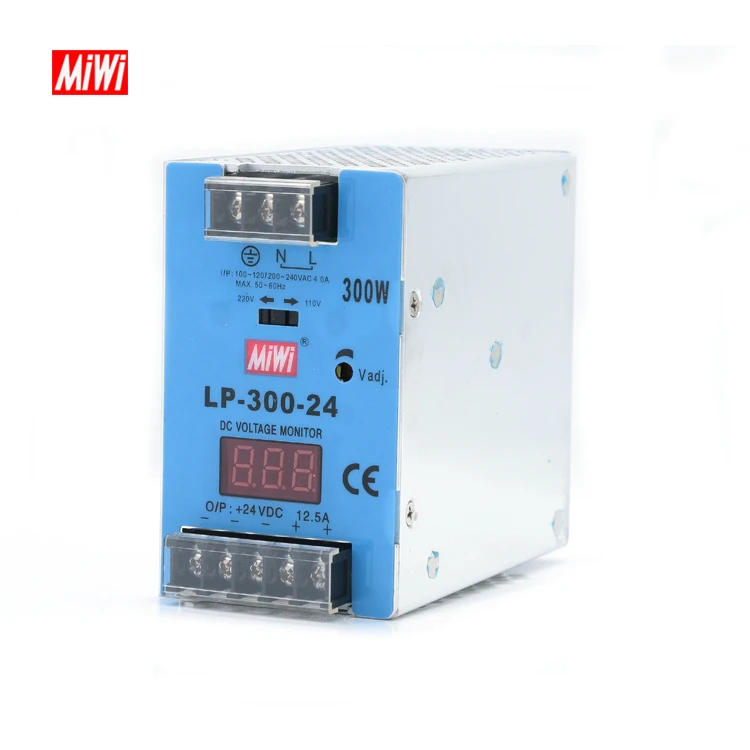

MiWi LP-300-24 Din rail 24vdc Switching Power Supply 300w smps
- Protection charateristic:short circuit/overload/overvoltage
- High efficiency,hihg reliability and long serive life.
- Natural air cooling
- 100% full load burning test
- LED power indication
| Model | LP-300-12 | LP-300-24 | LP300-48 | |
| Output | DC Output Voltage | 12V | 24V | 48V |
| Output Voltage tolerance | ± 1% | ± 1% | ± 1% | |
| Rated Output Current | 23A | 12.5A | 6.25A | |
| Output Current Range | 0-23A | 0-12.5A | 0-6.25A | |
| DC Output Power | 300 W | 300 W | 300 W | |
| Tripple and Noise | 240mVp-p | 240mVp-p | 300mVp-p | |
| Adjustable Range for DC Voltage | 10.8-13 V | 20.5-26.5V | 44.5-51V | |
| Input | AC Input Voltage Range | 85-132VAC/176-264VAC selected by swith or 248-373VDC 47~63Hz; | ||
| AC input current | 3A/115VAC 1.5A/230VAC | |||
| Efficiency | 83% | 83% | 85% | |
| AC Inrush Current | Cold-Start Current: 15A/115V, 30A/230V | |||
| Leakage Current | <2mA/240VAC | |||
| Protection charateristic | Overload Protection | 110%-150% | ||
| Protection mode: cut off output and reset automatically | ||||
| Over Voltage Protection | 13.1-14V | 27-30V | 51-54V | |
| Protection mode: cut off output and reset automatically | ||||
| Environment | Work Temperature Humidity | -10℃~+50℃ , 20%~90%RH | ||
| Storage Temperature Humidity | `-20℃~+85℃, 10%~95%RH | |||
| Shock resistance | 10~500Hz, 2G 10min,/1cycle,duration:60min each shaft | |||
| Safety | Voltage withstand capacity | Input-output:2KVAC Input-earth:1.5KVAC Output-earth:0.5KVAC | ||
| Insulation resistance | Input-output, Input-earth ,Output-earth:100M Ohms/500VDC | |||
| Executive Stantand | Safety Standards | CE | ||
| EMC Standards | Design refer to FCC part 15J Conduction Class B | |||
| Others | Weight | 0.65KGS | ||
| Package | 24pcs/ctn 38*30*28 | |||
| size | 100*60*110(L*W*H) | |||
| Notes | 1. All parameters except special situtation, are meaured under 230VAC voltage input and rated load at 25℃. 2. The ripple and noise voltage are measured in condition capacitance of 0.1μ and 47μ are applied to ends of 12inch twisted-pair of 20MHZ bandwidth oscilloscope. 3.The tolerance is the sum of setting voltage error , voltage and current regulation factor. | |||
>>>Click to get the latest price & catalogue<<<
Application
Main Product
Trade Assurance
About Us
Company Profile
- YUEQING MINGWEI LELECTRIC CO., LTD is specialized in design, development, production and sales as one of the company. Established in 2002, the existing workshop area 4000 YuPing meters, with professional and technical personnel, senior engineer.
- The company has regular products. Series: botton siwtch,Sudden stop lamp,switch power supply, water supply, rainproof, three-phasepower supply slideway,medical equipment for power supply, etc.
- The company has passed ISO9001 certification system. Series of products designed
to meet us UL1012, Germany TUVEN60950, EMCLVD ec UL1950,IEC950,international
standards. Part of the product certification, and obtain ec ROMS authentication. Products with high quality imported components, advanced production technology, perfect testing equipment, casts out mingwell quality products. - Company product best-selling domestic cities, and exported to southeast Asia, Europe and other countries.
Packaging & Shipping
Packaging Details: Standard corrugated carton or customized as you requested.
Delivery Detail: 1~25 days depend on your quantity.
FAQ
Yueqing Mingwei Electric Co., Ltd.
We sincerely welcome more friends to cooperate with us.
Q1:Are you a factory or trading company ?
A1:We are the real manufacturer which focus on power supply & push button switch since 2002,but not the trading factory for different kind of product.
Q2: What's your Lead time?
A2:The delivery time is 1~25 days which depend on detail item and quantity.
Q3: What kind of payment term do you accpet?
A3:T/T,L/C,Paypal,Western Union,MoneyGram,Escrow,O/A.
Q4: What’s your warranty terms?
A4: We offer 2 years warranty time .
Q5: Do you accept OEM?
A5: Yes.
Q6: Can we be your distributor?
A6: Yes,if your annuals sales much more than our other customers in your market that you can be our distributor.
Send your inquiry details below. Click "Send" Now!!!
You can get the FREE SAMPLES soon.
Похожие товары

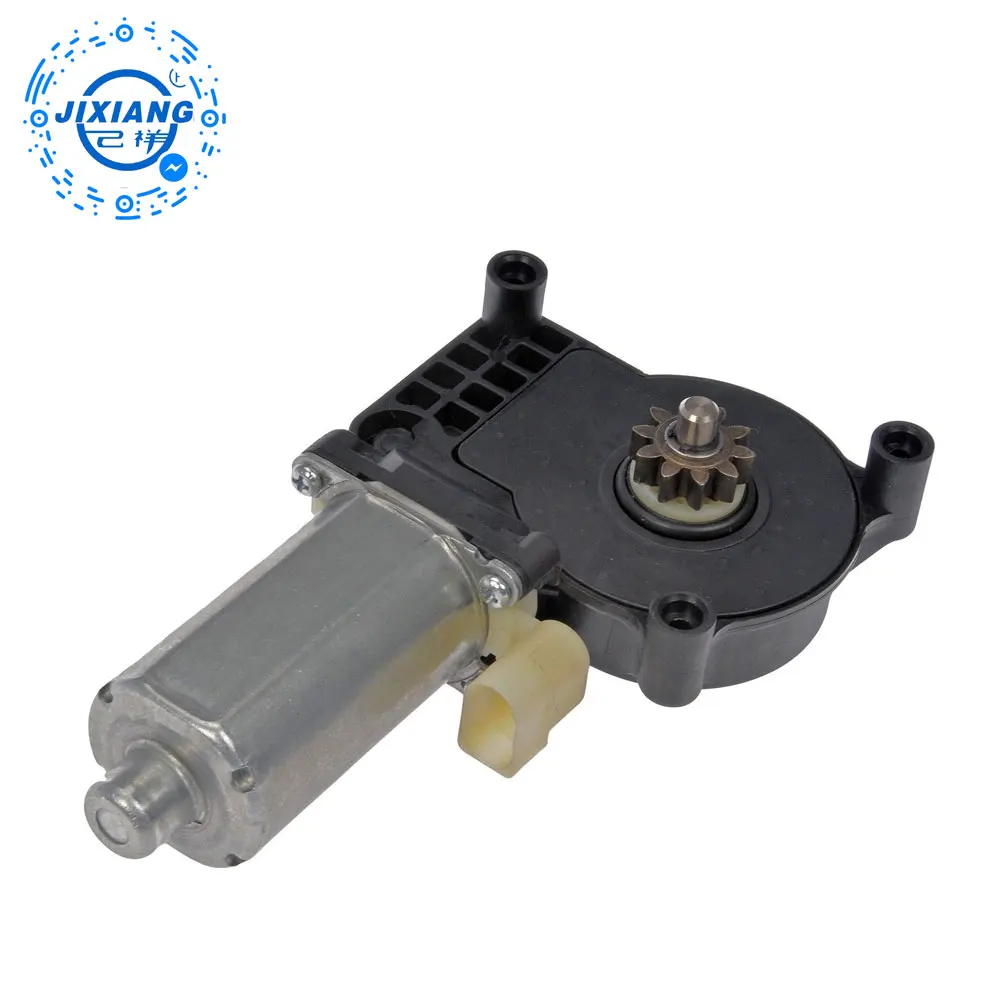

12 В автоматический передний левый электрический стеклоподъемник для OEM 742-408 98BB14A389AA 42-3016 383228 WMO1339L
AC-DC 220V в 12V 3W 250mA напряжение трансформатора PM12 AC к DC переключательный источник питания

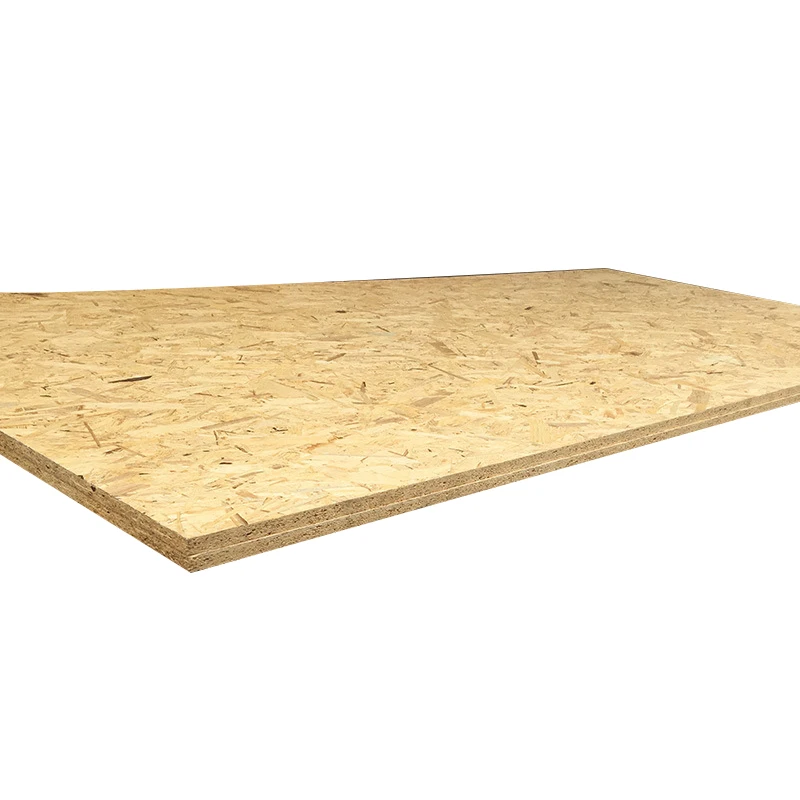

Недорогая Водонепроницаемая строительная доска Osb с 3 ориентированными нитями 12
6,10 $ - 10,50 $

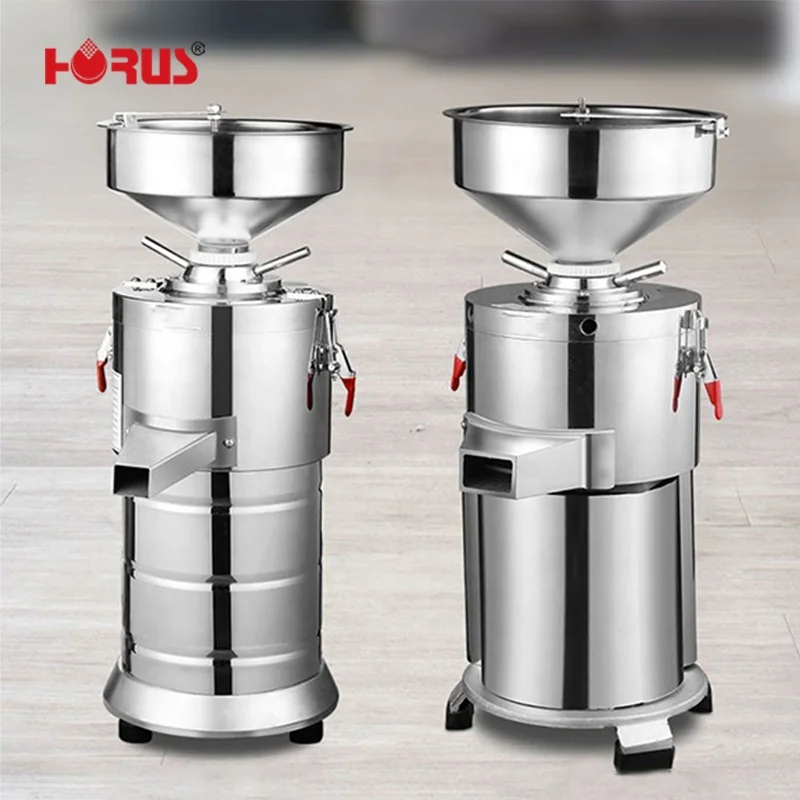

Промышленное автоматическое обжаренное оборудование для производства арахисовых орехов кунжута
98,00 $ - 120,00 $

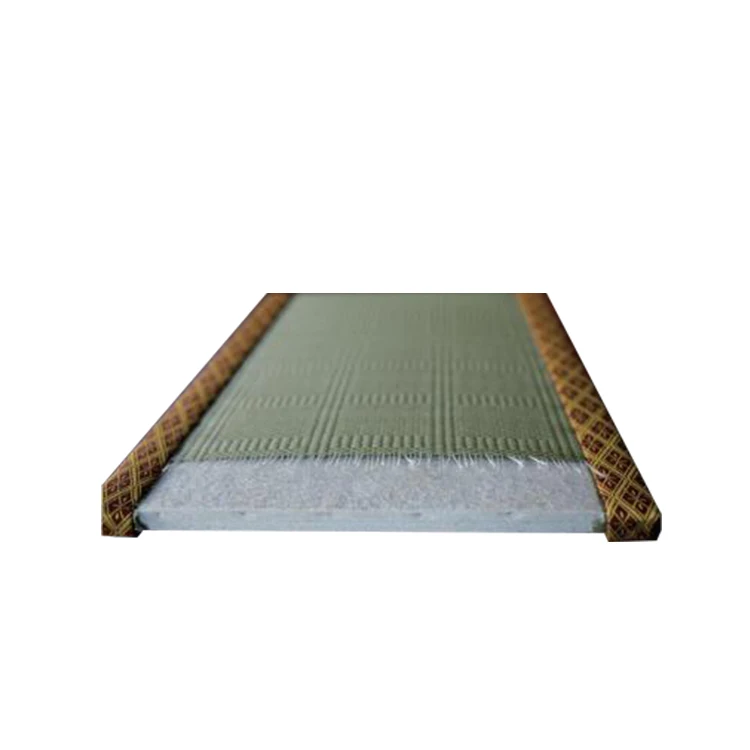

Японский матрас татами или коврик для
160,00 $
Женское вечернее платье на завязках, длинное блестящее платье с блестками для выпускного вечера, свадьбы, вечеринки, 2023

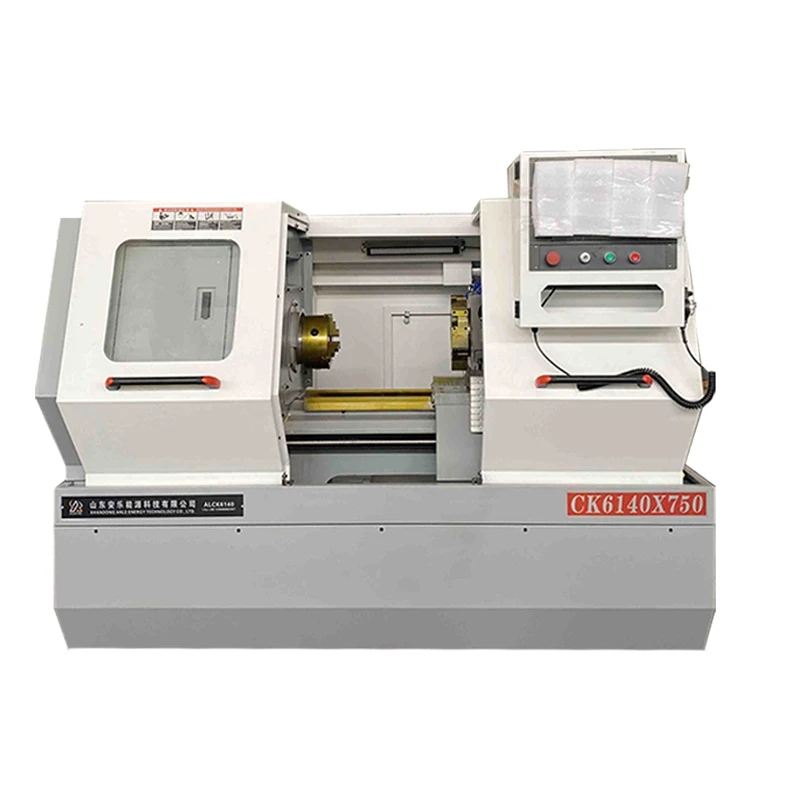

Контроллер CNC Fanuc, токарный станок, металлические детали, обрабатывающее оборудование с патроном CK6140x750, тяжелый токарный станок с ЧПУ
