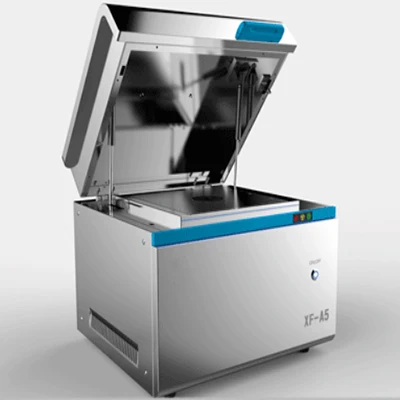

Новый анализатор металла XRF рентгеновский Золотой тестер/спектрометры для золота и серебра
- Категория: Spectrometers >>>
- Поставщик: Zhong Yun Intelligent Machinery (Yantai) Corp. Ltd.
Сохранить в закладки 62411849335:
Описание и отзывы
Характеристики
Product Description

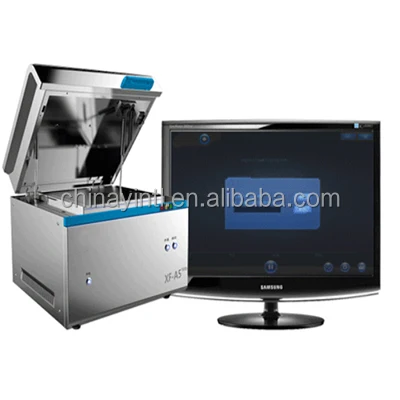

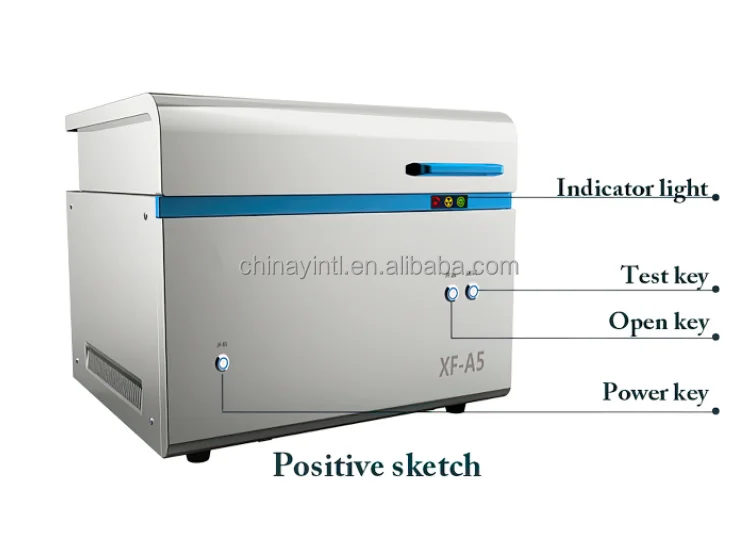

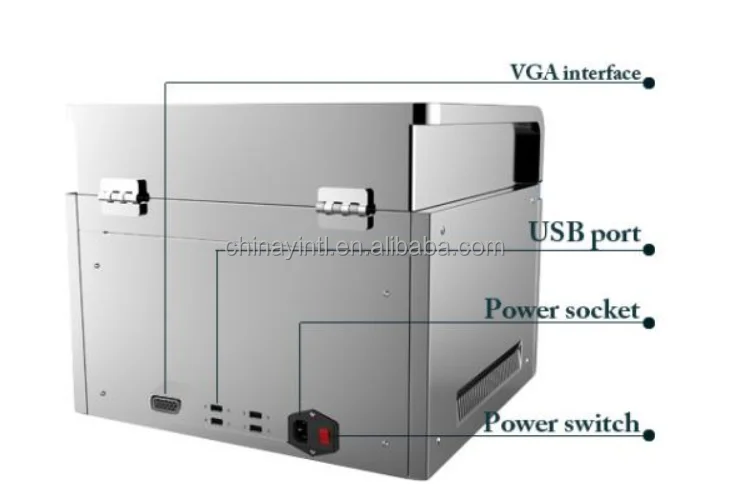

New XRF Metal Analyzer X Ray Gold Tester/Spectrometers for Gold Silver
In the field of precious metal detection, traditional analysis methods such as litmus test method, cupellation, fire assay method
belongs to destructive testing, consuming and dangerous. And sample preparation process takes longer.While X-ray fluorescence
spectrometry technology is relatively mature.It can achieve real-time analysis, nondestructive testing, does not require any
consumables.The precision can reach two to four digits after the decimal point.We have a lot of billiant minds who have worked on
making xray machine more affordable and precsise. X ray fluorescence spectrometry is the advanced precious metals testing
technology.
Our machine equipped with imported top SDD,SI PIN detector, the use of aircraft design, high-end atmosphere, with research and
development of more than a dozen patents, outstanding performance, in line with the new national standard GB18043-2013, can be
accurate detection of gold and silver jewelry and most of other metal elements and azardous substances.
belongs to destructive testing, consuming and dangerous. And sample preparation process takes longer.While X-ray fluorescence
spectrometry technology is relatively mature.It can achieve real-time analysis, nondestructive testing, does not require any
consumables.The precision can reach two to four digits after the decimal point.We have a lot of billiant minds who have worked on
making xray machine more affordable and precsise. X ray fluorescence spectrometry is the advanced precious metals testing
technology.
Our machine equipped with imported top SDD,SI PIN detector, the use of aircraft design, high-end atmosphere, with research and
development of more than a dozen patents, outstanding performance, in line with the new national standard GB18043-2013, can be
accurate detection of gold and silver jewelry and most of other metal elements and azardous substances.
Details information
name: | xrf device - handheld xrf analyzer spectromete | ||||||
Testable elements: | Ag, Au,Fe, Co, Ni, Cu, Zn, Se, Pd, Rh, Ru, Pt, Ir, Pb and etc(70 elements) | ||||||
Equipment principles: | X fluorescence energy dispersion | Test area: | 1-2mm spot +<40micron | ||||
Accuracy: | ±0.01% | Voltage: | 100-220v | ||||
Detector: | Fast SDD (Made in USA) | Power: | 150w | ||||
Resolution: | 130±5 eV | Operating systerm: | Windown 7 | ||||
Work enviroment: | - 11 ~ 46 °C | Advantages: | excellent cooling system | ||||
Battery support:: | no | Intelligence: | automatic protection | ||||
Label/normal/thermal printer: | support | weight: | About 40kg | ||||
Built-in computer: | yes | size: | 467×370×336mm | ||||
Product advantage
* Inner ring measurable
This spectrum gold detector can detect the inner composition of the ring;
* Test compensation
By adjusting the focal length of the camera automatically, the test position of the sample is clearly defined, and the test
results are compensated by distance;
* Accurate positioning
Panasonic servo motor is used to control 0.3mm collimator for accurate positioning;
* Macro light tube
Thin be window micro distance light tube is used to ensure the accuracy and stability of the test;
* Silent noise reduction
Japanese silent fan and heat source analysis system are used to reduce noise and greatly improve the long-term stability of the
instrument and prolong its service life;
* Four core processor + Linux system
The self-developed industrial motherboard is equipped with arm cortex-a53 four core processor and Linux operating system, which
brings better system stability and improves custom space and customization function;
* Fast SDD detector
The customized imported high-resolution fast SDD detector is adopted to effectively improve the detection accuracy and test
stability of the instrument
* Inner ring measurable
This spectrum gold detector can detect the inner composition of the ring;
* Test compensation
By adjusting the focal length of the camera automatically, the test position of the sample is clearly defined, and the test
results are compensated by distance;
* Accurate positioning
Panasonic servo motor is used to control 0.3mm collimator for accurate positioning;
* Macro light tube
Thin be window micro distance light tube is used to ensure the accuracy and stability of the test;
* Silent noise reduction
Japanese silent fan and heat source analysis system are used to reduce noise and greatly improve the long-term stability of the
instrument and prolong its service life;
* Four core processor + Linux system
The self-developed industrial motherboard is equipped with arm cortex-a53 four core processor and Linux operating system, which
brings better system stability and improves custom space and customization function;
* Fast SDD detector
The customized imported high-resolution fast SDD detector is adopted to effectively improve the detection accuracy and test
stability of the instrument
Manufacture Specification
Best Selling
Похожие товары

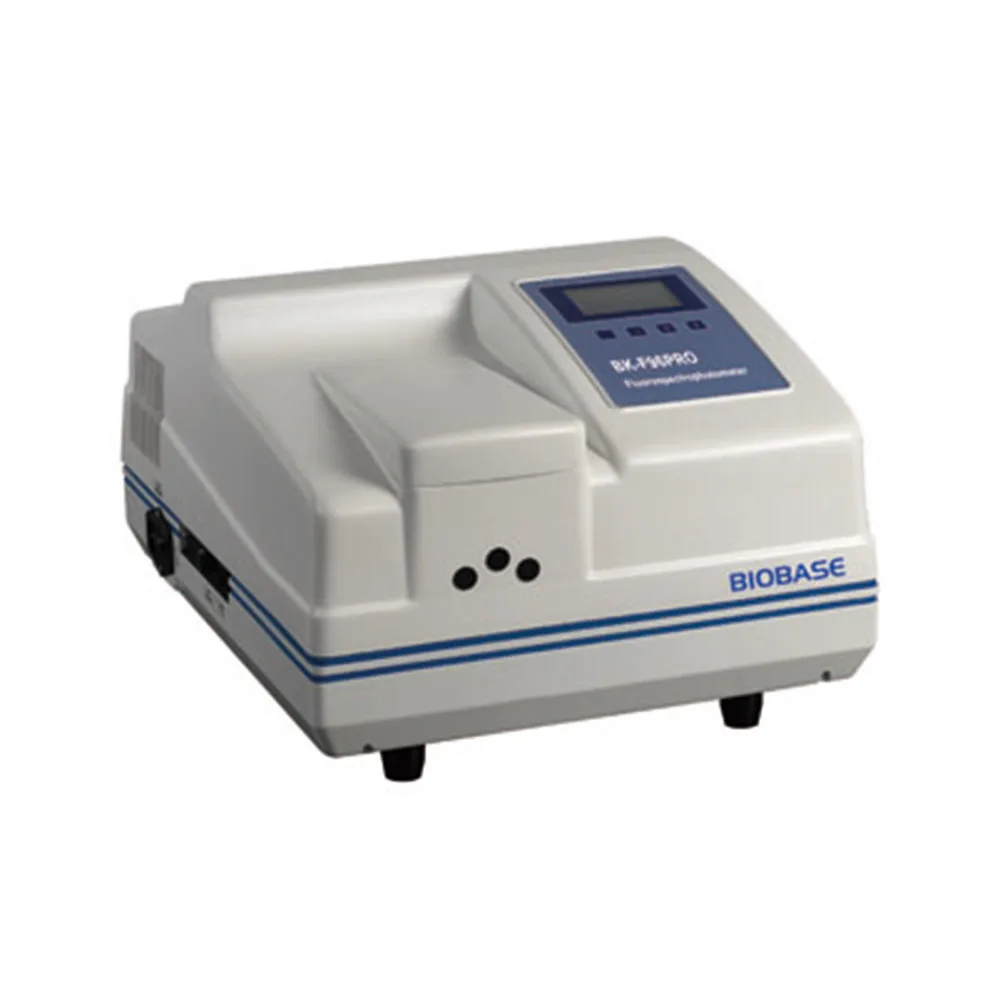

Biobase China BK-F93 лабораторный флуоресцентный спектрофотометр
BIOBASE Китай высокое качество продукта флуоресценции spectrophptometer с 4 цифры светодиодный BK-F93 для лабораторий в наличии на складе
Двухрежимный Высокоточный автомобильный спектрофотометр Benchtop с дополнительными аксессуарами
BIOBASE, Китай, спектрофотофотометр для возбуждения и спектра излучения, флуоресцентный спектрофотометр для неорганической химии в наличии

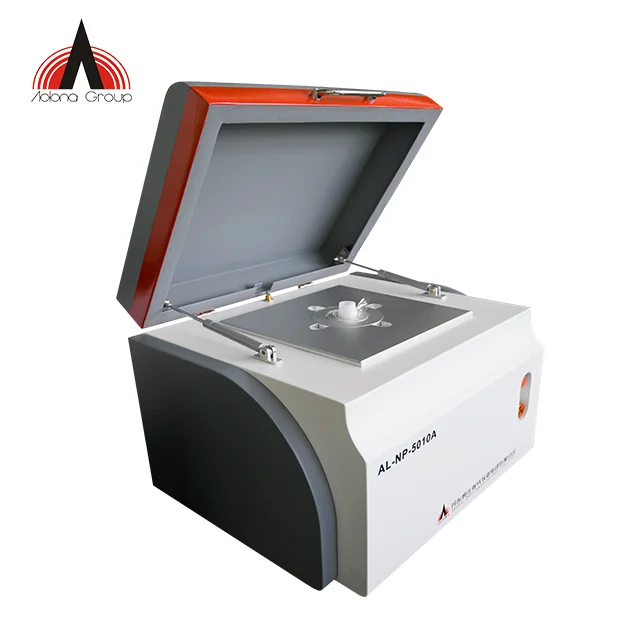

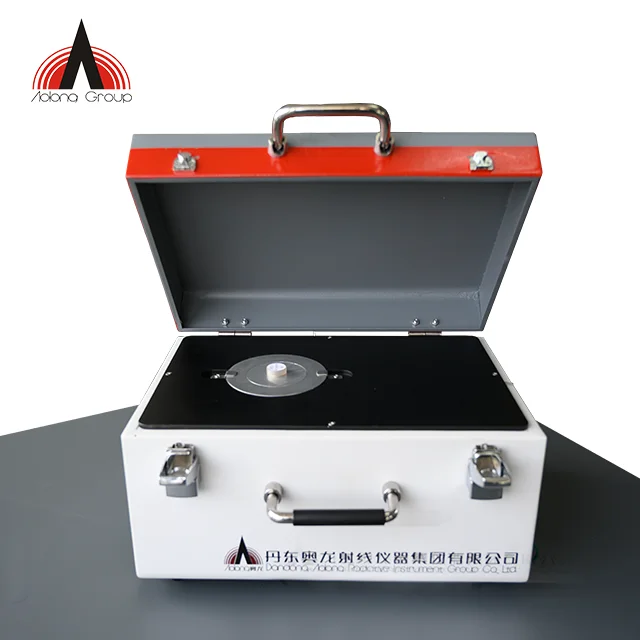

Высококачественный промышленный портативный анализатор металла Xrf Aolong
15 400,00 $ - 15 500,00 $
Лидер продаж, промо-список, рентгеновский анализатор золота
15 500,00 $ - 16 000,00 $

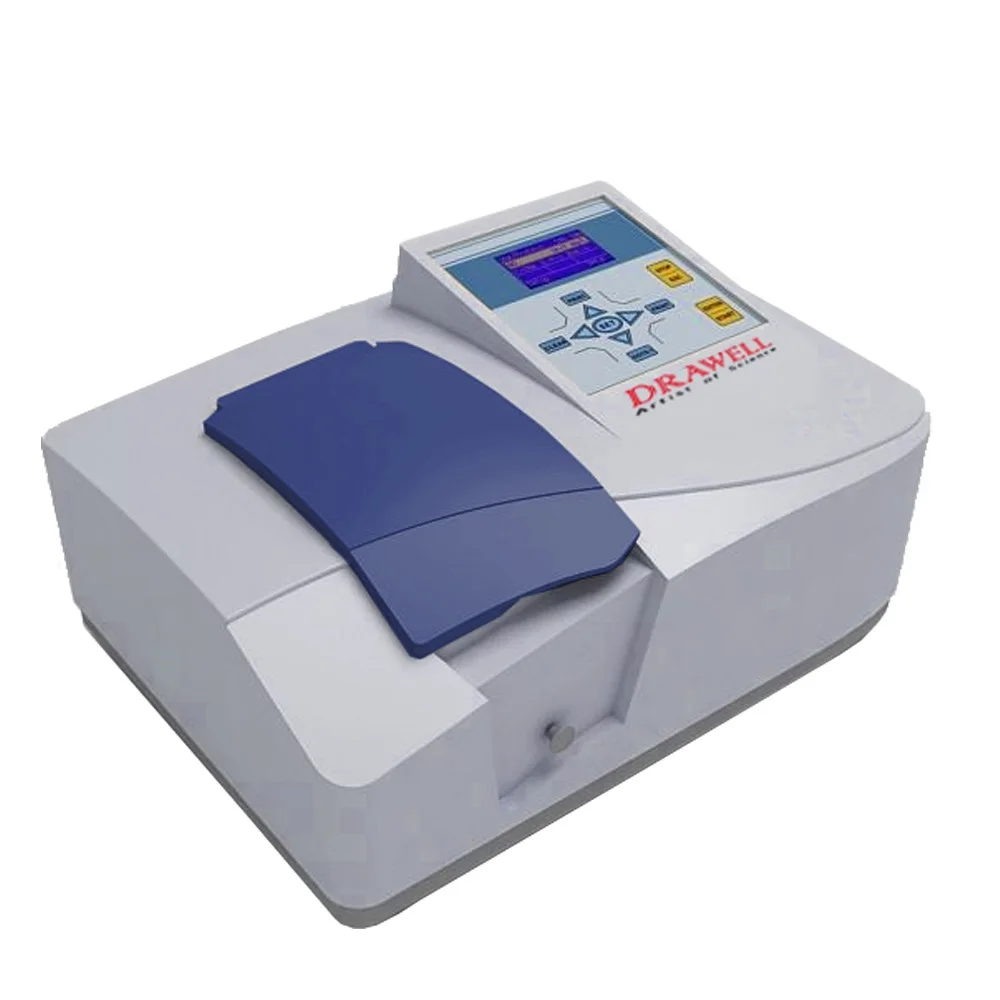

DU8200 оптический спектрометр UVVis спектрофотометр
