Косметический флакон Весна жидкость для дезинфекции бутылки машина для изготовления пружин с катушечным механизмом работы
9 000,00 $ - 9 500,00 $
Машина для пружинной прокатки CNC автоматическая небольшая прокатная машина
- Категория: Spring Coiling Machine >>>
- Поставщик: Union Spring
Сохранить в закладки 62414657534:
Описание и отзывы
Характеристики
Product Description

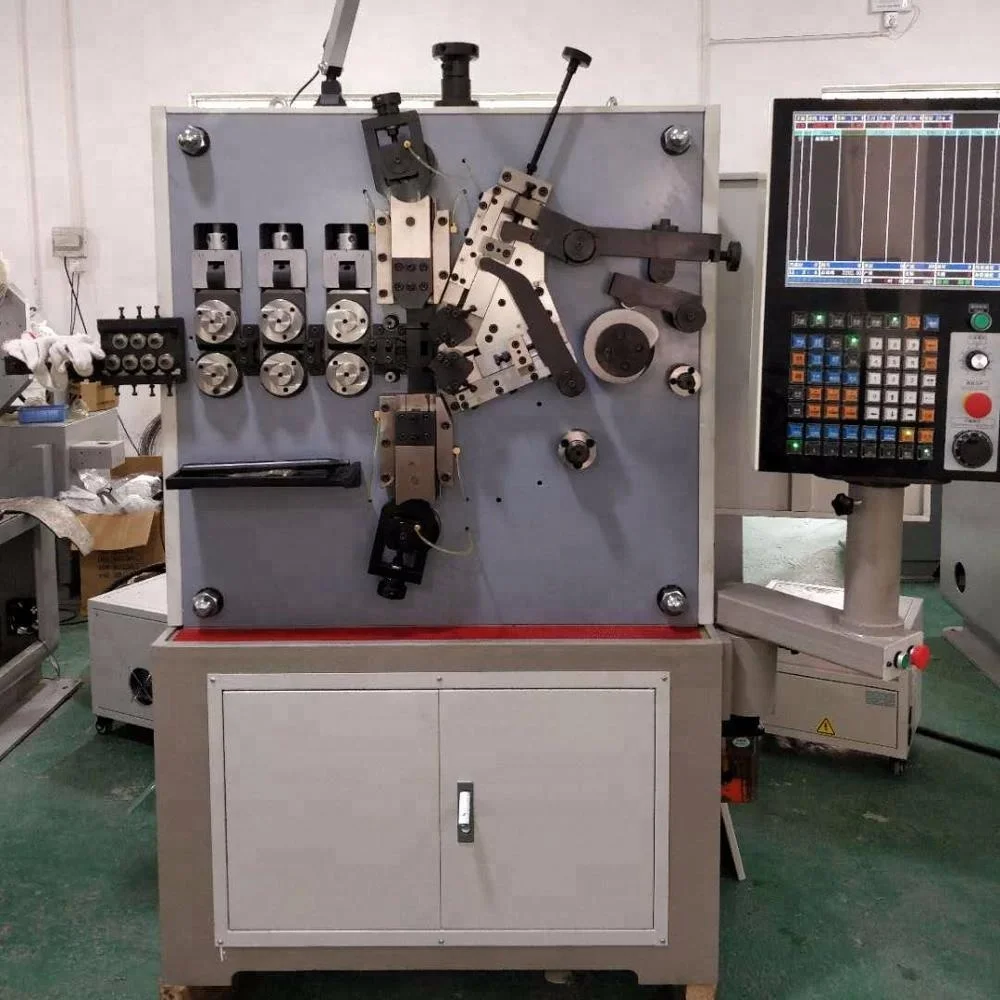

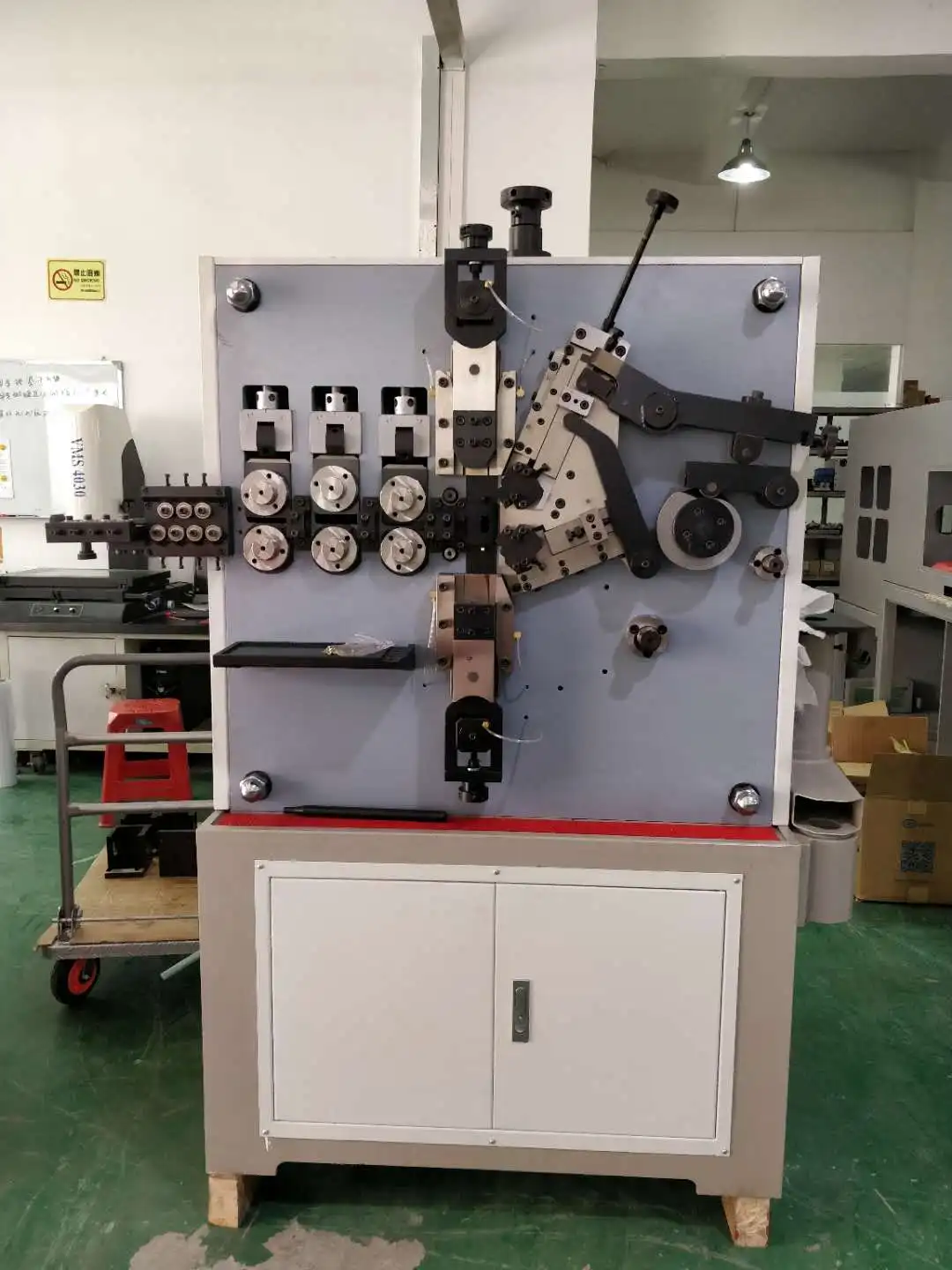

5 Axis Spring coiling Machine
Model | US-540 |
Axis | 5 |
Wire Diameter | 1.0-4.0mm |
Wire Wheel Sets | 3sets |
Wire Feeding Wxis | 5.5KW |
Upper Cutter Axis | 1.5KW |
Lower Cutter Axis | 1.5KW |
Cam Axis | 1.5KW |
Spacing Axis | 1.5KW |
Machine Size | 1600*1000*1750mm3 |
Machine Weight | 1800KG |
Machine description:
1. This machine adopts computer digital control. Any one of the five axis can move independently, but also can coordinate several axis linkage. In the production process, the machine has precise transmission, smooth movement, wear resistance and long life.
2. The wire feeding axis is driven by the imported servo motor, which can realize high-speed and high-precision wire feeding of any length.
3. The upper and lower cutting axis is controlled by two servomotors to cut off the slider's fast movement, realizing the cutting and torsional cutting.
4. The pitch axis is driven by servo motor, and the high precision rolling screw is used to make the pitch claw move, so as to ensure the height accuracy of the pitch.
5. The cam axis drives reducing diameter slider through the cam and the plane lever to complete reducing diameter. The lifting of the quill axis is controlled by the motor, which is convenient and labor-saving.
2. The wire feeding axis is driven by the imported servo motor, which can realize high-speed and high-precision wire feeding of any length.
3. The upper and lower cutting axis is controlled by two servomotors to cut off the slider's fast movement, realizing the cutting and torsional cutting.
4. The pitch axis is driven by servo motor, and the high precision rolling screw is used to make the pitch claw move, so as to ensure the height accuracy of the pitch.
5. The cam axis drives reducing diameter slider through the cam and the plane lever to complete reducing diameter. The lifting of the quill axis is controlled by the motor, which is convenient and labor-saving.
Details Images

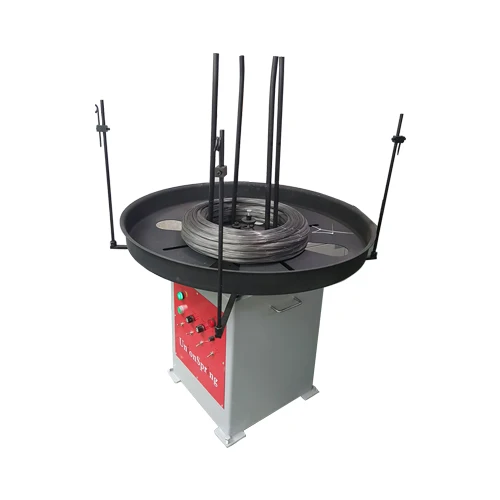

Automatic wire decoiler
The automatic wire feeder adopts Japanese Panasonic inverter control technology, which has the characteristics of accurate wire feeding, automatic adjustment of wire feeding speed, automatic alarm shutdown, and novel appearance.
Transformer
Straightener
The straightening device ensures that the steel wire after straightening has no internal stress and the steel wire is smooth, which facilitates the subsequent processing work.
Machine panel
Sanyo motor
After Sales Service
"Professional, quality, service, innovation" is our purpose, the company is committed to improve efficiency for customers and create value.
* Engineers available to service machinery overseas.
Company Introduction
UNION SPRING is a high-tech enterprise specializing in R&D, design, manufacture and sales of CNC spring machine, has nearly 20 years spring machine manufacturing experience.
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
Mainly engaged in 2D/3D wire bending machine, camless spring machine, wire rotary spring machine, spring forming machine, high speed coiling machine, screw machine, wire decoiler, tempering furnace etc., is widely used in compression spring, tension springs, torsion springs and wire forming products, can meet the production needs of many industries, including automobiles, kitchen utensils, sanitary ware, carts, supermarket shelves, sports equipment, crafts, lighting, electronics, toys, home appliances and other industries.
FAQ
Q1: How long you can delivery ?
About 30 days after we received the deposit (30%T/T in advance ,70% T/T before shipment )
Q2: How about your equipment quality?
We guarantee that all equipment are CE&ISO standard and one year warranty, We invite you to visit our factory and inspect the equipment before packing
Q3: How is the service that your equipment beyond the warranty period?
Your project salesman and engineer will mail or telephone visit to you at regular intervals after sales, and will provide
equipment’s lifelong service.
About 30 days after we received the deposit (30%T/T in advance ,70% T/T before shipment )
Q2: How about your equipment quality?
We guarantee that all equipment are CE&ISO standard and one year warranty, We invite you to visit our factory and inspect the equipment before packing
Q3: How is the service that your equipment beyond the warranty period?
Your project salesman and engineer will mail or telephone visit to you at regular intervals after sales, and will provide
equipment’s lifelong service.
