4 0 кубический метр самонагружающийся бетонный непрерывный раствор смеситель

Сохранить в закладки 62417222721:


Цена:31 000,00 $ - 31 286,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description




China TOP Brand YUCHAI Diesel Engine


CMT4000 is driven by YUCHAI, 85 kW (116 HP), Turbo-charged & Water-cooled Diesel Engine, which features High Reliablity and Low Fuel Comsumption. The CUMMINS Engine is availabe upon request.



Drum bottom lifting for discharge


The mixing drum can be lifted up 20° from the bottom by two hydraulic cylinders for high discharge of concrete over 2.0m in the front of vehicle.



2x330L Water tank & hydraulic water pump


2x330L Water tank is fitted in the middle of vehicle. Self-priming hydraulic water pump features quick suction (550L/min.)



Automatic lubricating system

Centralized grease lubricating system makes the routine maintainance of hydraulic system easier.



600L Shovel

600L Loading shovel is fitted with teeth in front and completed with hydraulic opening gate. It can fulfill the drum around 7 times of loading.



Air conditioning system

Cooling & heating air conditioner is available.



USA SUNNY piston motor

USA Brand SUNNY piston motor is applied on this truck.



Electronic weighing system

Electronic weighing system is equipped with this vehicle. The "loading cells" are acting on the drum, and technical data are displayed on the shovel loader weigher inside the cabin.



Mixing Drum
Mixing volume
4.0 M3
Geometrical volume
6.1 M3
Concrete output
4 M3 / batch, 16 M3 / hour
Drum rotating speed
17 rpm


Engine
Brand
YUCHAI (Cummins Engine optional)
Model
YCD4J22G
Type
In-line, 4-Cylinder, Turbo Charged and Water Cooled,
Rated power
85 KW (116HP) @ 2400 rpm
Max torque:
390 N.M @2000 rpm
Emission standard
Euro II


Chassis
Structure
Integrated rigid chassis
Transmission gear
Automatic, 4F+ 4R shift
Driving & steering
4-Wheel drive (4x4), front 2- wheel steering
Wheelbase
2400 mm
Tread
1820 mm
Axles
10-Ton reduction driving axle
Tyre size
Off road steel cord type, 1670-20, PR14
Loading shovel & chute
Volumetric capacity
600L
Number of shovel loading times of full drum

Around 7 times
Chute
2 pcs. of discharging chute extensions. Manually rotating at 90 degree.
Cabin
Type
ROPS & FOPS type closed front cab
Joystick control
Double-joystick control the hydraulic system
Weighing system
The loading cells are acting on the drum, and technical data are displayed on the shovel loader weigher inside the cabin.
Air conditioning system
Cooling & heating air conditioner
Water system
Max. water suction capacity
550 L/min. (Self-priming hydraulic water pump)
Water tank capacity
2x330 L.
Electric system
Alternator
24V-1500W
Battery:
2x12V-100AH


Vehicle
Max. Driving speed
32.0km/h
Gradient
Fully loaded 40%
Min. turning radius
7.5 m
Operating weight
9,200 Kg
Max. payload
9,600 Kg
Max. gross weight
18,800 Kg
Overall size (L×W×H)
7500 mm × 2850 mm × 3600 mm (4700 mm full height)
Service refill capacities
Fuel tank:
230L
Total hydraulic system capacity:

170L
Engine oil:
16L
Optional accessories:
290 degrees drum slewing
Dongfeng Cummins engine
USA Cummins engine
Italian Brand Bulldozer electronic weighing system


Contact Person: James Yang

Contact Person: Jerry Lee

Position: Director of Foreign Trade
Tel: +86-15098557232
Wechat: JamesJFMIX
QQ: 3269321933
Whatsapp: +8615098557232
Position: Director of Foreign Trade
Tel: +86-15098557112
Wechat: LeeJFMIX
QQ: 1038640498
Whatsapp: +8613705358617
         Address: Tushan Industrial Park, Laizhou City, Shandong Province, China 261400


Overal Dimensions




Detailed Image

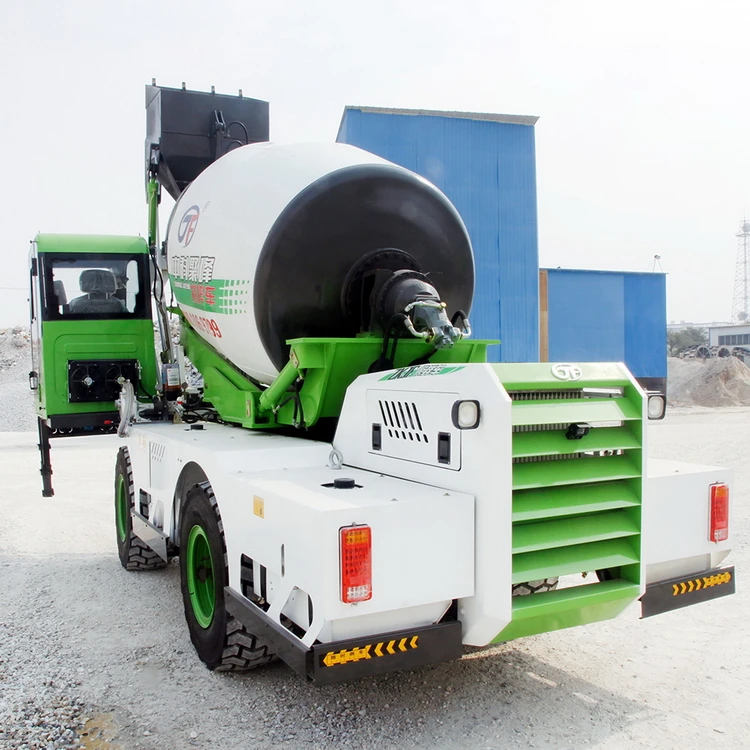

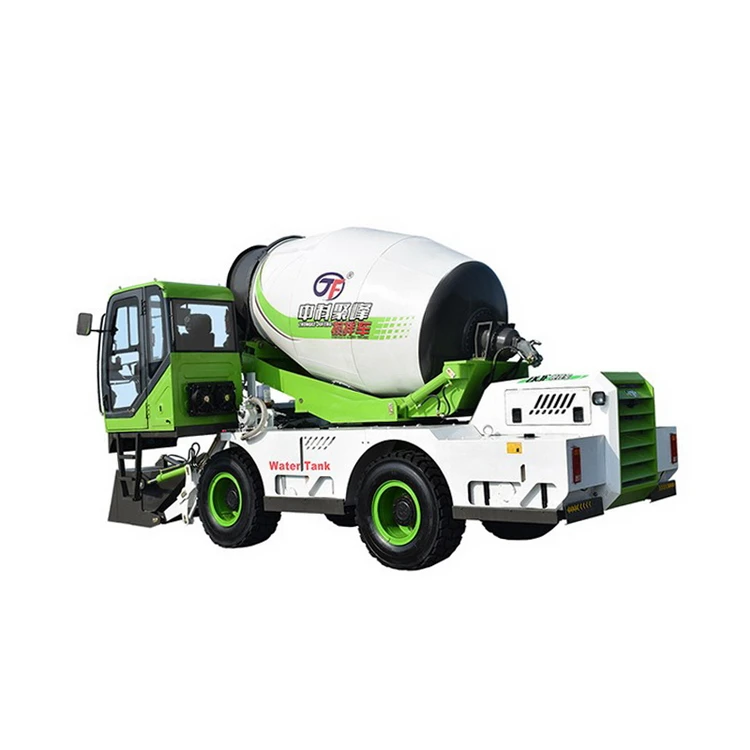

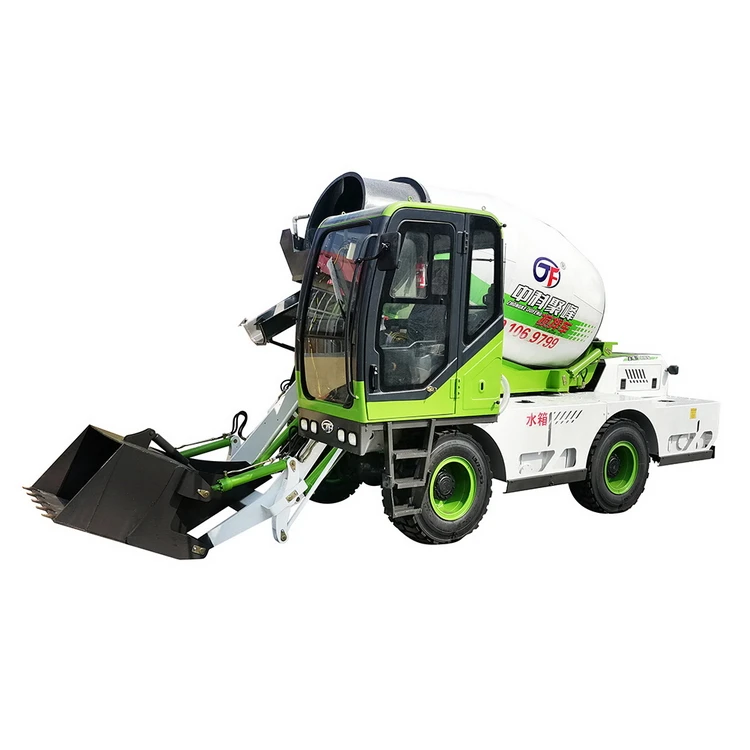

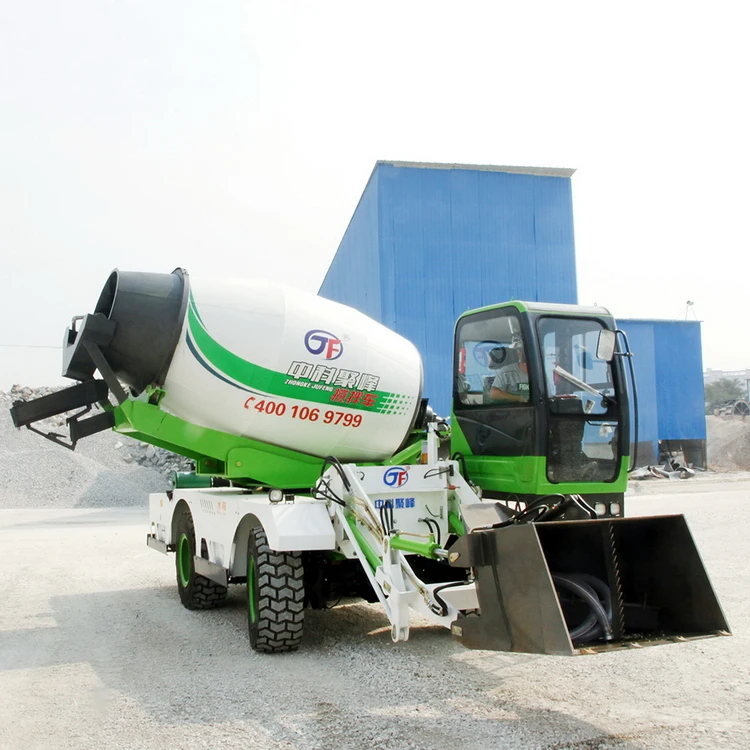

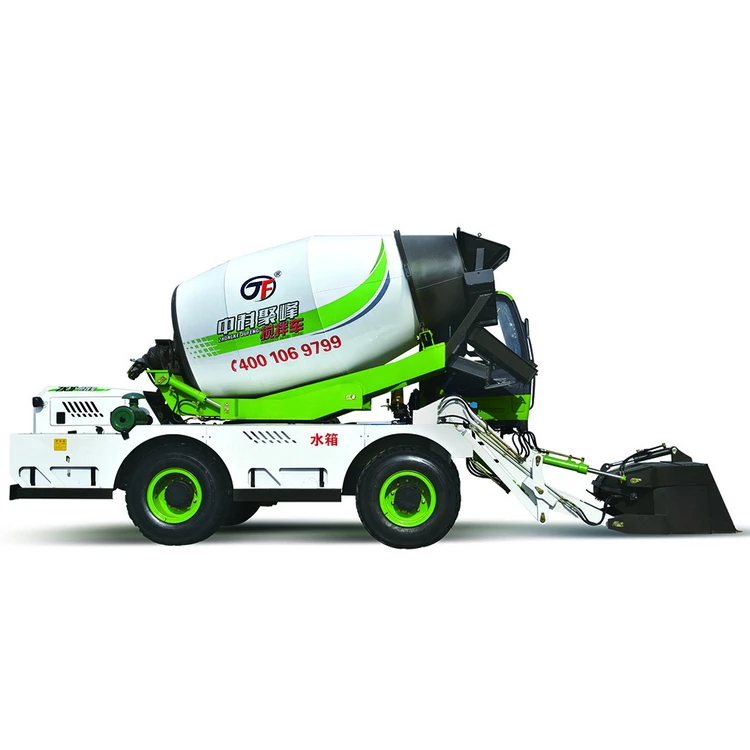

MODEL CMT4000 SELF LOADING CONCRETE MIXER TRUCK (4.0 CBM)

Product Introduction

Model CMT4000 Self Loading Concrete Mixer Truck is a kind of unique vehicle which combines concrete mixer, transit mixer and wheel loader. It features automatic calculating the proportion of mixing materials, the concrete output ability is 16 cube meters per hour. Front 2-wheel steering driving axle and full hydraulic transmission case make the mixer truck move in any kinds of complex off road ways, the max. moving speed can be up to 32 km/hour, and the min. turning radius is about 7.5 meters.

CMT4000 is equipped with driving camera, automatic water feeding & metering system, hydraulic water suction pump, cooling & heating air conditioner, electronic hydraulic weighing system, automatic lubricating system, and imported piston motor etc. The mixing drum is lifted up 20° by two hydraulic cylinders at bottom for high discharge over 2.0m in the front side of the vehicle.

\tThe vehicle size is small, which is suitable for limited site and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.

\tHigh strength steel plate, which enhances the load capacity and high stability of vehicle.

\tThe material of rolling ring and mixing drum adopts 16mn high strength steel which uses forging normalizing manufacturing process.

\tMixing blade is designed with varying pitching angles, which simplifies the feeding device, ensures the speed faster and mixing performance better.




Packing & Delivery




Our Company


Company Brief Introduction


Laizhou Jufeng Machinery Co., Ltd. is the leading manufacturer specializing in construction machinery and equipment in China. Founded in 1992, our company has grown to be group enterprise which covers an area of more than 200,000 square meters and owns over 600 employees and 5 production plants.

The main products we manufacture include Self Loading Concrete Mixer with output capacity ranging from 0.8 CBM to 6.5 CBM, Wheel Loader with payload from 1 Ton to 3 Ton, Backhoe Loader, Site Dumper, Crawler Excavator, Concrete Mixer Pump, Concrete Boom Pump, Block Making Machine and Compaction Machine, etc.

We have constantly improved and updated our products according to customer's feedback and market demand. At every stage of the manufacturing process, each component has passed the stringent tests before the assembled machinery goes through its final pre-despatching inspection. Excellent quality, efficient after-sales service and reasonable price make us gain customer's trust and good reputation in both domestic and overseas markets. Our products have been exported to Russia, Uzbekistan, Mongolia, Malaysia, Philippines, Middle East, Kenya, Uganda, Algeria and Australia, etc.

In accordance with the development strategy of "Make ZKJF as a Brand with One Hundred Year's History", we endeavor to head towards of our great goal of be first-class enterprise in mainland China and well-known engineering machinery manufacturer in the worldwide as well.








High Production Capacity





Advanced Laser Cutting, Robot Welding, Painting & Other Processing Equipments





High Level Quality Control & Neat Assembling Workshop
