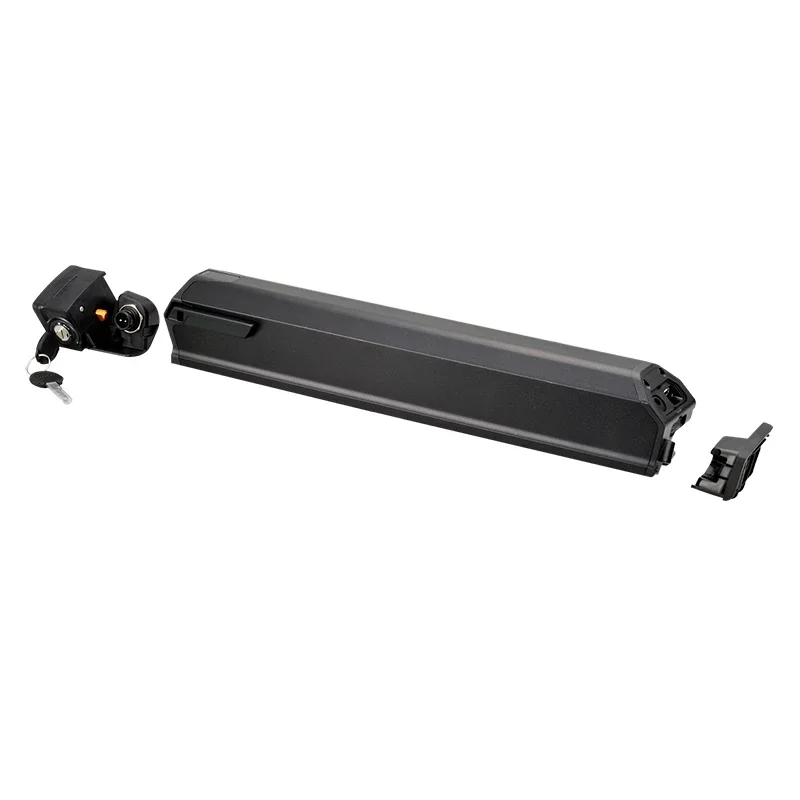

dorado e bike battery 48v 11.6ah 13.6ah 13ah 14.5ah 17ah 20.4ah 48v shengmilo mx03 48v 17 ah battery Hidden ebike frame battery pack Juice Crosscurrent bike specification:
Model | Junda-J109 |
Chemistry | LiNiCoMnO2 |
Nominal Voltage | 36V/48v/52v |
Nominal Capacity | 10.4ah 11.6ah 13.6ah 13ah 14.5ah 17ah 20.4ah |
Weight | 5.5Kg |
Outer case style | Dorado Pro L505 50pcs or L440 40pcs 18650 cell Dorado plus L440 52cpcs or L505 65pcs 18650 cell Dorado Max L440 64pcs or L505 80pcs 18650 cell dorado 21700 5ah L440 52 cell or L460 65 cell |
Standard Charge | Constant Current 0.2C, Constant Voltage 42V 100mA Cut-off |
Fast Charge | Constant Current 0.5CA, Constant Voltage 42V 100mA Cut-off |
Standard Discharge | Constant Current 0.2C/End Voltage 30V |
Cycle Life | 500 times with DOD80% |
Continuous Discharge Current | 10A or customized |
Peak discharge current | 30A or customized |
BMS function | Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Balance |
Storage Temperature Range | Temperature: -10-40℃ Relative humidity:45-75% Pressure: 86-106KPa |
dorado e bike battery 48v 11.6ah 13.6ah 13ah 14.5ah 17ah 20.4ah 48v shengmilo mx03 48v 17 ah battery Hidden ebike frame battery pack Juice Crosscurrent bike feature:
1 Long Battery Life
2 Easy to Use
3 Safety and Environmental Protection
4 High Discharge Efficiency
5 Over one year warranty
the dorado ebike battery case will fit for MS2 XC Sport R500, iGo M29r, Surface 604 Shred, Magnum Peak, E-Glide S/T, Addmotor m-560, Juiced Crossed Current S, Ride1Up 500 Series Juice Crosscurrent ebike .
Warning :
1 do not short circuit postive and negative of the battery pack.
2 do not dismantle the battery without the professional ebike battery technicist ' s support.
3 do not place the battery under high tempearature,such as heat,sunshine,or close to fire.
4 do not place the battery in fuilds,such as water ,alkaline or slat water.
5 Please keep the battery cool and dry ,charge the battery for 2 hours every 3 months if stored for a long time.
6 Always charge the battery with the licensed charger for lithium ion or lithium polymer battery.Please never mix the other charger to charge them in case of battery issues.
Detail parameter for the dorado e bike battery 48v 11.6ah 13.6ah 13ah 14.5ah 17ah 20.4ah 48v Hidden ebike frame battery pack Juice Crosscurrent bike as following:
How to choose a spare well-fit upgrade battery?
1:Confirm the original battery belong to L505 or L440 down tube
2:Battery length 18inch(460mm) belong to L505, can be upgraded to max 48V21AH or Plus 48V17.5AH
3:Battery length 15.5inch(390mm) belong to L440, can be upgraded to Plus 48V14AH
4: Confirm the battery voltage:36V 48V 52V
5: suitable motor power : 250W/350W/500W/750W/1000W motor
REMARK:
please check there is enough upper height space for upgrade more capacity battery .
