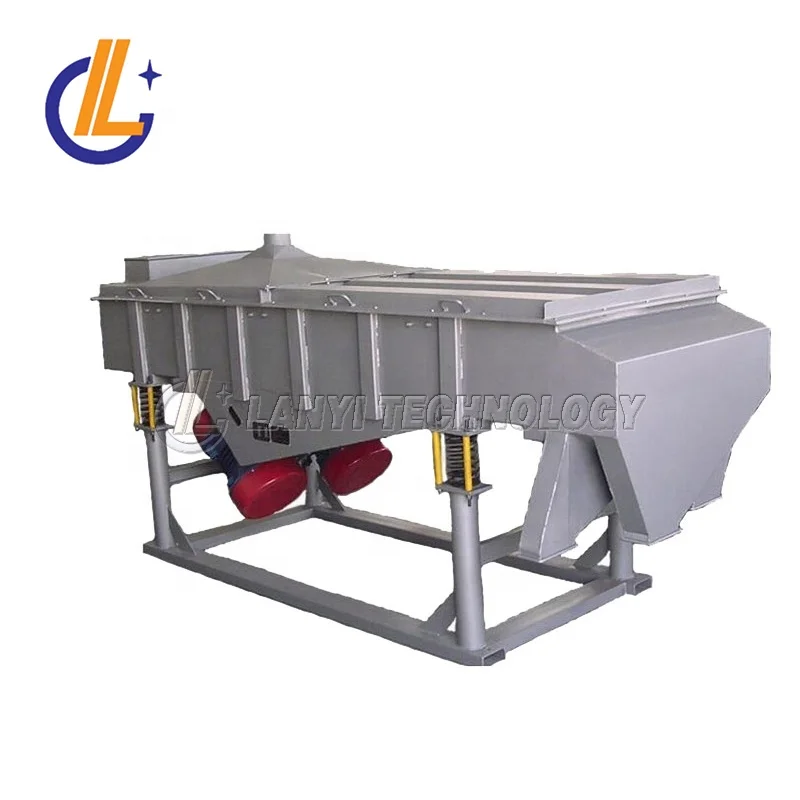

Линейное оборудование для просеивания муки вибрирующее сито

The linear screen (linear vibrating screen) uses vibration motor excitation as the vibration source, To make the material is thrown up on the screen and moves forward in a straight line. The material enters the feeding port of the screening machine evenly from the feeder.  Several sizes of oversize and undersize are produced by a multi-layer screen and are discharged from respective outlets.

Characteristics:The linear vibrating screen machine has the advantages of low energy consumption, high capacity, simple structure, easy maintenance, fully enclosed structure, no dust overflow, automatic discharging, and is more suitable for pipeline operation.
Advantages: 1. Good sealing and very little dust. 2. Low energy consumption, low noise and long service life of the screen. 3. High screening precision, large processing capacity and simple structure. 4. Fully enclosed structure, automatic discharge, more suitable for assembly line operations. 5. All parts of the screen body are welded by steel plate and profile (the bolts are connected between some groups). The overall rigidity is good, firm and reliable.

Linear sieve working principle:

When the linear screen is working, the synchronous rotation of the two motors causes the vibration exciter to generate a reverse excitation force, forcing the screen body to move the screen longitudinally, so that the material on the material is excited and periodically throws a range. Thereby completing the material screening operation.The linear vibrating screen is driven by a double-vibration motor. When the two vibrating motors are synchronously and reversely rotated, the exciting force generated by the eccentric block cancels each other in the lateral direction, and the combined excitation force in the longitudinal direction is transmitted to the entire screen. On the surface, therefore, the movement path of the sieve machine is a straight line. The direction of the exciting force has an inclination angle with respect to the screen surface. Under the combined action of the exciting force and the self-gravity of the material, the material is thrown up and jumped forward in a linear motion on the screen surface, thereby achieving the purpose of screening and classifying the material.

DZSF linear vibrating screen main features and suitable for the industry:High screening precision, large processing capacity, simple structure, low energy consumption, low noise, long service life of the screen, good sealing, minimal dust spillage, convenient maintenance, and can be used for automated operation in assembly line production.Widely used in the screening of dry powder or granular materials in the chemical, food, plastics, pharmaceutical, metallurgy, glass, building materials, grain, fertilizer, abrasive, ceramics and other industries.

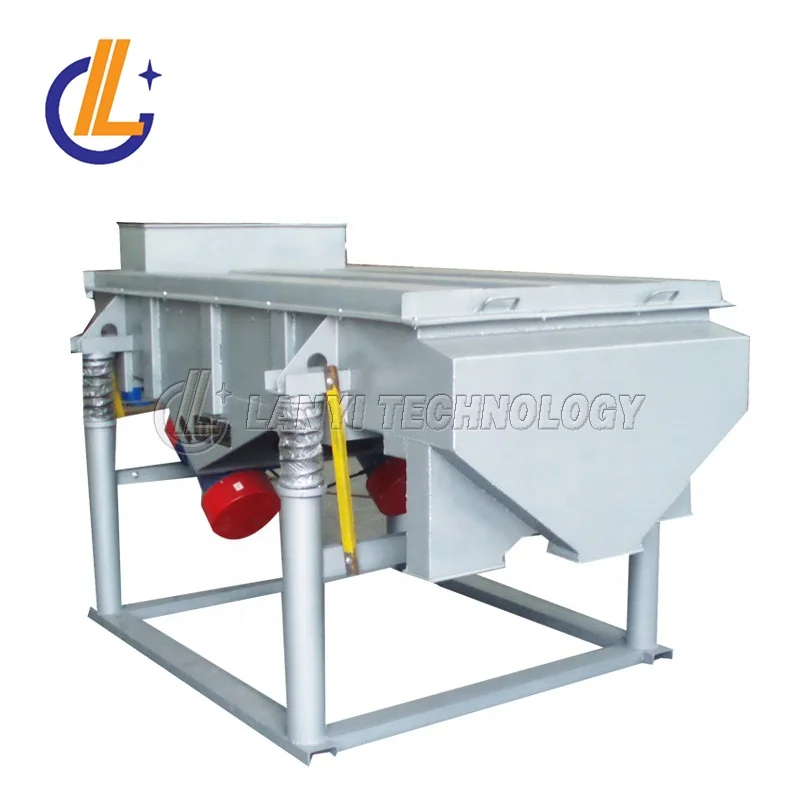

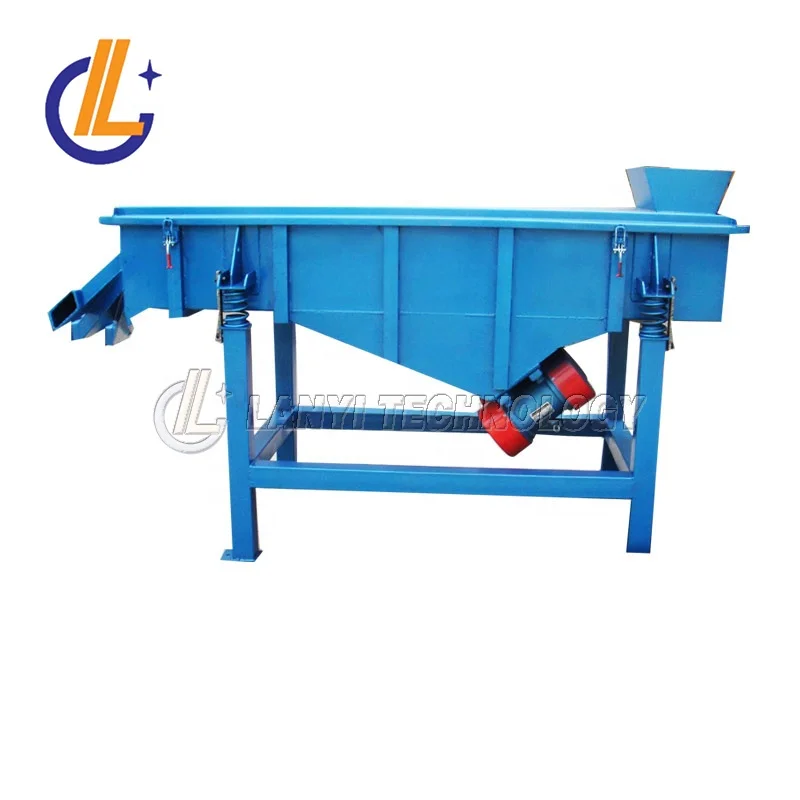

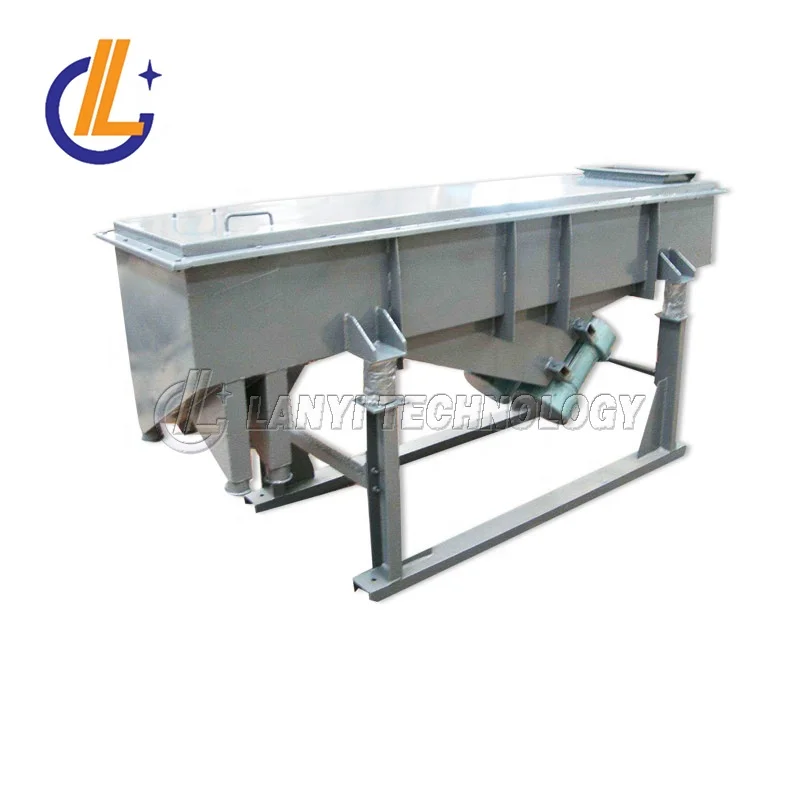

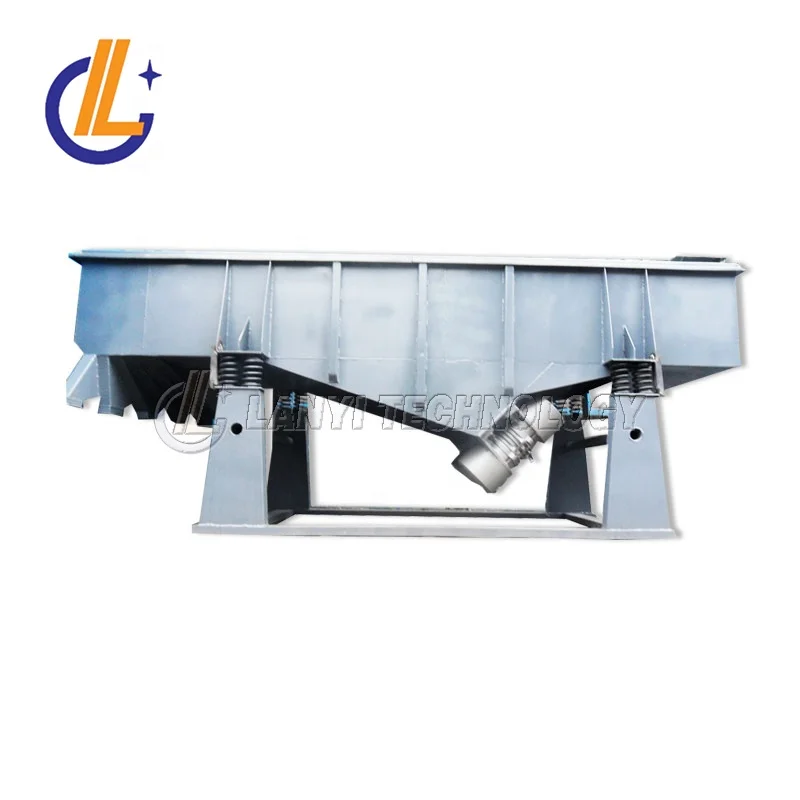

The linear vibrating screen structure is mainly composed of a screen box, screen frame, screen mesh, vibration motor, shock absorbing spring and  bracket. The screen box is the main frame of the vibrating screen. It is welded by a variety of different steel plates and has certain rigidity and strength. The screen mesh is made of rubber screen, which has high screening efficiency. In addition, the screen can be selected according to the needs of users.

Q:What factors I need to get a quotation?

Q:What is the real delivery time of your factory?

A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.

Q: How do you ensure the quality of your products?

A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of CWJX for most of our customers at home or abroad.Skilled workers and strict quality control system can ensure every machine with best working performance.

Q: How do your after-sale service work if the product got damaged?

A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)

Q: How could I trust your promise?

A: Firstly, you may check the assessment on our website certified by the appraisal agency Bureau Veritas;

secondly, we attend at least 4 to 6 international industry exhibitions held in China annually, like the Food Ingredients China, China International Battery Fair, CPhI, ICSE BioPh China, ICIF China, etc. We usually met our customers there for negotiation;

 Thirdly, company inspection always available, if you have any representative or you would like to come to our site, we offer free shuttle from Zhengzhou airport to our company, welcome your visit.
