Product Description
Skyplant Plastic Film Greenhouse Electric Top Side Roll Up Unit Motor 64w
FG-6040
DC24V
V:DC24V
W:64W(2.7A)
NM:35N/M
R:3.7rpm
Maximum use of power:84W(3.5A)
NM:50N/M
R:3.4rpm
Ration:1/785
W:2.4kg
Rolling Width:≤4m
Rolling Length:≤80m
Product Description:

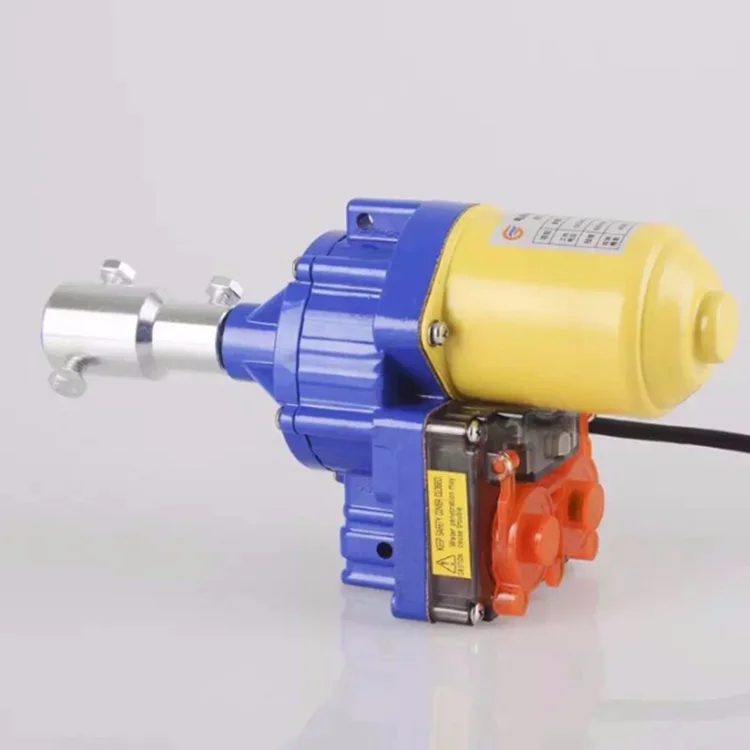

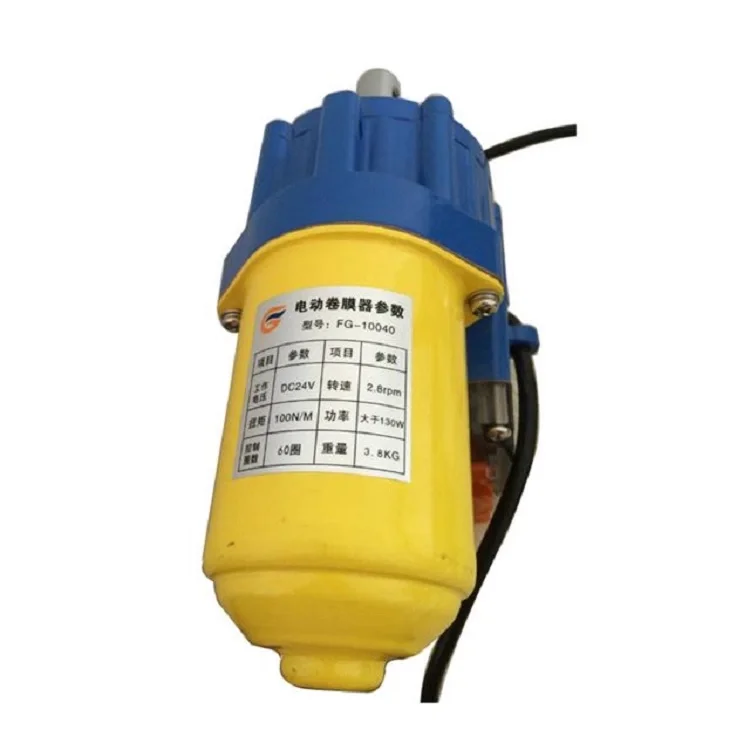

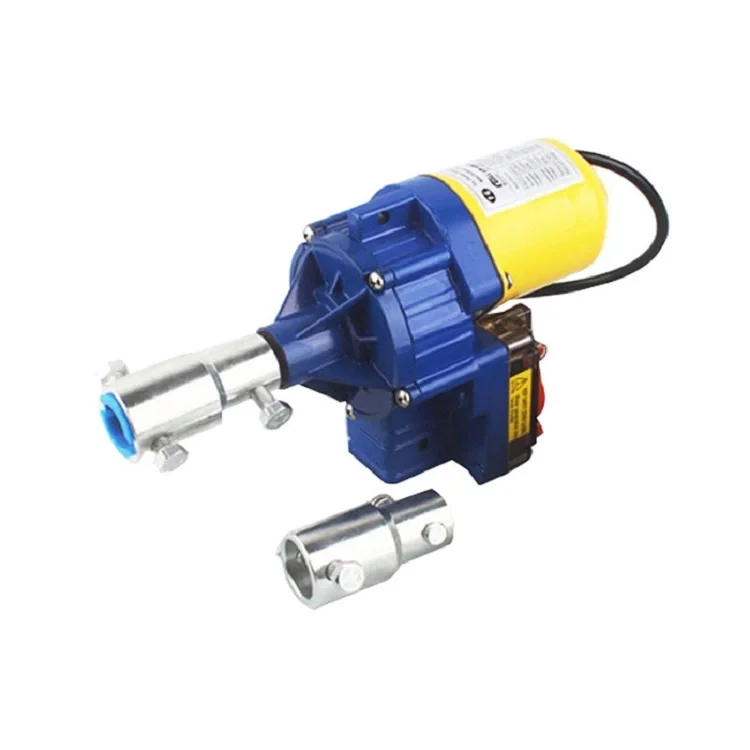

Electric roll-up unit

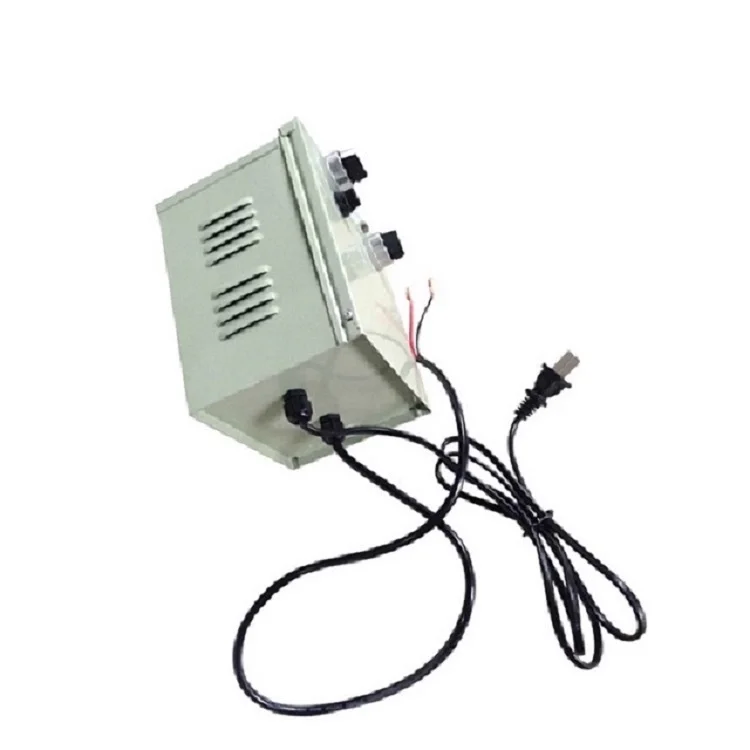

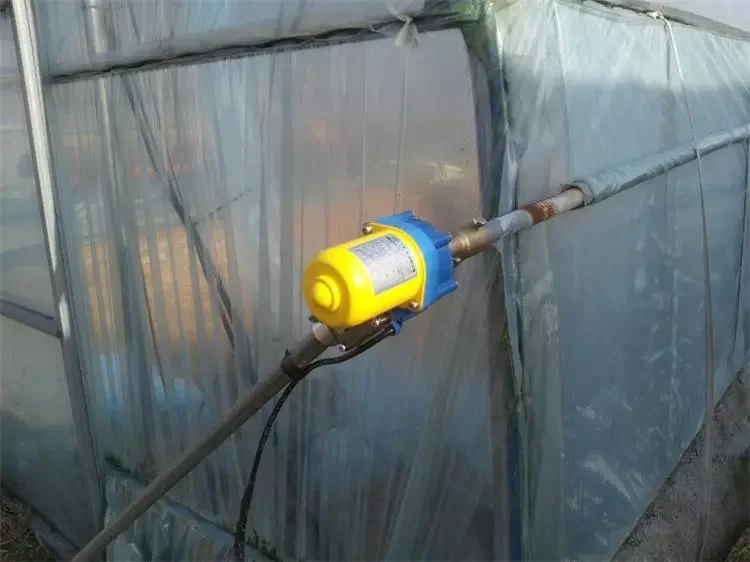

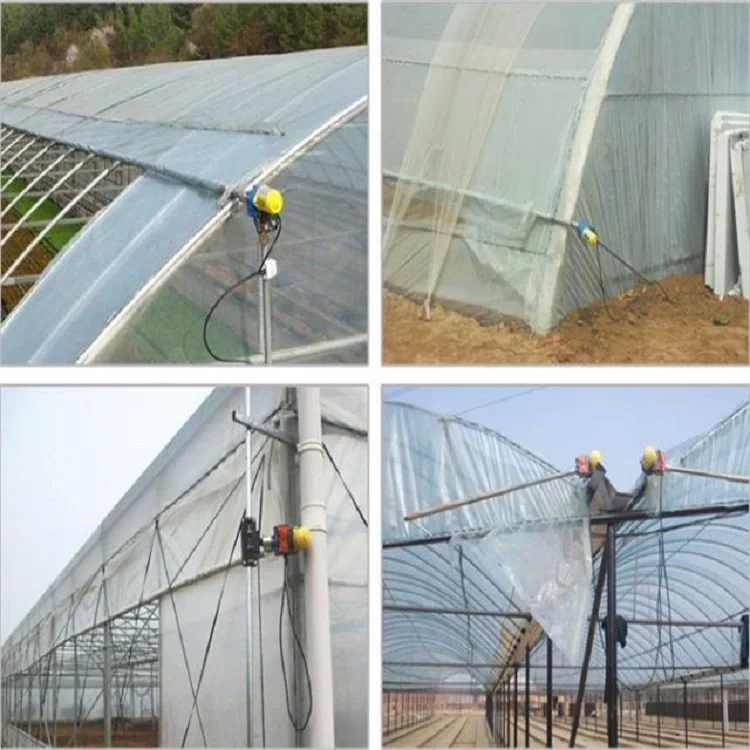

Used as a part of greenhouse film roll up system with greenhouse film roller. Form a complete set of film roll up system with Power adapter and Film roll up winch to achieve the ventilation function especially for plastic film covered greenhouse.
Advantage:
Low noise , large torque
Double spacing protection
Limit positioning accuracy,Self-locking performance is higher.
Guarantee service life 5 years![5.png]()
![6.png]()
Mode No |
Work Voltage |
Output Power |
Rating Output Torque |
Output Speet |
Weight |
24V |
DC24V |
80W |
70M m |
3.6r/min(idle) |
2.9 Kg |
