Product Description



Aluminum bronze plate CuAl10Ni C63200  CW307G



Bronze Material, phosphor bronze material ,Cast Bronze Materials, Aluminum bronze Materials
Grade StandardSPECIFICATIONPERFORMANCEAPPLICATION
ASTMISOBSGB/QB
C61400Cu Al8Fe4CA102  ROD: 3MM - 250MM; Tube,plate,High strength, good anti-friction quality,
good corrosion resistance in the atmosphere, fresh water, seawater,
hot processing, can be welding, brazing is not easy.
Widely used in machinery, ships, aviation and manufacturing sectors such as bearings, bushings, pump parts, gear turbo, seat, bolts, nuts, structural parts.
C61900Cu Al9Fe4
C62300CuAl10Fe3CA103QAl9-4
C63200CuAl10Fe3Mn2CA105QAl10-3-1.5
C63000CuAl10Ni5Fe4CA104QAl10-4-4



Chemical composition of aluminum bronze
 ASTM No.Element
 Al %Fe %Ni %Mg %Pb  %Zn  %Cu  %
C614006 - 8.0 1.5 - 3.50.15max1 max0.01max0.1maxRemainder
C619008.5 -103.0 - 4.5  0.01max0.2maxRemainder
C623008.5 -102.0 - 4.01 max0.5 max0.01max0.1maxRemainder
C6240010 - 11.52.0 - 4.5 0.3 max0.25 max0.25 maxRemainder
C630009 -11.02 -4.04 -5.51.5max0.25max0.3maxRemainder
C6302010 -11.04 - 5.5 4.2 -61.5max0.03max0.3maxRemainder
C632008.7 -9.53.5 -4.34 -4.81.2-2 0.02maxRemainder





  ALLOY TYPE

EN STANDARD

DIN STANDARD

ASTM STANDARD (NEAREST EQUIVALENT)

OTHER COMPATABLE ALLOYS

Aluminum Bronze

CW307G

CuAl10Ni

C63200 / C63000

NES833, BSB23(DTD197A)

Aluminum Bronze

-

CuAl10Fe3Ni7Mn2

C63000

-

Aluminum Bronze

CC331G

CuAl10Fe2-C

C95400

SAE68

Aluminum Bronze

CC333G

CuAl10Fe5Ni5-C

C95500

SAE68B

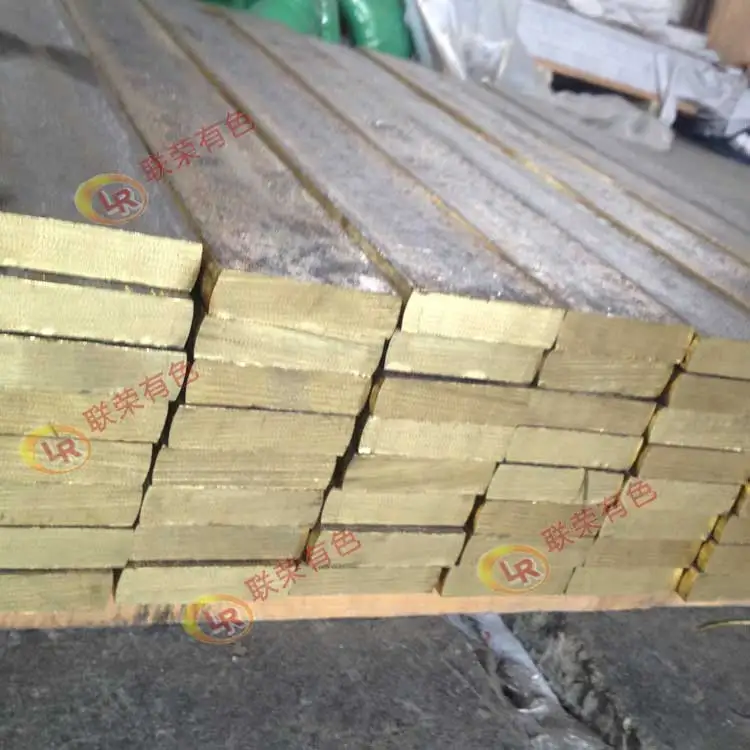

 bronzebigplate-1bronzebigplate-2





Packaging & Shipping

 Inside plastic moisture-proof packaging, outside wooden pallet



 bronzeplate-5mm-pkplate

Our Services

PAluminum bronze Aluminum content is generally not more than 11.5%, sometimes adding iron, nickel, manganese and other elements of right amount, aluminum bronze strengthened by heat treatment, its strength than tin bronze high, high temperature oxidation resistance is better, higher wear resistance strength, good for the rather high strength screw, nut, copper cover, seal rings etc., and wear resistance of the parts, the most prominent feature is the good wear resistance
CuAl7, C61000, QAl7: Application: the spring box, the corrosion resistance of the elastic element
CuAl10Fe3,C62300,QAl9-4: Application: wear parts, bearings, shaft sleeve, gear, turbine, nozzle, flange, flat rocker, support etc.
CuAl10Ni5Fe5, C63020,QAl10-4-4: Application: Wear parts?box of high strength work at 400 ℃ the following parts, such as bearings, bushings,gears, a spherical seat, nuts, flange etc.
Wires:Diameter 0.035mm – 8mm Customer requirements of various specifications
Bars:Diameter 8mm – 300mm Customer requirements size,shape, round,square, hexagonal, profiled
Sheets: Thickness 1.00mm – 200mm width 20mm – 200mm length 200mm -3000mm Requirements
Pipes: Customer requirements of various specifications Wall thickness The length, diameter,
Round,square, hexagonal, profiled .
Strip: Thickness 0.1mm – 1mm width 10mm – 1000mm length Requirements
Ingots: 10mm-500mm, length Requirements

 ourservenproduce

Company Information

 Jiangxi Lianrong Copper Industry Co.,LTD On the basis of Shanghai Lianrong Copper Co., Ltd. was founded in 2007, Our business type is manufacturer and trading company, After more than 10 years of development, has established a good reputation in the field of copper alloy and non-ferrous brand alliance, We are in production management, technical quality control, logistics, after-sales service are in line with standardized management. After years of development, has formed a processing, production, sale and export of Integrated Company. We are based in Shanghai, sales network covering east China, Southern China, southwest and North China, the main business covers the whole country, Our products have been exported to more than 20 countries, mainly in Europe, South America, North America, Southeast Asia, South Africa, the Middle East and so on. Our main products: phosphor bronze wire,bronze bar,bronze tube,bronze plate, bronze strip, brass wire, brass bar, copper wire, copper bar, copper nickel, aluminum bronze, silicon bronze, beryllium bronze, copper tellurium copper alloy material, plate and so on, we can also be customized according to customer requirements, production and processing of various types of copper alloy products, we also sell gold and silver wire, tinned wire, aluminum, lead material, stainless steel products, other metal materials. In many years of operation, the company has created the brand of "Lian Rong You She". We will continue to work hard to continuously improve our brand competitiveness, serving our local and overseas customers. Your trust and choice is the driving force of our progress.
