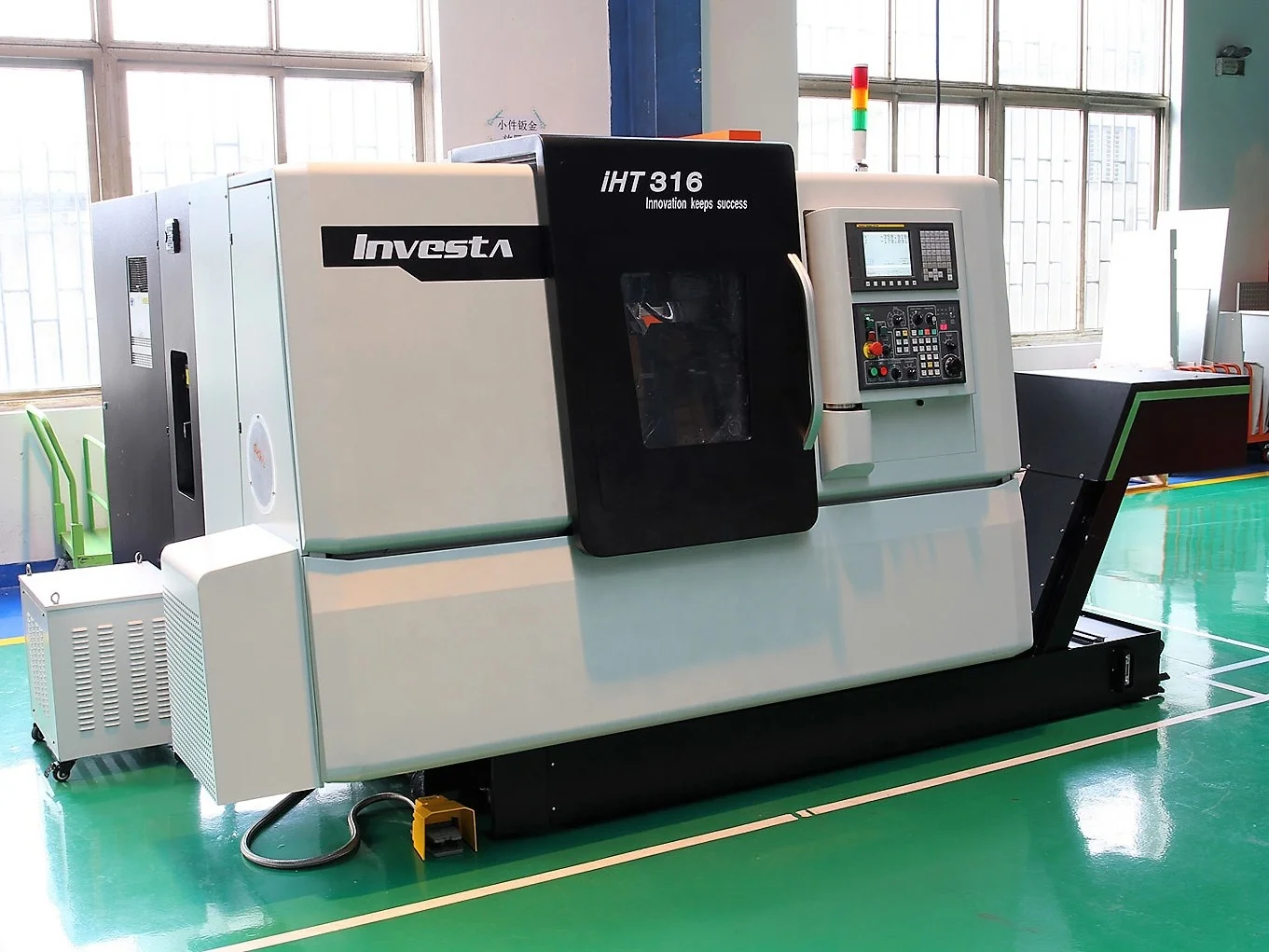

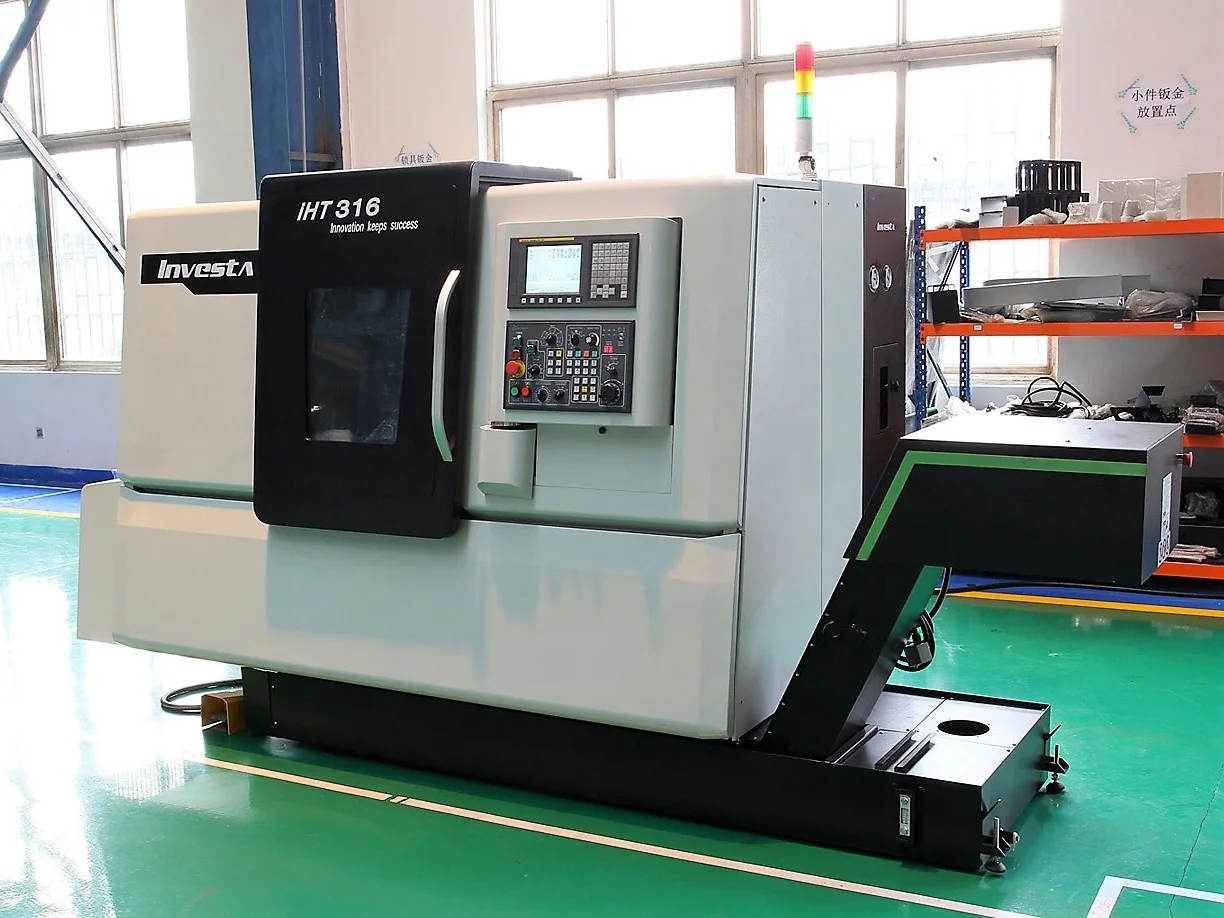

Миниатюрный токарный станок IHT316 для металла с ЧПУ режущего мотоцикла
- Категория: >>>
- Поставщик: Nantong Guosheng Intelligence Technology Group Co. Ltd.
Сохранить в закладки 62423913827:
Описание и отзывы
Характеристики
Product Description
Details Images
1. High stability, solid cast iron stand, compact design -30°, 45°slant bed.
2. Germany r & D spindle structure.
3. IHT516/IHT521 working area with programmable hydraulic tailstock.
4. The shaft is machined on an IHT1025 with driven tools.
5. Integrated parts catcher.
6. Hydraulically centring steady rest on the vertical slideways is mounted on IHT1025.
7. Tool measuring device.
8. Hydraulic system.
9. Y axis option, orthogonal Y axis, row up to ±60mm.
Specification
Machine Type | Unit | IHT 316 | ||
Spindle | ||||
Spindle head | FL140h5 | |||
Maximum spindle speed | rpm/min | 4500/5000 | ||
Maximum torque 40% ED | Nm | 112 | ||
Spindle power / FANUC | kW | 7.5/11 | ||
Chuck diameter | mm | 6″ | ||
Spindle bore | mm | Φ74.3 | ||
Front bearing diameter | mm | Φ100 | ||
Working area | ||||
Maximum swing over bed | mm | 558 | ||
Maximum swing over cross slide | mm | 420 | ||
Maximum cutting diameter over slide | mm | 340/328 | ||
Maximum diameter of feed | mm | 42/51/65 | ||
Maximum machining length | mm | 350 | ||
X/Z-axis | mm | 180 / 380 | ||
Center distance | mm | 608 | ||
Turret slide | ||||
Z-axis rapid traverse | m/min | 30 | ||
X-axis rapid traverse | m/min | 30 | ||
C1 axis rapid | m/min | 100 | ||
Measuring system | ||||
X/Z axis measuring system | Absolute rotative | |||
Highest positioning accuracy (X / Z) | mm | 0.008/0.008 | ||
Repeat positioning accuracy (X / Z) | mm | 0.004/0.005 | ||
Tailstock | ||||
Tailstock travel | mm | 350 | ||
Mobile tailstock | CNC control | hydraulic/servo | ||
Tailstock maximum thrust | N | 4,000 | ||
Tailstock sleeve | Types | MK 4 | ||
Tool attachments | ||||

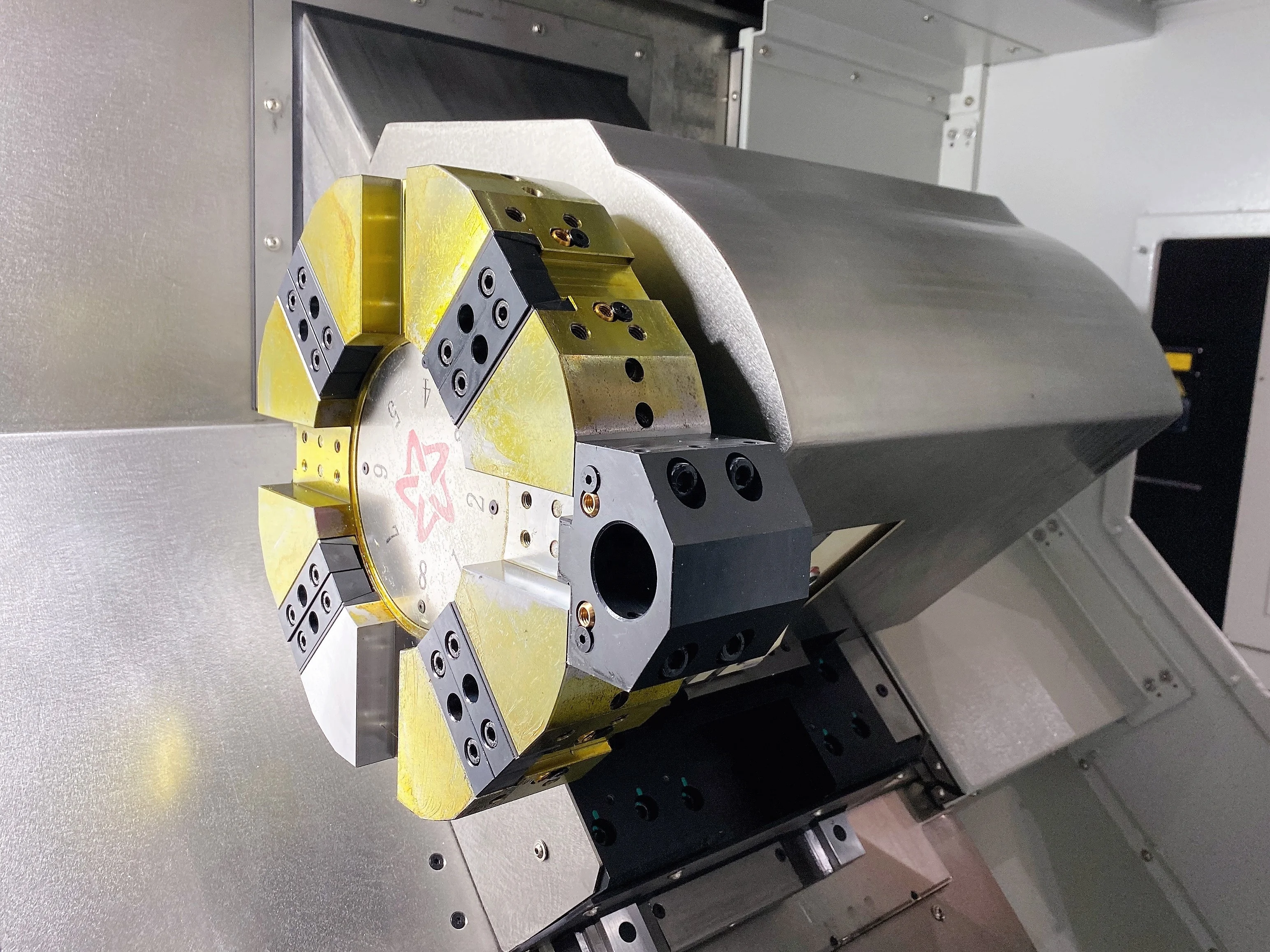

Electric turret | Investa/sauter | |||
No.of tool stations | 8/12 | |||
Turret disk type | Slot cutter | |||
Tool attachment | □25 | |||
Maximum speed | rpm/min | 4000 | ||
Drive speed | kw | 3/3.3 | ||
Torque | Nm | 35/45 | ||
Electrical specification | ||||
Voltage | V | 380 | ||
Frequency | HZ | 50 | ||
Max.installed power | kva | 20/25 | ||
Hydraulic unit | ||||
Max.working pressure | bar | 60 | ||
Oil collector | L | 35 | ||
Pump flow | L/min | 24 | ||
Coolant system | ||||
Tank capacity | L | 100 | ||
Pump delivery | L/min | 30 | ||
Pump pressure | bar | 5 | ||
Control system | ||||
0i-TF | ||||
808/828/840D | ||||
Others | ||||
Noise level | db | ≤80 | ||
weight | kg | 3200 | ||
Floor area (length*width*height) | mm | 3600*1850*1850 | ||
Slant angle，material | ° | 45°HT300 | ||
Process instance
Quality control
Company Profile

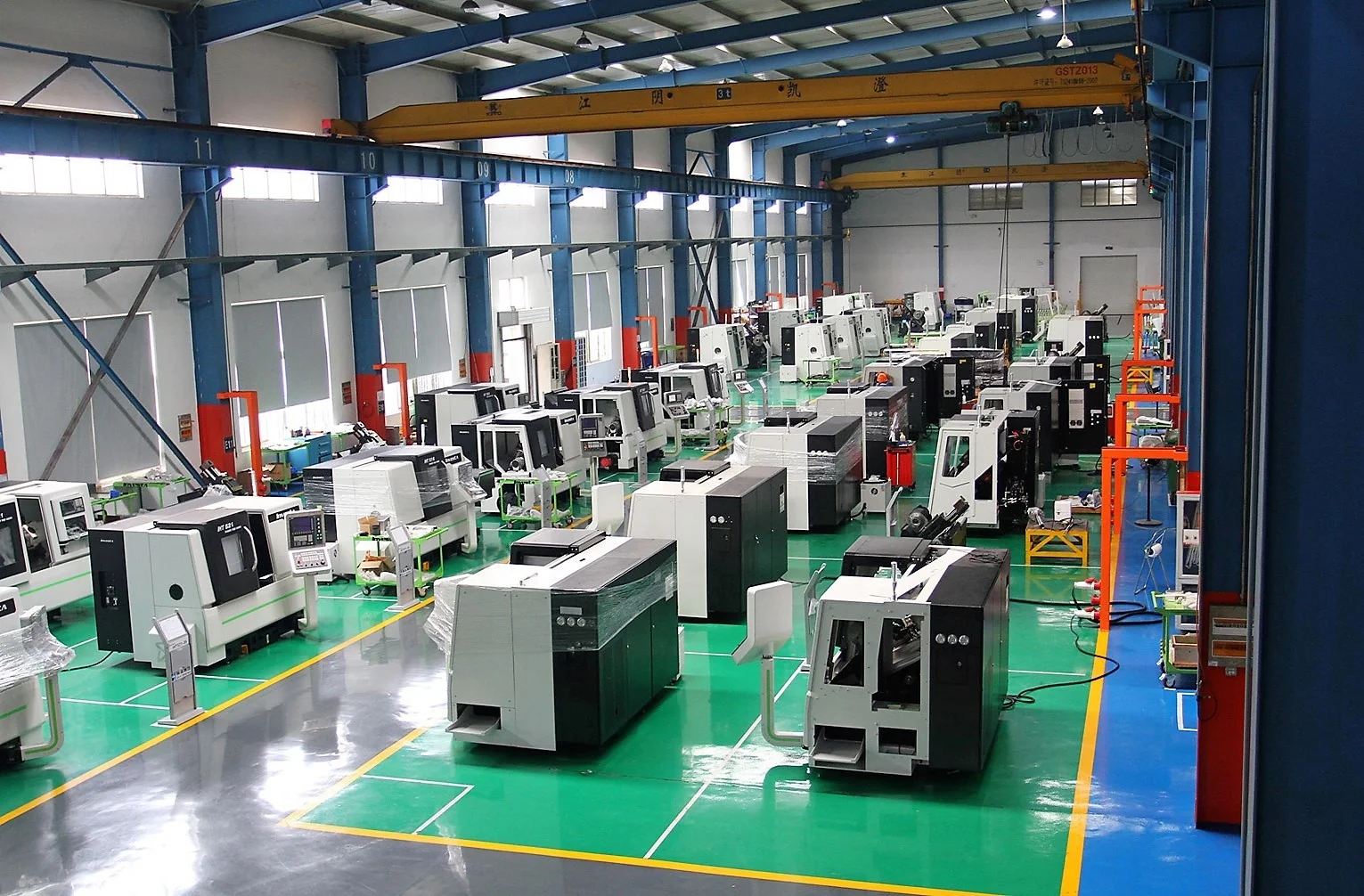

Nantong Guosheng Machinery & Power-Generating Group Co. Ltd. is specialized in producing the advanced CNC Horizontal
Machining Center, CNC Vertical Machining Center, Gantry Machining Center, Horizontal boring-milling machine and Precision sheet metal parts, professional welding
parts, high quality casting, CNC EDM Machine tool and so on.
Our products can meet the demand from mould industry, energy industry, shipbuilding industry, construction machinery industry, aerospace industry, military project and so on.
Guosheng Group is a high-tech enterprise with strong R&D team .We are among of the top 15 in Chinese CNC machine tool industry.And we own a lot of patents
and high-tech products.
With the strong technical support, precision machining, detection device, well-organized employee team and industry-leading service idea, now Guosheng group has
become the long-term partner of a lot of world famous enterprise like : DMG, BOMAG, SANDVIK, TOSHIBA MACHINE, HUSKY, FOXCONN and so on.
Guosheng group enterprise sprit is: "honest, quality, diligence, innovation." We will keep on provide the all-around solution and high quality products and fast-action to our international clients.
Machining Center, CNC Vertical Machining Center, Gantry Machining Center, Horizontal boring-milling machine and Precision sheet metal parts, professional welding
parts, high quality casting, CNC EDM Machine tool and so on.
Our products can meet the demand from mould industry, energy industry, shipbuilding industry, construction machinery industry, aerospace industry, military project and so on.
Guosheng Group is a high-tech enterprise with strong R&D team .We are among of the top 15 in Chinese CNC machine tool industry.And we own a lot of patents
and high-tech products.
With the strong technical support, precision machining, detection device, well-organized employee team and industry-leading service idea, now Guosheng group has
become the long-term partner of a lot of world famous enterprise like : DMG, BOMAG, SANDVIK, TOSHIBA MACHINE, HUSKY, FOXCONN and so on.
Guosheng group enterprise sprit is: "honest, quality, diligence, innovation." We will keep on provide the all-around solution and high quality products and fast-action to our international clients.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 1999,sell to . There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Vertical Machine Center,Horizontal Machine Center,Horizontal Boring and Milling Machine Center,Gantry Machine Center,CNC Lathe
4. why should you buy from us not from other suppliers?
We have nearly 16 years in producing CNC machine tools .We have been cooperated with a lof of famous enterprises like : TOSHIBA Machine, HUSKY, DMG, BOMAG, SANDVIK, DAVIS-Standard, FOXCONN, TRUMPF, Schaeffer Group and so on .
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English
We are based in Jiangsu, China, start from 1999,sell to . There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Vertical Machine Center,Horizontal Machine Center,Horizontal Boring and Milling Machine Center,Gantry Machine Center,CNC Lathe
4. why should you buy from us not from other suppliers?
We have nearly 16 years in producing CNC machine tools .We have been cooperated with a lof of famous enterprises like : TOSHIBA Machine, HUSKY, DMG, BOMAG, SANDVIK, DAVIS-Standard, FOXCONN, TRUMPF, Schaeffer Group and so on .
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English
