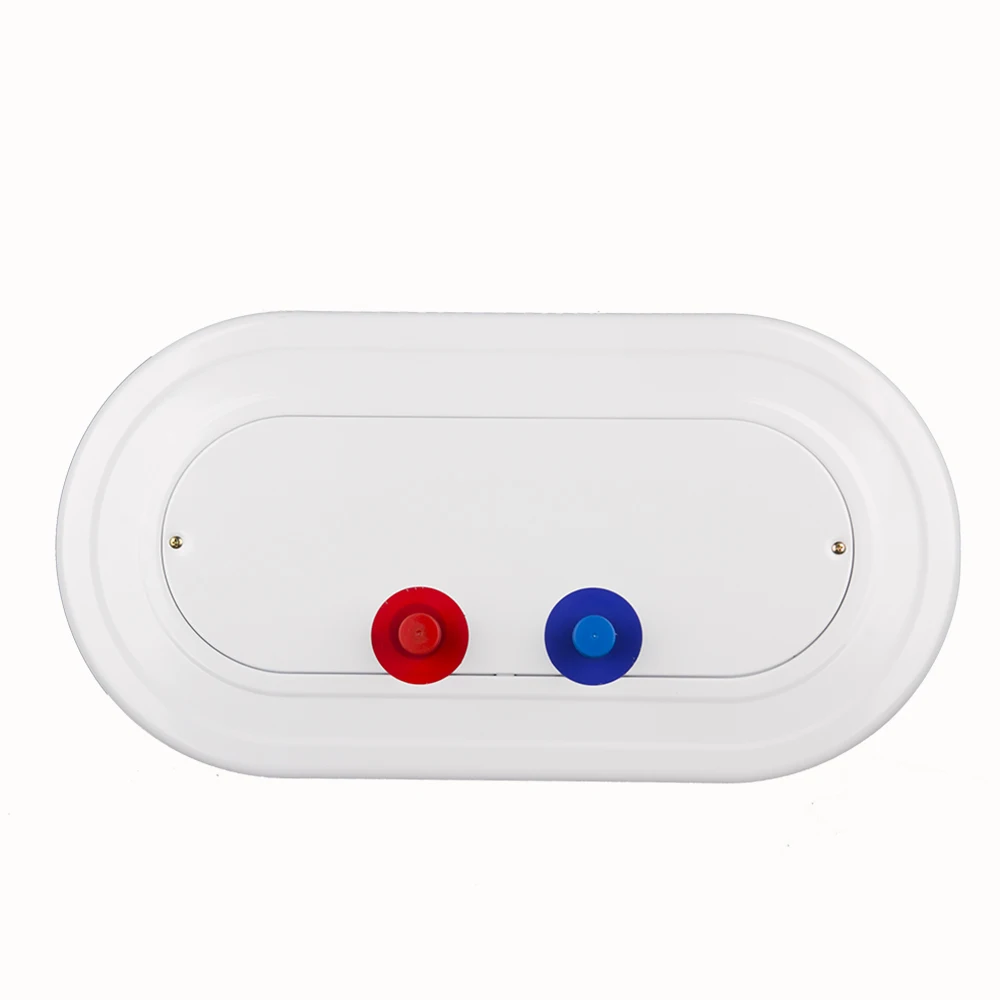

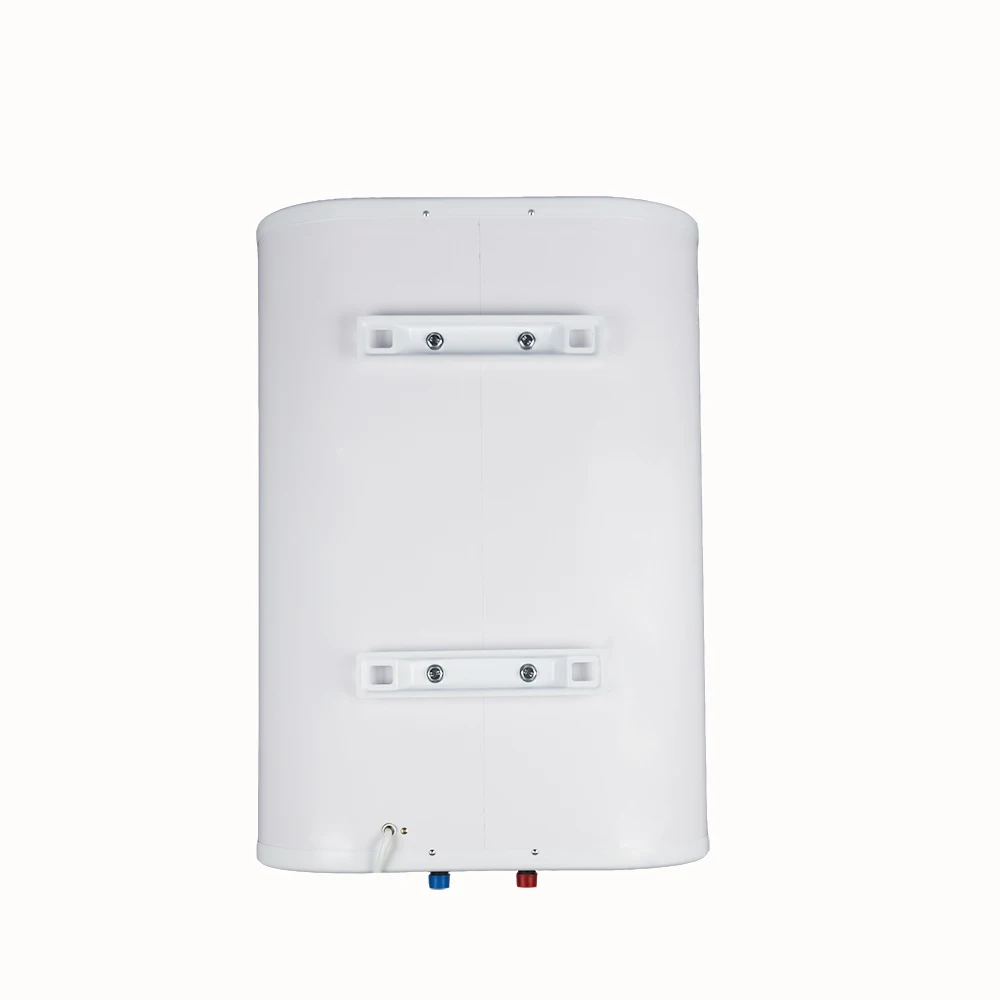

Product Features

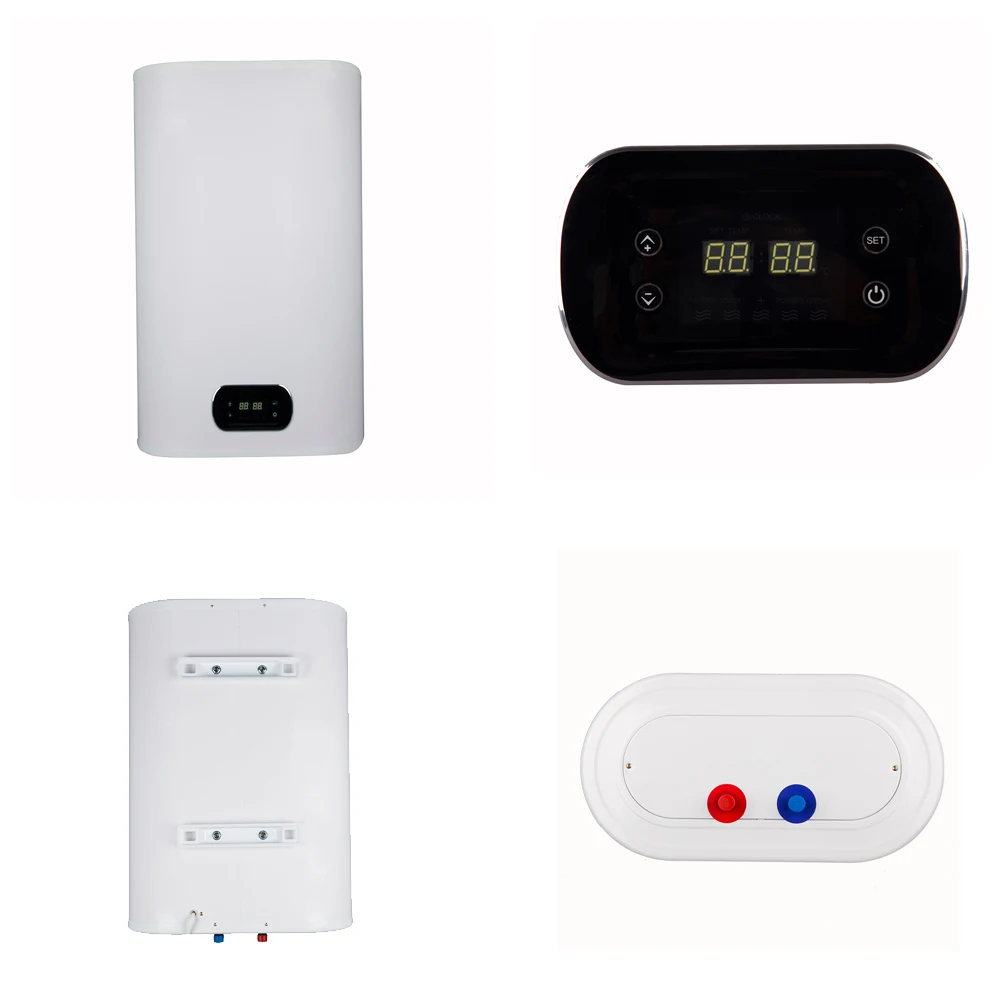

1. wall hung cylindrical type
2. spcc steel tank,10 bar pressure tested and exclusive vitreous enamel coating
3. highly efficient thermal insulation and environmentally sound
4. vertical plastic housing

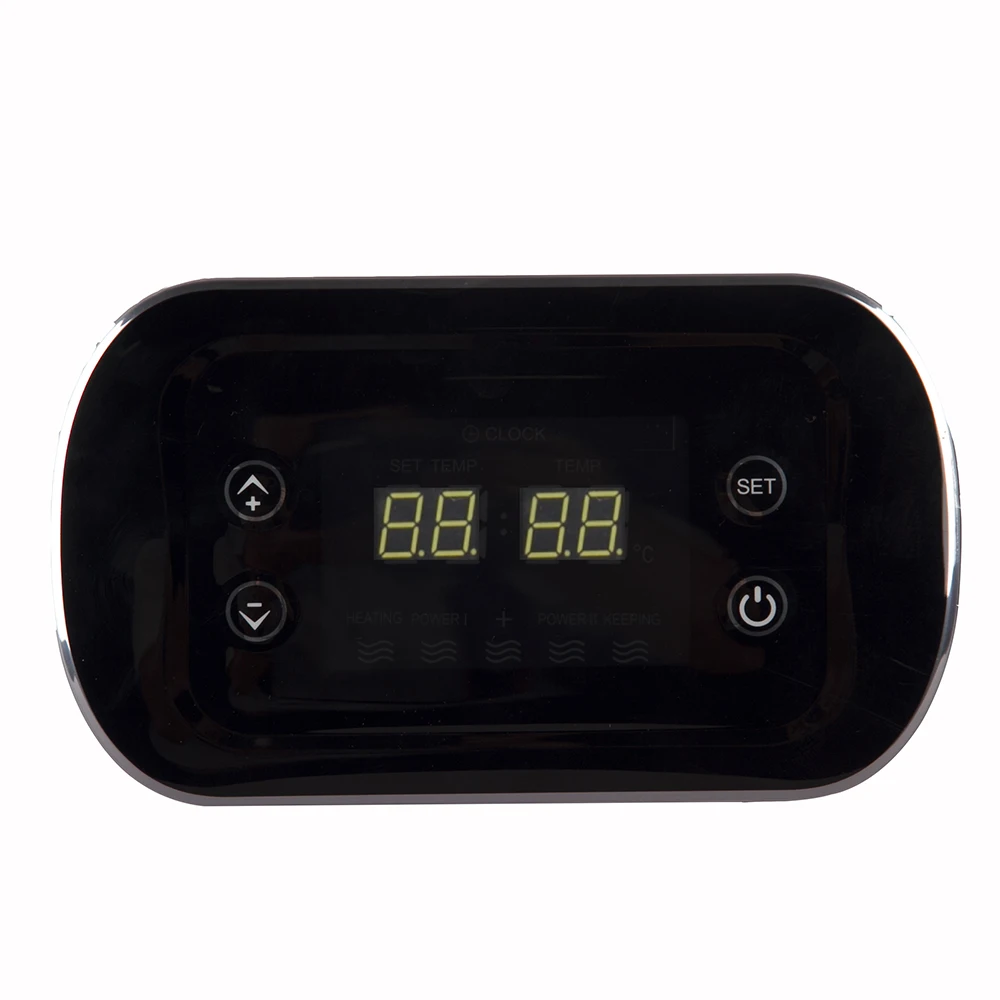

5. internal regulation thermostat
6. 8 bar safety valve with 1/2’’ copper oulet
7. dual pole thermal cut-outs
Technical Date-Overall Dimensions
Model |
| FJI-B3-20V | FJI-B3-30V | FJI-B3-40V | FJI-B3-50V | FJI-B3-60V | FJI-B3-80V |
Capacity | L | 15 | 25 | 35 | 50 | 60 | 80 |
Power | KW | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Voltage | V | 220-240 | 220-240 | 220-240 | 220-240 | 220-240 | 220-240 |
Heating Time(t=45℃) | Hrs. | 0.5 | 0.83 | 1.16 | 1.66 | 2.0 | 2.66 |
Max working Temperatur | ℃ | 75 | 75 | 75 | 75 | 75 | 75 |
Max Water Pressure | Mpa | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
Product Size | L*W*H/mm | 472*270*455 | 625*270*455 | 635*535*310 | 745*535*310 | 870*535*310 | 1015*Φ450 |
Packaging Size | 615*310*495 | 765*310*495 | 775*575*350 | 885*575*350 | 1012*575*350 | 1155*575*350 | |
Temp Cutting | ℃ | 92 | 92 | 92 | 92 | 92 | 92 |
HS code | 8516101000 | ||||||
Certification | CE/ROHS/CB/FCC | ||||||
Logo | OEM printed per request |
