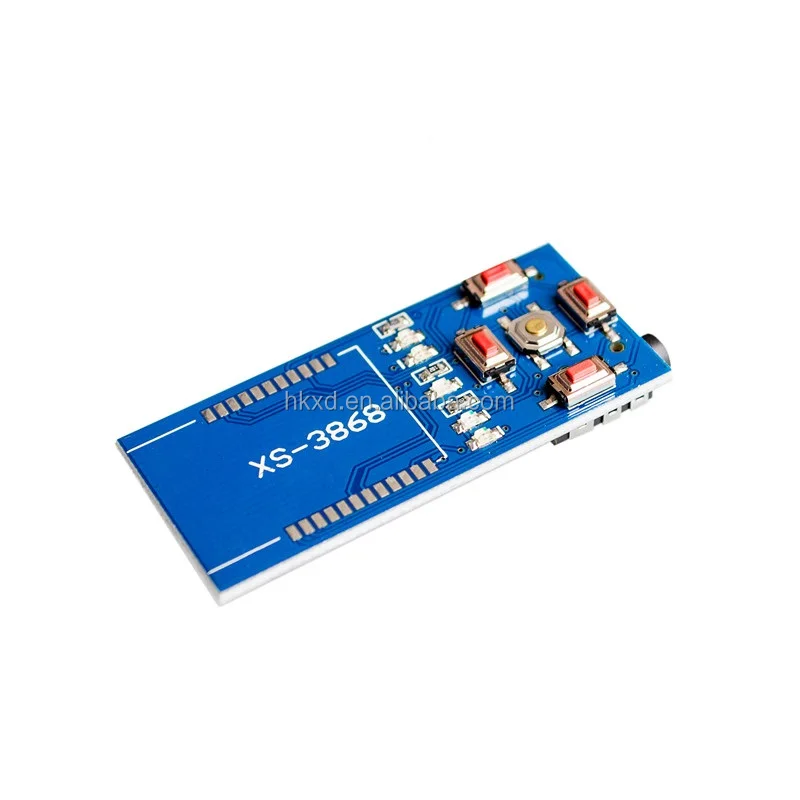

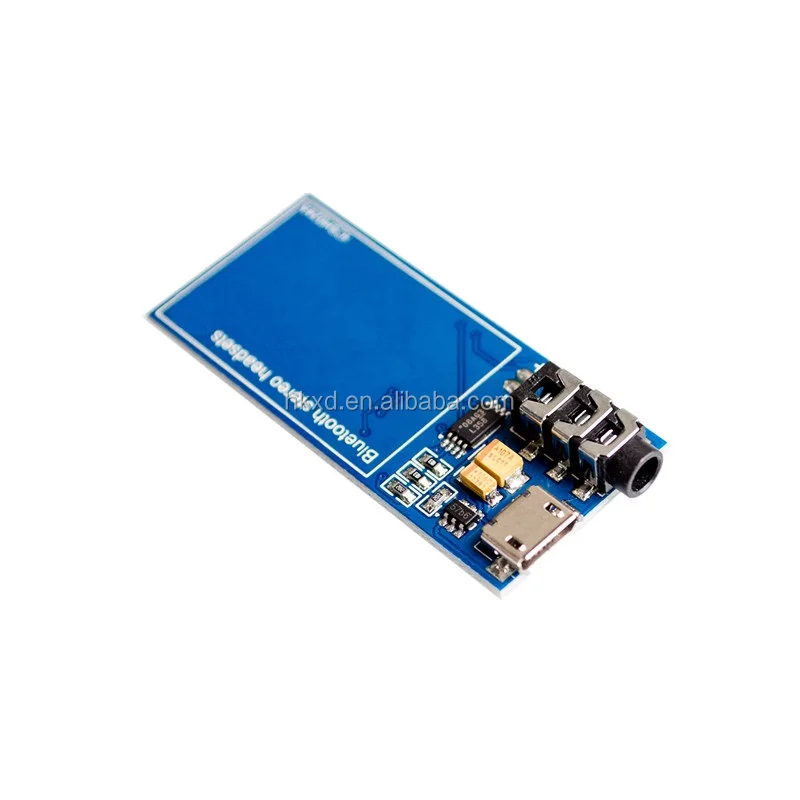

Модуль XS3868 материнская плата адаптер стерео аудио модуль главный контрольный чип OVC3860

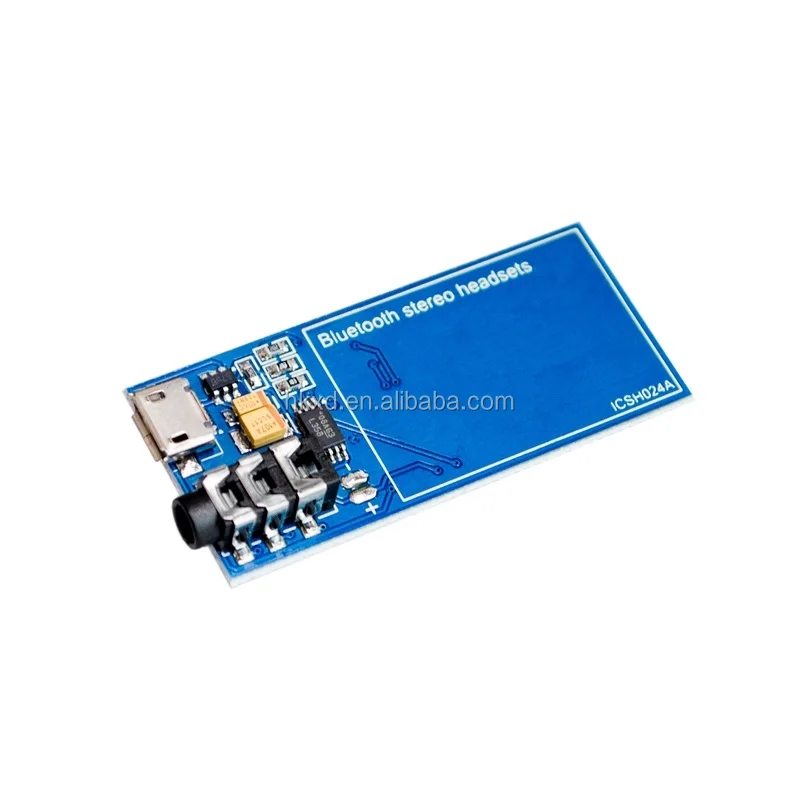

Module XS3868 Backplane Adapter Board Stereo Audio Module Master Control Chip OVC3860

1. Features
1). High integration, low cost, low power consumption
2). Compliant with 2.0 specification
3). Support A2DP V1.2 , AVRCP V1.4 profiles
4). Integrated EEPROM , configurable working mode and parameters
5). Stereo audio output can directly drive 40mW 32 Ω speakers
6). Low voltage detection function

2. Scope of application
1). stereo headset
2). stereo

3. Parameters
1).USB charging voltage: 4.2V~9V
2) .USB charging current: 400ma
3).XS-3868 Supply voltage: 3.6V~4.2V
4). Play music current: 80MA (MAX)
5). With machine current: less than 1MA
6). Module size: 49*22mm ( not welded XS-3868) , 54.5*22mm ( welding XS-3868)

4. Instructions for use
The meaning of the LED indicator
Play/Pause : start / pause, long press the switch

5. Notes
1). There must be no metal next to the antenna .
2). The sound box cannot be shielded in a large area.
