Машина для сушки опилок циклонная сушилка с потоком горячего воздуха барабанная

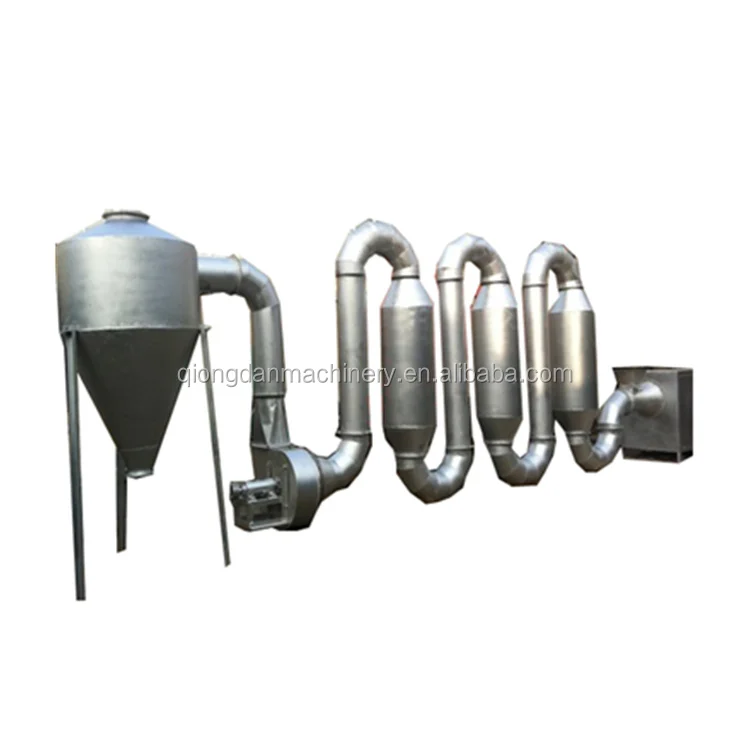

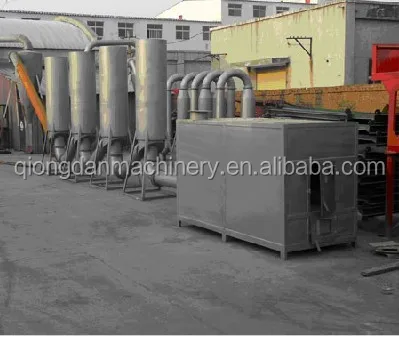

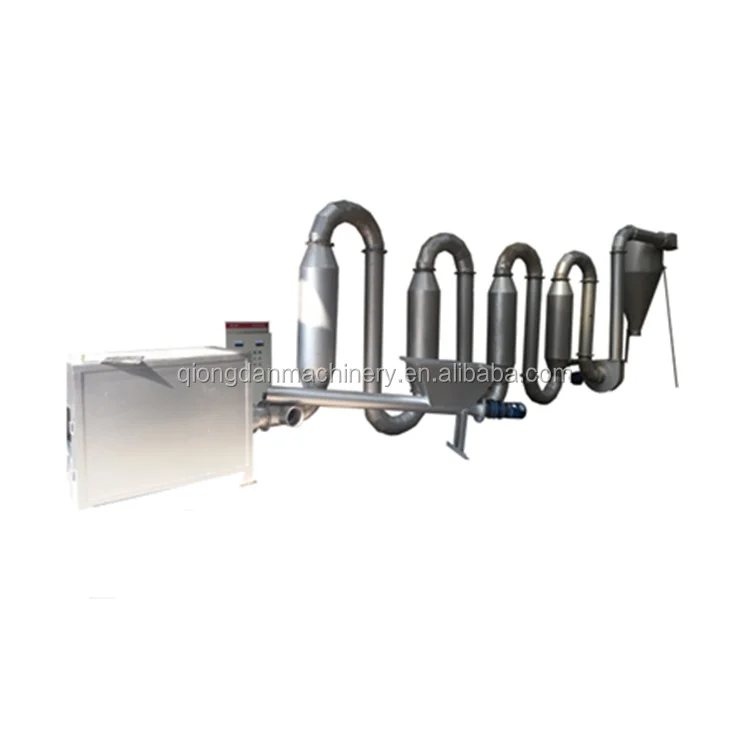

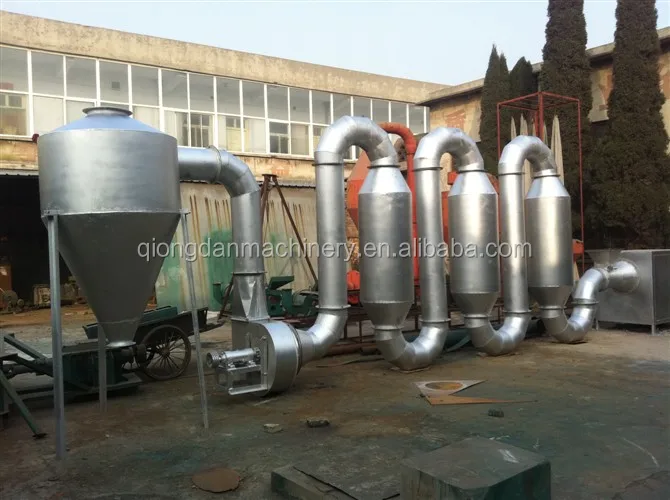

Description of Wood sawdust Air flow dryer machine

    Air dryer is a hot air pulse dryer, also called hot-air duct dryer. The advantage of this dryer is direct heating, fast drying, and folding installation, saving space. Air dryer refers to adding dry material such as powder or fibrous body wet material in a suitable manner, and continuously adding it into the drying tube. In the transportation and dispersion of the high-speed hot gas flow, moisture in the wet material is evaporated to obtain a powdery or fibrous dry product.

    Compose of air heater, feeder, air drying tube, cyclone separator, fan and other components.

Application of Wood sawdust Air flow dryer machine
    Especially suitable for wet materials with high moisture content and paste, as well as materials that cannot be dried by other air drying methods.

    Such as vinyl acetate, calcined gypsum, Electrolytic manganese dioxide, fluorite, silica catalyst, bone powder, synthetic resin, active gluten, activated clay, chemical filter cake, copper sulfate, Aluminium sulfate, sodium sulfate, calcium phosphate, phosphate starch, dyes, slime, clay cement, aluminium hydroxide Barium hydroxide, calcium lactate, gypsum slurry, lime, biological products, carbon black, calcium carbonate pulp, sludge residue, iron oxide, organic fuel, corn protein feed, wet mud, mica powder, Chemicals, pigments, lees, etc.

Working principle of Air flow dryer machine
    The wet material enters the dryer at the same time through the conveyer and the heated natural air, and the two are fully mixed. Because of the large area of heat and mass exchange, the purpose of evaporation and drying is achieved in a very short time. After drying, the finished product is discharged from the cyclone separator, and a small part of the fly powder is recovered from the cyclone dust collector or the bag dust collector.

Parameter of Wood sawdust Air flow dryer machine

Features of Wood sawdust Air flow dryer machine

1. High drying strength . Since the material is highly dispersed in the air stream, the entire surface of the material is actively dry and effective.
2. Short drying time
3. The sawdust sawdust dryer has a simple structure, small footprint, and easy construction and maintenance.
4. A large amount of processing, high thermal efficiency. When drying unbound water, the thermal efficiency can reach 60%. This industrial dryer machine can reduce the moisture of the materials to 8-12% one time with the advantages of lower consumption and high efficiency.

Main advantages of airflow dryer drying equipment

1. Drying intensity is large, equipment investment is low: the handling capacity of airflow drying equipment is the largest, evaporation water capacity from 50kg/h-1500 kg/h, and equipment volume is small, investment is less than other drying equipment.
2. High degree of automation, good product quality: airflow drying materials are all in the pipeline, drying time is very short (only 0.5-2 seconds), so it can realize automation, the product is not in contact with the outside world, the pollution is small, the quality is good.
3. The high thermal efficiency of the air-flow dryer is operated by gas-solid parallel flow, and in the stage of surface gasification, the material is always at the wet bulb temperature of the gas it is connected with, and generally does not exceed 60 ~ 65 ℃. At the end of drying, the material temperature rises. Gas temperature has been greatly reduced, the product temperature will not exceed 70 ℃ 90 ℃. At the same time, drying, crushing, screening, transportation and other unit processes can be jointly operated, not only simplified, but also easy to operate automatically. Wide range of airflow drying can be used in a variety of powder granular materials.
4. In the selection of heating mode, the airflow drying equipment has great adaptability. The user can choose steam, electricity and hot blast stove to heat according to the condition of the area, and at the same time, according to the heat resistance temperature (or hot air temperature) of the material: ≤ 150 ℃, steam heating can be selected; electric heating (or steam heating, electric compensation or heat conduction oil heating) at ≤ 200 ℃; coal-fired hot blast furnace at ≤ 300 ℃; and oil-fired hot blast furnace at ≤ 600 ℃.

Qiongdan machinery company is specialized in manufacturing dryer machine, like grain grinder machine, straw cutter, conveyor, cooling machine and packing machine. Our company is located in Zhengzhou City, Henan Province. The technology, trade and service is the core of global companies, and our company is committed to global customers with high standards of product manufacturing, and a full range of technical services and efficient solution.

Service before sale

24 hours online to answer questions that you want to know(Whatsapp, wechat, QQ, Skype, Trade Manager, etc), or  you can send email to my email, I will give you a satisfying answer.

Service on sale

1.To provide customers with the new and high quality animal feed pellet machine.
2.Provide pictures that the customer desired about the animal feed pellet machine during production, in the warehouse and before transport.
3.Payment is determined by both parties.
4.Customers to choose the mode of transport.

After-sales services

We offer one year warranty for the whole machine except easy broken parts, Providing the spare parts with favorable price all the time 24 hours online service.
