Рама для ремонта кузова автомобиля Тяговая машина

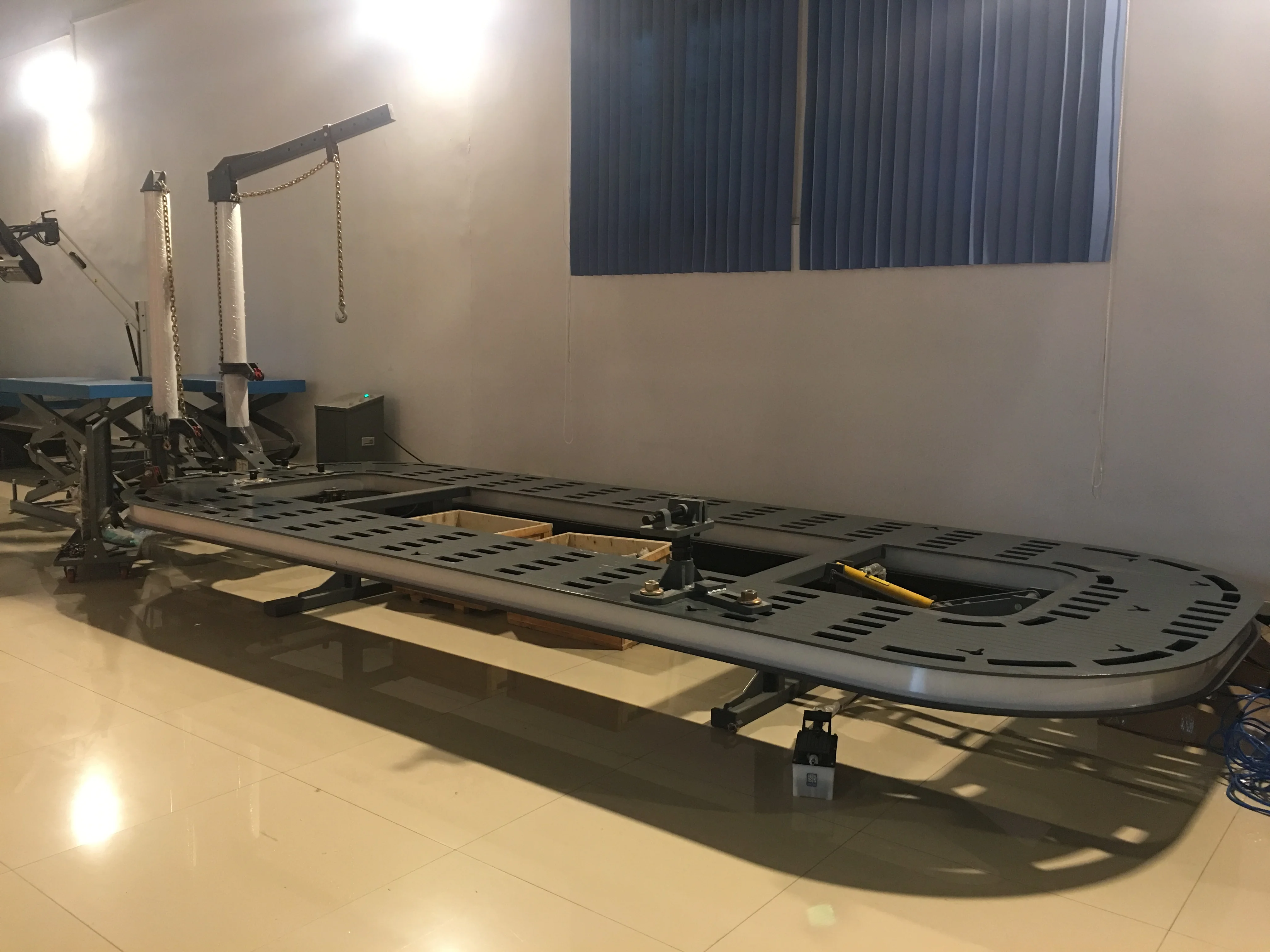

WLD-V Automtoive Auto Body Frame Machine Functions:

1) The high-accuracy large bench provides an ideal place serving for several purpose.

2) The working height of the vertical lifting bench can be adjusted between 300mm and 1020 mm as needed.

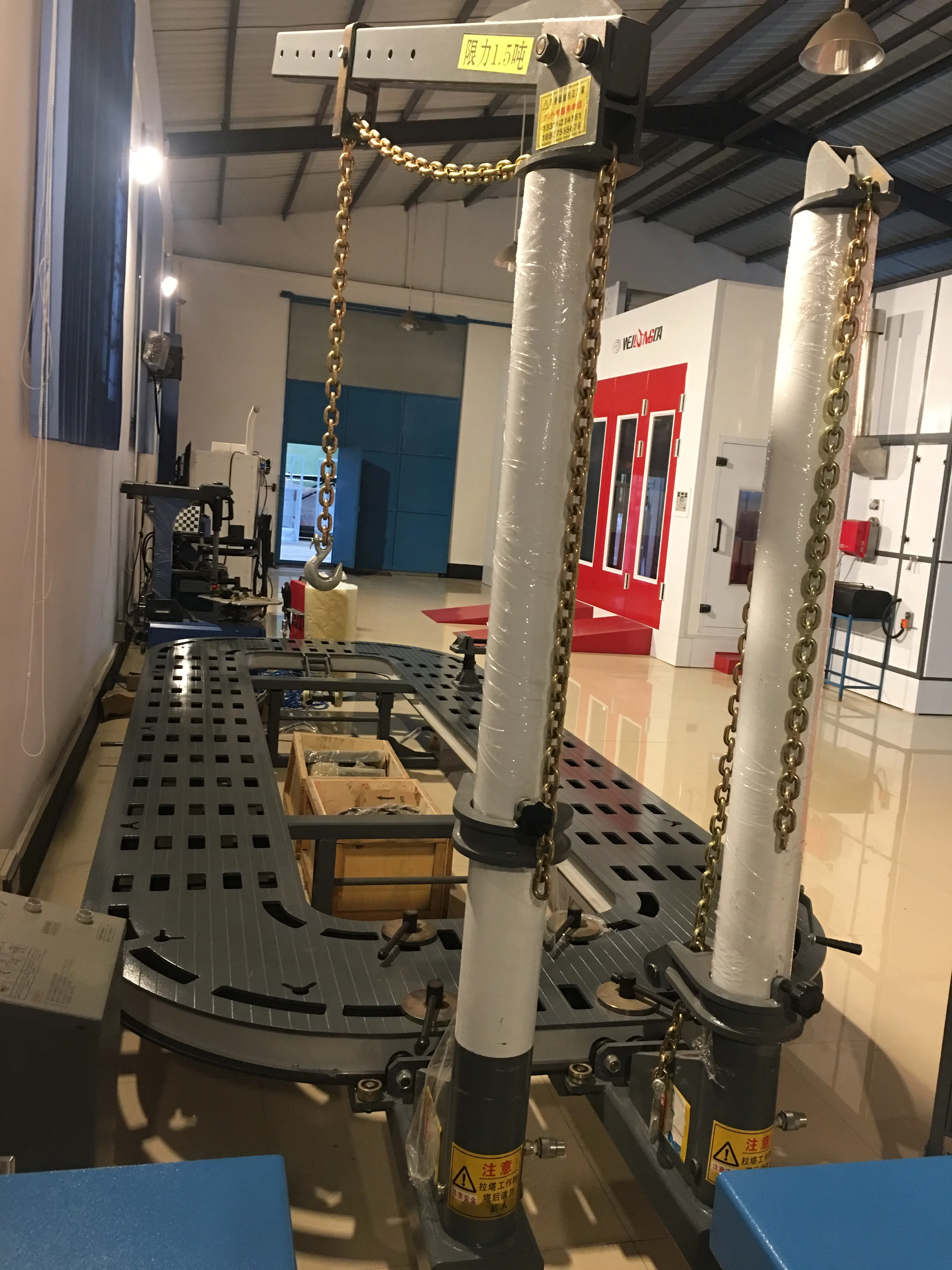

3) With unique way of fixing and strong pulling force the two movable hydraulic pulling towers can turn 360 degrees along the bench rail, making work on all sides of the vehicle fast and efficient.

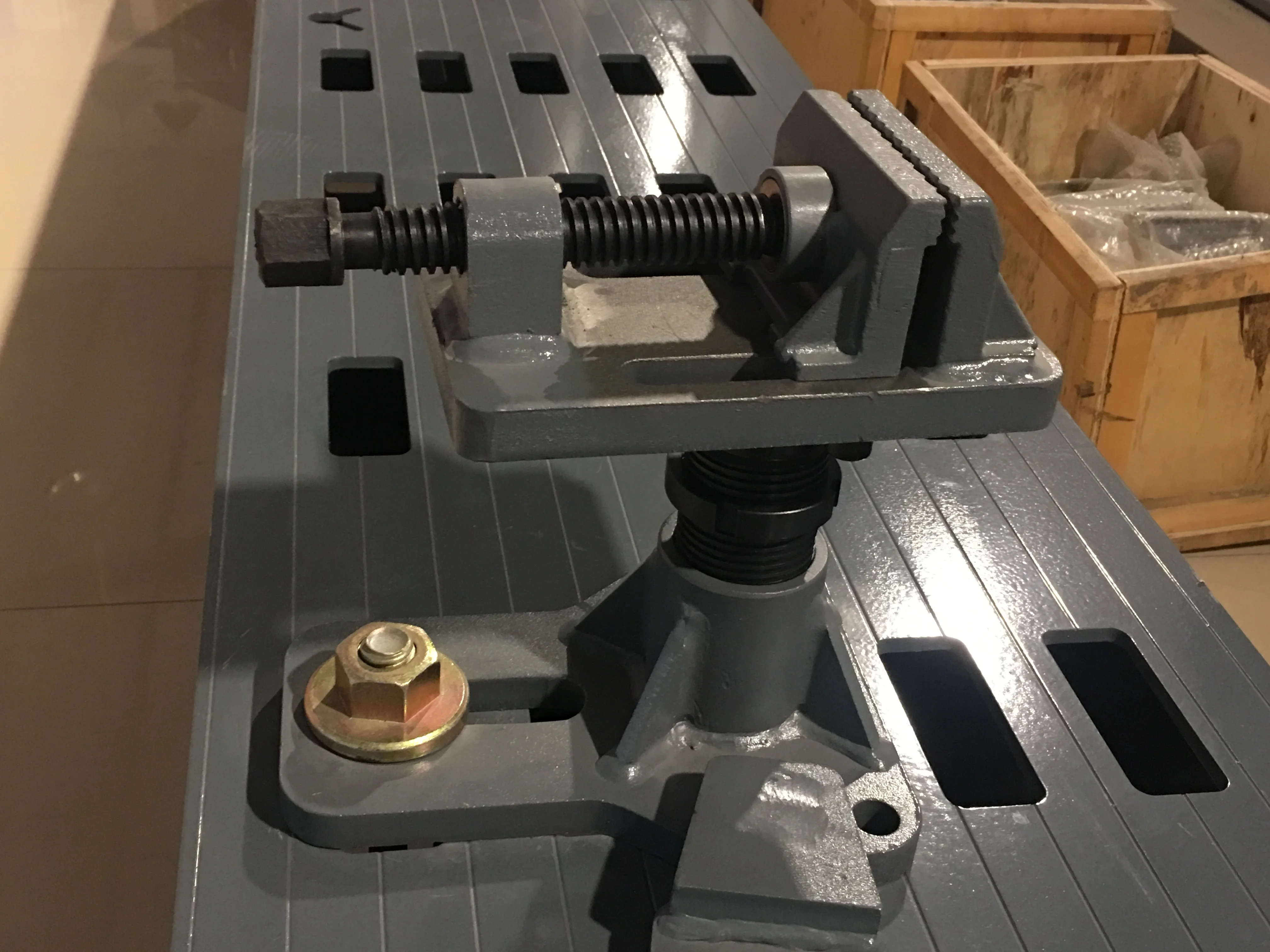

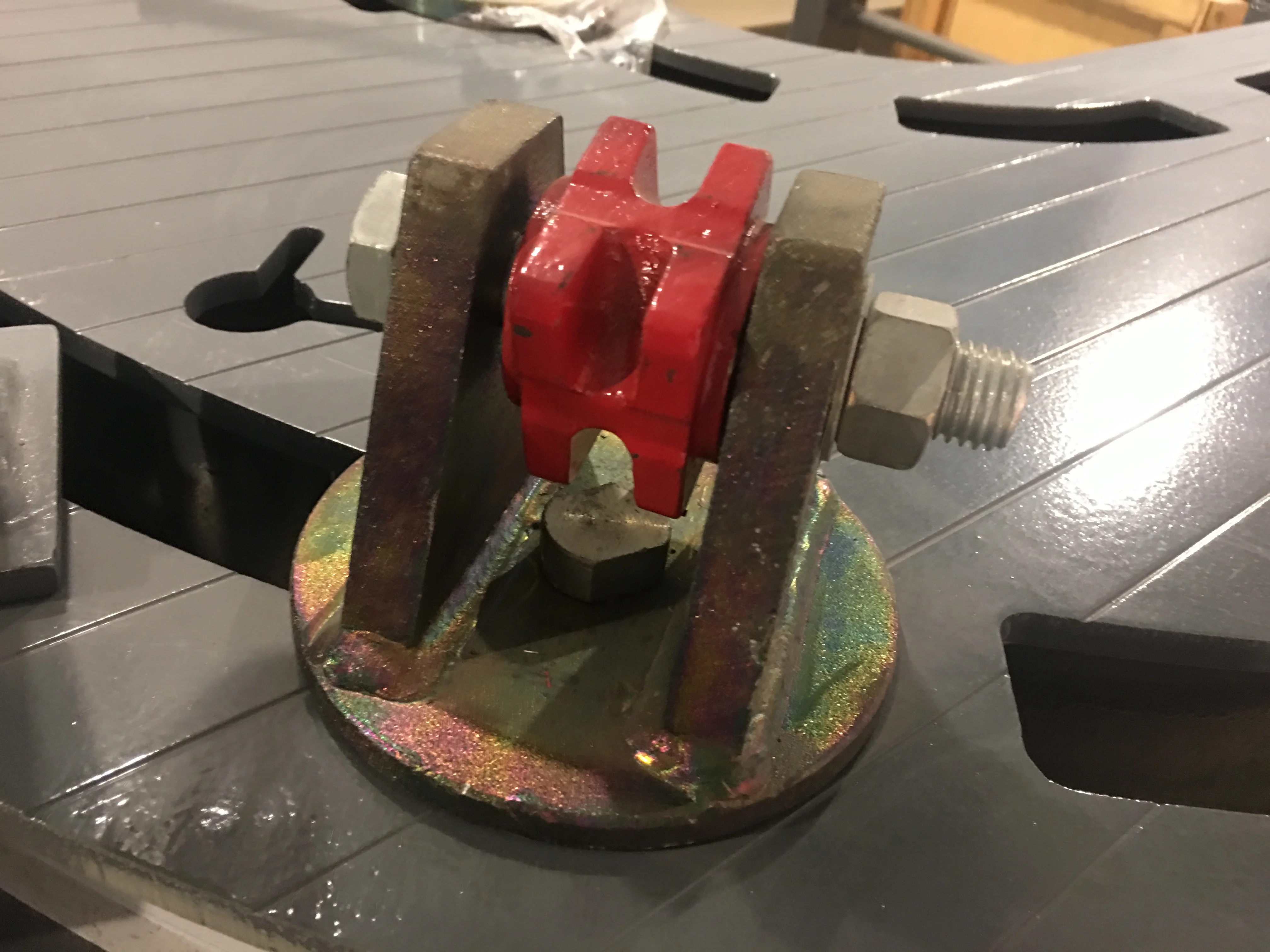

4) The adjustable three-dimensional general-purpose clamps can fix all cars that are out of shape.

5) Mechanical self-lock device driven by pneumatic system can realize long-distance operation,which ensures safe lifting of the bench and can prolong the life of oil cylinder.

6) The movable secondary lift system enables quick and accurate fixing of cars on the bench.

7) The hydraulic system imported from USA has the advantages of reliable performance and long service life.

8) Pulling device equipped both at top and bottom are always ready multi direction straightening for demanding structures.

9) The global simultaneous car body database ensures the providing of the latest and fastest car body data.

WLD-VI Specifications:

Working-bench Length:      5994mm

Working-bench Width:      2000mm

Working-bench Height:      320-1020mm

Equipment Overall Weight:   3200kg

Hydraulic Power:           69MPa

Power Pulling capacity:      98000N

Radius of Pulling:           360°

Air Supply Required:        100PSI

Lifting Capacity:           4500kg

Secondary Lifting Capacity:   2500kg

Secondary Lifting Height:    408mm
