Jusbe L 205 профессиональный аудио звуковая система линейного массива колонки для большого события

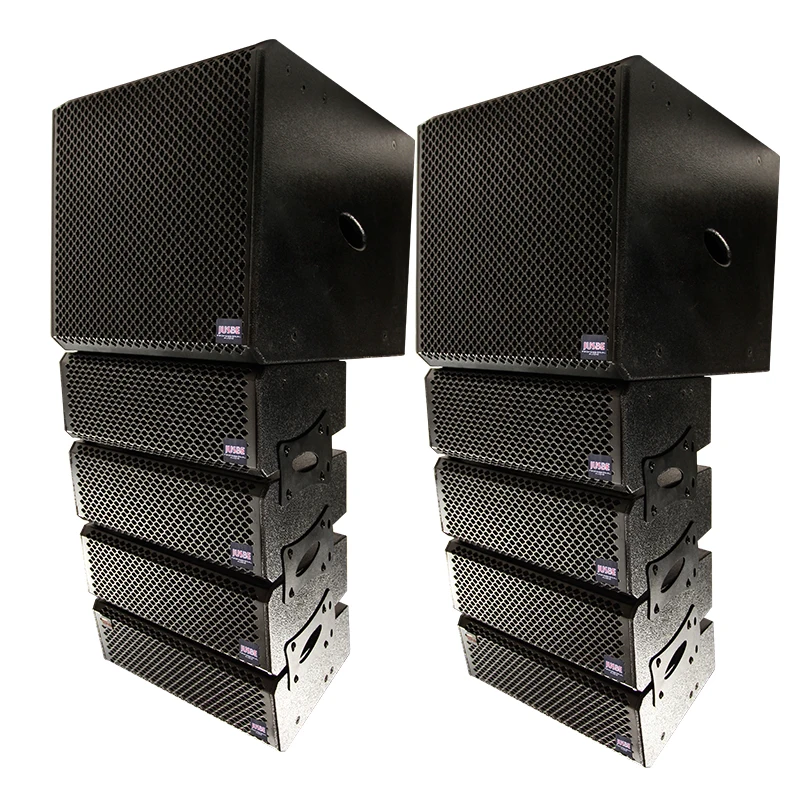

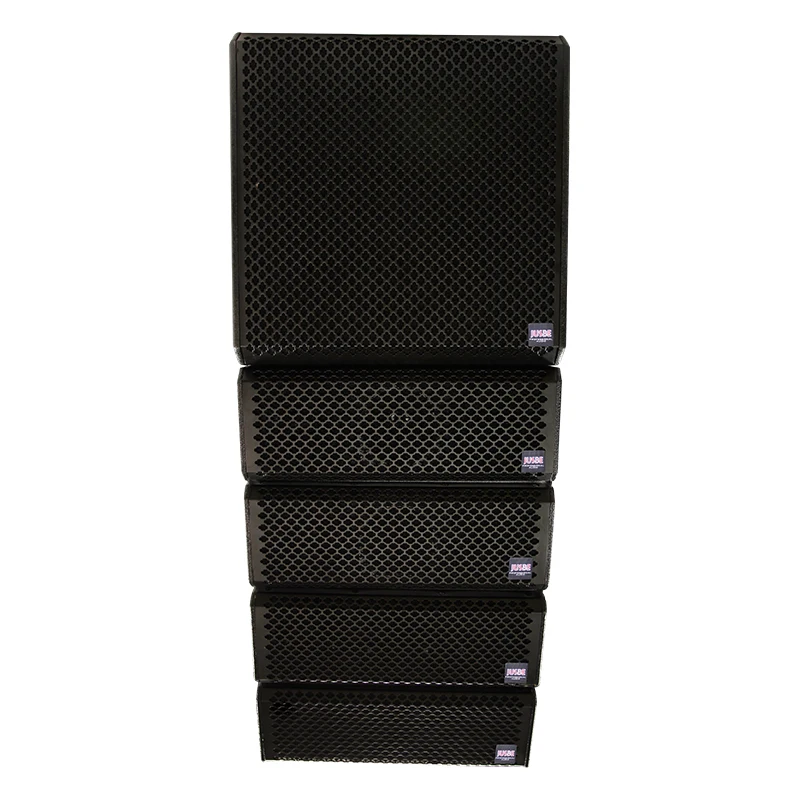

Jusbe L-205 professional Audio sound system line array speakers for big events

The main function characteristics:

1, the high frequency part adopts PET conversion technology patent acoustic lens unit module, does not have a traditional application and bass speaker when the horn has the typical polarity of convex Angle control (beam) effect, accurate design makes perfect cooperate, spectrum on any frequency overall wavefront coherence ideal match, make the whole acoustic field within the scope of the voice of the pair are the same quality;

2. Accurate coverage Angle can constitute a system of multiple modes to meet the requirements of sound amplification in different places;The horizontal coverage Angle is 90° and the vertical coverage Angle is 0°-10°, providing the sound amplification system designer with an accurate multi-purpose installation system.Its balanced integrated hanging system makes the installation quick and simple and labor-saving;

3, 15 mile enclosure structure USES the high quality plywood use acoustic simulation combined with horn features to form a closed voice system, its advantage is the use of the science of acoustics and aerodynamics makes whole speakers controllability, the service life of the sound pressure level, the speaker has had the very big promotion, realized the high sound pressure, the trumpet in the speaker system and set up effective protection device, make work relatively loud speaker leader time pressure would not be burned;

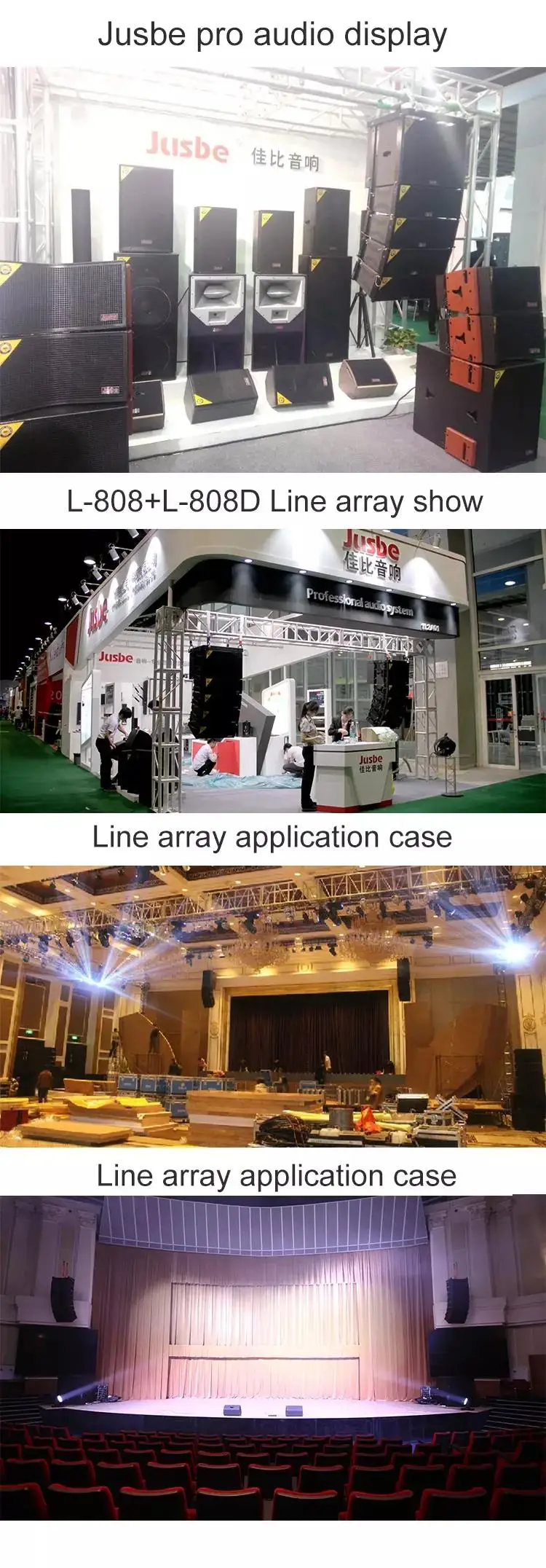

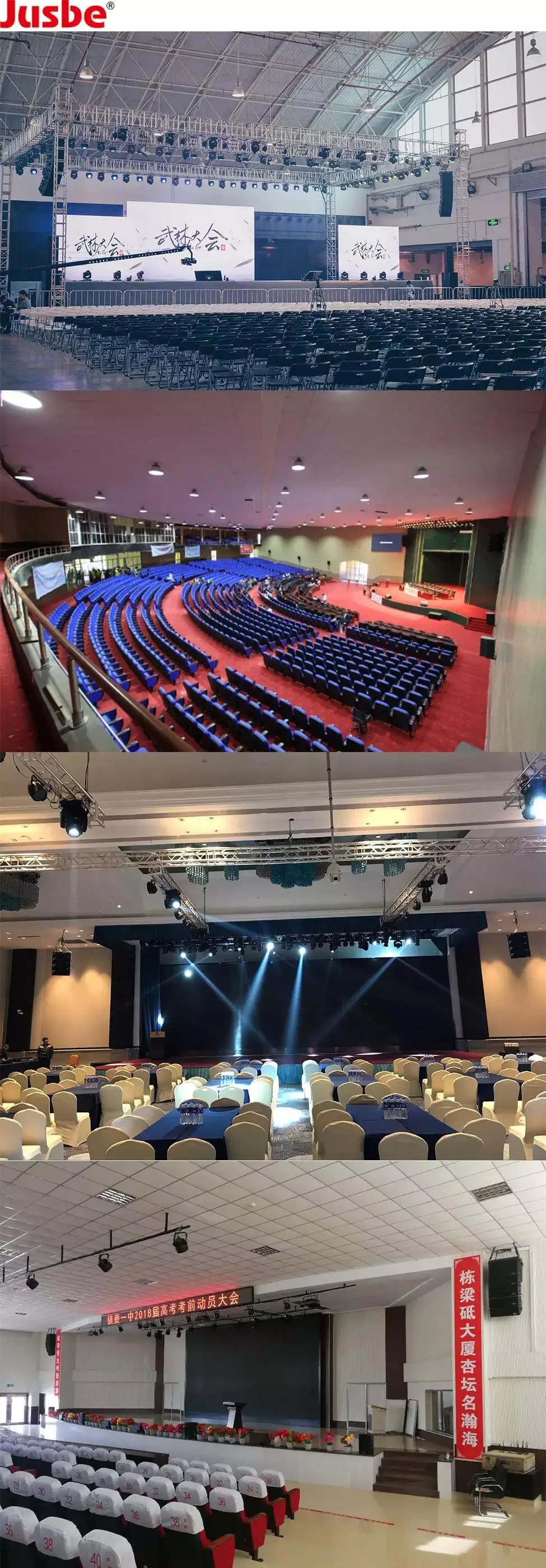

4. Applicable places: small sports venues, small performance systems, theaters, concert halls, performance centers and conference centers.

Main technical parameters:

1. Rated power: 180W;

2. Recommended system power: 500W;

3. Peak power: 500W;

4, resistance against: 16 Ω;

5. Frequency response: 60hz-18khz (±3dB) 1watt@1m;

6. Sensitivity: 98dB /W(lm);

7. Maximum pressure level: 120dB;

8. System type: double 5-inch two-channel three-cell full frequency;

9. Tweeter unit: 44 core titanium tweeter ×1;

10. Bass unit: 5 inch bass ×2;

11. Horizontal coverage Angle: (-6db) 90°;

12. Vertical coverage Angle: (-6db) 10°;

13. Adjustable vertical coverage Angle: 0° -- 10°;

14. Frequency division point: 12dB/Octave 2500Hz;

15. Hanging hardware: professional linear hanging;

16. Material: high-strength birch plywood;

17. Surface treatment: high strength polyester paint sprinkling point;

18. Color: black;

19. Box size: 145H×395W×140D (unit: mm);

20. Net weight: 5kg/ piece.

  China Jusbe Electronic Technology Co. Ltd. Is a leading manufacturer, exporter and supply chain service provider on professional audio system including amplifier, speakers, microphone, line array series, peripheral equipment, mixer, etc.. The products widely used in teaching, conference, KTV, auditorium, stadium and other amplification occasions.

  We believe “Customers’ success is our success, and our success is customers’ success”. It will be our greater honor to serve you. Hope we can build up mutual business cooperation in the nearest future.

1.Q: Are you a factory or trading company?

A: We are a manufacturer (with our own factory)  since 2000.  We are a leading manufacturer, exporter and supply chain service provider on professional audio system.

2.Q:Where is your factory located? How can I visit there?

A: Our factory is located in Nancun District, Guangzhou City, Guangdong Province, China.

    About 30mins by car fromGuangzhou South Railway Station, We welcome customers from all over the world !

3.Q: Can you do OEM and ODM?

A: Yes, both. We can put your idea into products.

     We have professional research  development team, develop the products according to customer required.

4.Q:How can I get some samples?

A: We are honored to offer samples to you. If you need, please send a inquiry to us
