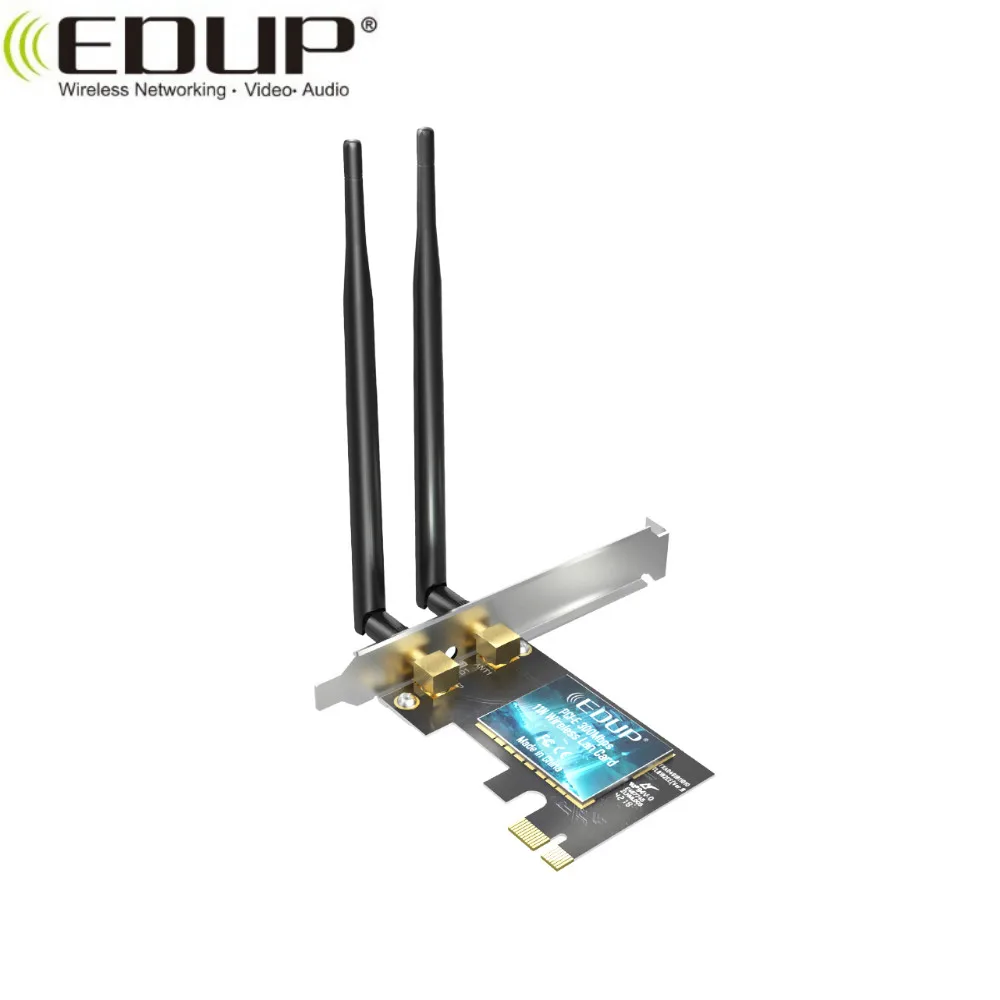

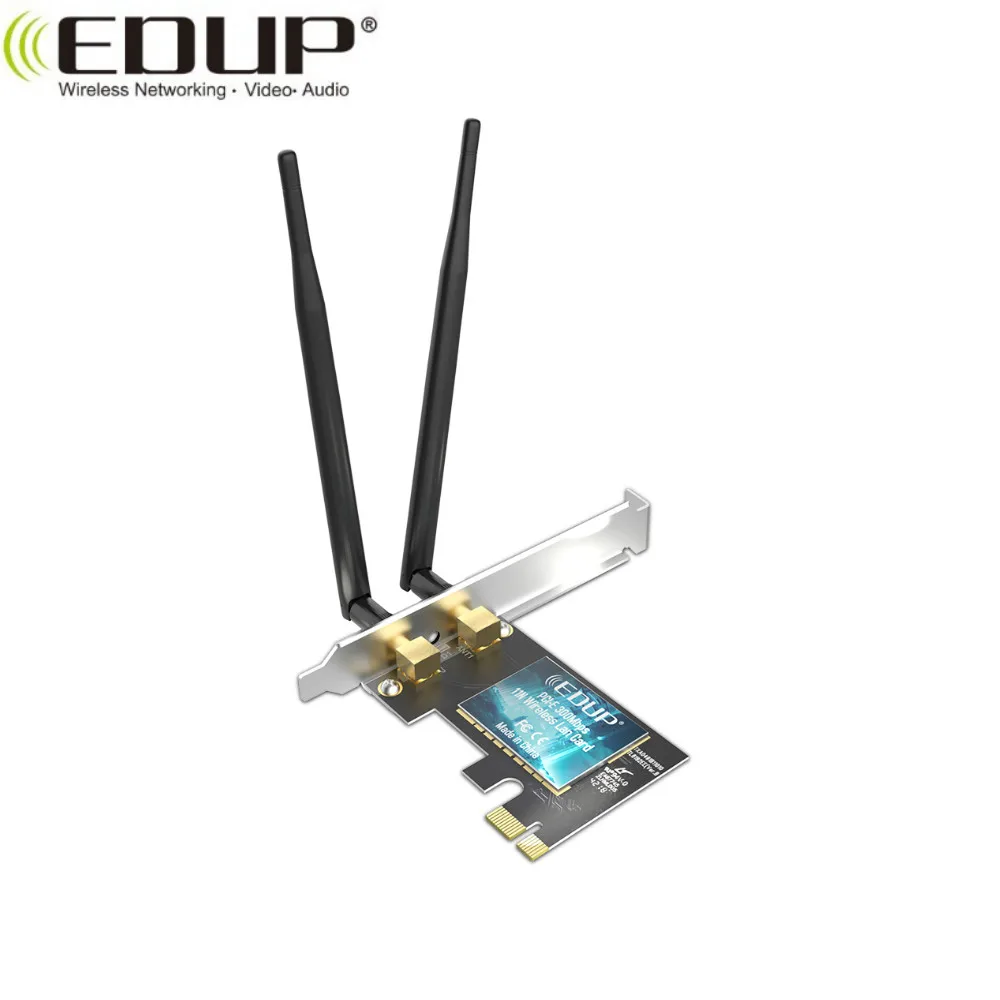

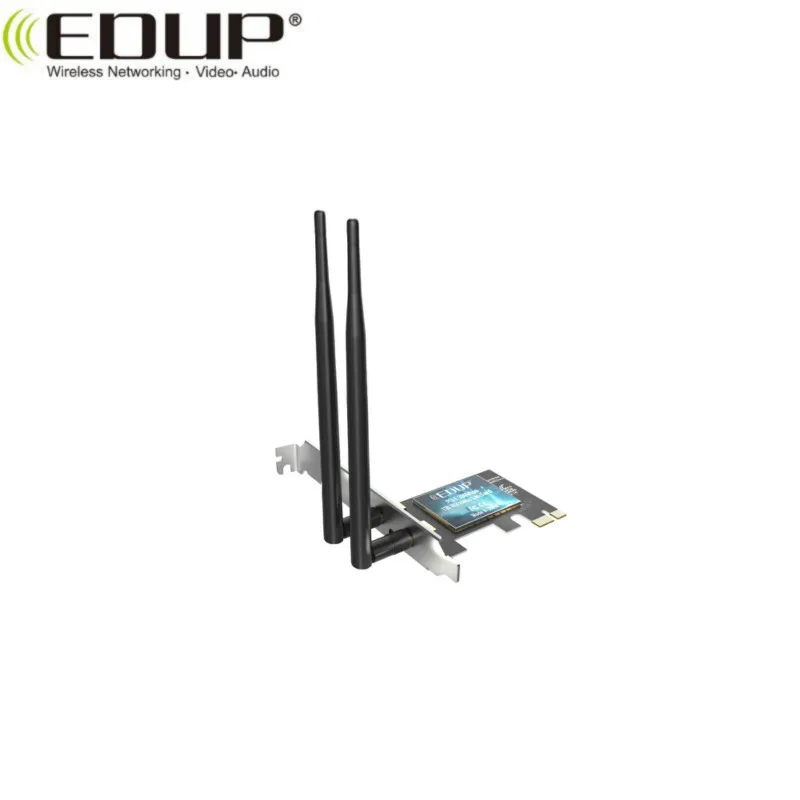

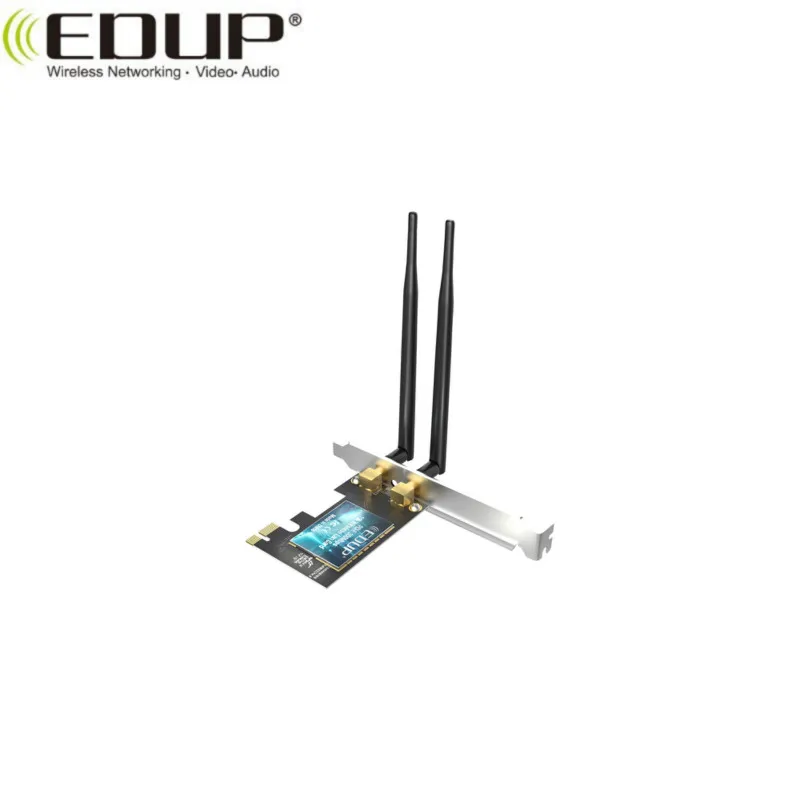

300 Мбит/с EP 9626 RTL8192EE PCI E Wi Fi Беспроводной адаптер PCIE сетевой карты

Сохранить в закладки 62430264152:


Цена:6,76 $ - 8,24 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


300Mbps EP-9626 RTL8192EE PCI-E wifi Wireless adapter PCIE network card




  • PCI-E wifi dongle




  • 300Mbps wireless PCI-E adapter



  • new arrival wireless PCI-E adapter



Product Description





300Mbps EP-9626 RTL8192EE PCI-E wifi Wireless adapter PCIE network card


Features





· Provides two methods of operation: Infrastructure and Ad-Hoc


· Adopts MIMO technology for wireless rates of up to 300Mbps


· Adopts CCA technology which automatically avoids channel conflicts using its channel selection feature


· Quick Secure Setup, complies with WPS for worry free wireless security


· Supports 64/128/152-bit WEP, complies with 128 bit WPA standard(TKIP/AES), supports MIC, IV Expansion, Shared Key Authentication, IEEE 802.1X


· Simple Configuration and monitoring


· Supports Roaming technology, guaranteeing efficient wireless connections.


· Supports Windows 2000/XP/Vista, Linux and MAC OS X





 Specifications





























































































Wireless Standards



IEEE802.11n (draft)


IEEE 802.11g


IEEE 802.11b



Host Interface



32-bit PCI-E Rev.2.3 interface



Data Rate



802.11n: up to 300Mbps (downlink) and 150Mbps (uplink)


802.11g: 54 / 48 / 36 / 24 / 18/ 12 / 9 / 6 Mbps auto fallback


802.11b: 11 / 5.5 / 2 / 1 Mbps auto fallback



Frequency Band



2.4GHz ISM (Industrial Scientific Medical) Band



RF Frequency



2412 ~ 2462 MHz (North America)


2412 ~ 2472 MHz (Europe)


2412 ~ 2484 MHz (Japan)



Radio Channel



1 ~ 14 channels (Universal Domain Selection)



Range Coverage



Up to 3 times farther range than 802.11g



Antenna type



Two Detachable Antennas



Roaming



Full mobility and seamless roaming from cell to cell



RF Output Power



14 ~17 dBm (Typical)



Modulation



11n: BPSK, QPSK, 16QAM, 64QAM with OFDM


11g: BPSK, QPSK, 16QAM, 64QAM, OFDM


11b: DQPSK, DBPSK, DSSS, CCK



Data Security



64/128-bit WEP Encryption


WPA, WPA-PSK, WPA2, WPA2-PSK. TKIP/AES



Network



Auto-switch to use 802.11n or 802.11g or 802.11b mode


Supports Ad-Hoc, Infrastructure WLAN network


Wireless roaming


Data rate auto fall-back under noisy environment or longer range distance


Site Survey with Profile function



Configuration & Management



Plug-and-Play setup and installation


Management Utility supports 2000 / XP/ Vista



Media Access Control



CSMA/CA with ACK



LED Indicator



Link/Act



Operating System



Windows 2000, XP, Vista , Linux and MAC OS X



Weight



50g



Dimension



120 (L) x 65 (W) x 15 (H) mm  (PCBA)



Environment



Operating Temperature: 0oC to 55oC


Storage Temperature: -20oC to 75oC


Operating Humidity: 10% ~ 90% (Non Condensing)


Storage Humidity: 5% ~ 95% (Non Condensing)



Compliant



FCC (USA)


CE Mark (Europe)


RoHS Compliant


Wi-Fi Compliant









Product Pictures







The similar ax200


        in-tel WiFi6 AX200 Chipset                                AX3000Mbps PCI-E wifi card with AX200AX200-00_.jpg01.jpg





Packaging & Shipping


What is the packaging for option?


1.Blister package or color gift package


2.Standard Carton:K=K





What is the shipping way?


UPS/DHL/TNT/EMS/FedEx and any other shipping way as you prefered.


Pls contact us directly and we will use your preferred ways.





Our Services


What are the payment terms ?


We accept T/T, Western Union, Paypal,L/C if over 100000$ and so on.


Over 1000pcs,we can do OEM  and accept 30% deposit in advance .





What is the warranty?
1. Warranty:12 months.
2. comprehensive after-sales service, including quality service, guidance services,We focus on customer needs in every detail.Please contact us if you need our detail warranty term.





Company Information


        Established in 2004, EDUP is the global brand name for Shenzhen EDUP Electronics Technology Co., Ltd. We are a professional company and exporter specialized in Wireless products. We are located in Shenzhen, with convenient transportation access. All of our products comply wtih international quality standards and are greatly apprecaiated in a variety of different markets throughout the world.


Factory Show.jpgCustomers.jpgCertificates.jpg





How to order


Packing picture.jpg








Contact way


inquiry picture.jpgRicher name card.png
