3 слоя ПВХ трубы машина штранг прессования от завода изготовителя

3 слоя ПВХ трубы машина штранг прессования от завода изготовителя

Категория: >>>
Поставщик: Zhangjiagang Sevenstars Machinery Co. Ltd.

Цена:34 000,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Description of PVC pipe machine/PVC pipe making machine/pvc pipe production line

1.1, Pvc pipe machine/PVC pipe making machine /pvc pipe production line is mainly used in
the manufacture of the UPVC and PVC pipes with various tube diameters and wall thickness such as
the agricultural and constructional plumbing, water supply and drain etc.

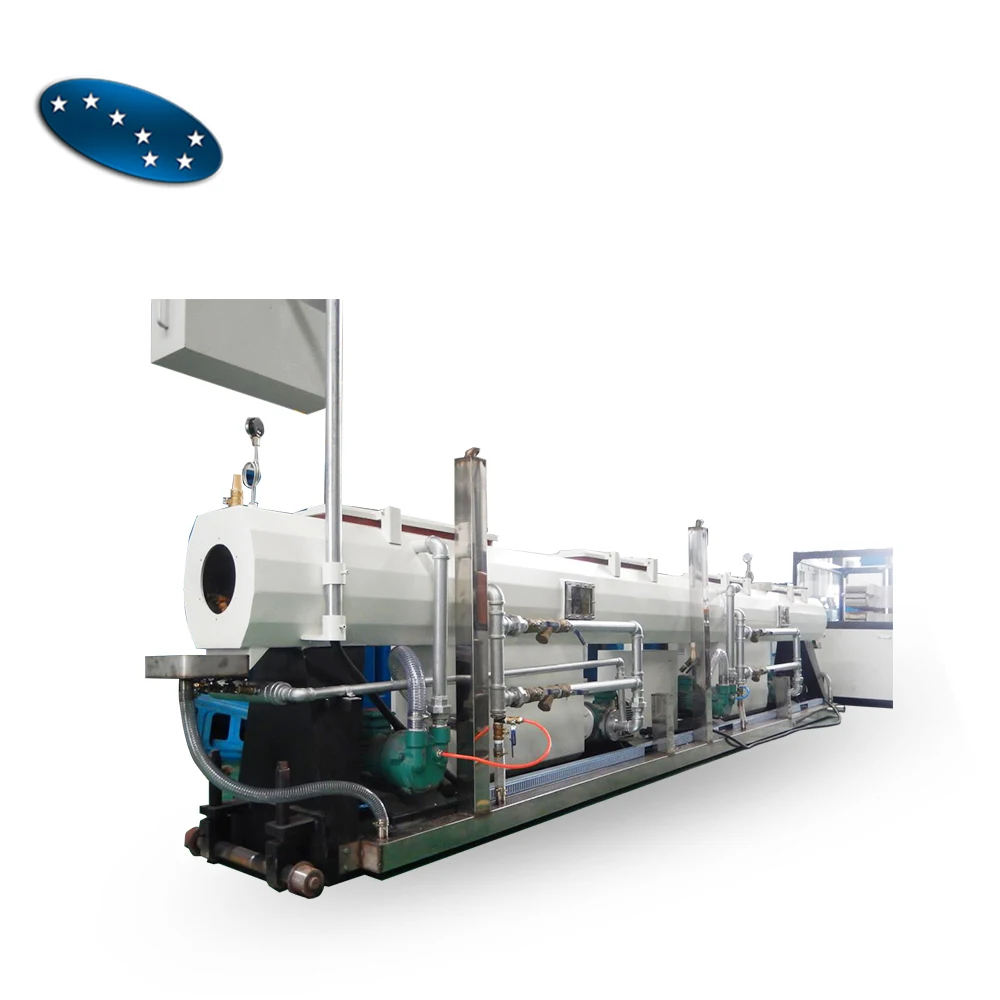

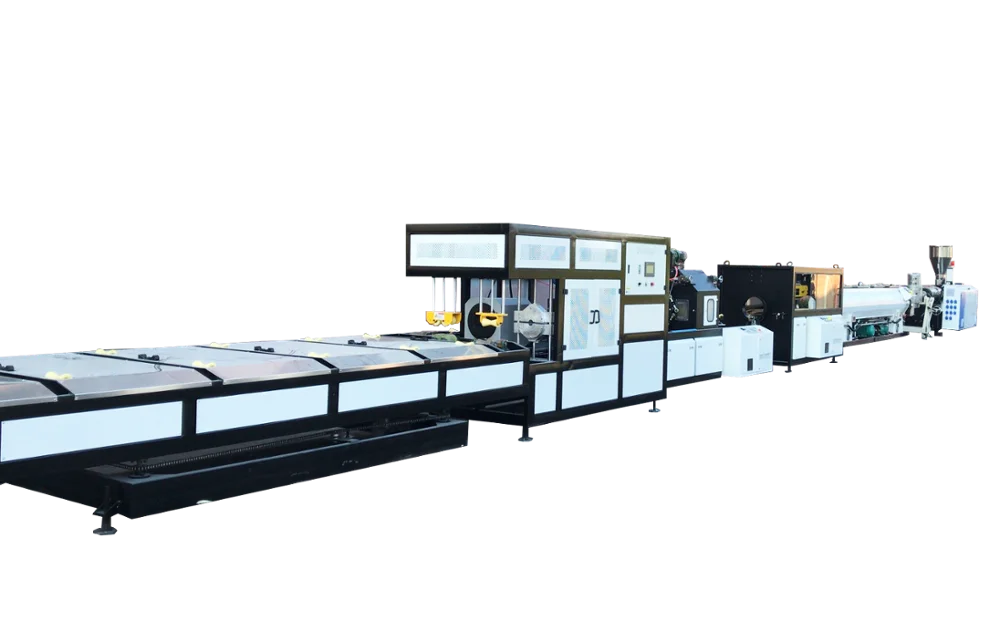

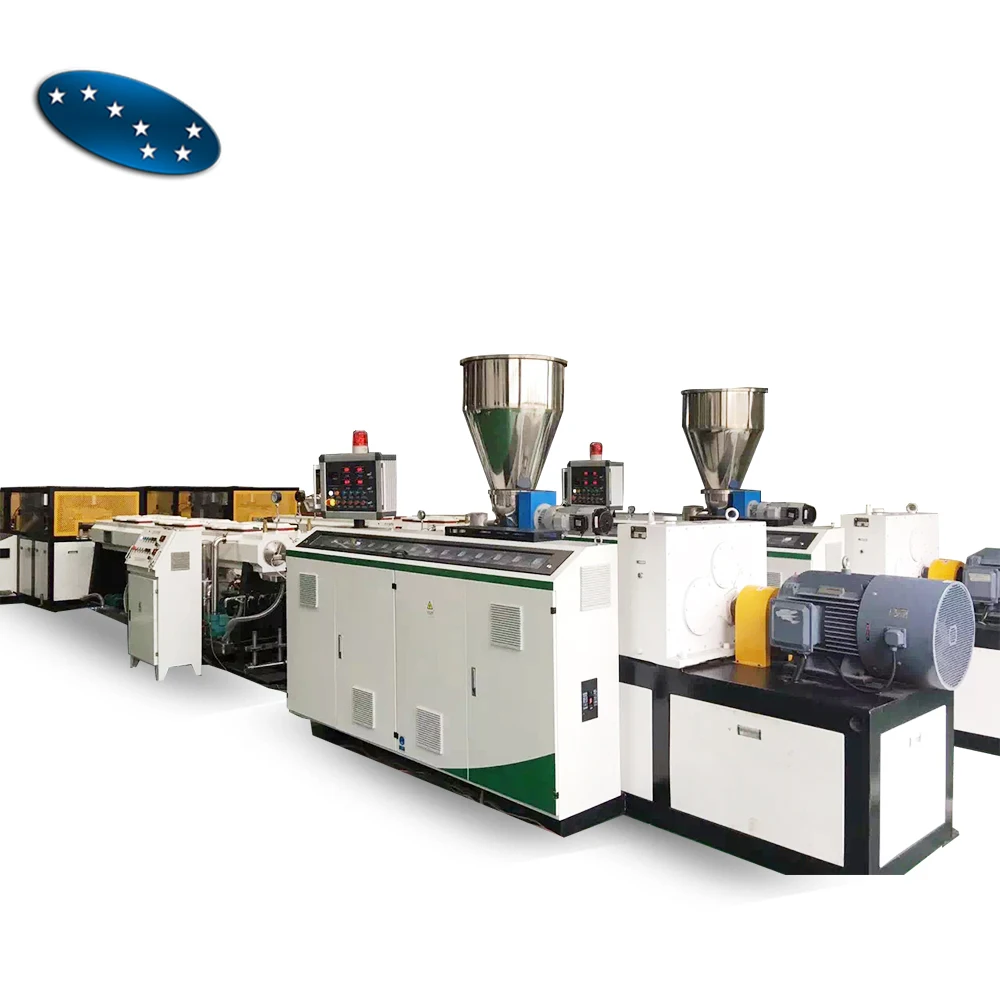

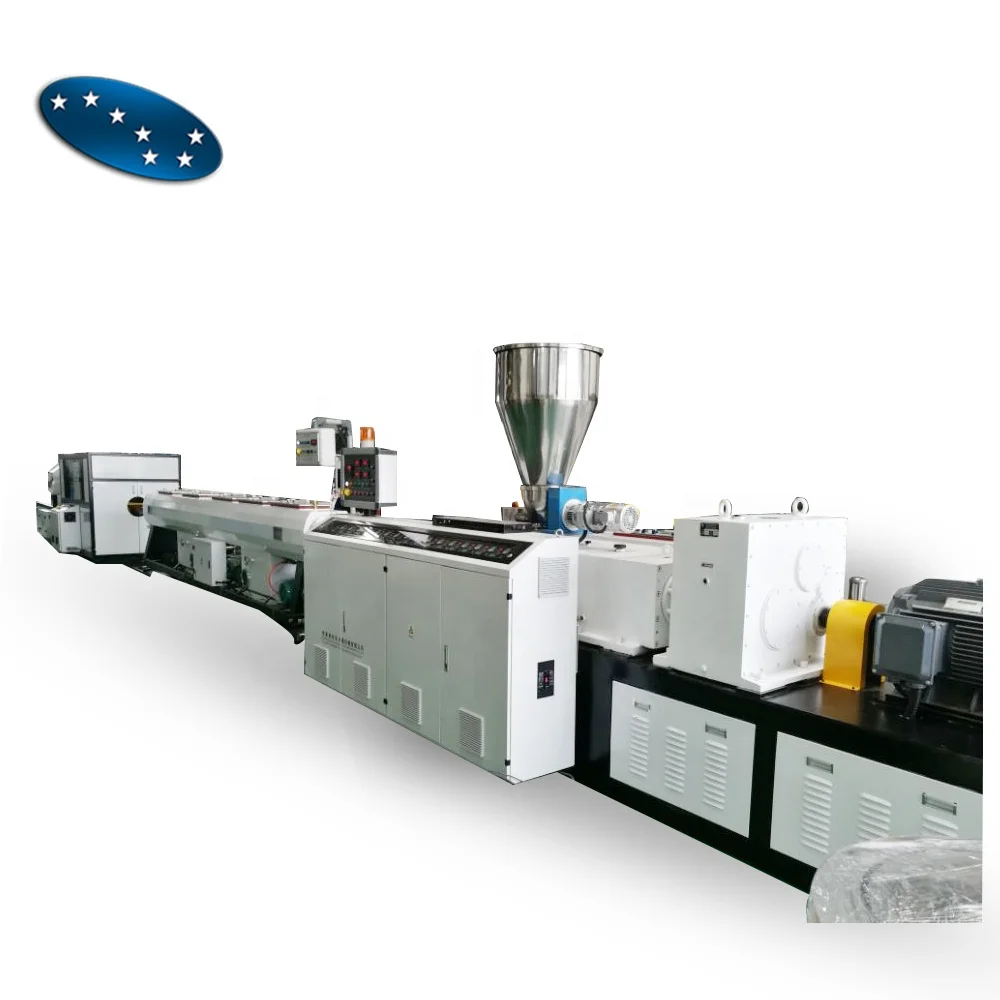

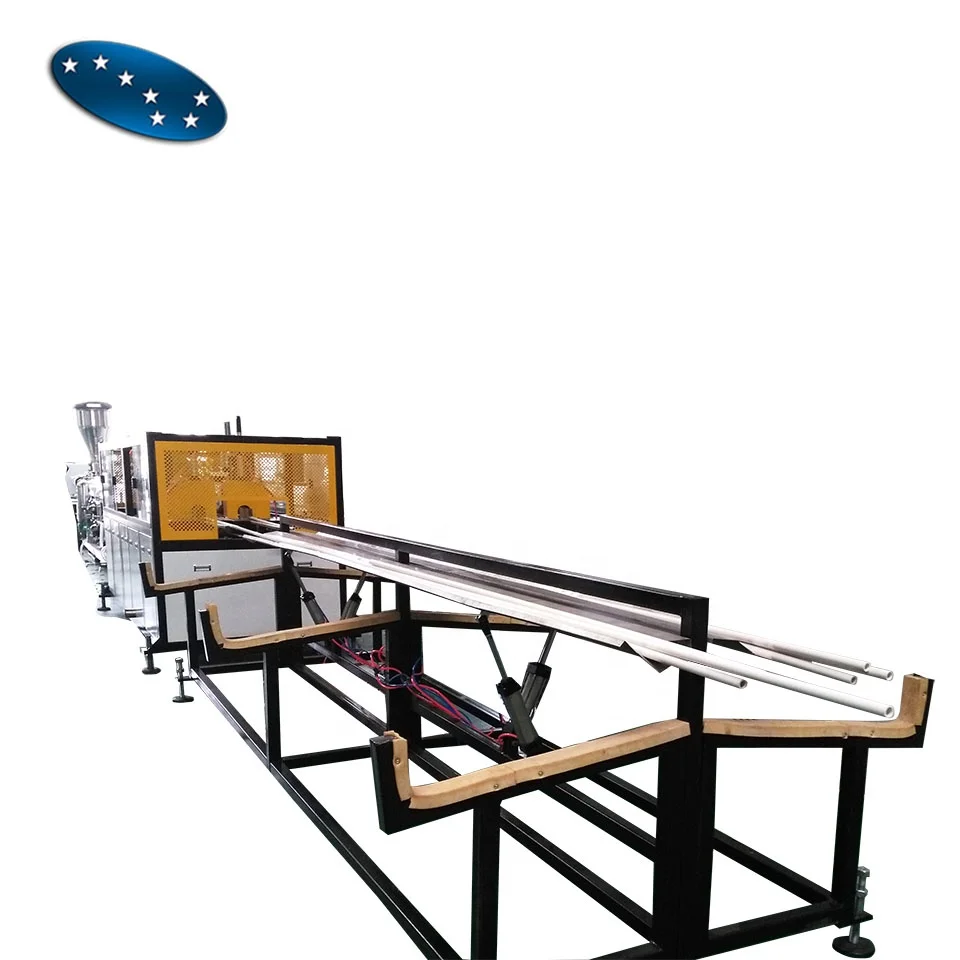

1.2, This set is composed of conical twin-screw extrude, vacuum calibration tank, haul-off machine, cutter,stacker etc.

1.3, The screw extruder and traction machine adopt imported AC frequency control device.

1.4, The vacuum pump and traction motor both adopt advanced products. The haul-off machine has many models, such as two-claw, three-claw, four-claw, six-claw etc. It may choose visual blade or cutting
type.The unit is of reliable performance and high production efficiency.

1.5, Our machine can produce the PVC pipe with diameter from 16mm to 630mm

Main parameter

1.Main parameter of the extruder

Model	SJSZ-45	SJSZ-51	SJSZ-55	SJSZ-65	SJSZ-80	SJSZ-92
Screw Dia.(mm)	45/90	51/105	55/113	65/132	80/156	92/188
Max. Rotating speed(rpm)	45	45	40	35	37	33
Main Motor(kw)	15	18.5	22/30	37	55	90
Capacity(kg/h)	120	80-150	150-180	250-300	320-400	600-800
Center height(mm)	1000	1000	1000	1000	1000	1200
Net Weight(kg)	2800	3200	3500	4000	5000	8000

2.Main parameter of PVC pipe making machine

Mode	PVC-450 (mm)	extruders	Max. output (kg/h)	Max. speed (m/min)	Total power (kw)	Line length (m)
PVC-50x2	16-50	SJSZ51/105	150	6m	60kw	20m
PVC-63	16-63	SJSZ65/132	250	6m	85kw	20m
PVC-110	50-110	SJSZ51/105	150	6m	60kw	24m
PVC-160	63-160	SJSZ65/132	300	5m	100kw	24m
PVC-250	110-250	SJSZ80/156	400	3.5m	120kw	28m
PVC-315	160-315	SJSZ80/156	400	3m	160kw	28m
PVC-450	250-450	SJSZ92/188	700	1.5m	200kw	36m
PVC-630	345-630	SJSZ92/188	700	0.9m	230kw	36m
