Портативный модуль зарядного устройства для электромобилей переменного тока 32 А 7 кВт

Сохранить в закладки 62432059839:


Цена:410,00 $ - 470,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description

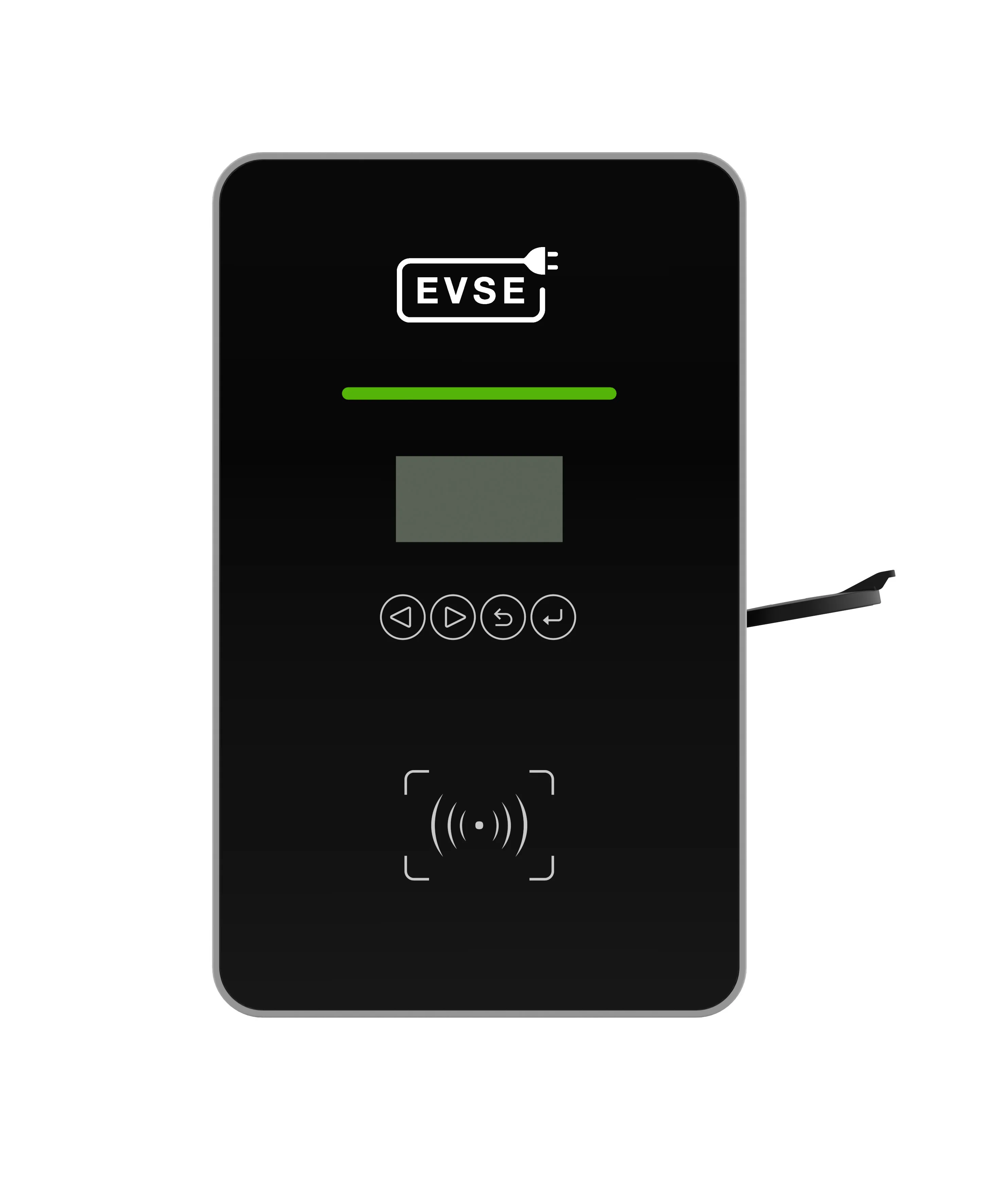

 7KW commercial charger is designed for public use with RFID authentication.Equipped with a type 2 charging socket,the charger is compatible with either type 1 or type 2 cable.





Compliant with the industrial standards,the charger use MID certified meter to ensure accuracy and built-in
RCD to secure safety.The charger also includes 6mA DC leakage detection,which eliminates the need for an
expensive upcost of RCD type B





The charger can be connected to a charging network with the help of gateway.Multiple public
chargers in one location can be integrated in the network with only one internet communication connection.
Thanks to open charge protocol OCPP1.6,the charger operation and status is monitored and controlled by
existing backend or central management system.

































































































































































































AC Single-phase 7KW Commercial Charger
SpecificationModelAC7000-BE-24
AC Nominal InputPhases/Lines1 phase + netural+ PE
Voltage230V±10%
Frequency50Hz
AC Nominal OutputVoltage230V±10%
Current32A
Power7KW
Structure DesignHousing MaterialPlastic PC940
Front PanelTemper glass
Installation MethodWall-mount/Floor-stand
Wall-mount BracketNot necessary
Charging OutletOne charging socket(Type 2)
Cable LengthNo cable
LED IndicatorGreen/Yellow/Red color for different status
LCD ScreenDisplay of charging data
Touch Buttons4 buttons for screen operation
Emergency Stop ButtonYes
RFID FunctionYes
RFID Card2pcs Mifare card
Energy MeterMID certified
RCDType A+ 6mA DC
Environmental IndexOperating Temperature - 30~ + 50℃
Working Humidity5%~95% without condensation
Working Altitude<2000M
Protection GradeIP54
Application SiteIndoor/Outdoor
Cooling MethodNatural cooling
Security ProtectionMultiple ProtectionOver/Under voltage protection,Overload protection,Short circuit protection,Current leakage protection,Grounding protection,Surge protection,Over/Under temperature protection
MTBF100,000 hours
Safety StandardIEC 61851-1:2017,IEC 62196-2:2016
Warranty2 years
Package InformationProduct Dimension356*221*136MM
Package Dimension485*325*202MM
Net Weight3.0KG
Gross Weight4.5KG
External PackingCarton
Optional PartsNetwork GatewayEthernet/3G/4G communication
Communication ProtocolOCPP1.6(JSON)

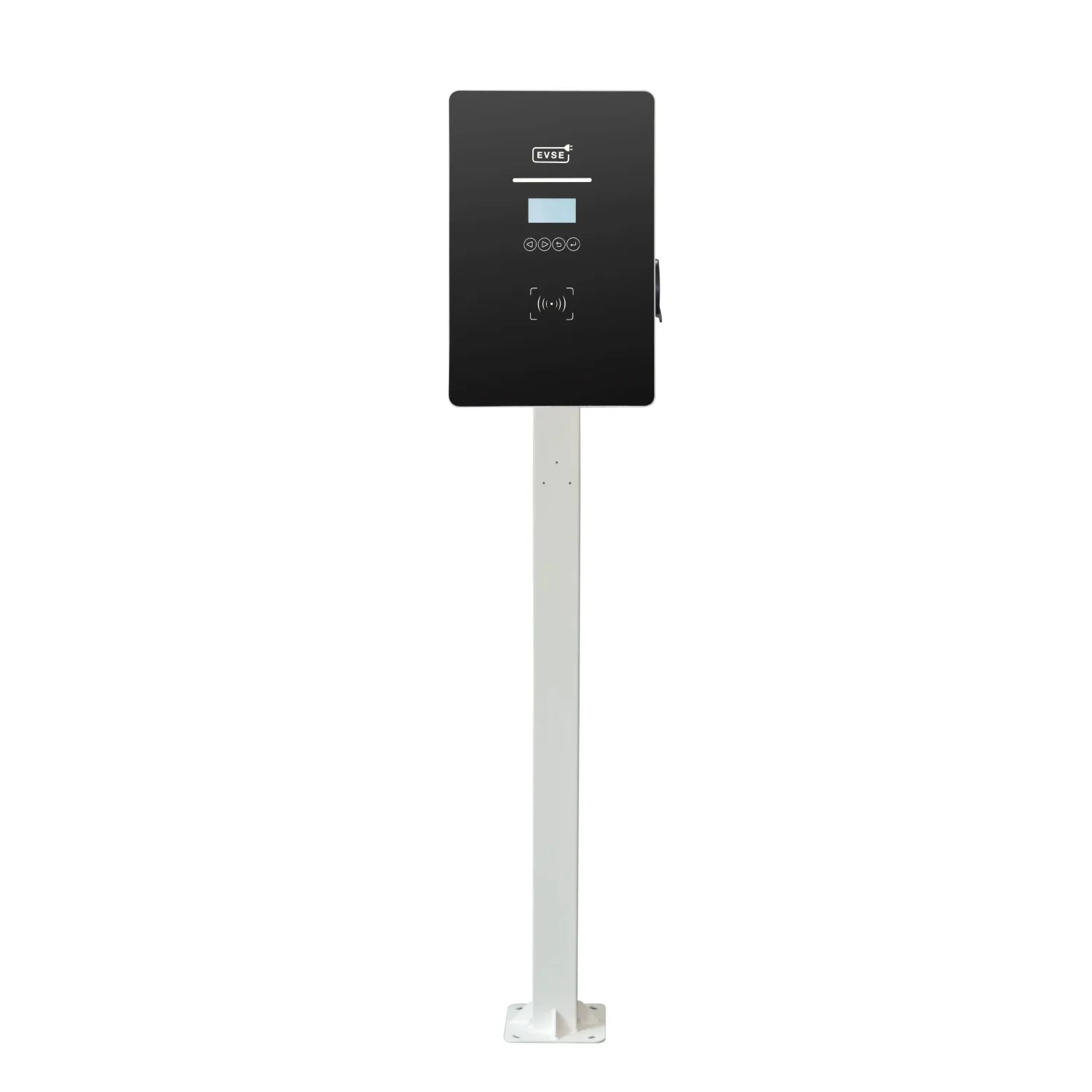

Floor-stand PillarGalvanized steel
Type2 -Type 2 CableSingle-phase/Three-phase,4M cable
Type2 -Type 1 CableSingle-phase ,4M cable
Fixed Cable instead of SocketType1 or Type 2 charing gun with 4M cable




_0007


_0008





Our Services






  • We will reply your inquiry within 12 hours.


  • T/T,Paypal,and Western Union payment terms all accepted.




  • Shipment:By air,By sea,By International express (DHL,Fedex,)




  • Delivery time:Normally 15 days after payment received.




  • Port of loading: Shenzhen




  • Guarantee Period: Within 12 months after shipment.




  • Provide operating guide (instruction)




  • Customized design,sample and packing according to clients requirement, If have special request










Company Information


 Shenzhen Oversea Win Technology Co,. LTD was founded in 2007. Located in Guangming New District in Shenzhen. It is the company that specializes the developing producing and selling  connector and wiring harness various electric couples connectors and wiring harness to provide the comprehensive connection technology solution for consumers.



 1





Packaging & Shipping


  all products can customized according to customer requirements.about custom packing we can put logo or other info on the packing box .shipping by air & by sea &DHL ..
