Беспроводной портативный цифровой стоматологический проектор A3 видеокамера для учебного класса и документов визуализатор двухрежимный проводной беспроводной Wi Fi 5G A3/a4
- Категория: >>>
- Поставщик: Shenzhen Ita Touch Technology Co. Ltd.
Сохранить в закладки 62433859698:
Описание и отзывы
Характеристики
Product Description
ITATOUCH Wireless Intelligent Document Scanner integrated the high definition video camera and smart control management, and adopt 5.8G WIFI with USB internet adapter and magnetic charging method offer user free, easy teaching / presentation experience.
This visualizer directly connect with interactive flat panel display or the computer of interactive whiteboard by USB wireless adapter or cable.

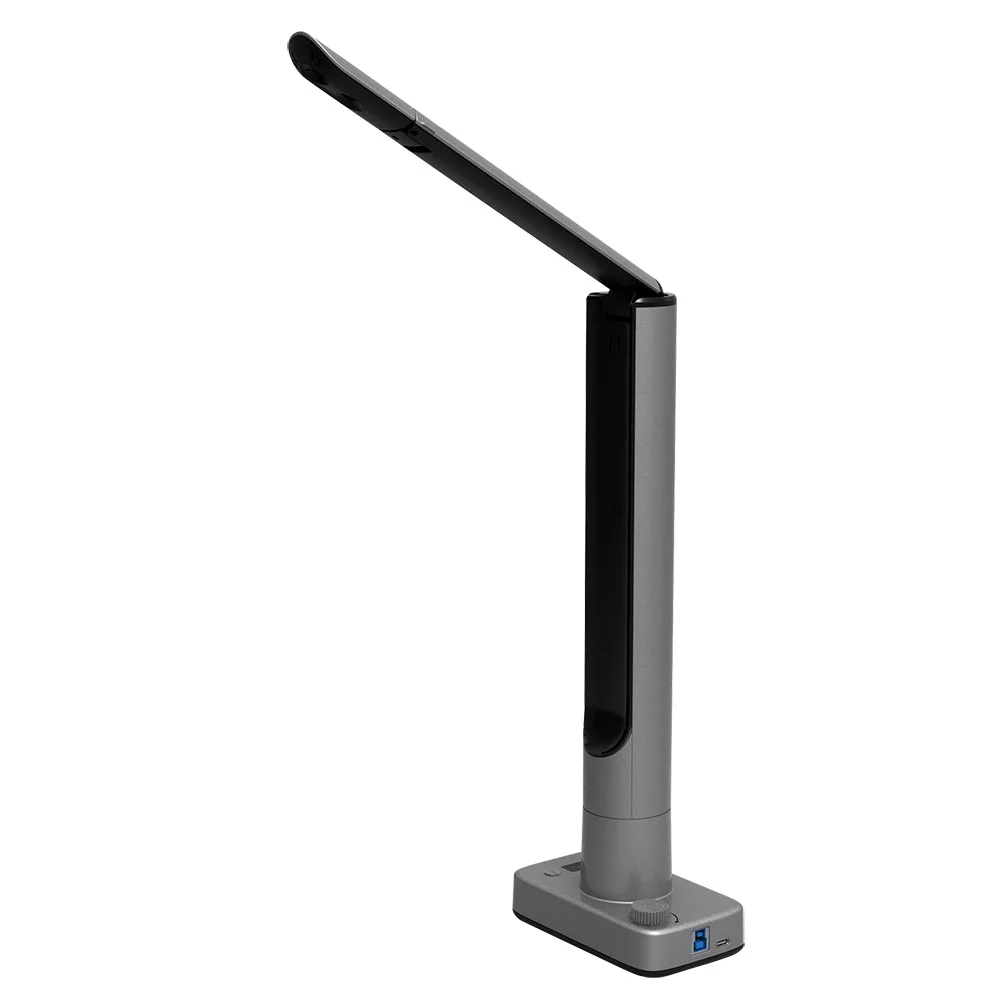

1. Pixel: 8 million, maximum resolution: 3264 * 2448; the pixel can be adjusted according to different application scenarios.
2. Image rate: WiFi 5g full speed transmission, no delay, 1080p Full HD @ 25 FPS / s.

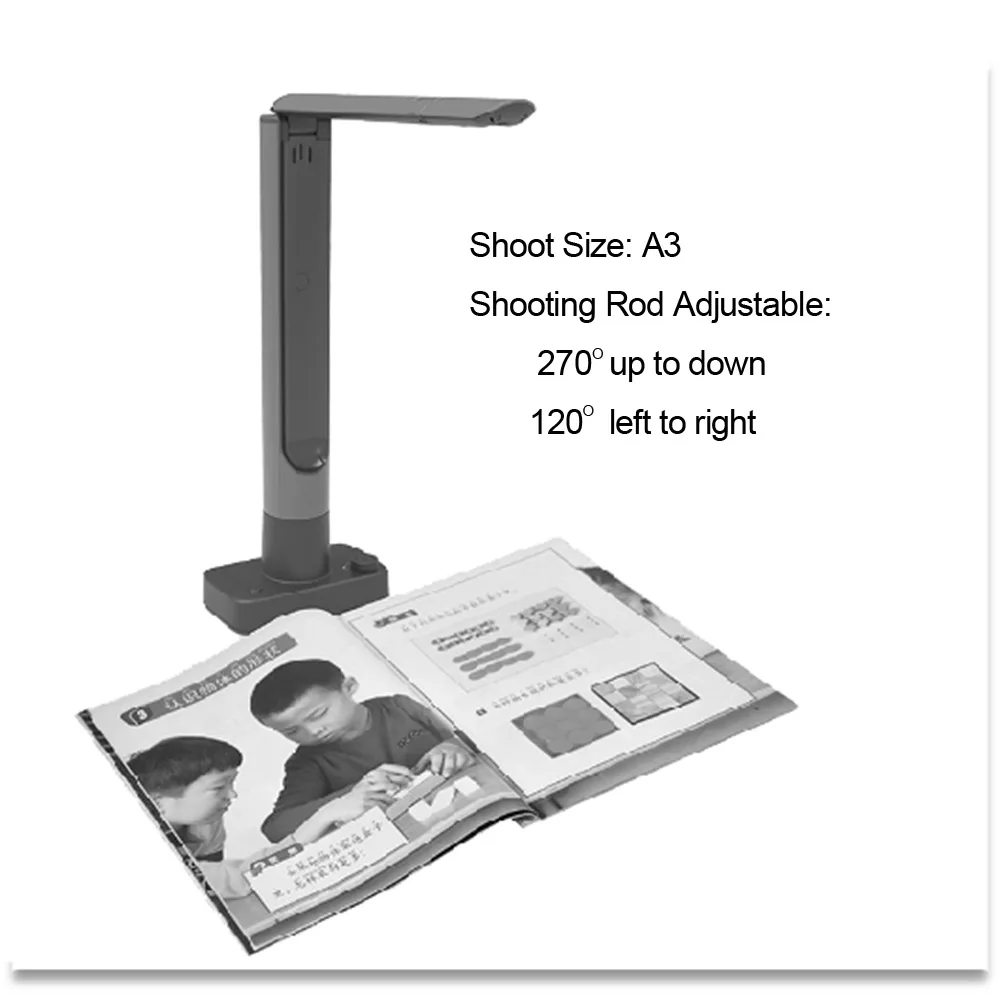

3. ★ display range: A3 format; the lens part can be rotated up and down to 270 degrees, left and right to 180 degrees, and displayed in multiple angles; the lens can be lowered to a relatively close distance of the desktop display object for micro distance display and shooting.
4. ★ transmission mode: USB wired and WiFi 5g wireless dual-mode; dual-mode interactive fast switching, according to the teacher's teaching scene, when the wall hanging is switched to the mobile desktop teaching, the application software does not need to be closed, realize intelligent recognition in the same interface, and automatically switch out the image.
5. Interactive button: the base is integrated with one button photo taking function, with knob switch for image enlargement and reduction.
6. Charging mode: the magnetic suction charging base is adopted, and the booth can be put into the wall hanging box to realize the magnetic suction charging.
7. Focusing mode: AF + MF on-demand focusing technology.
8. Working temperature: - 15 ℃ ~ 45 ℃.
9. Fill light mode: touch Level 3 light adjustment.
10. ★ electric quantity indication: the electric quantity percentage and charging flashing indication of one group of LED lamps are clear and visible.
11. Battery capacity: polymer cell 5600mAh; battery life: 6-8 hours.
12. Wireless network card: default standard WiFi 5g USB wireless network card
2. Image rate: WiFi 5g full speed transmission, no delay, 1080p Full HD @ 25 FPS / s.
3. ★ display range: A3 format; the lens part can be rotated up and down to 270 degrees, left and right to 180 degrees, and displayed in multiple angles; the lens can be lowered to a relatively close distance of the desktop display object for micro distance display and shooting.
4. ★ transmission mode: USB wired and WiFi 5g wireless dual-mode; dual-mode interactive fast switching, according to the teacher's teaching scene, when the wall hanging is switched to the mobile desktop teaching, the application software does not need to be closed, realize intelligent recognition in the same interface, and automatically switch out the image.
5. Interactive button: the base is integrated with one button photo taking function, with knob switch for image enlargement and reduction.
6. Charging mode: the magnetic suction charging base is adopted, and the booth can be put into the wall hanging box to realize the magnetic suction charging.
7. Focusing mode: AF + MF on-demand focusing technology.
8. Working temperature: - 15 ℃ ~ 45 ℃.
9. Fill light mode: touch Level 3 light adjustment.
10. ★ electric quantity indication: the electric quantity percentage and charging flashing indication of one group of LED lamps are clear and visible.
11. Battery capacity: polymer cell 5600mAh; battery life: 6-8 hours.
12. Wireless network card: default standard WiFi 5g USB wireless network card

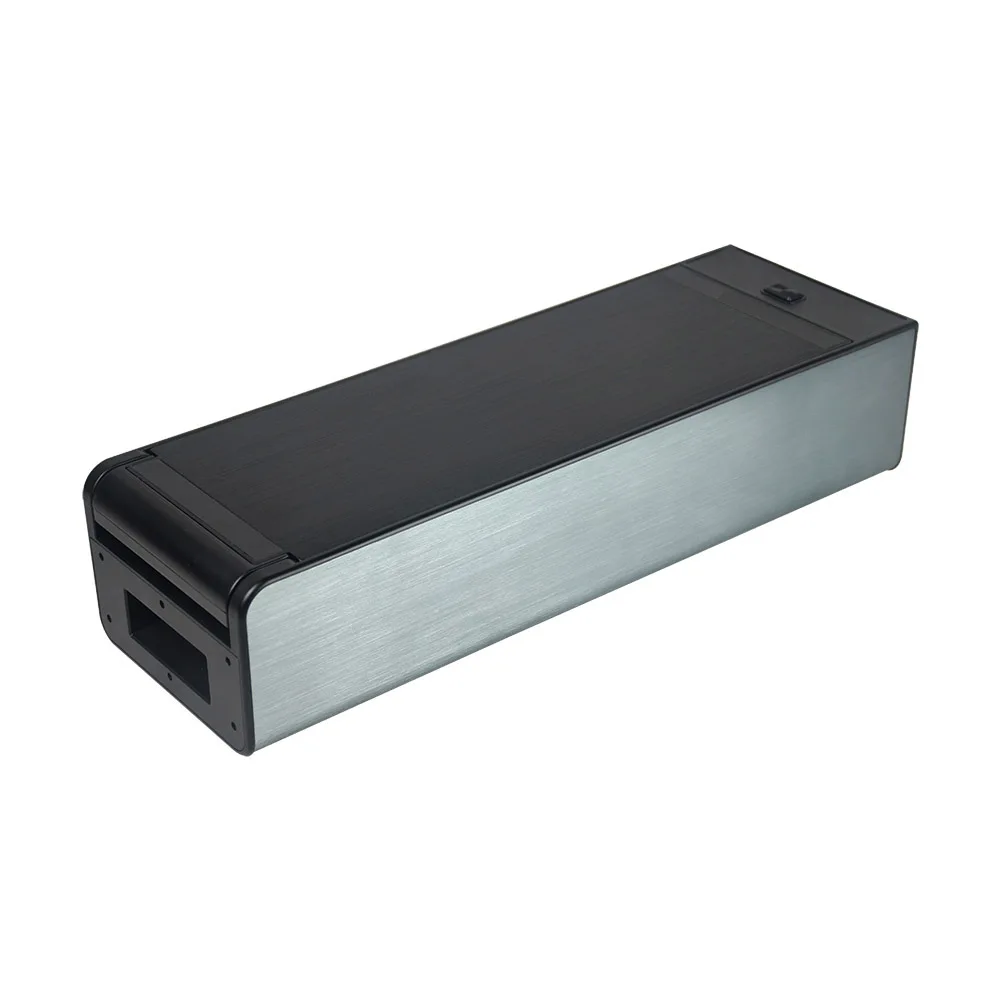

Wall-mounted box with aluminum alloy material, without sharp edges and corner. the interfaces for the charger and USB cable inside the bottom, the foldable panel for the document placed
the top with the button to press opening with damping effect, and the top is equipped with an anti-theft mechanical lock

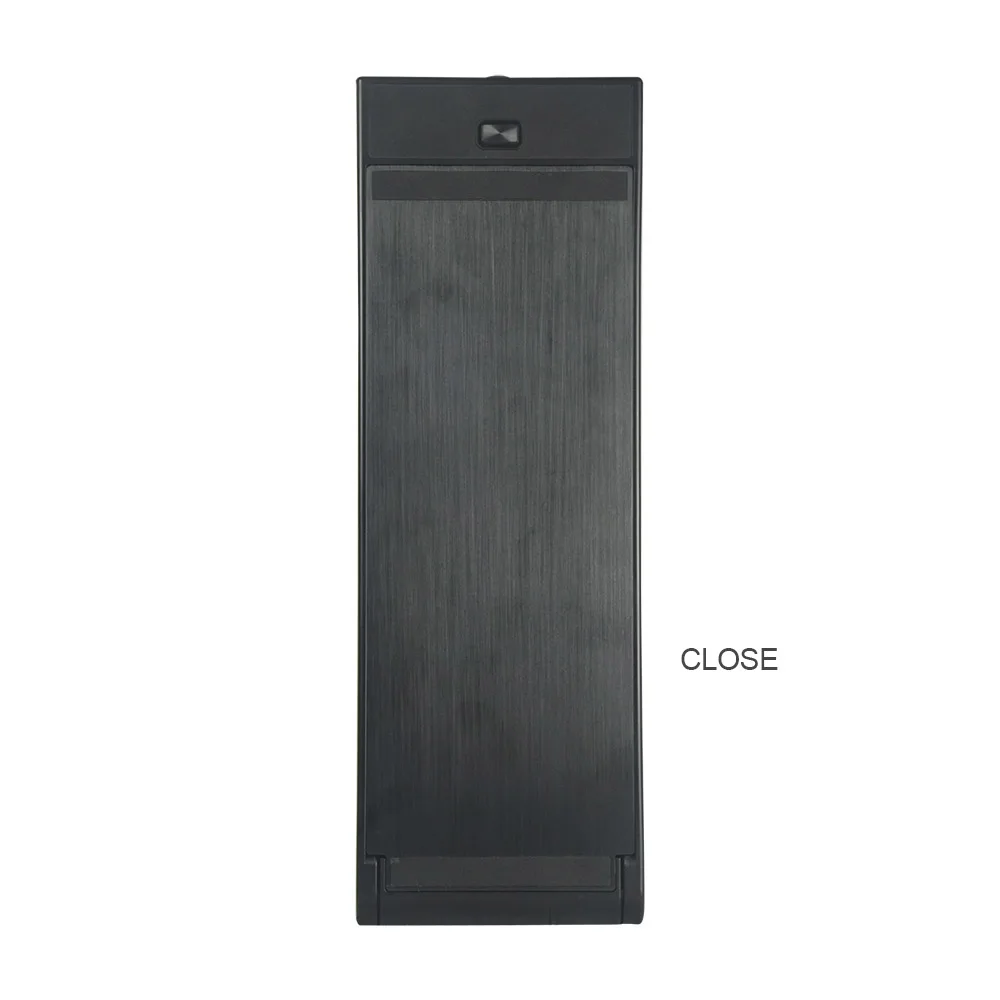

Box close: 450*150*100mm
Box Open: 450*460*225mm
Dual Modes Option for User
User can select the document scanner with / without the wall mounted box for this intelligent document scanner, please see the following
Wireless Mode
The interactive document visualizer can connect to the computer through WiFi 5g, which is wireless mode
Wire Mode
Interactive document scanner can be displayed and charged in the wall hanging box. There is no need to be restricted by complicated connecting lines, which
limits the use range.
limits the use range.
Product Specification
Model# | K6 |
Construction | Wall-mounted box with aluminum alloy material, without sharp edges and corner. the interfaces for the charger and USB cable inside the bottom, the foldable panel for the document placed. |
Open method for box | the top with the button to press opening with damping effect, and the top is equipped with an anti-theft mechanical lock |
LENS | CMOS, 8 megapixel |
Resolution | 1700 TV line in the center, 1400-1600 TV line around |
Aperture and lens direction | Fixed aperture, vertical down |
Operating temperature and humidity | －15℃～45℃；20%～90％ RH |
Shooting range | Take full A3 paper at the vertical distance from the sensor surface to the document (lens can be raised) |
Shooting type | Courseware, documents, documents, notes, pictures, magazines and books, ID cards, three-dimensional objects, etc |
zoom mode | AF auto focus + MF touch focus on demand |
Interface type | USB 2.0 free driver |
transmission mode | USB wire & IFI5 wireless |
Switch mode | Dual modes free switch, no need close whiteboard software, intelligent auto-recognize image |
Interactive button | The base with the button, integrated the power on/off, shoot the image, and zoom in/out by rotating. |
Charger mode | the base with magnetic, put inside to charge immediately |
Battery | 1 set of LED light, power percentage and charge flashing indication (10% ~ 100%) |
Battery Capacity | Polymer cell 5600mAh; theoretical battery life 6-8 hours (depending on the environment)。 |
Power Adapter | Standard 5V ﹤ u 2.5A power adapter, it takes 4-5 hours to fully fill from 0-100% |
working frequency | 50Hz，support 60Hz |
Light supplement mode | touch switch（three sections of the light adjustment） |
Video format | MJPG/YUY2 |
Output frame rate of USB mode | MJPG：3264×2448(15~20 frame ), 2592×1944(20frame), 2048×1536(20frame), 1920×1080(30frame), 1280×720(30frame) |
YUY2（support android OS）：3264×2448(2frame), 2592×1944(3frame), 640×480(30frame) | |
Output frame rate of WIFI 5G wireless | MJPG：3264×2448(15~20frame), 2592×1944(20frame), 2048×1536(20frame), 1920×1080(30frame), 1280×720(30frame) |
Exposure / white balance | Power on auto exposure, white balance |
Time of exposure | 1~2S |
Colorful | 24bits |
Rotation angle of cross arm | Rotate up and down to 270 degrees, left and right to 180 degrees |
USB Cable | USB cable 5m (optional) |
USB wireless network card | Standard configuration : WiFi 5g wireless network card |
Product Installation
Simple Installation
- Wall mounted the aluminium box. inserted the USB wireless internet adapter into the OPS PC of the interactive display or interactive whiteboard.
- Installed the ITA Whiteboard Software.
Inside the box, the visualizer will automatically charging and connecting with PC by cable.Take out from the wall mounted box, it can automatically connect with interactive flat panel under running ITA TOUCH whiteboard software.
Product Application
The intelligent interactive Visualizer can be used in the conference platform and classroom.
The wireless intelligent interactive scanner to be used for classroom teaching
The teacher was using this HD visualizer to shoot the keys of the piano for teaching, which offer the teacher easy getting courseware, and a vivid example for students.
Wireless intelligent scanner offer students a vivid practical courses
The students were using the wireless document camera visualizer in person and get an easy case experience.
Equipment Product Option
Company Introduction
Fair & Teams
Each year ITA TOUCH company will take part in some international fairs and organize teams tour
ITA TOUCH people keep the great activity to service our clients by team management and exhibition, no matter online or face to face communication.
ITA TOUCH people keep the great activity to service our clients by team management and exhibition, no matter online or face to face communication.
Shenzhen ITA Touch Technology Co., Ltd. focus on the interactive high-tech products- Interactive Touchscreen, Commerce Digital Display, interactive whiteboard, Interactive Table, Digital Kiosk Totem, Graphic Tablet, 3D hologram Fan … etc. With the setting up of the scientific management system in production, sales, technical supporting, and service organization, ITA’s products passed the ISO, CE, FCC, ROHS BIS certification.
ITA Touch own the R&D team with over a dozen of employees, who are masters or higher, and a large-scale plant with automatically production lines. OEM /ODM & Customized products offering with high quality and moderate cost, which have been appreciated from over 30 countries and regions in the world.
ITA Touch people are full of confidence and earnestly hope to have your joint to enlarge our business, establish the health and long business relationship in the near feature. Please feel free contact us for any order discussion!
ITA Touch own the R&D team with over a dozen of employees, who are masters or higher, and a large-scale plant with automatically production lines. OEM /ODM & Customized products offering with high quality and moderate cost, which have been appreciated from over 30 countries and regions in the world.
ITA Touch people are full of confidence and earnestly hope to have your joint to enlarge our business, establish the health and long business relationship in the near feature. Please feel free contact us for any order discussion!
