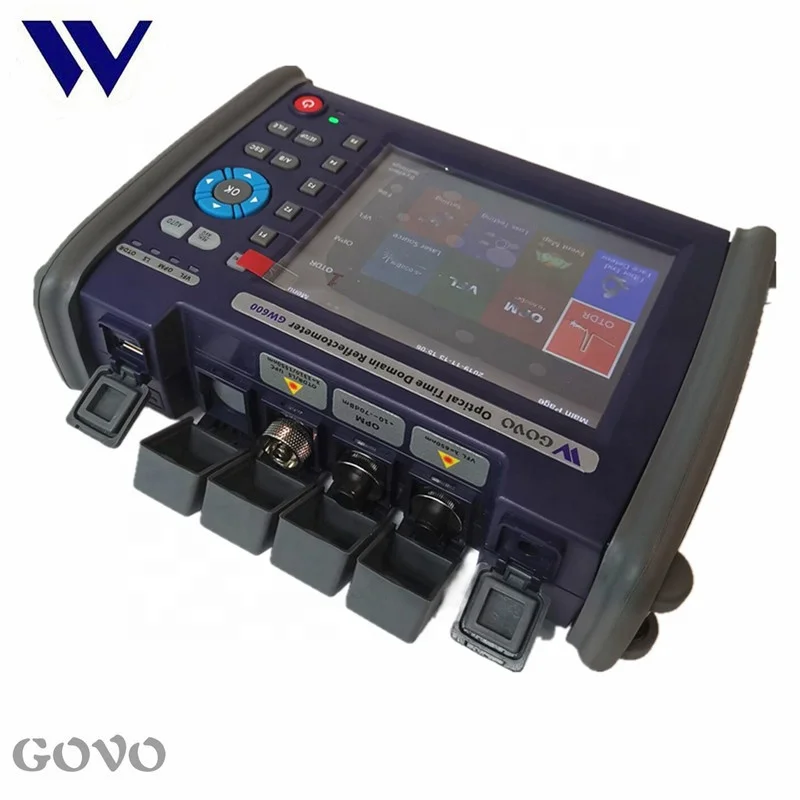

GOVO GW600 5.6 inch All-in-one FTTx PON OTDR price 1310/1550/1625nm 35/33/32dB OTDR OPM LS VFL EVENT MAP

model:GW600-S3B-35-SA

GW600 OTDR event map.3



GW600 OTDR.3



Product Description

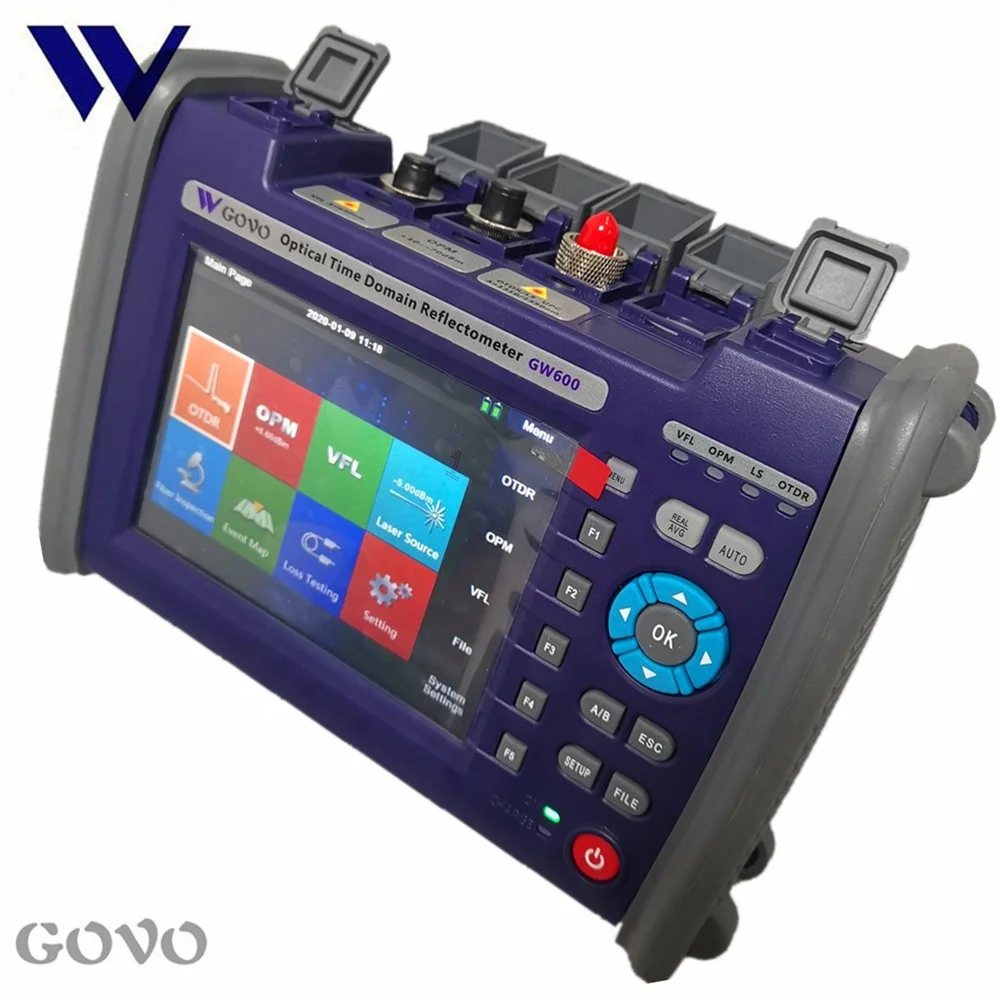

GW600 series tester is an ALL-IN--ONE optical fiber measuring instrument developed by Shanghai Govo Telecom Co., Ltd, to solve the measurement of various parameters of optical fiber. This OTDR is also intergated with built-in functions, OPM(optic power meter),LS (Laser source),VFL (Visual Fault Locator) and Event map in the basic kit , function of Fiber Inspection as Optional, working with  designated  Fiber  Inspection Probe.

ONE MACHINE ,TESTING ALL.

 GW600 OTDR NEW.1

Features
  • Compact, lightweight, powerful
  • Dynamic range :up to 42dB in single mode and 26dB in multimode
  •  Testing distance up to 190 km@1550nm
  •  5.6 inch Touchscreen,TFT
  •  Dual battery, longer standby time and fast charging

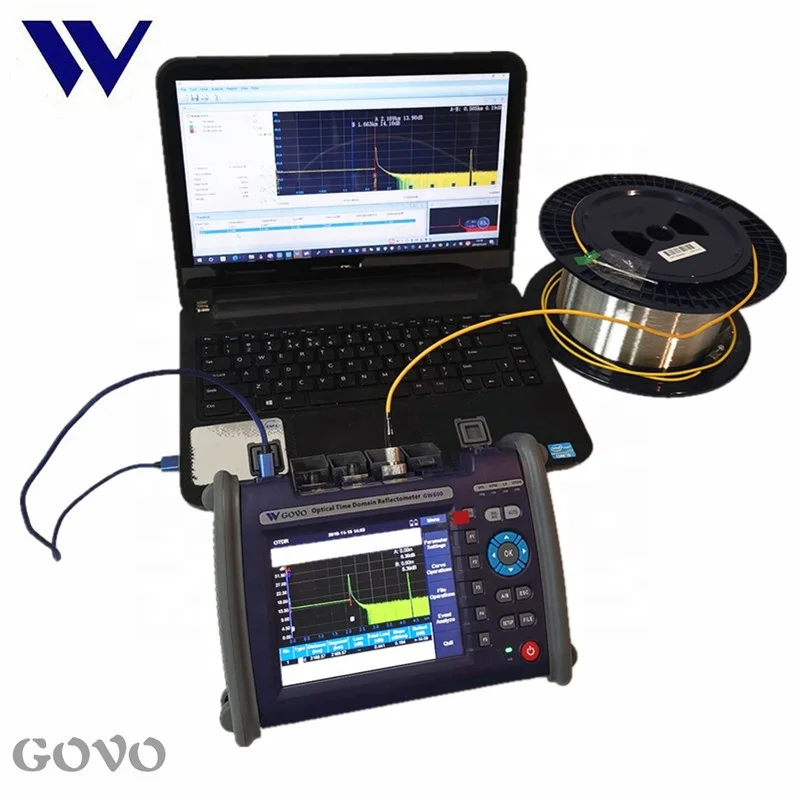

  •  Graphics data reports can be saved in SD card, transferred to a computer and ready for printing.
  •  Minimum event dead zone 0.8m
  •  Minimum attenuation dead zone 4m
  •  Maximum sampling resolution: 5cm
  •  one button test 1310 1550nm dual wavelength
  •   Various OTDR modules available for SM, MM, PON network,access network test
  •  OTDR integrated with OPM, LS, VFL and Event map functions ready, Fiber Inspection as optional.

GW600 OTDR.9GW600 OTDR.5

Specification



Technical Specifications:

Display

5.6 inch Touchscreen,TFT

Interfaces

USB (Type A)MINI USB,SD card

Batteries

Single battery capacity:7.4V/2500mAh; x2 PCS

Power supply

AC/DC adapter; 100~240v, 50/60Hz

Wavelengths

(max. 4 wavelengths)

Single mode

Multimode



1310nm 1490nm 1550nm 1625nm 1650nm

850nm 1300nm

Dynamic Range(dB)

26~42dB

20/26dB

Event Dead Zone

0.8m

1.25m

Attenuation Dead Zone

4m

5m

Minimum sampling resolution

0.05m

Maximum sampling point

256,000

linearity

≤0.05dB/dB

Loss resolution

0.001dB

Distance resolution

0.01m

Distance accuracy

±(1m+Range×3×10-5+Sampling resolution) (Regardless of the refractive index)

Memory

>100000

Interface

USB(Type A),MINI USB,SD card

Operating temperature

-10℃~+50℃

Storage temperature

-20℃~+70℃

Relative Humidity

≤95% (No condensation)

Size (Hx Wx D)

215mm×155mm×68mm (8.46 in x 6.10 in x 2.68 in)

Weight

1.1kg (including battery)

VFL module

Laser: 650nm±10nm ; default :10mW  Laser safety: Class III B

OPM module

Optic power meter -70~+10dBm (default);

Optic power meter -50~+26dBm (optional)

Laser source

Output:-5dBm±2dB,Frequency:CW/270Hz/1KHz/2KHz

GPS/GNSS

Optional

WIFI/Bluetooth

Optional

IOT module

 Optional

 GW600 OTDR.11

GW600 OTDR event map.2

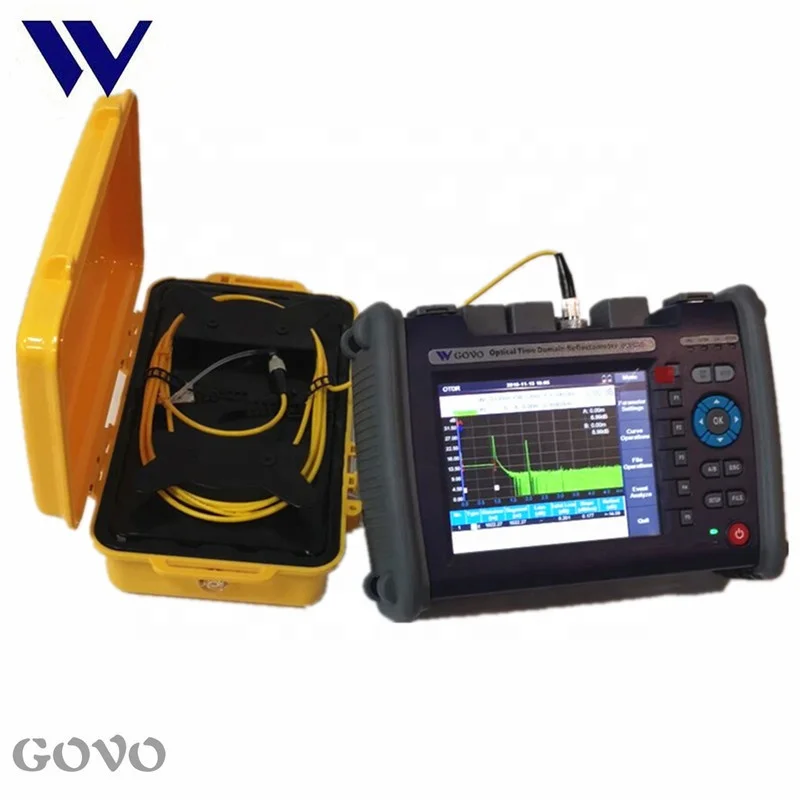

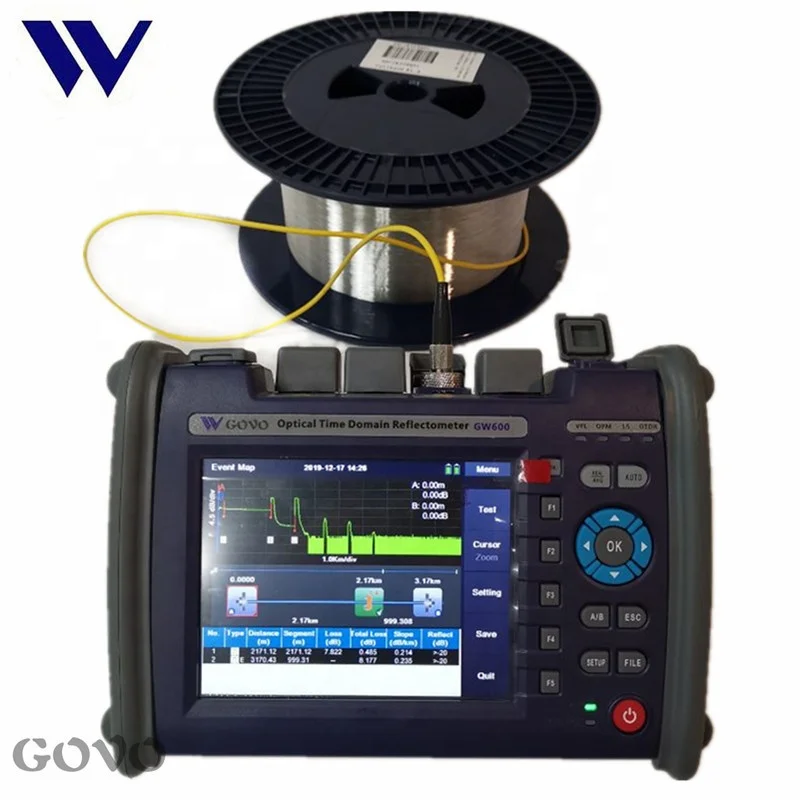

 EVENT MAP VIEW+ OTDR TRACE VIEW

Ordering information:

GW600 ordering



Standard Package



GW600 OTDR basic kit includes:

1. main body with built-in battery

2. AC/DC adapter

3. Power cord

4. Mini USB cable

5. Touch pen

6. SC Adapter

7. Soft Carrying bag

8. Shoulder belt

9. Wrist strap

10. User manual

11.Calibration Certificate
