Bosslyn UL перечислен NEMA 5 15 Plug американский стандартный мощность 15A 125 в 2 полюса 3 провода заземления
- Категория: >>>
- Поставщик: Guangzhou Bosslyn Electric Co. Ltd.
Сохранить в закладки 62437612980:
Описание и отзывы
Характеристики
Nema AC 15A/125V American Standard Plug:
Product Description
Description of NEMA B515P American standard Plug:
| Model No. / Part Number | B515P |
| Manufacturer | Guangzhou Bosslyn Electric Co.,Ltd |
| Materials | Dupont Nylon and full copper |
| Certifications | UL/CSA/CUL |
| Rated Voltage | 125V |
| Rated Current | 15-Ampere |
| Wiring&Connecting | 2-Pole; 3-Wire |
| Terminal Clamp Material: | 0 .08"(2)steel-nickel plated |
| Terminal Screw Material | #10-32 Brass(white finish on neutral screw when use |
| Ground Screw Material: | #10-32 Brass(green finish)Multi-device |
| Dielectric Voltage Withstand: | 18000V minimum |
| Current Interrupting: | Cerfied for rurrent interrupt at full rate current |
| Temperature Resitant | Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75C |
| Terminal Identification | 14/3, 12/3, 10/3 AWG SIZE CONDUCTORS |
| Terminal Identification: | Terminals identified in accordance with UL498(X,Y,Z,White,Green) |
| Operating Temperatures | Maximum Continuous 75C Minimum-40C(w/o impact) |
Electrical Specifications
Grounding: Grounding
Amperage: 15 Amp
Voltage: 125 Volt
Pole: 2
Wire:3
Temperature Rise: Max 30C after 250 Cycles OL 200 percent rated current
Dielectric Voltage: With stands 2000V per UL498
Current Interrupting: Certified for current interrupting at full rated current
Environmental Specifications
Flammability: Rated V-2 per UL94
Operating Temperature: -40C to 60C
Material Specifications
Body Material: Super Tough Nylon
Back Cover: Thermoplastic
Wire Module: Nylon
Cord-Clamp: Nylon
Clamp Insert: Nylon
Blades/Contacts: Solid Brass
Terminal Screws: Brass
Assembly Screws: Steel, Zinc Plated
Color: Black-White
Mechanical Specifications
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.: 18-10 AWG
Product ID: Ratings and NEMA I.D. permanently marked on device
Cord Range: .245 - .700
Standards and Certifications
UL

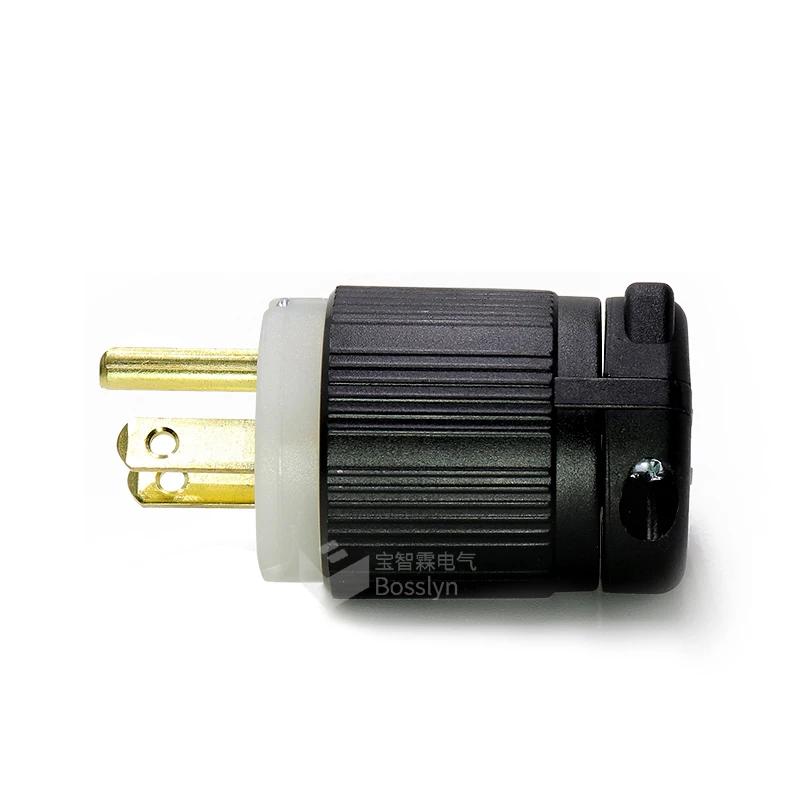

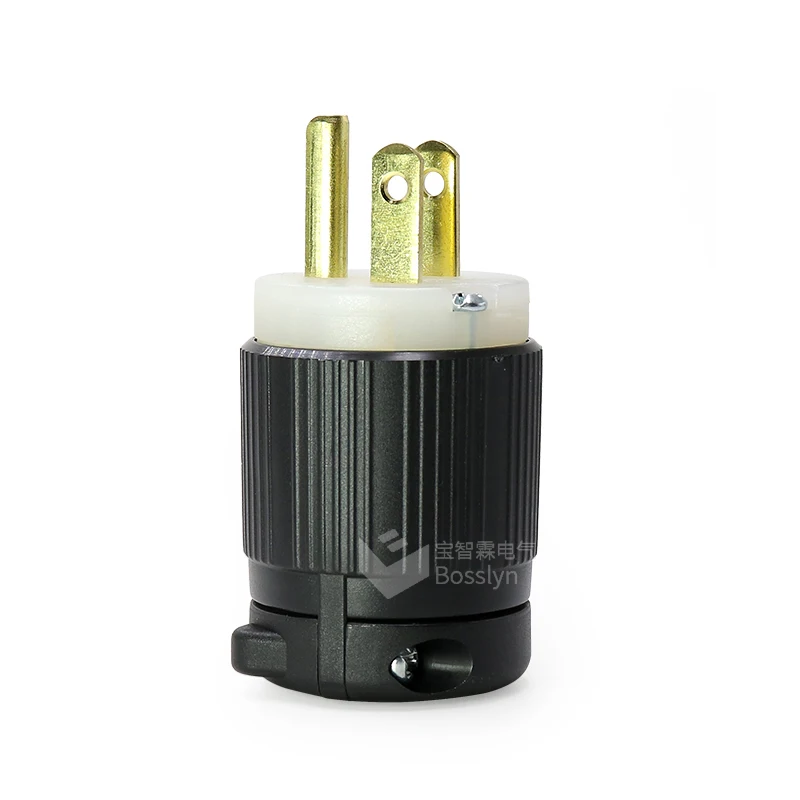

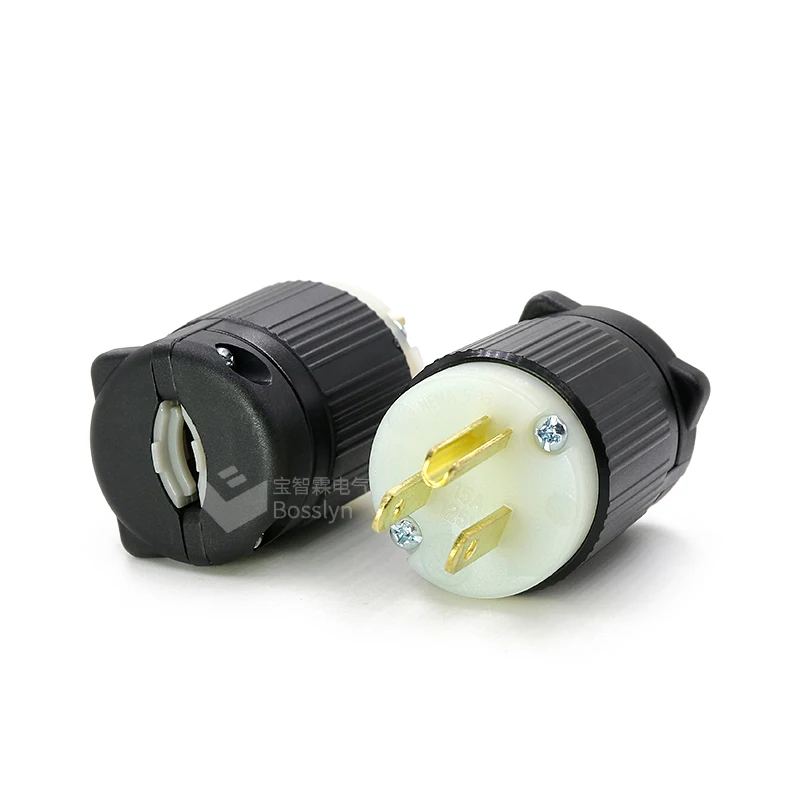

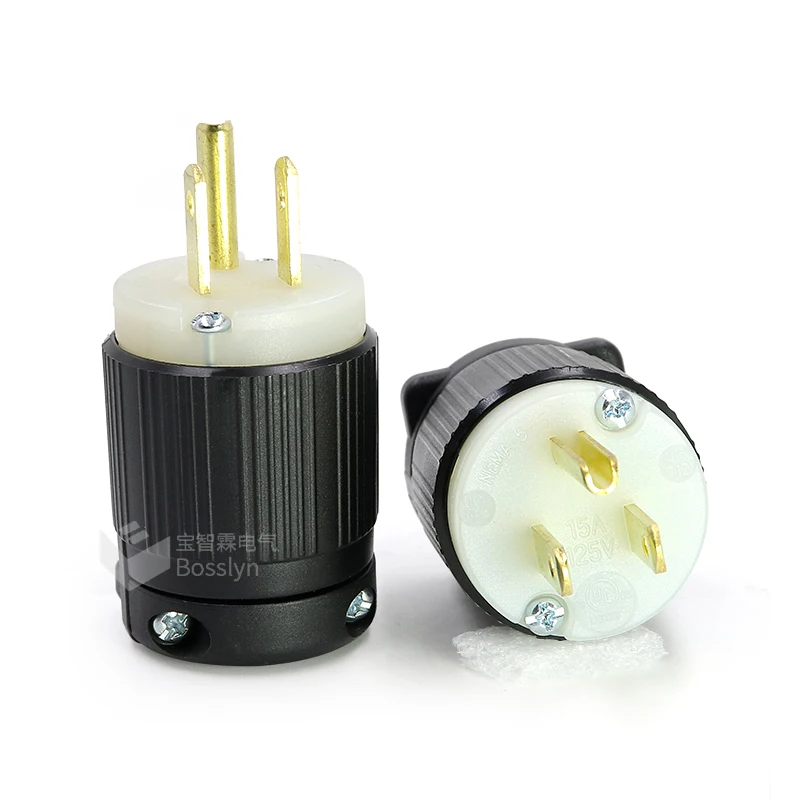

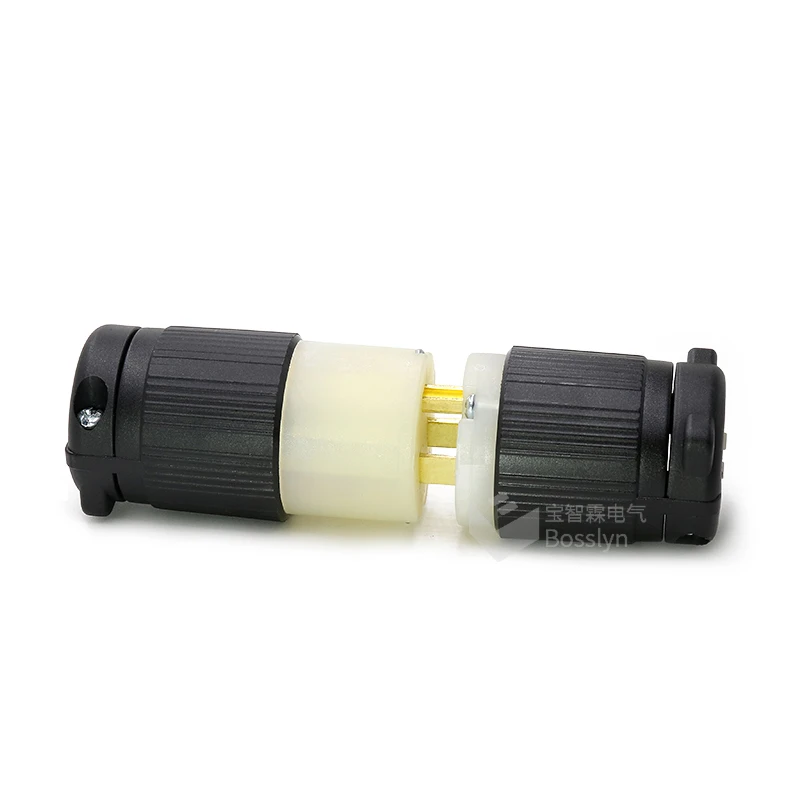

Pictures of NEMA B515P American standard plug:
Why Choose Us?
1. 7 years experience, has strong and professional R&D team;
2. 7 professional sales online to provide best solutions;
3. OEM/ODM is available;
4. 50 workers,boast a monthly capacity of 20,000pieces;
5. Strict quality control, defective rate within 0.08%.
Our Services
1.Logo printing:Universal travel adaptor provide excellent printing so that you can have the logo or something you like on the surface of the adaptor.
2.Color design: Different color are available. universal travel adaptor,it is better to just buy the best item for the value that it represents to you and your lifestyle especially favored by lady users.
3.Package design: Our Normal pack Of Universal Adapter Is PP Bag + Small White Box .
Gift Box , nylon Bag , Blister Card , universal travel adaptor OEM Packages Are Available!
Packaging & Shipping
Packaging Details:
- Gifts box, white box, nylon bag, blister and pouch package. And OEM is available.
Company Information
Production Flow:
Bosslyn Eletric Factory Is a professional manufacturer and designer
of Industrial Plug&Socket,Security Product .
There are 15 top salespersons in our company, working 13 hours online with very fast reply.
We have 7-year OEM experience!
Our Energy :
We have 10 salespersons working from Chinese time 9:00AM to 18:30PM (7.5hours/day),and another 5 salespersons' working time is from 19:30PM to 24:00PM(4.5hours/day).
Our worker welfare :
1.We buy 5 insurance for each worker,including :Pension insurance, Medical insurance, Unemployment insurance, Industrial injury insurance and Maternity insurance, and Housing Provident Fund.
2.One month has 1time traveling,1time dinner party.One year has13-month
salary and Year-end awards.
3.We have 4 production lines,and each one have one air conditioner.
4.Two workers live in one room with air conditioner.
We not just a working factory !!!
Pay more attention to our workers same as to our customer!
Bosslyn,your choice!
Contact Me!
Похожие товары
Производитель жемчужин натрия 99% Naoh 98%, каустическая сода, цены на мыло
490,00 $

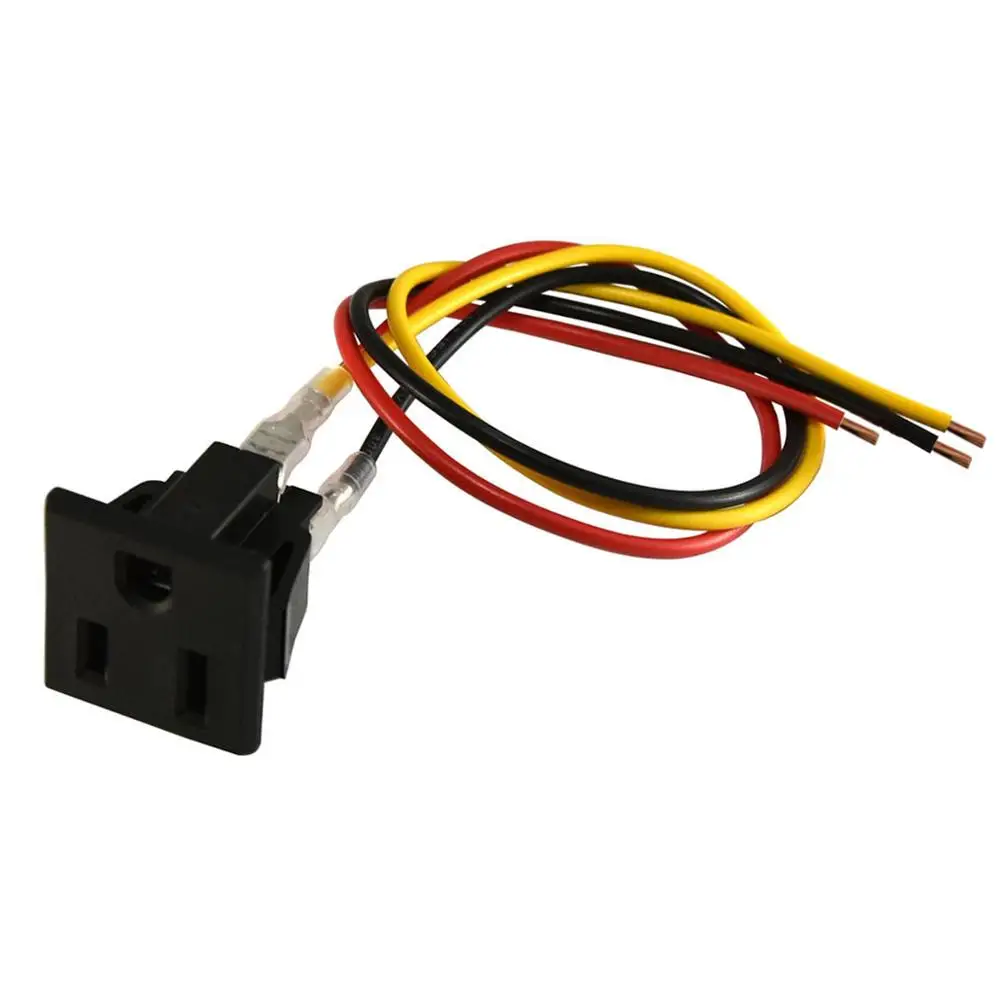

US 15A 125V AC 3-контактный разъем питания, розетка, розетка питания с 3 шт. проводки

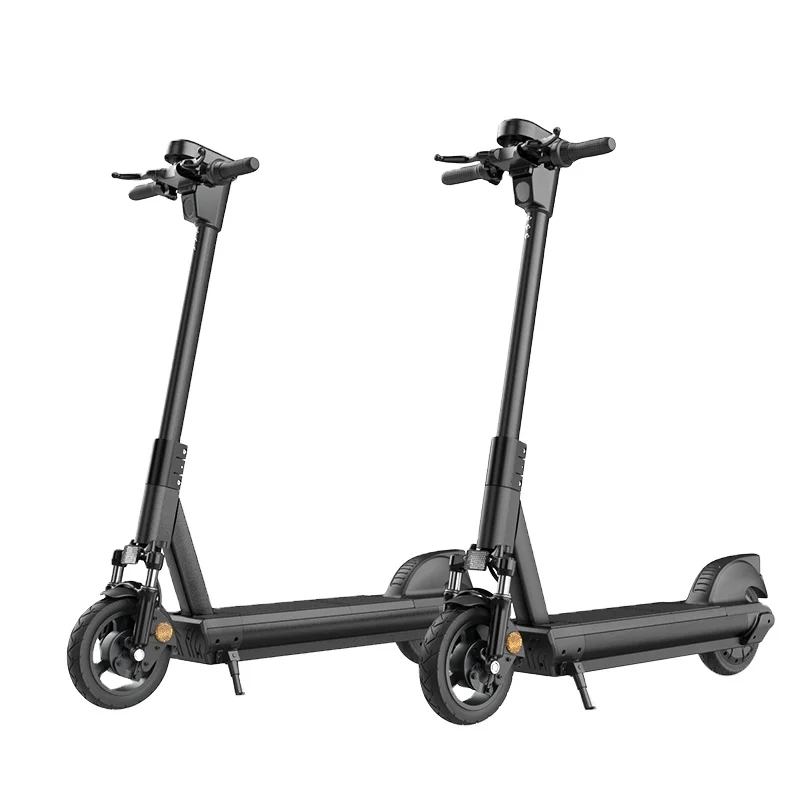

Электрический скутер Escooter 36 В 18,2 Ач, Европейский склад, универсальная батарея для IOT, диапазон 70 км, для унисекс
550,00 $

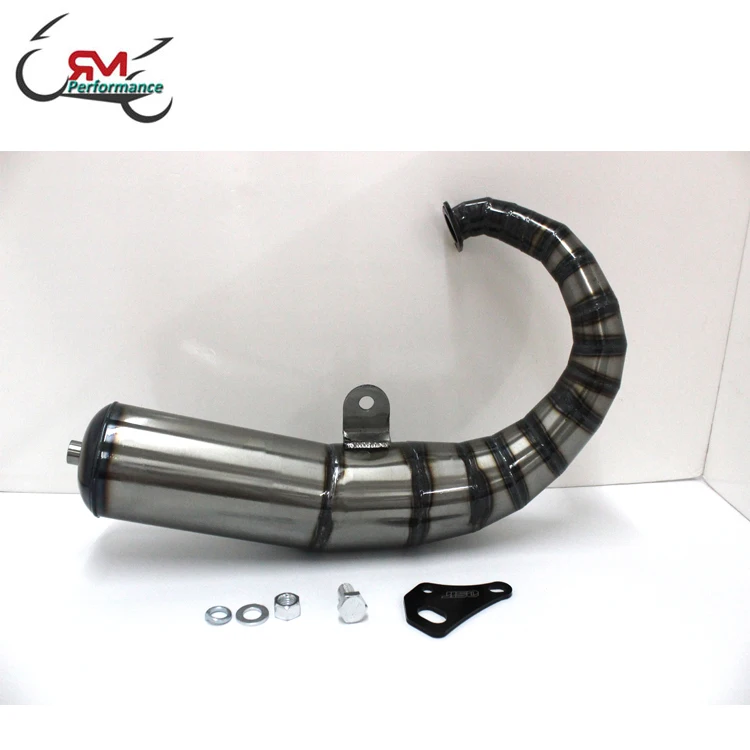

Выхлопная труба JISO DIO50 RRGS, идеальный гоночный глушитель, обновленный глушитель Dio 50, запчасти для скутера Honda BWSP DIO AF18 AF25 Racing
85,00 $ - 96,00 $

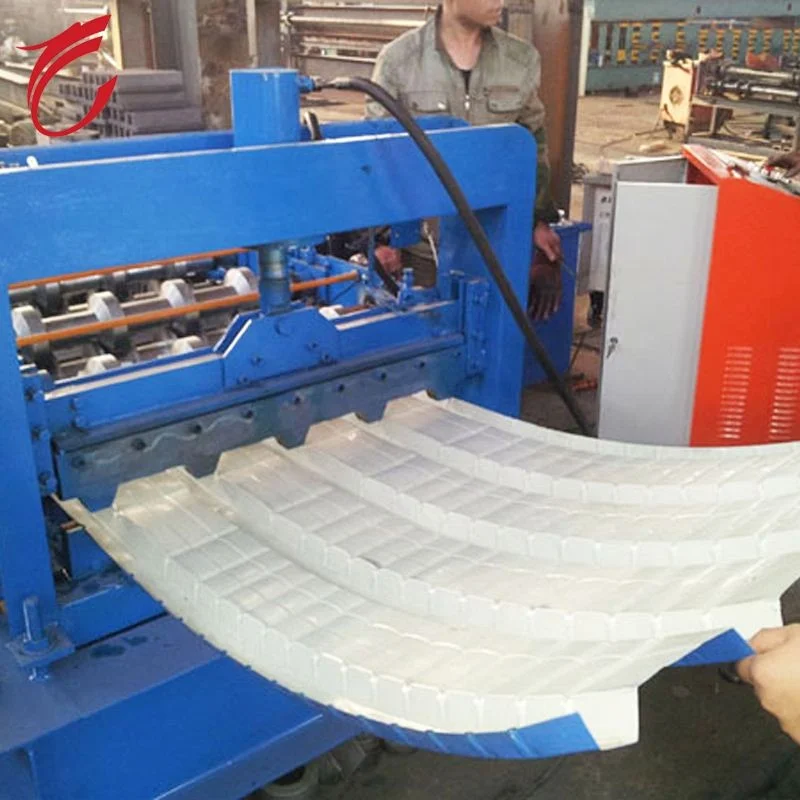

Машина для формовки цветных кровельных стальных листов гофре
