Вибрирующий экран абразивная шлифовальная машина чаша вибрационная полировальная с U образной формой
- Категория: >>>
- Поставщик: Zhejiang Humo Polishing Grinder Manufacture Co. Ltd.
Сохранить в закладки 62437673218:
Описание и отзывы
Характеристики
Specifications:
Vibratory Metal Parts Glazing Machine
1. CE, ISO9001 certificated
2. High quality with best price
3. Metal parts finishing
Function:
Humo Vibratory finishing machines are suitable for deburring, descaling, edge radiusing, chamfering, polishing, surface
improvement, pre plating finishing all types of components including fully machined parts in metals & plastics
Vibratory Metal Parts Glazing Machine
1. CE, ISO9001 certificated
2. High quality with best price
3. Metal parts finishing
Function:
Humo Vibratory finishing machines are suitable for deburring, descaling, edge radiusing, chamfering, polishing, surface
improvement, pre plating finishing all types of components including fully machined parts in metals & plastics
Structure:

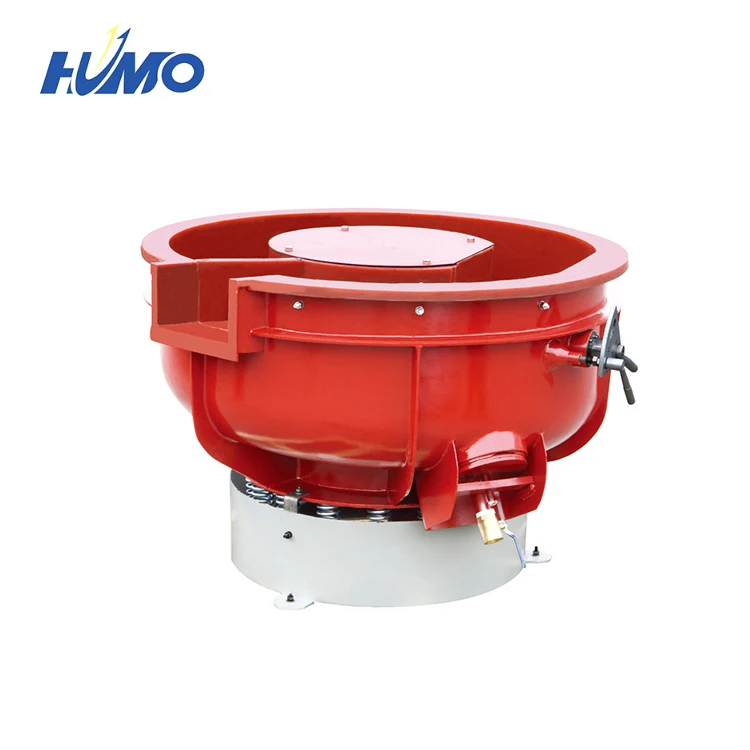

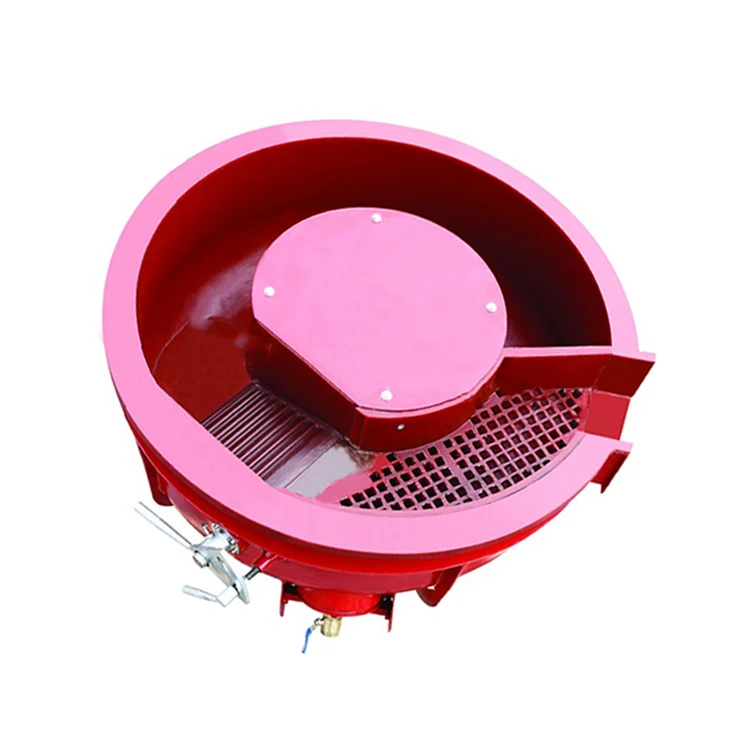

Humo Vibratory finishing machine is composed of inertial vibrator, vessel, electrical cabinet and basement. 1.Inertial
vibrator: This is the vibrating source of the machine; it is composed Of vibratory motor, springs and eccentric blocks. 2.Vessel:
The vessel is welded of annular steel plate. It is lined with high quality wearable Polyurethane, to weaken the noise and the bump of workpieces on vessel. (For VBA series, there is a separator on the vessel to separate the workpieces from the stones. )
3.Electrical cabinet: Operate the machine by buttons on the control panel. 4.Basement: It is weld of steel, and it has springs to hold the vessel.
vibrator: This is the vibrating source of the machine; it is composed Of vibratory motor, springs and eccentric blocks. 2.Vessel:
The vessel is welded of annular steel plate. It is lined with high quality wearable Polyurethane, to weaken the noise and the bump of workpieces on vessel. (For VBA series, there is a separator on the vessel to separate the workpieces from the stones. )
3.Electrical cabinet: Operate the machine by buttons on the control panel. 4.Basement: It is weld of steel, and it has springs to hold the vessel.
Working Principle

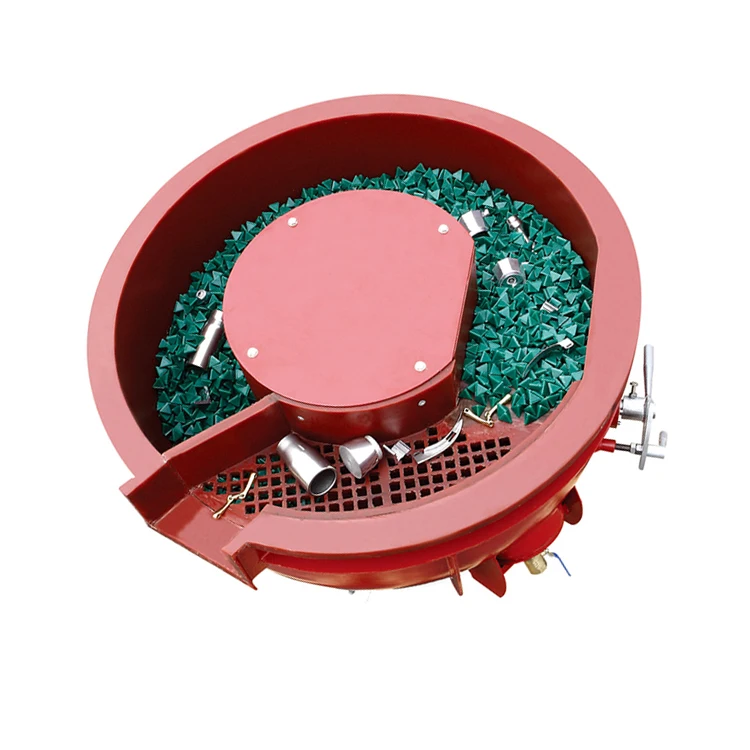

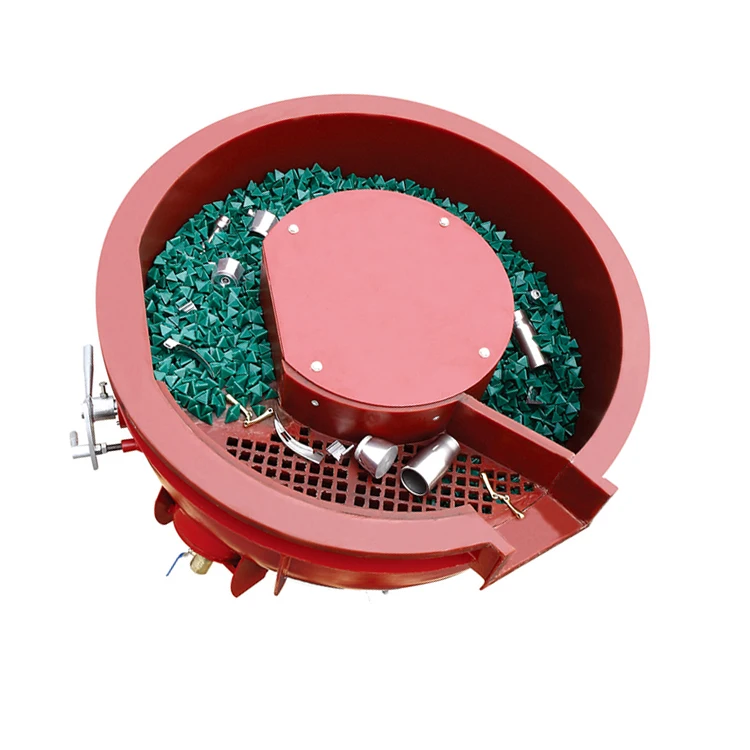

Humo Vibratory Finishing Machine for Metal Working has a ring chamber to hold abrasives (stones) and workpieces.
When the machine is working, it makes three-D high frequency vibration. The grinding stones and the workpieces are rolling spirally forward and they are grinding each other during the rolling. This makes the workpieces de-burred, chamfered, polished and clean. To replace the traditional cloth-wheel polishing, the Vibratory Finishing Machine for Metal Working can save a lot of spending on manpower, and lower the cost of production. It can also be matched up with mass production, improve and stabilize the quality of the products.
Packing details.
When the machine is working, it makes three-D high frequency vibration. The grinding stones and the workpieces are rolling spirally forward and they are grinding each other during the rolling. This makes the workpieces de-burred, chamfered, polished and clean. To replace the traditional cloth-wheel polishing, the Vibratory Finishing Machine for Metal Working can save a lot of spending on manpower, and lower the cost of production. It can also be matched up with mass production, improve and stabilize the quality of the products.
Packing details.
Humo Vibratory Finishing Machine is firmly packed in a plywood case in a whole. And the machine will be wrapped
with thin films to protect the outside paint from scraping.
Technical Data:
with thin films to protect the outside paint from scraping.
Technical Data:
Model | LZG(B)100 | LZG(B)150 | LZG(B)200 | LZG(B)300 | LZG(B)400 | LZG(B)600 |
Total volume(L) | 100 | 150 | 200 | 270 | 480 | 660 |
Max overall dimension(mm) | 1080 | 1170 | 1200 | 1370 | 1430 | 1860 |
Motor installation tube(mm) | φ460 | φ460 | φ530 | φ630 | φ630 | φ900 |
Process bowl width(mm) | φ220 | φ260 | φ252 | φ275 | φ330 | φ390 |
Unload width(mm) | 250 | 210 | 250 | 320 | 380 | 470 |
Machine height(mm) | 980 | 860 | 940 | 960 | 1270 | 1140 |
Unload height(kw) | 800 | 710 | 770 | 760 | 1090 | 925 |
Media unload height(kg) | 470 | 440 | 360 | 290 | 570 | 400 |
Motor(kw) | 1.5/2.2 | 2.2 | 3.0 | 3.7/5.0 | 5.0 | 5.5/7.5 |
Weight(kg) | 280 | 320 | 460 | 650 | 780 | 1180 |
FAQ
Our laboratory services are available to you at no cost. Mass Finishing and determination of Process Capability allows you to use the right media to ensure consistent production capability and built-in reproducibility of your manufacturing processes. We will work with you to determine the best media and the best processes for your parts. This step can result in:
* Reduced Cycle Times
* Improved RMS Finishes
* Reduced Finishing Costs
* Access to Latest Technology
* R & D for Special Process Media
Mass Finishing describes a mechanical process where large amounts of parts are economically processed to achieve one or several surface improvement functions. These surface improvement functions include:
* Cleaning
* Deburring
* Surface refinement
* Inhibiting
* Drying
These functions are not independent of each other. It is common to have several or all of these functions take place in a single mass finishing process.
Process Capability is the measured, built-in reproducibility of the product turned out by the process. Such a determination is made using statistical data, not wishful thinking. Statistically determined limits are compared to specification limits to decide if a process can consistently produce acceptable product. Process capability is best established through closely monitored testing and recording of data over a set period of actually production.
* Reduced Cycle Times
* Improved RMS Finishes
* Reduced Finishing Costs
* Access to Latest Technology
* R & D for Special Process Media
Mass Finishing describes a mechanical process where large amounts of parts are economically processed to achieve one or several surface improvement functions. These surface improvement functions include:
* Cleaning
* Deburring
* Surface refinement
* Inhibiting
* Drying
These functions are not independent of each other. It is common to have several or all of these functions take place in a single mass finishing process.
Process Capability is the measured, built-in reproducibility of the product turned out by the process. Such a determination is made using statistical data, not wishful thinking. Statistically determined limits are compared to specification limits to decide if a process can consistently produce acceptable product. Process capability is best established through closely monitored testing and recording of data over a set period of actually production.
Похожие товары

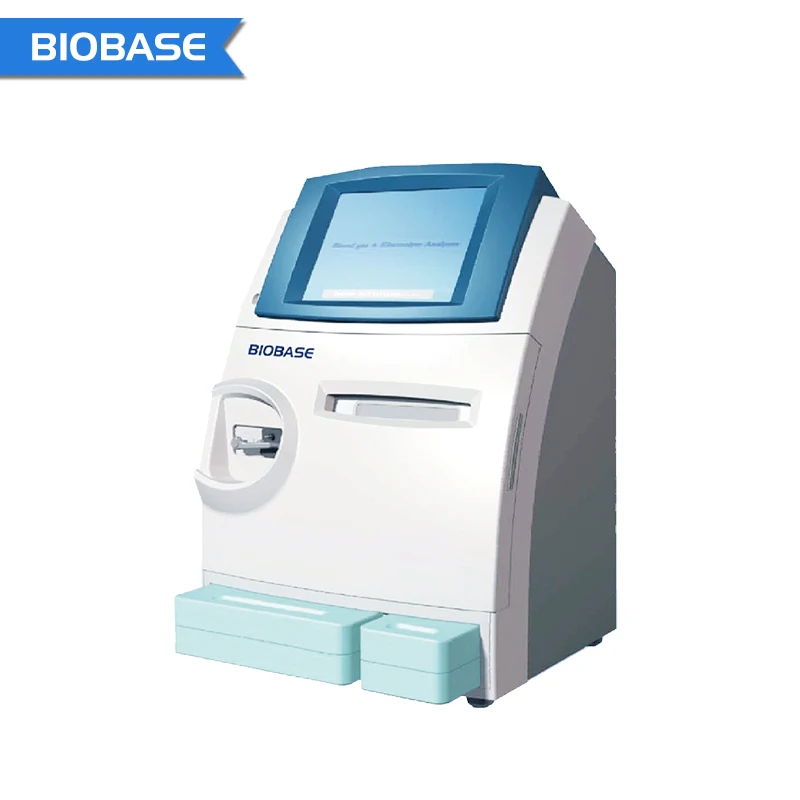

BIOBASE цены по прейскуранту завода-изготовителя электролита газа крови Анализатор Электролитов анализатор электролитов BGE800 серии

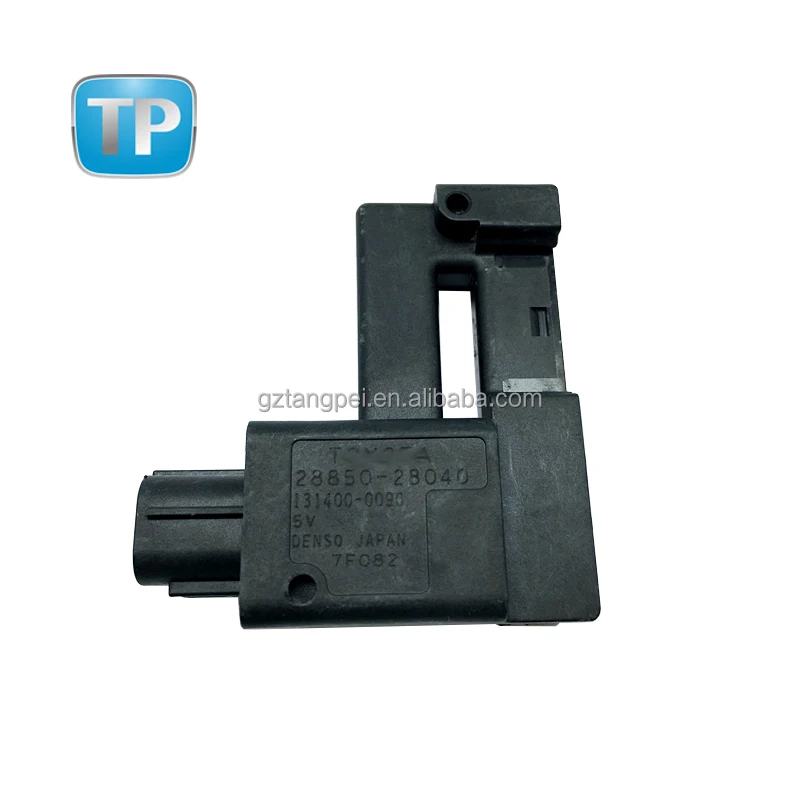

Автомобильный аккумулятор датчик для TOYO-TA COROLLA RAV4 LEX-US GS450H OEM 28850-28040 1341400-0090 2885028040 13414000090
Eastman tritan бутылка для воды с распылителем без БФА
1,70 $ - 1,90 $

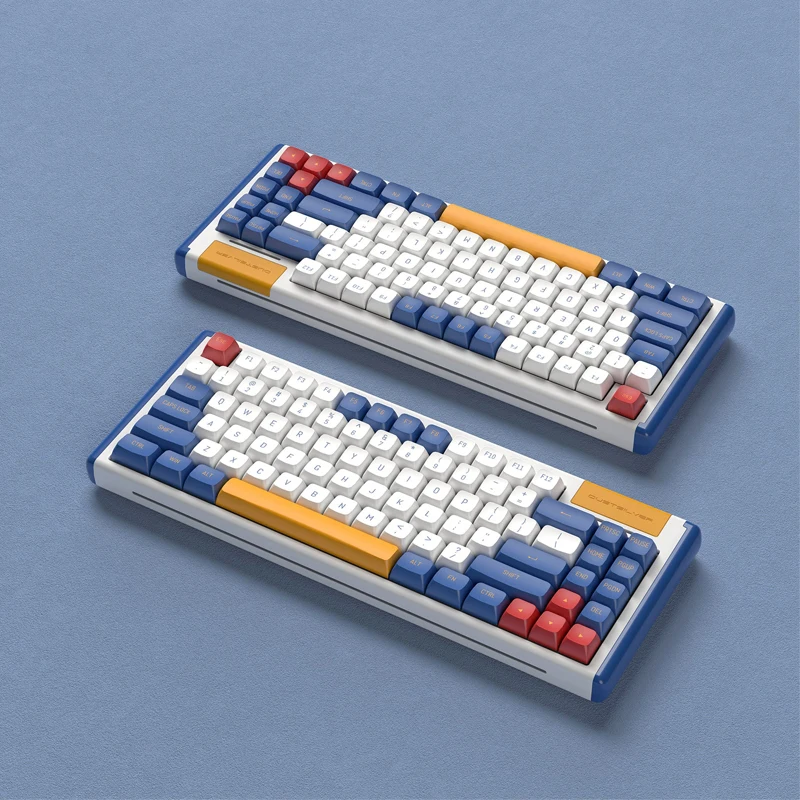

Dustsilver K84 механической клавиатуры беспроводной пульт дистанционного управления Bluetooth цветная (RGB) светодиодная подсветка с возможностью замены во время работы Gamer
40,50 $ - 59,25 $
Трусики-вибраторы для женщин, аниме-сцена, нижнее белье, Вибраторы для мастурбации, секс-игрушка для взрослых, вибрирующие трусики для женщин
2,99 $ - 5,50 $

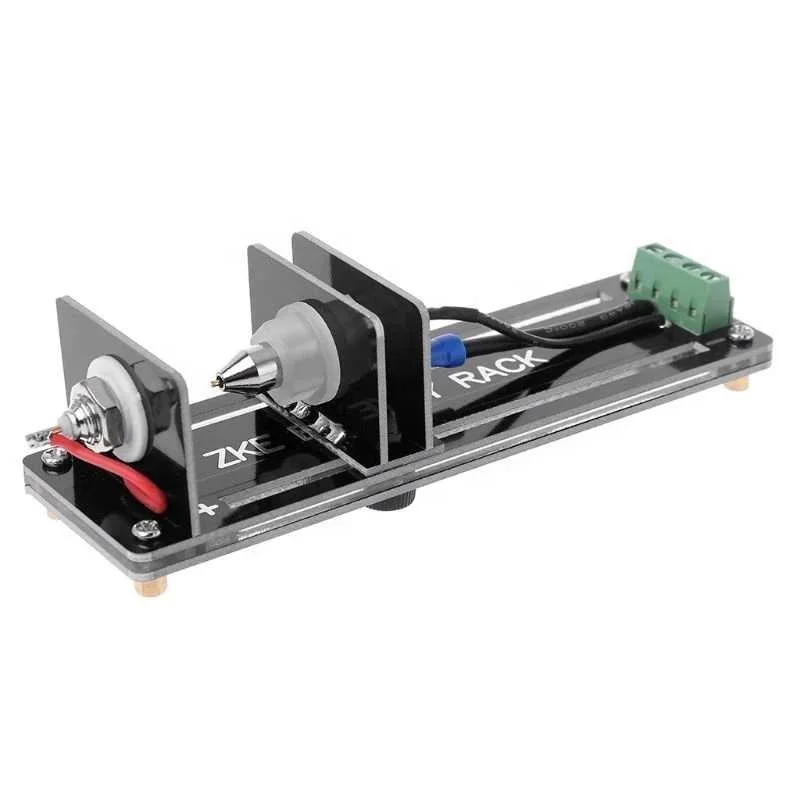

4 провода держатель батареи сопротивления емкостью испытательный стенд для 18650/26650/AAA/зарядное устройство никель-кадмиевых или никель-металл-аккумуляторы таблеточного типа
6,12 $ - 7,64 $

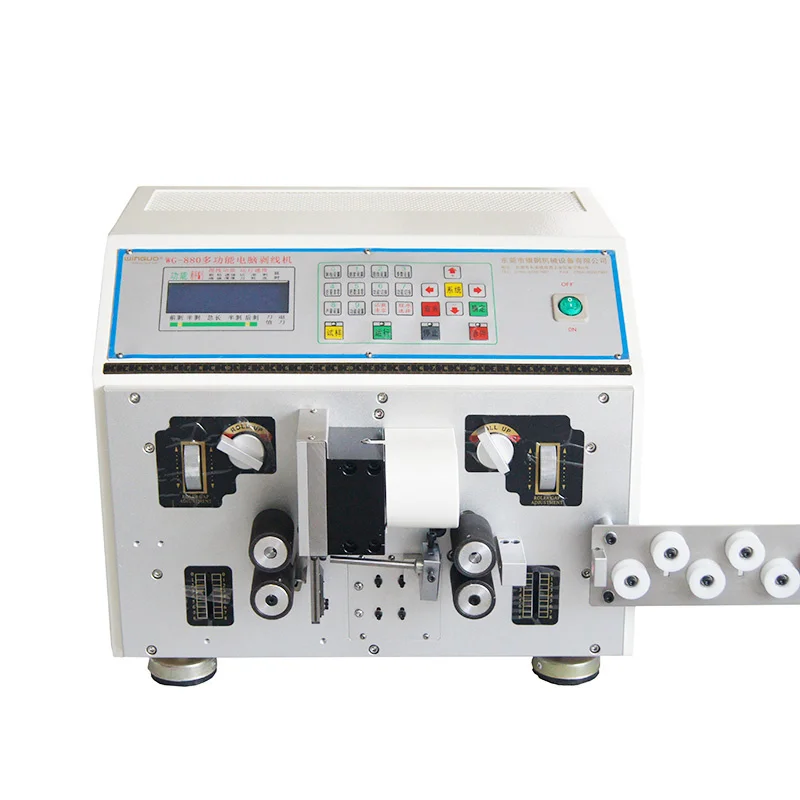

Автоматический компьютерный кабель для резки кабеля инструмент для зачистки набор инструментов для электронная силиконизированное волокно, медный кабель с ПВХ-тефлон 0,1-6sq WG-880
