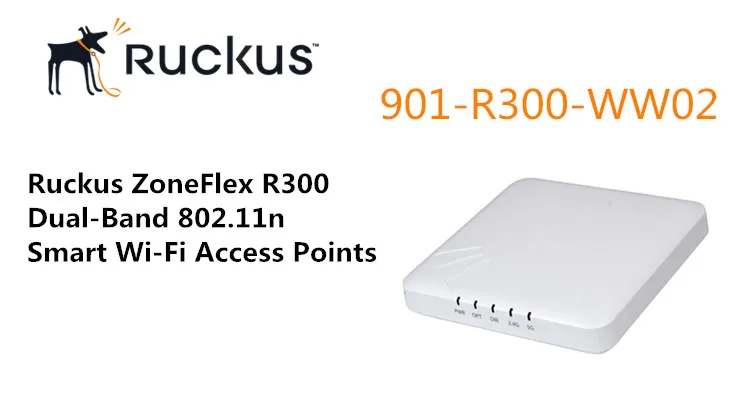

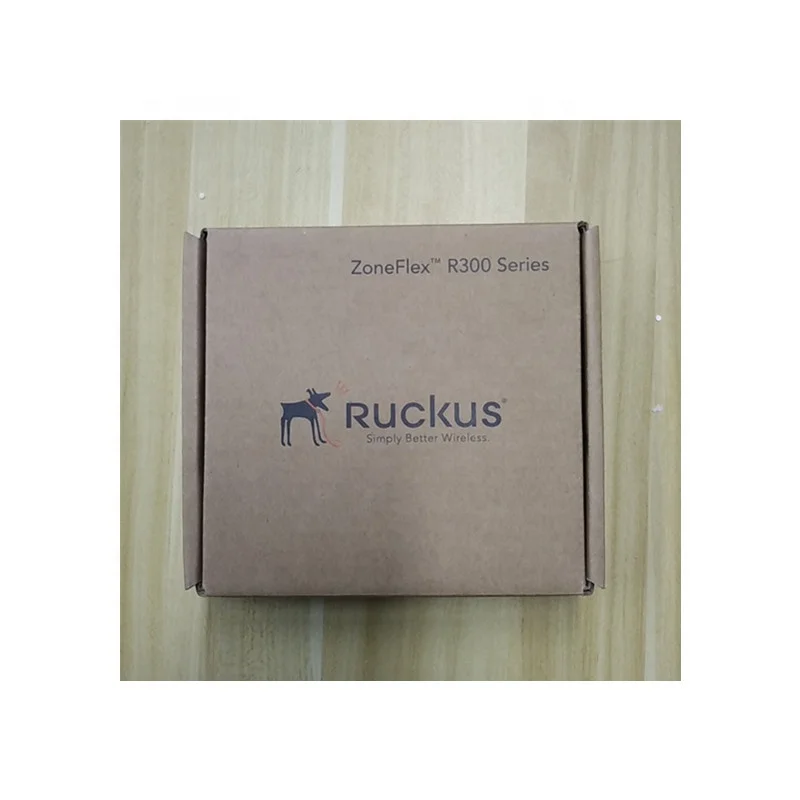

Оригинальный Новый Ruckus ZoneFlex R300 Крытый двухдиапазонный 802.11n умный Wi Fi точка доступа

High Performance, 802.11n Smart Wi-Fi Access Points with Adaptive Antenna Technology

The Ruckus ZoneFlex R300 delivers high-performance and reliable 802.11n wireless networking at the industry’s most affordable price point.

Unlike any other 802.11n wireless solution in its class, the ZoneFlex R300 combines patented adaptive antenna technology and automatic interference mitigation to deliver consistent, predictable performance at extended ranges with up to an additional 4dB of BeamFlex gain on top of the physical antenna gain and up to 10dB of interference mitigation.

Additional performance enhancements to signal gain can be attributed to the chip-based transmit beamforming capability adding 3 dB when associated to a compatible client.

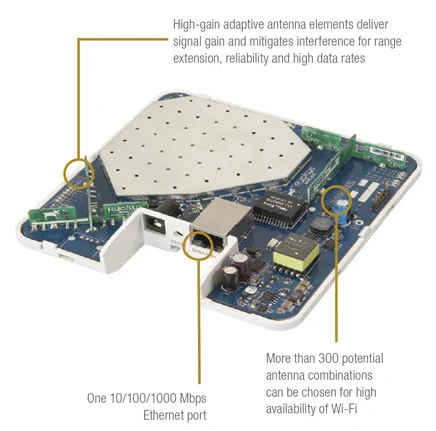

Each ZoneFlex R300 integrates Ruckus-patented BeamFlex, a software-controlled, high gain antenna array that continually forms and directs each 802.11n packet over the best performing signal path. The ZoneFlex R300 automatically selects channels for highest throughput potential using Ruckus ChannelFly dynamic channel management, adapting to environmental changes. Once deployed, enterprises never have to worry about constant site surveys as the environment changes.

Patented BeamFlex Technology Extends Signal Range, Improves Stability of Client Connections

All ZoneFlex R300 Smart Wi-Fi access points integrate a softwarecontrolled smart antenna array that delivers up to an additional 4dB of BeamFlex gain and 10dB of interference mitigation. This allows a 2 to 4x improvement in signal range and a reduction in packet loss from the ability to automatically mitigate interference and avoid obstacles.

Advanced WLAN Applications with Smart/OS

When used with the Ruckus ZoneDirector Smart WLAN controller, each ZoneFlex R300 supports a wide range of value-added applications such as guest networking, Dynamic PSK, hotspot authentication, wireless intrusion detection and many more. With Smart/OS, WLANs can be created and mapped to the same or different APs or VLANs. In a centrally managed configuration, the ZoneFlex R300 works with a wide range of authentication servers including Microsoft’s Active Directory, LDAP, and RADIUS.

Flexible Deployment Options

ZoneFlex R300 APs can be deployed as a standalone AP or as part of a centrally managed wireless LAN using ZoneDirector Smart WLAN controllers. ZoneFlex R300 can be deployed across any L2/ L3 network and can bridge traffic onto the local network, tunnel to a central location using L2TP or PPPoE, or route between the WAN and NAT’ed private subnets. When used with the ZoneDirector, each ZoneFlex R300 is automatically configured through the network making deployment quick and easy.

Complete Local and Remote Management

Each ZoneFlex R300 can be managed as a standalone AP through a Web-based GUI, using SNMP or through the Ruckus FlexMaster Wi-Fi remote management system. Local management can also be performed using the ZoneDirector Smart WLAN controller. FlexMaster is a LINUX-based software platform that uses industrystandard protocols to perform bulk configuration, fault detection, monitoring and a wide range of troubleshooting capabilities over a wire area connection. The ZoneDirector enables local management and control of APs, adding value-added services such as transmit power control, and guest networking.

Best-in-class performance for price

• Two-stream MIMO 2x2:2
• ZoneFlex R300 - Concurrent dual-band support
• 128 unique antenna patterns (64 per band)
• Up to 4dB of signal-to-interference and noise (SINR) improvement and up to 10dB of interference mitigation
• BeamFlex and Transmit beamforming capable
• Capable of supporting over 250 clients per R300 AP
• Novel channel selection approach (ChannelFly) delivering up to 50 percent capacity gain over alternative background scanning approaches

Adaptive antennas and automatic interference mitigation

• Up to 4 times extended range and coverage
• Automatic interference mitigation
• BeamFlex combines adaptive antennas and transmit beamforming

Concurrent support for HD IPTV, VoIP and data

• Support for isochronous, multicast IP video streaming
• Four queues per client station

Differentiated services with Multiple SSIDs

• 27 BSSIDs with unique QoS and security policies
• WPA-PSK (AES), 802.1X support
• Zero-IT and Dynamic PSK
• Captive portal and guest accounts
• RADIUS and Active Directory support

Other Features

• Dual-band concurrent (5GHz/2.4GHz)
• Adaptive antenna technology and advanced RF management
• Up to an additional 4dB BeamFlex gain / 10dB interference mitigation
• Automatic interference mitigation, optimized for high-density environments
• Integrated smart antenna technology
• Standard 802.3af Power over Ethernet (PoE)
• Router mode with NAT and DHCP services
• 2 to 4 times extended range and coverage
• IP multicast video streaming support
• Up to 27 BSSIDs per radio with unique QoS and security policies
• Advanced QoS packet classification and automatic priority for latency-sensitive traffic
• Dynamic, pre-user rate-limiting for hotspot WLANs
• WPA-PSK (AES), 802.1X support for RADIUS and Active Directory**
• Ethernet 802.1x port-based authentication (authenticator and supplicant)
• Zero-IT and Dynamic PSK**
• Admission control/load balancing**
• Bandsteering and airtime fairness
• Captive portal and guest accounts **

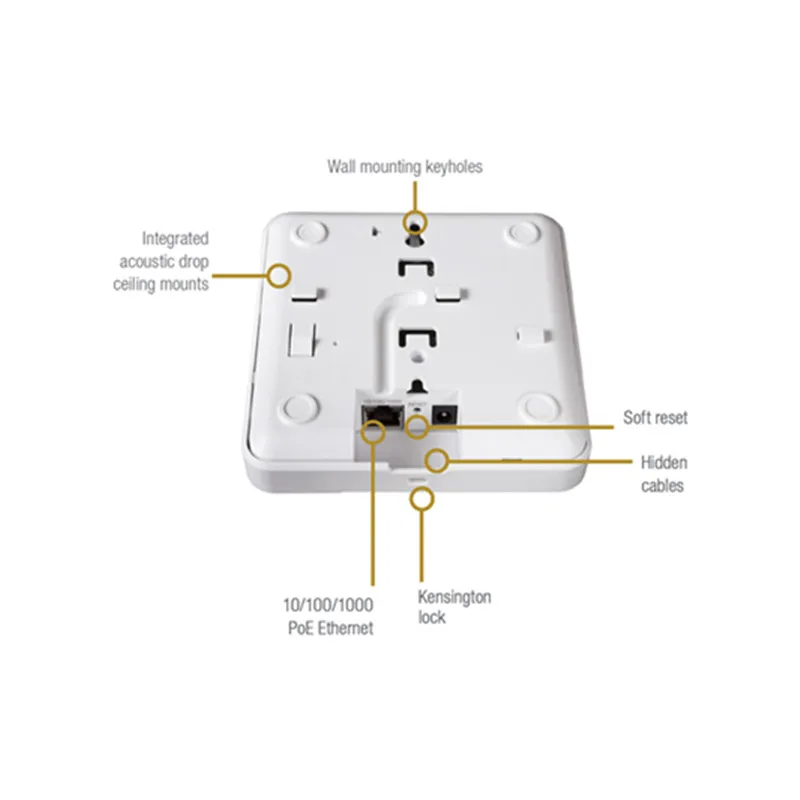

• Wall, desktop or ceiling mountable
• Limited lifetime warranty
